Wall Mounted
AIO Wall Mounted units are slim and sleek. Wall Mounted units can be mounted high or low with a factory supplied bracket, making installation quick and simple. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. AIO Wall Mounted units are available with an optional ERV module. Special adapters enable the unit to be installed perpendicular to an outside wall.
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Electronically controlled air louver
- Always-on back-lit LED dims after 15 seconds of inactivity
- Auto-restart
- Washable filters
Options
- 900/1,800W electric heat
- ERV Module
- 115V or 230V
- Hardwire or LCDI cord
- R32
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high, and auto
- Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)
Mounting

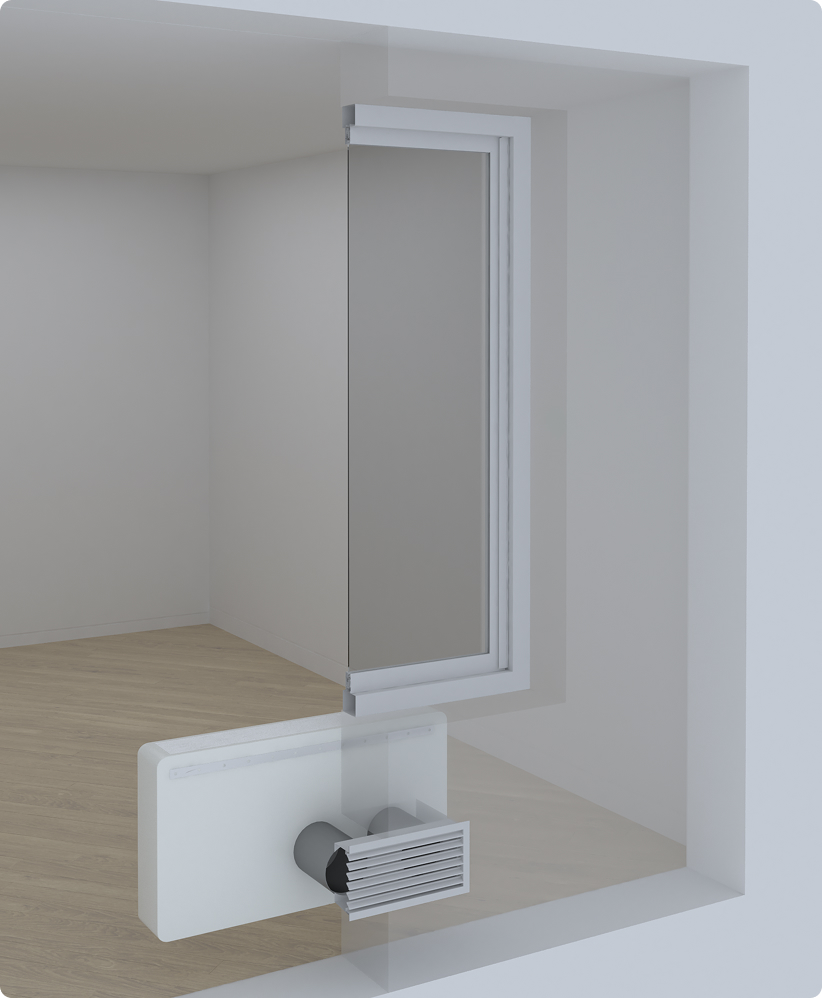

- High wall

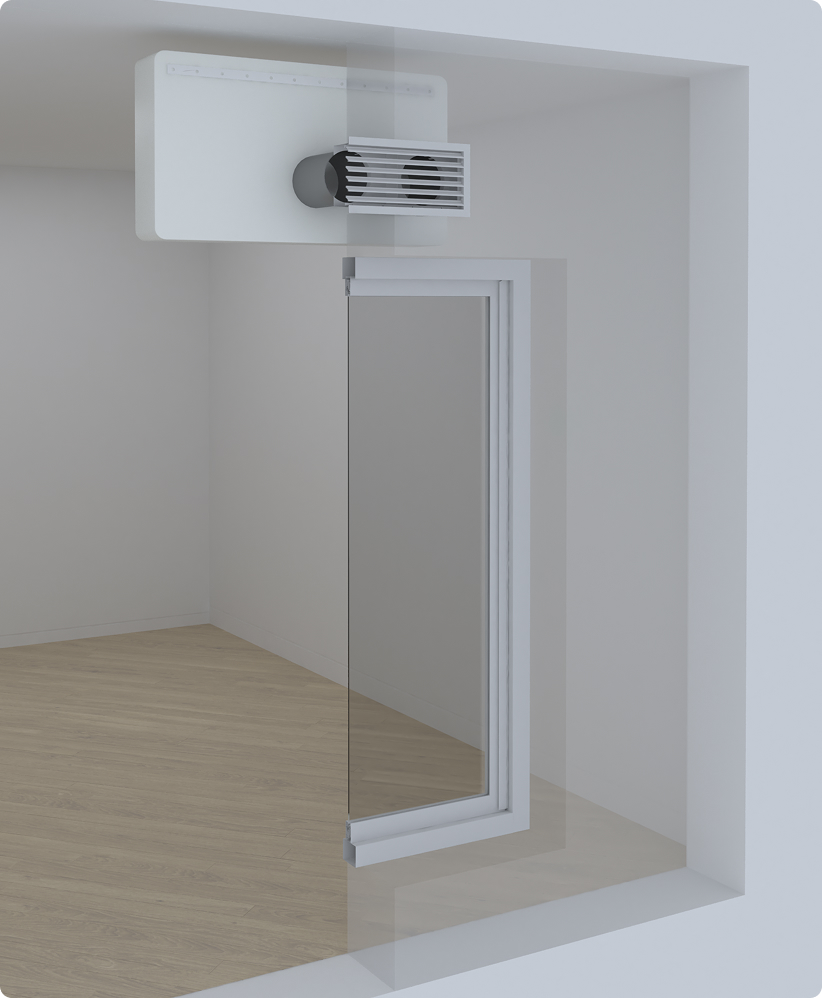

- Low wall

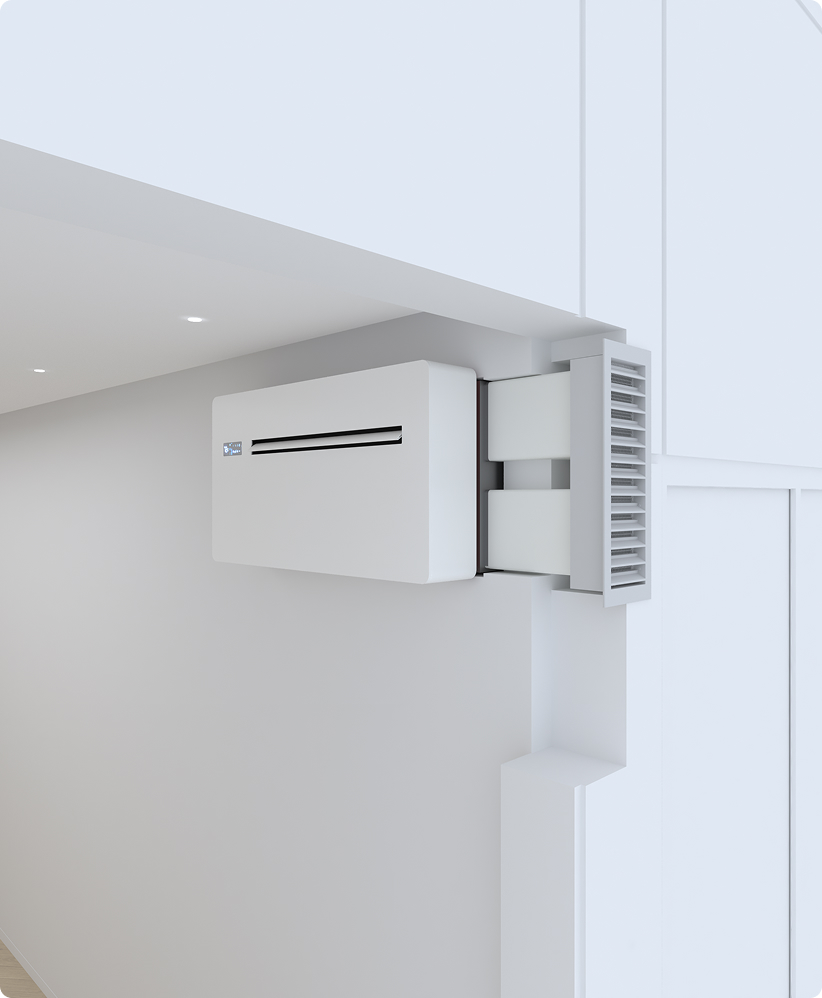

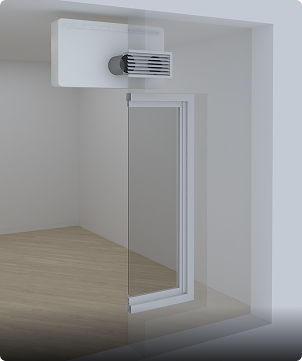

- Sidewall with adapter
Airflow
- Dual 6-inch external vents
- Available 0.25" WC for louvers
Included controls
- Onboard touch controller
Optional controllers
- WiFi app for Android and iPhone
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- Third party thermostat interface
- BACnet/Modbus interface

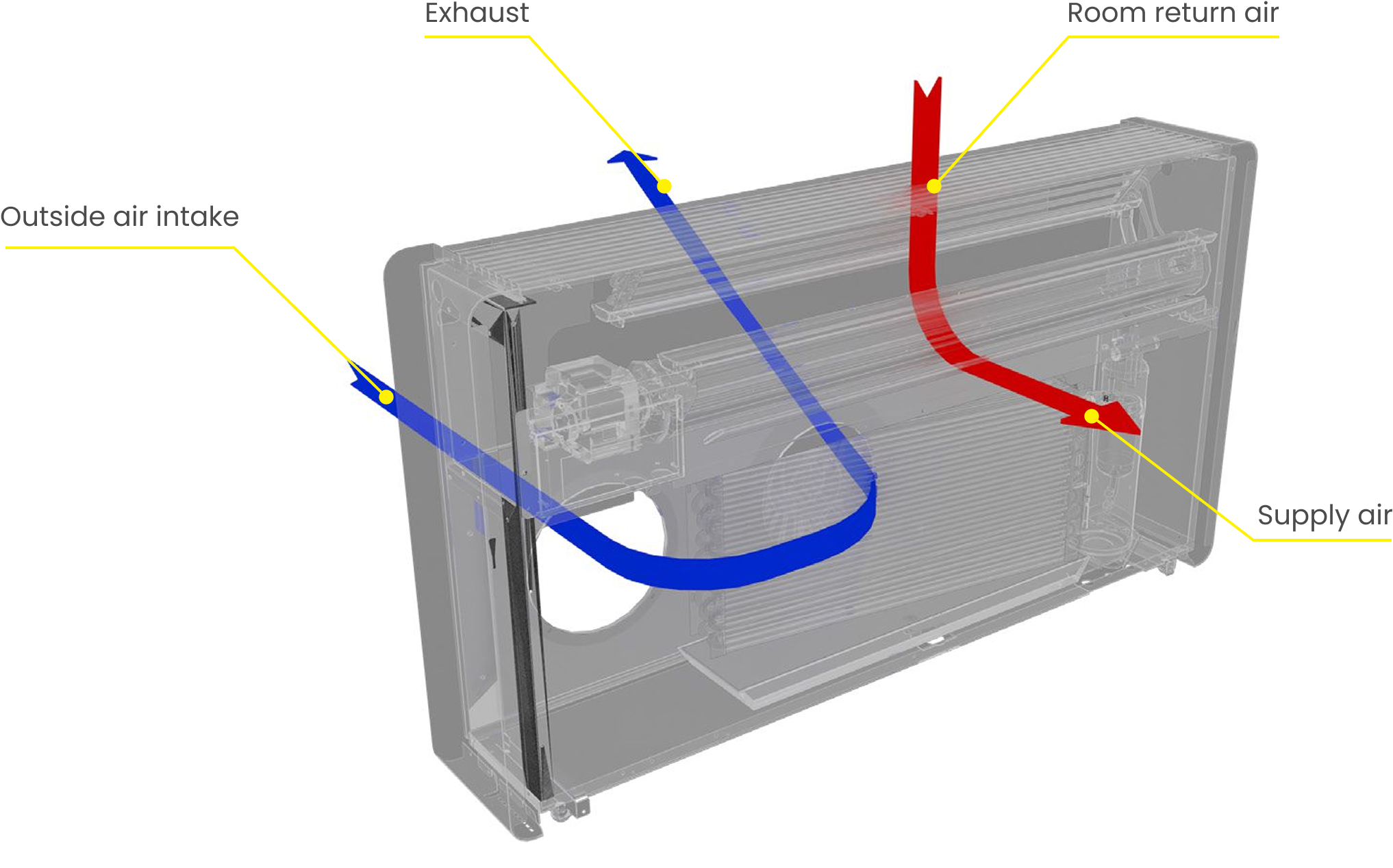

Airflow

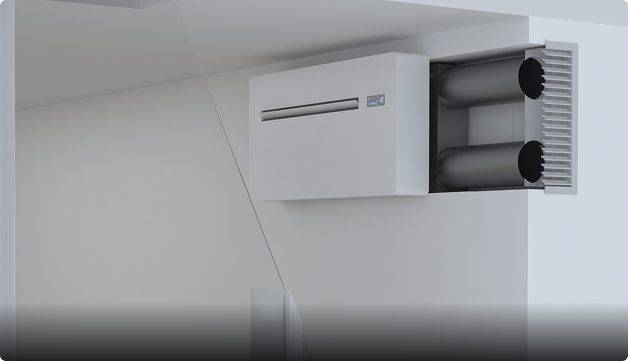

In addition to the typical twin external vents, AIO Wall Mounted can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.
- Outside air
- Recirculate air

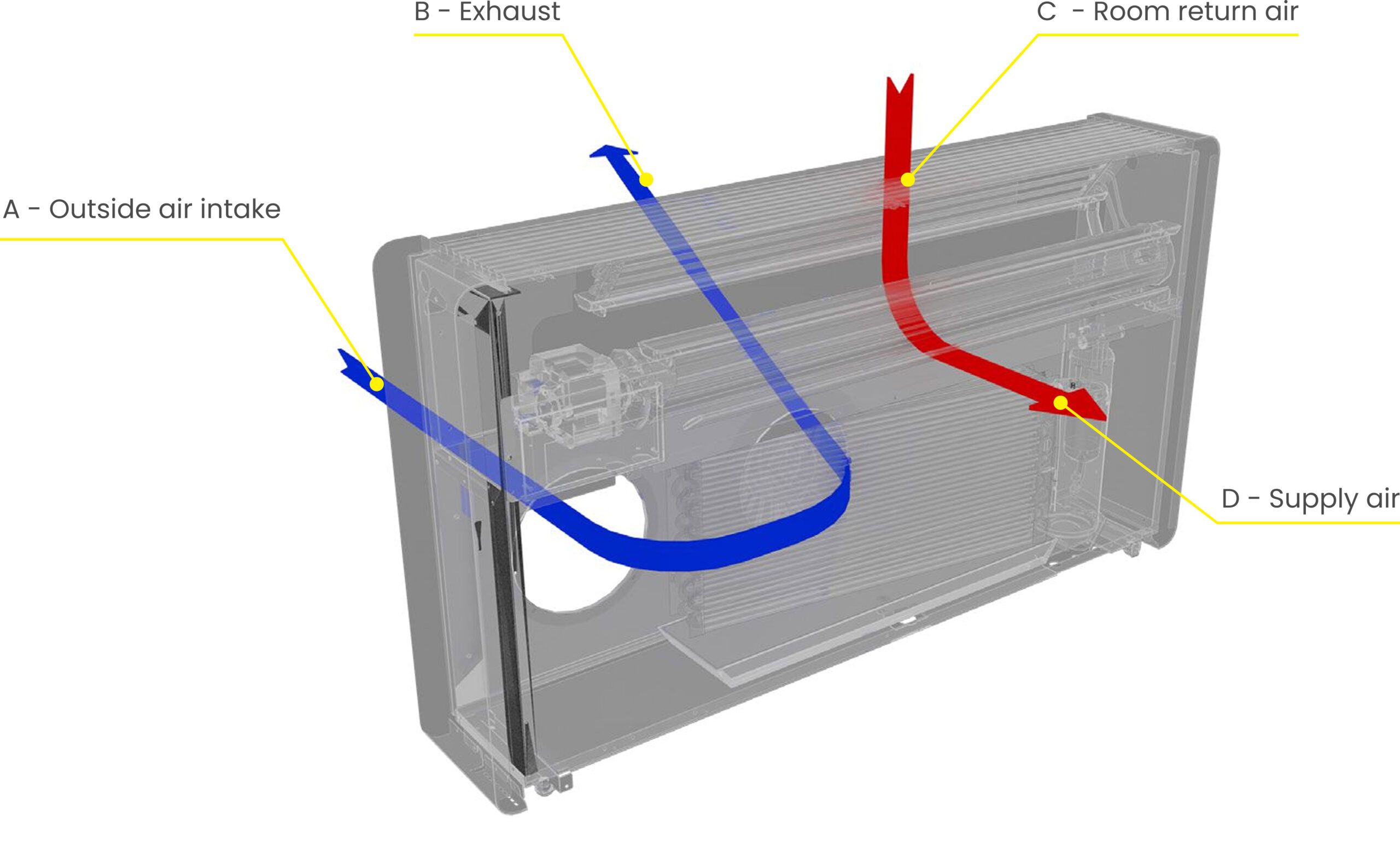

A - Outside air intake
The 8-inch (adaptable to 6-inch) outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
B - Outside air exhaust
The 8-inch (adaptable to 6-inch) round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.
C - Return air
The return air is on the top through the integrated return air grille.
D - Supply air
The supply air is through an electronically controlled louver that can be set at any angle or continuously oscillate.
Installation

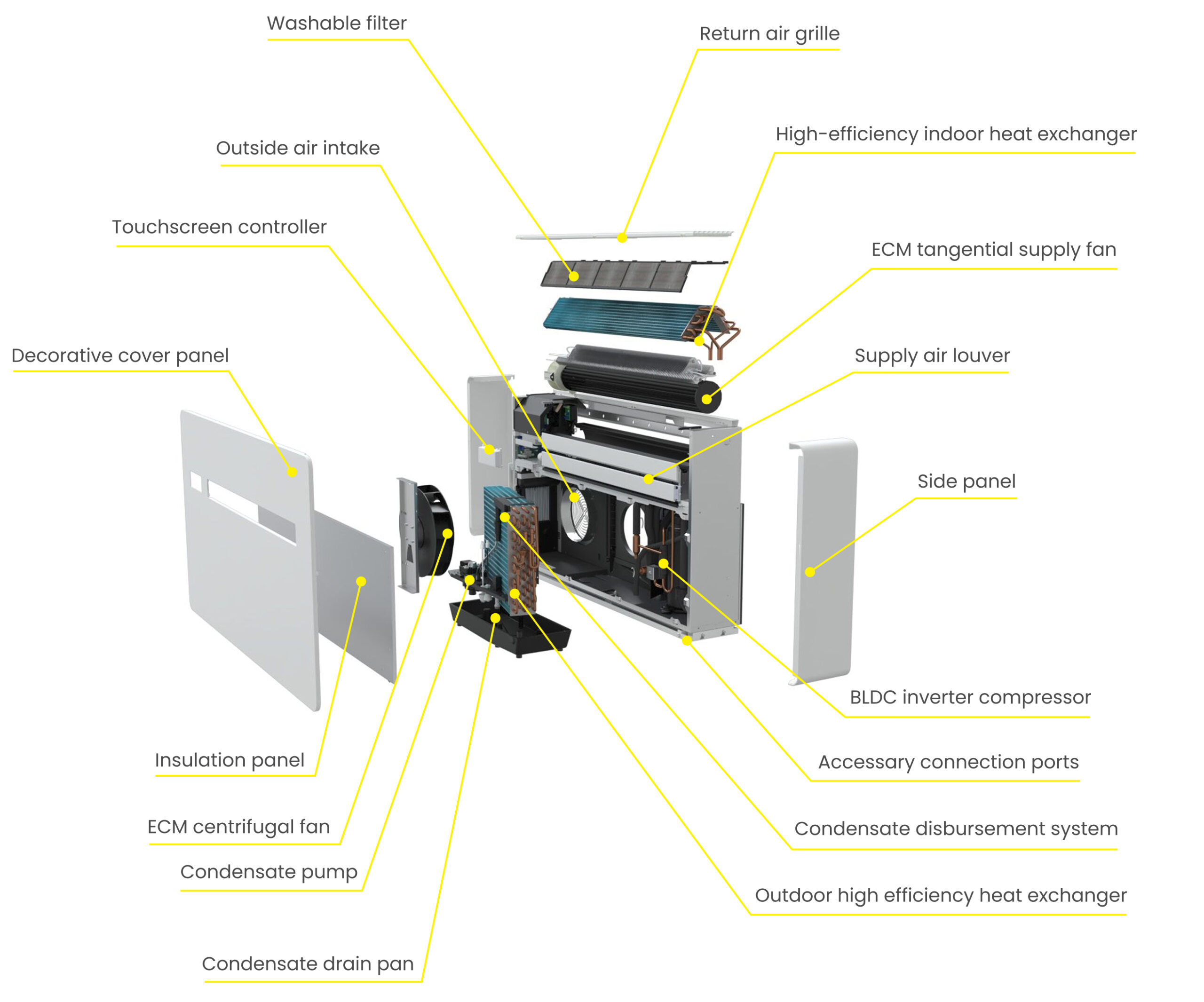

What's Inside
Technical Specifications
High Performance

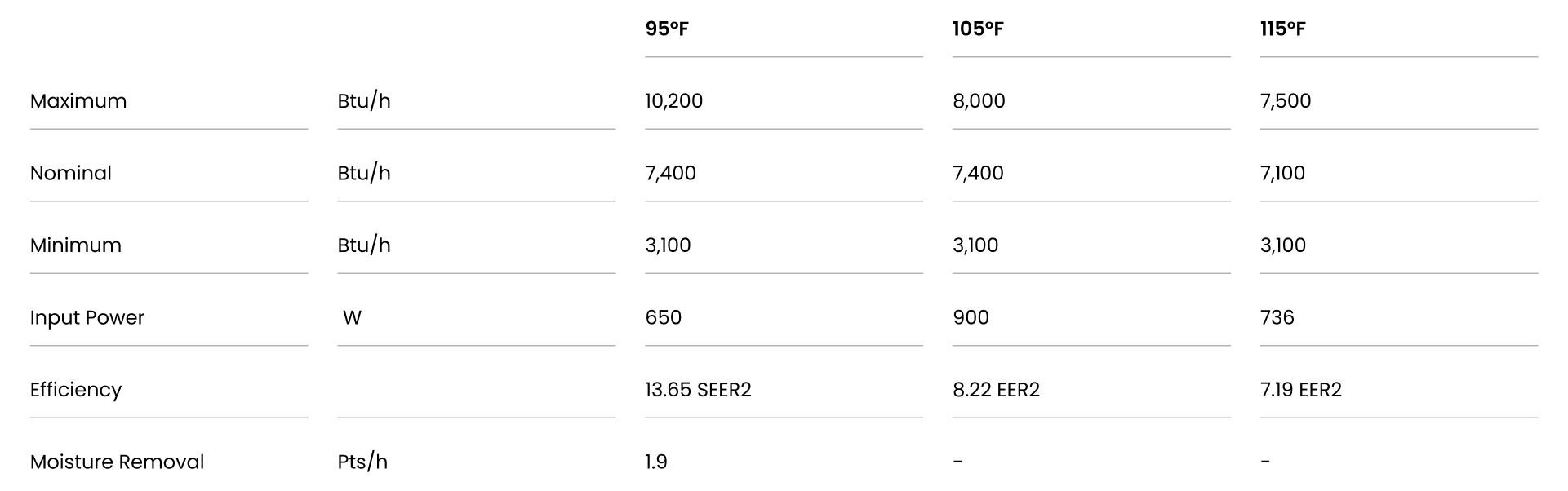

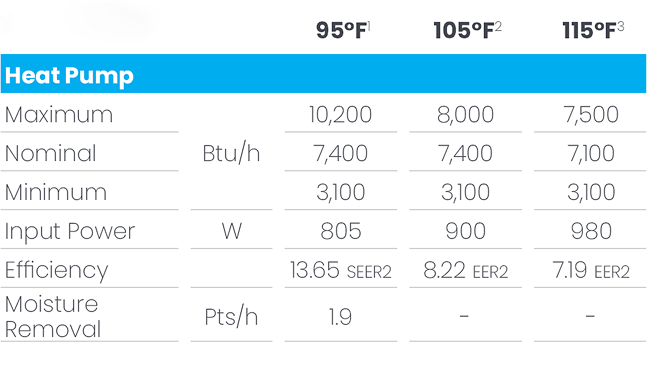

Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 10.2
- 9.0
- 7.4
- 3.3
- 1.25
- 1.05
- 0.81
- 0.21
- 8.2
- 8.6
- 9.2
- 13.65
1.9
105°F 2
- 8.0
- 7.5
- 7.3
- 3.3
- 1.00
- 0.93
- 0.90
- 0.24
- 8.0
- 8.1
- 8.22
- -
2.1
115°F 3
- 7.5
- 7.1
- 7.1
- 3.3
- 1.08
- 0.99
- 0.99
- 0.27
- 7.0
- 7.2
- 7.2
- -
2.3
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space

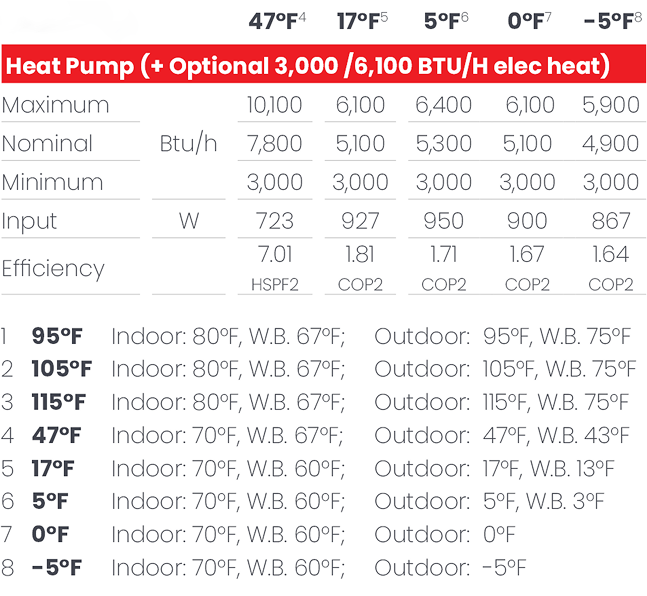

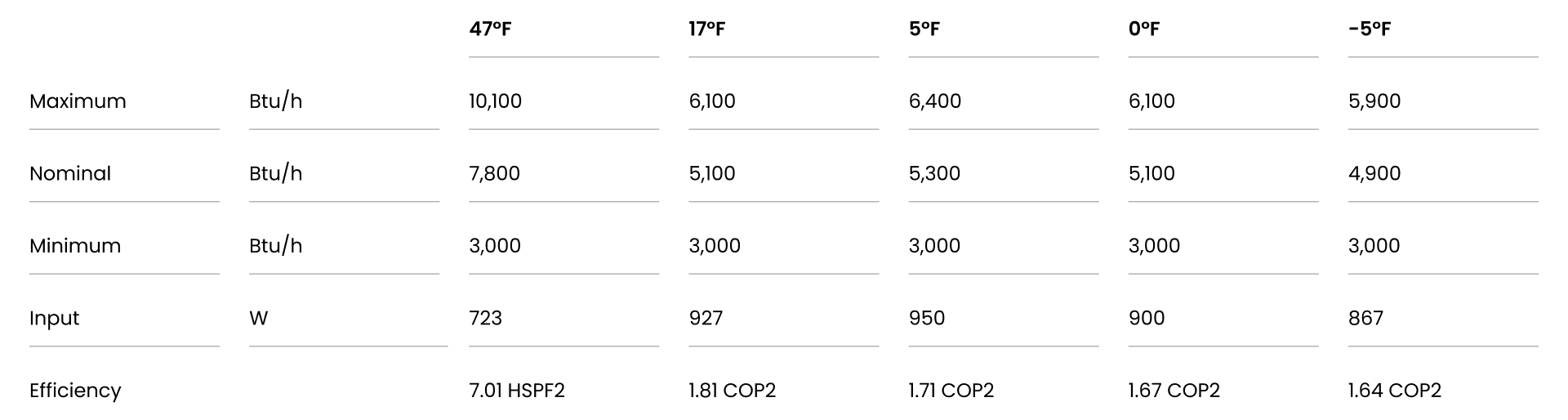

Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 14.5
- 10.1
- 8.2
- 3.9
- 1.03
- 0.85
- 0.70
- 0.24
- 2.9
- 3.0
- 3.1
- 3.3
- 7.1
17°F 2
- 9.0
- 8.5
- 7.6
- 3.3
- 0.77
- 1.78
- 0.83
- 0.41
- 1.93
- 1.92
- 1.81
- 2.2
- -
5°F 3
- 6.7
- 6.3
- 5.6
- 2.8
- 1.43
- 1.04
- 0.91
- 0.42
- 1.2
- 1.7
- 1.7
- 2.1
- -
0°F 4
- 6.5
- 6.0
- 5.4
- 3.3
- 1.40
- 1.04
- 0.90
- 0.43
- 1.2
- 1.6
- 1.7
- 2.0
- -
-5°F 5
- 6.1
- 5.7
- 5.1
- 3.3
- 1.32
- 1.07
- 0.93
- 0.44
- 1.2
- 1.4
- 1.6
- 2.0
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.
High Efficiency
Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 10.2
- 9.0
- 6.7
- 3.3
- 1.25
- 1.05
- 0.65
- 0.21
- 8.2
- 8.6
- 10.5
- 15.2
1.9
105°F 2
- 8.0
- 7.5
- 7.3
- 3.3
- 1.00
- 0.93
- 0.90
- 0.24
- 8.0
- 8.1
- 8.22
- -
2.1
115°F 3
- 7.5
- 7.1
- 7.1
- 3.3
- 1.08
- 0.99
- 0.99
- 0.27
- 7.0
- 7.2
- 7.2
- -
2.3
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 10.1
- 8.8
- 6.7
- 3.0
- 1.03
- 0.85
- 0.59
- 0.27
- 2.9
- 3.0
- 3.3
- 3.3
- 8.6
17°F 2
- 6.4
- 5.7
- 4.8
- 3.0
- 0.97
- 0.78
- 0.62
- 0.41
- 1.93
- 2.1
- 2.27
- 2.2
- -
5°F 3
- 6.0
- 5.6
- 4.5
- 3.0
- 1.43
- 1.09
- 0.75
- 0.42
- 1.2
- 1.5
- 1.77
- 2.1
- -
0°F 4
- 5.7
- 5.7
- 5.1
- 3.0
- 1.40
- 1.04
- 0.90
- 0.43
- 1.2
- 1.6
- 1.7
- 2.0
- -
-5°F 5
- 5.3
- 5.1
- 4.9
- 3.0
- 1.32
- 1.07
- 0.93
- 0.44
- 1.2
- 1.4
- 1.6
- 2.0
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

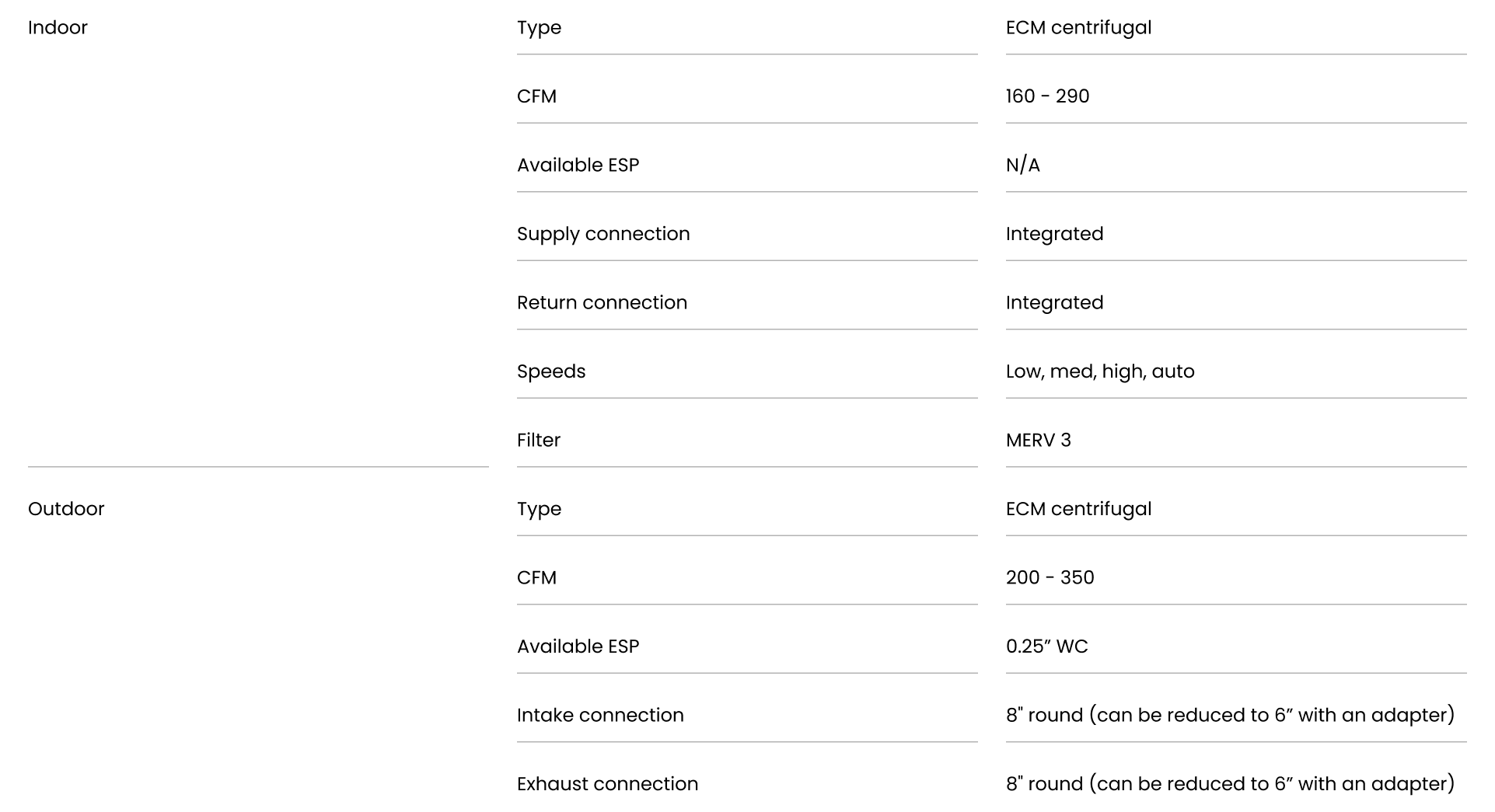

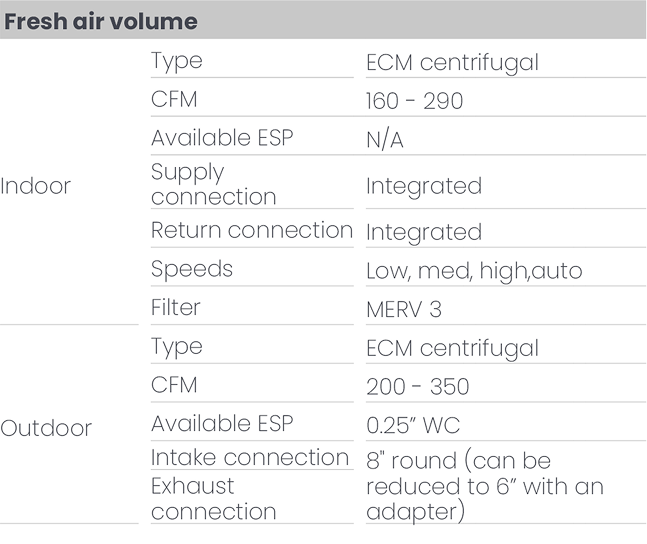

Airflow
Indoor
- Type
- CFM
- Available ESP
- Supply connection
- Return connection
- Filter
?
- ECM centrifugal
- 160 - 290
- N/A
- Integrated
- Integrated
- MERV 3
Outdoor
- Type
- CFM
- Available ESP
- Intake connection
- Exhaust connection
?
- ECM centrifugal
- 200 - 350
- 0.25” WC
- 8” round
- 8” round

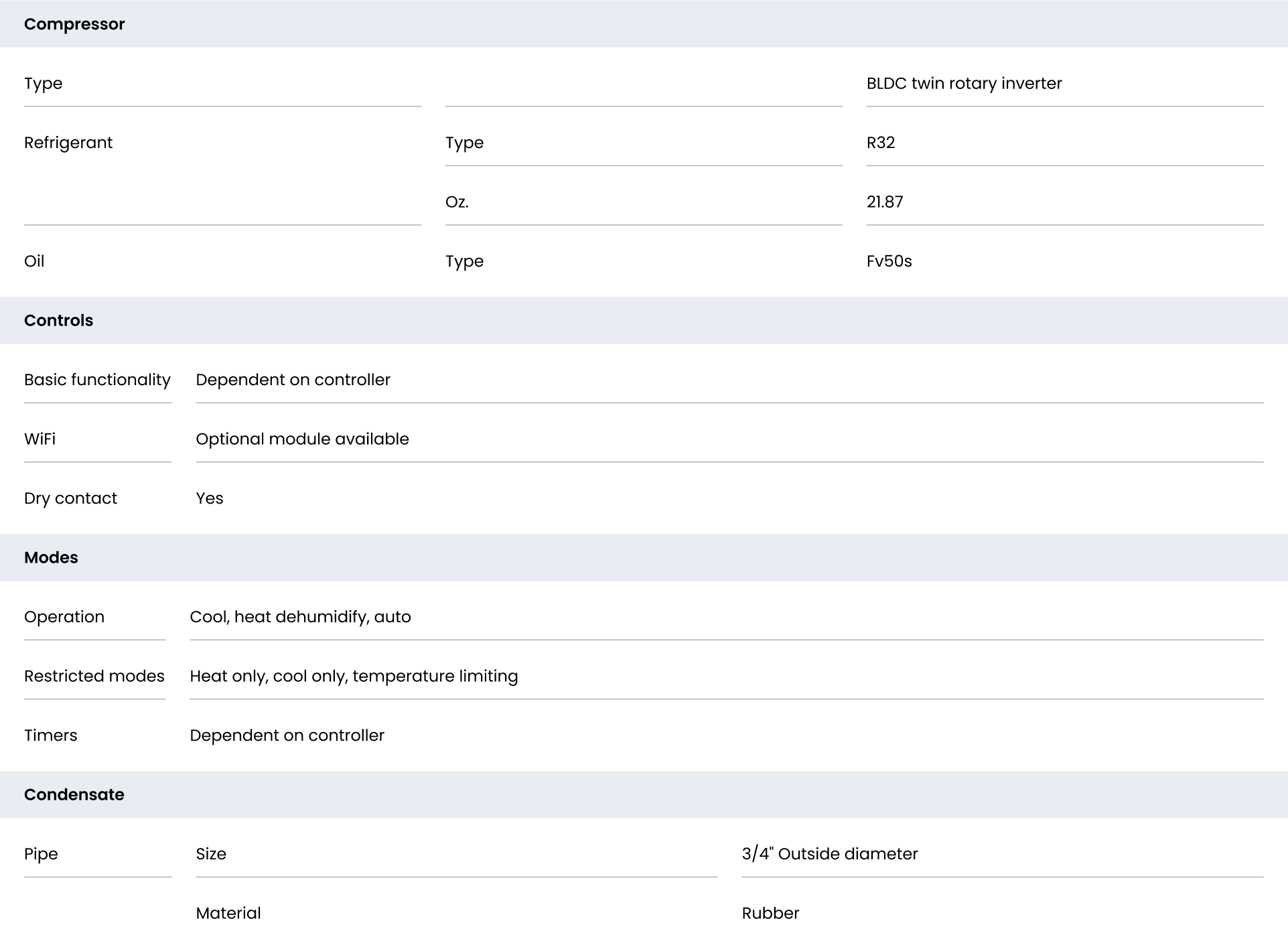

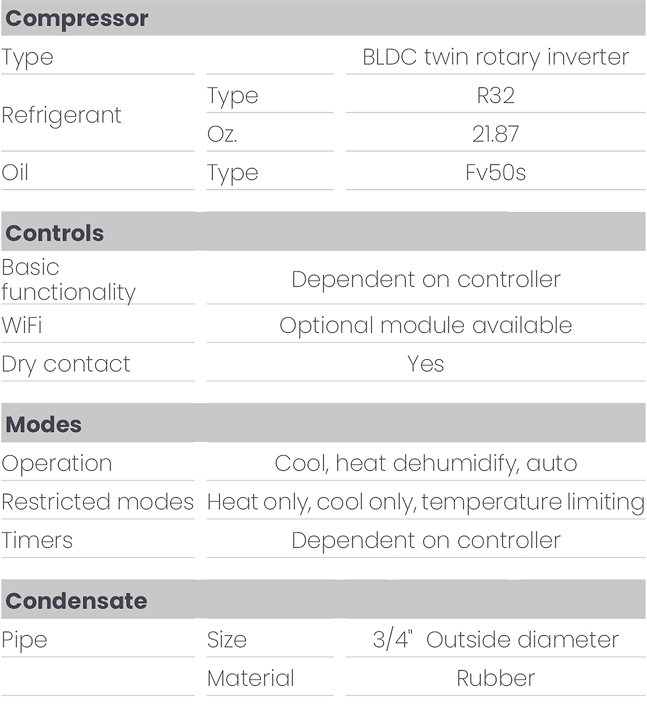

General
Indoor
- Type
- Oil Type
Modes
-
Operation
-
Restricted modes
- Timers
- BLDC twin rotary inverter
- Fv50s (ISO 50) Polyvinylether (PVE)
-
Cool, heat, dehumidify,
auto, fan only -
Heat only, cool only,
temperature limiting - Dependent on the controller
Controls
- Basic functionality
- WiFi
- Dry contact
Condensate
- Pipe size
- Pipe Material
- Dependent on controller
- Optional module available
- Yes
- 3/4" Outside diameter
- Rubber

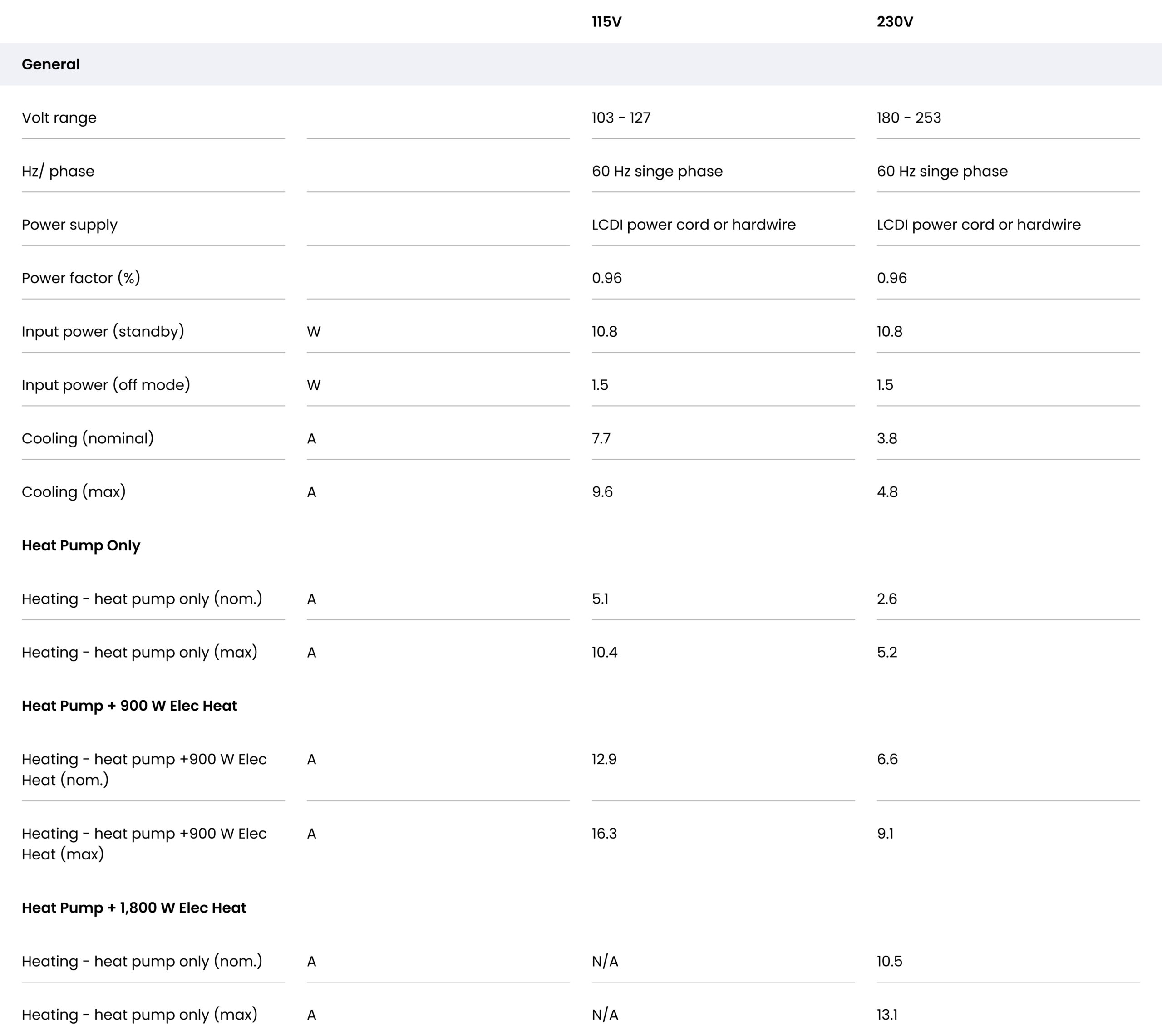

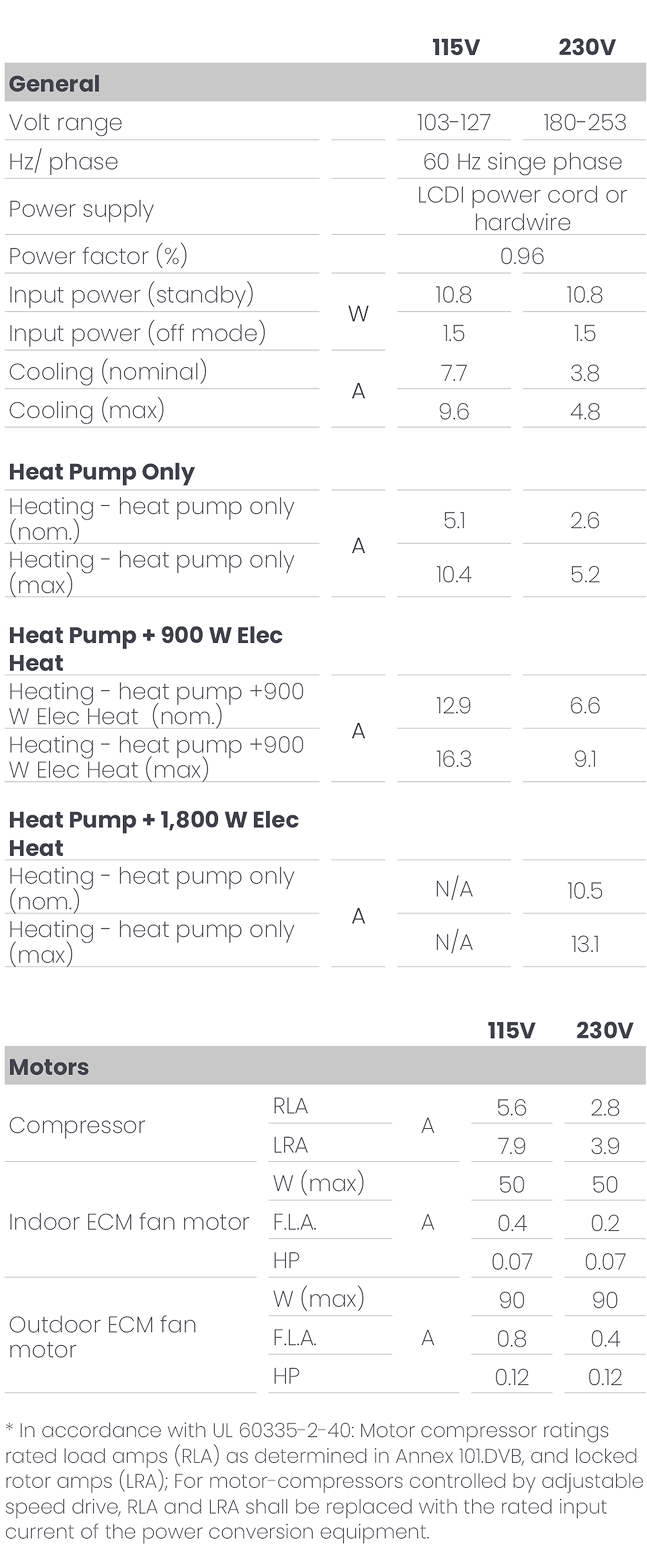

Electrical Data
Heat Pump only
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 5.7
- 9.6
- 5.1
-
9.6
- 12
- 25
- 20
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 2.9
- 4.8
- 2.6
-
4.8
- 6
- 15
- 15
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 5.7
- 9.6
- 5.1
-
9.6
- 12
- 25
- 20
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 2.9
- 4.8
- 2.6
-
4.8
- 6
- 15
- 15
Heat Pump + 0.9kW Electric Heat
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 5.7
- 9.6
- 5.1
-
17.4
- 22
- 30
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 2.9
- 4.8
- 2.6
-
8.7
- 14
- 15
- 20
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 5.7
- 6.9
- 5.1
-
17.4
- 22
- 30
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 2.9
- 4.8
- 2.6
-
8.7
- 14
- 15
- 20
Heat Pump + 1.8 kW Electric Heat
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 2.9
- 4.8
- 2.6
-
12.6
- 20
- 30
- 20
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 2.9
- 4.8
- 2.6
-
12.6
- 20
- 30
- 20

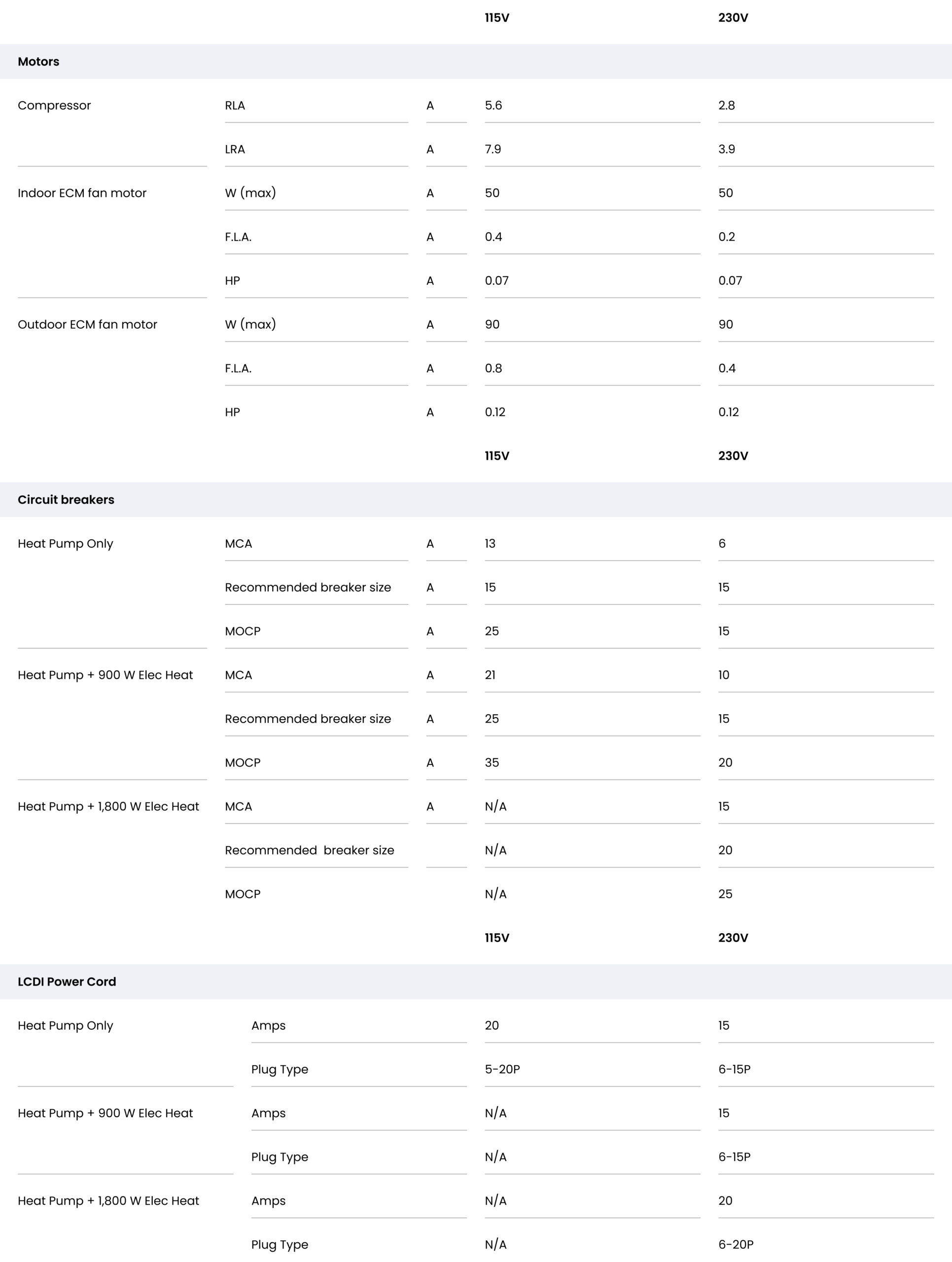

Motors
Compressor
- RLA (A)
- LRA (A)
Indoor ECM fan motor
- Max Watts (W)
- F.L.A (A)
- Power (HP)
Outdoor ECM fan motor
- Max Watts (W)
- F.L.A (A)
- Power (HP)
115V
- 7.9
- 7.9
- 50
- 0.4
- 0.07
- 90
- 0.8
- 0.12
LCDI Power Cord
Heat Pump Only
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
Heat Pump
+ 0.9 kW Electric Heat
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
Heat Pump
+ 1.8 kW Electric Heat
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
115V
- 20
- 5 - 20P
- 40
- N/A
- N/A
- 40
- 20
- 6-20P
- 40

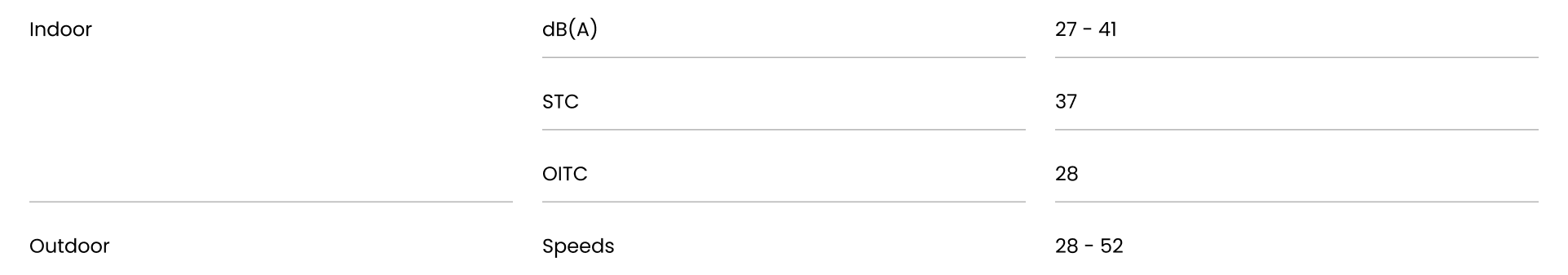

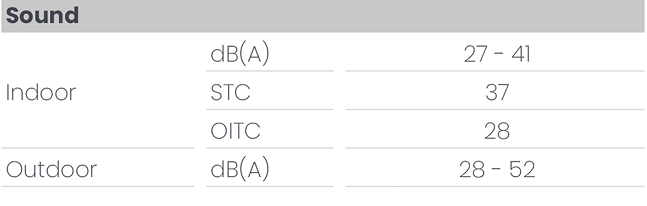

Sound
Indoor
- DB range: dB(A)
- STC
- OITC
- 27 - 41
- 37
- 28
Outdoor
- dB(A)
- 28 -52

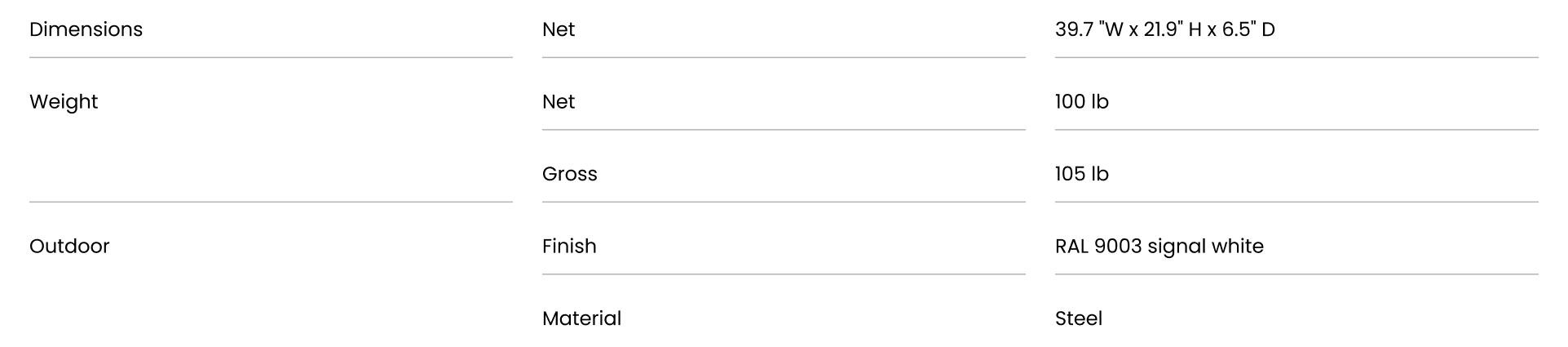

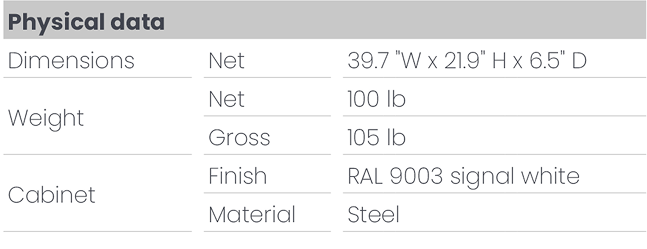

Dimensions
- Dimensions
- Net weight (Ib)
- Gross weight (Ib)
- Cabinet finish
- Cabinet material
- 39.7" W x 21.9" H x 6.5" D
- 100
- 105
- RAL 9003 signal white
- Steel
Beware of Fake Units
Fraudulent Specs in Chinese Counterfeit INNOVA Units
INNOVA’s $1,000,000 Challenge
Trusted by leading brands worldwide
