Ceiling Ducted
AIO Ceiling Ducted can be discreetly installed above a ceiling and is ideal for single or multi-room applications. The return can be from the sides or the bottom for maximum flexibility. With up to 0.6″ WC external static pressure, this unit can be used where ducting is required. Use with any interior grille and louver to provide additional design flexibility. A bathroom exhaust can connect to the dedicated stale air exhaust. Ceiling Ducted units are available with or without the integrated ERV.
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Auto-restart
- Washable filters
Options
- 900/1,800W electric heat
- ERV Module
- 115V or 230V
- Hardwire or LCDI cord
- R32
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high, and auto
- Fresh air ERV - field configurable amount of fresh air
Mounting
- Ceiling
- Underfloor

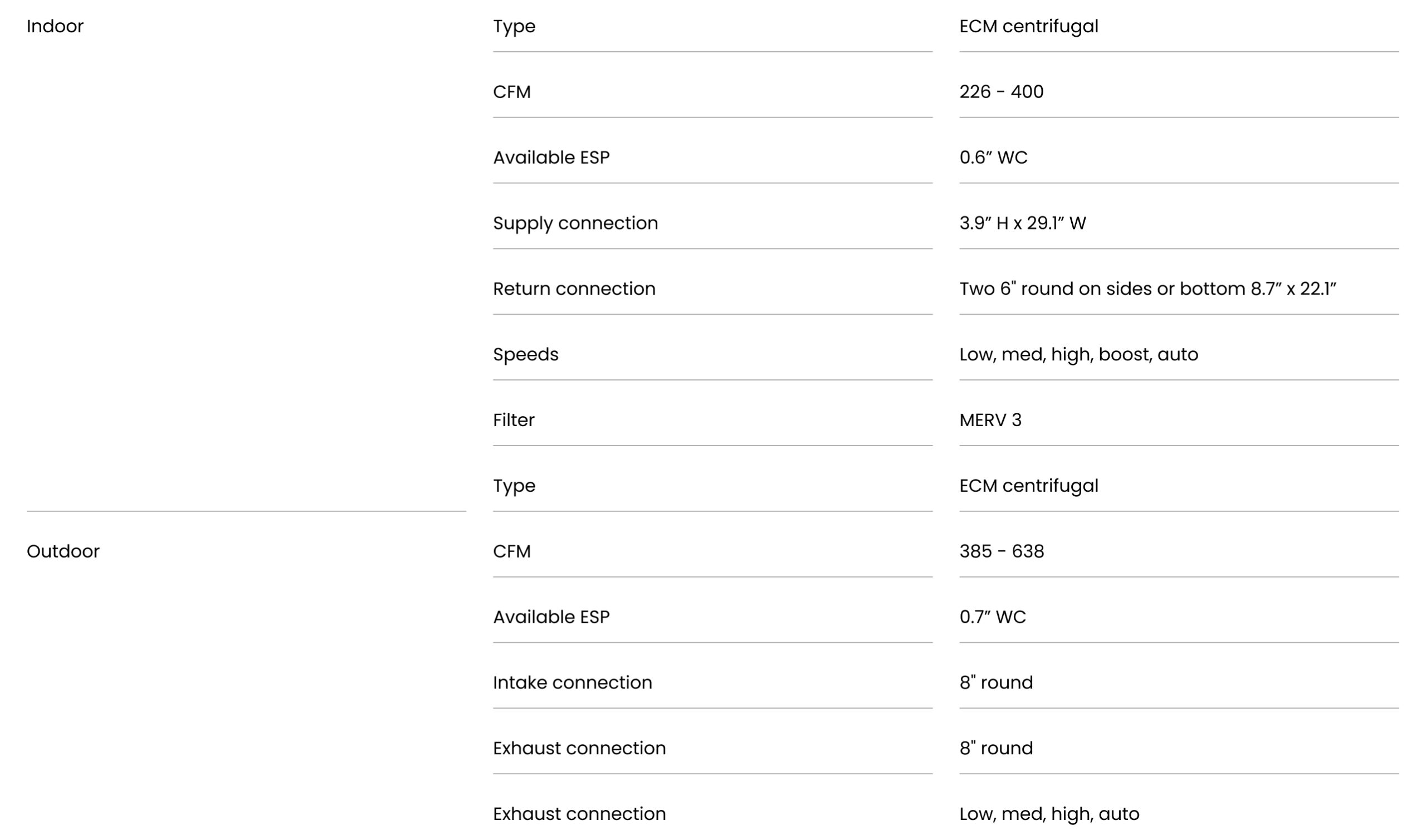

Airflow
- Dual 8' external vents
- Available 0.7" WC for external ducting, adapters, and louvers
- Available 0.6" WC for internal ducting and louvers
Included controllers
- Onboard touch controller for diagnostics and programing (on bottom of the unit)
Optional controllers
- WiFi app for Android and iPhone
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- Third party thermostat interface
- BACnet/Modbus interface

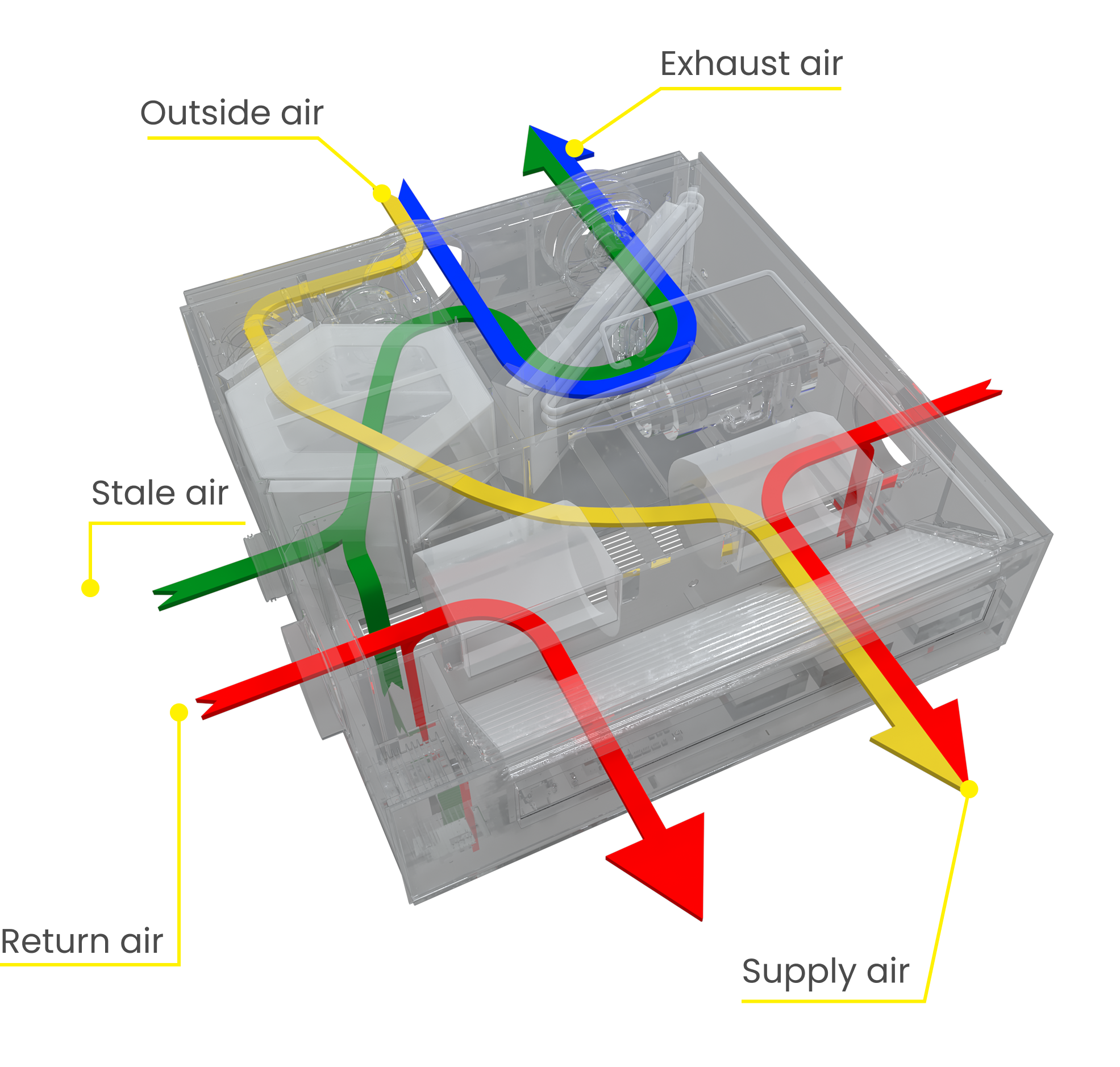

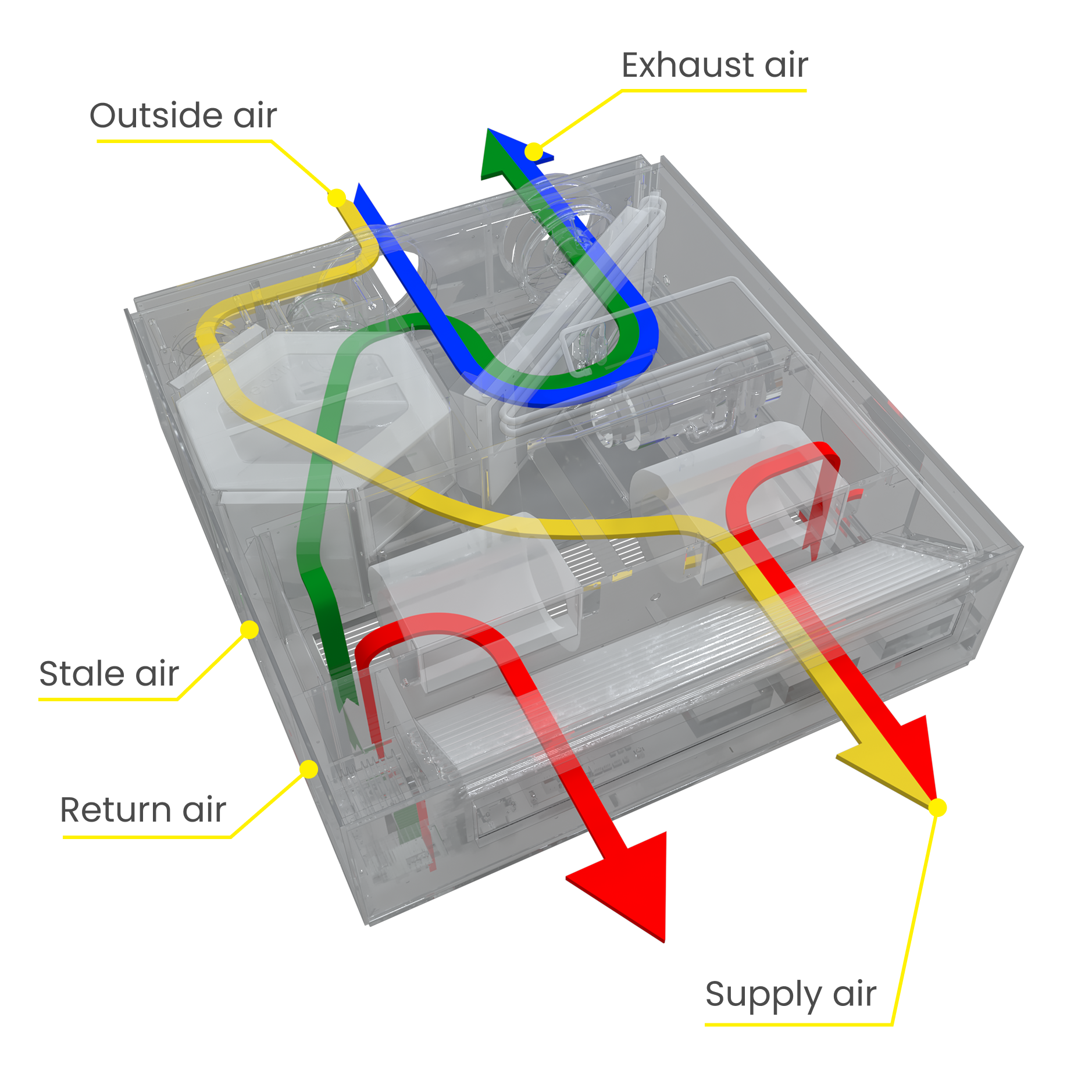

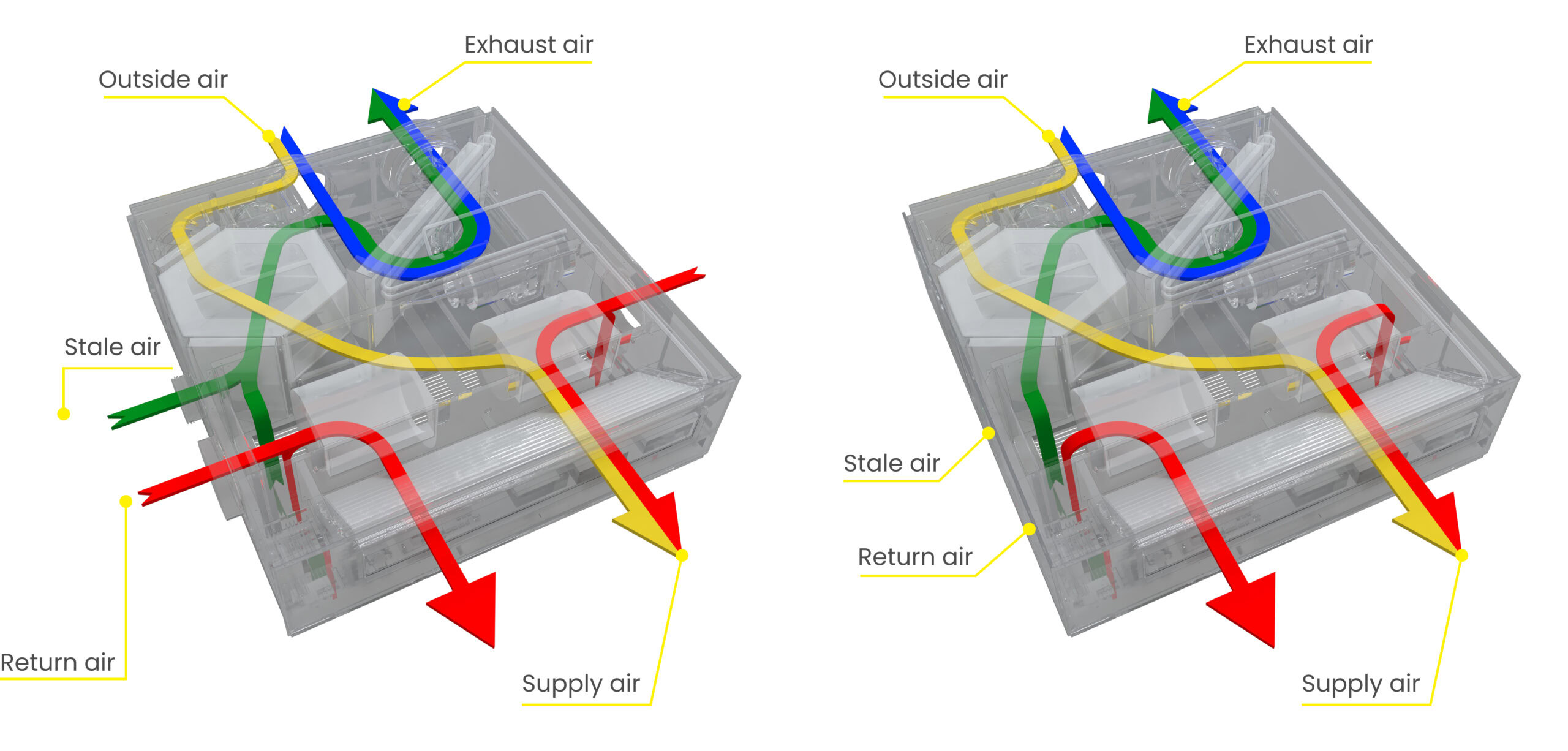

Airflow
AIO Ceiling Ducted is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Ducted to be placed anywhere in a dwelling without restrictions.
- Outside air
- Recirculate air
- Fresh air intake
- Stale air exhaust
Supply air
The rectangular 4” x 29” supply air connection is ideal for a supply grille or ducting, with up to 0.6” external static pressure (combined between return and supply).
Stale air exhaust
The five-inch round stale air exhaust connection can be used as part of a plenum return without any ducting or can be ducted to a bathroom or multiple locations with up to 0.5” WC external static pressure. If configuring AIO Ceiling Ducted with a bottom return, the stale air can also be pulled from the bottom return.
Return air - bottom option
The bottom 8.7” x 22” return is designed to be used with a ceiling-mounted return grille or an access panel with an integrated return grille.
Return air - sides options
The left and right side 6” round connection can be ducted to one or more rooms with up to 0.6” external static pressure (combined between return and supply). It can also be left open as a side plenum return. Each connection is fully independent with two ECM fans, each with auto ESP, each connection is fully independent. Duct both, leave both open or duct one, and leave one open to a plenum.
Outside air intake
The single 8” round outside air intake connection provides air for the condenser portion and fresh air for the inside. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).
Outside air exhaust
The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).

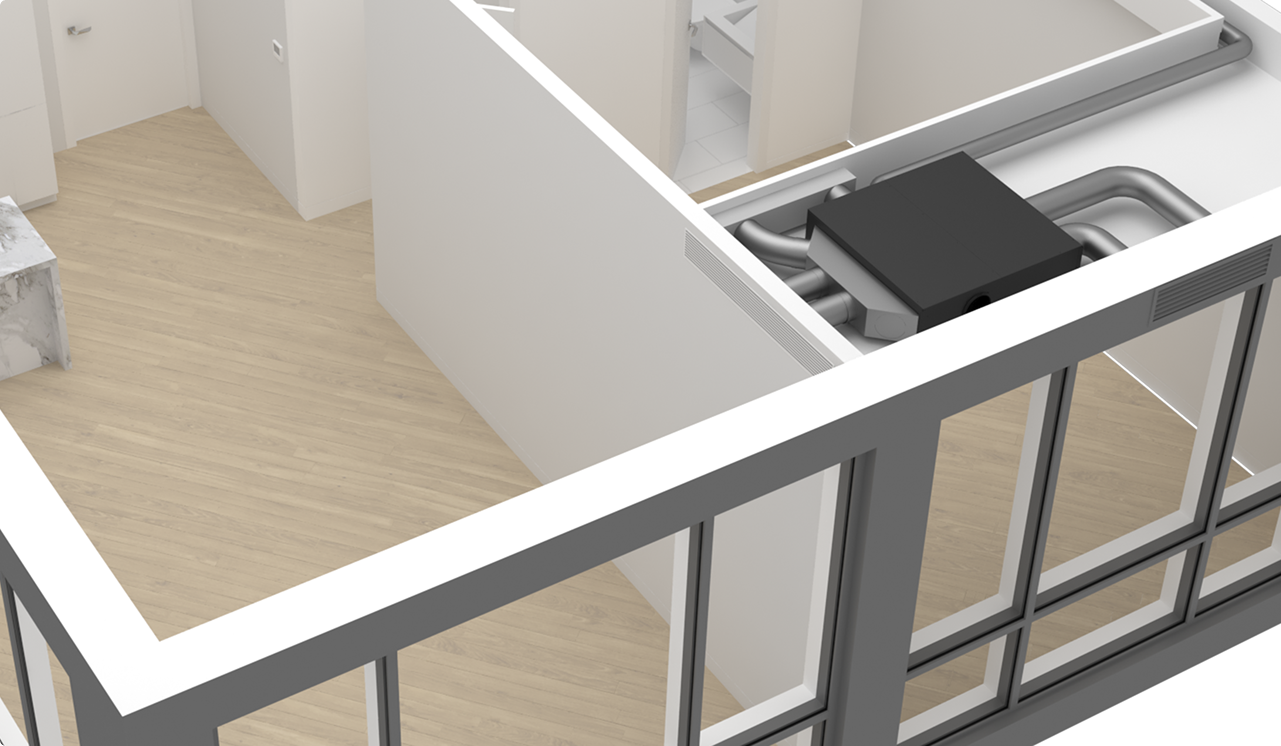

Installation

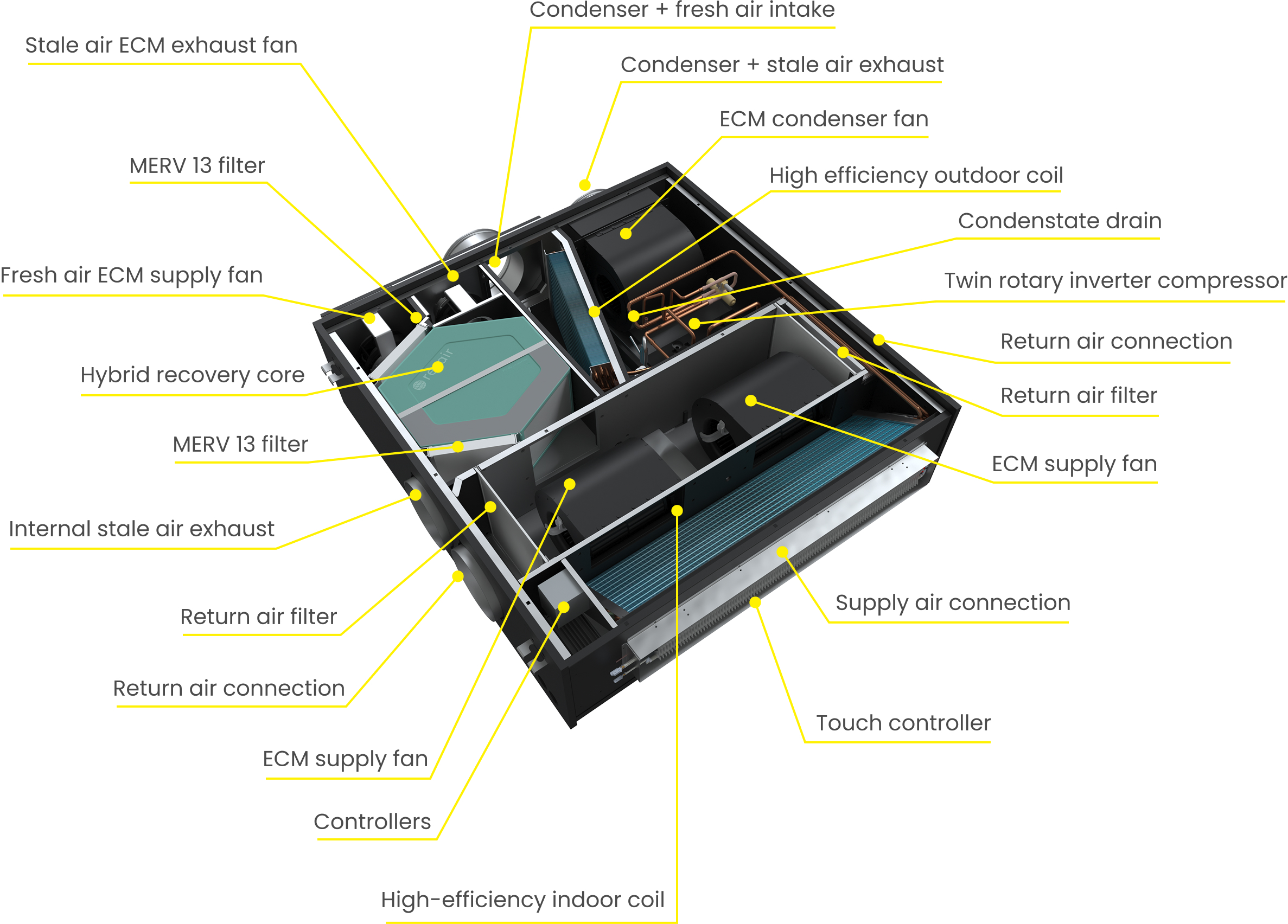

What's Inside

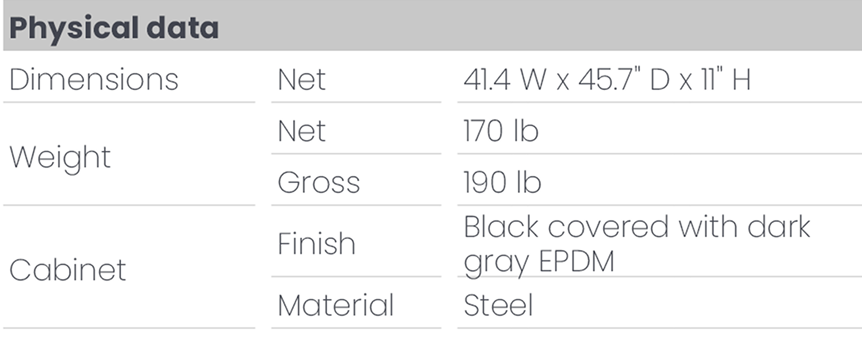

Technical Specifications

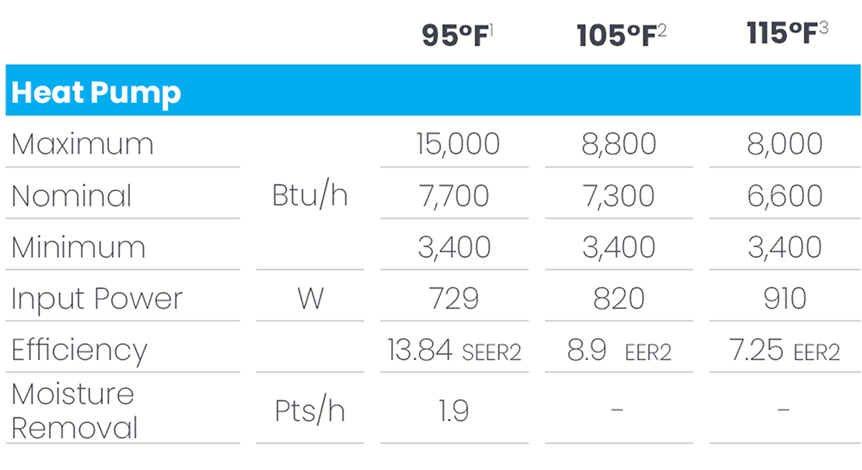

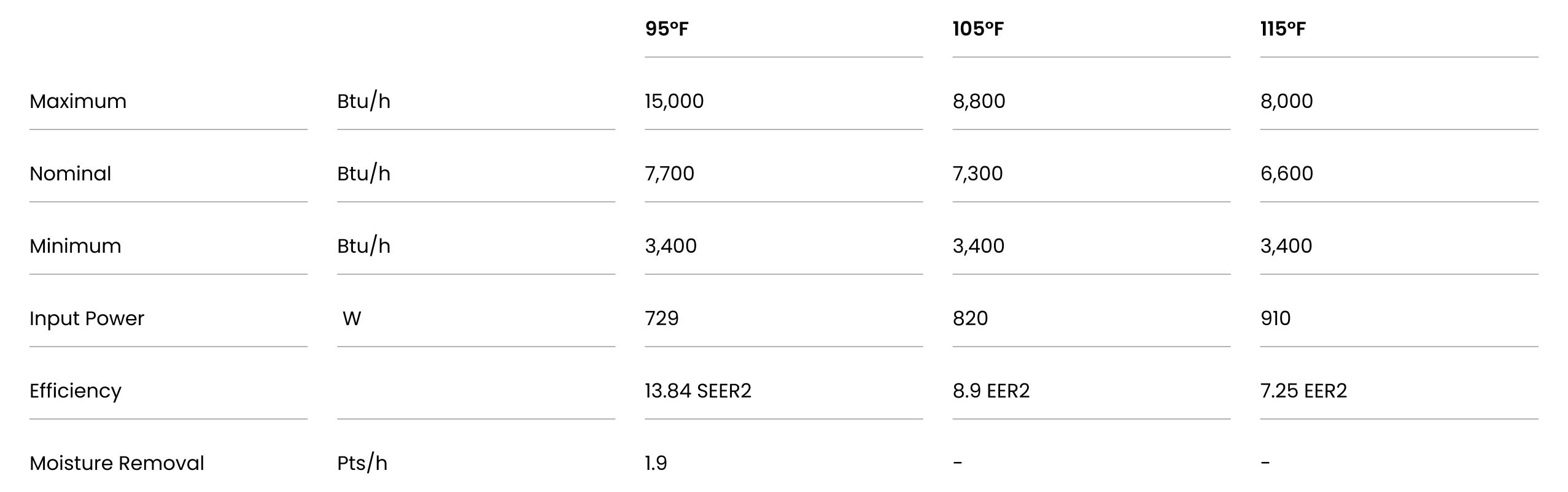

Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 15.0
- 9.4
- 7.7
- 3.1
- 1.58
- 0.96
- 0.73
- 0.23
- 9.5
- 9.8
- 10.6
- 13.85
1.8
105°F 2
- 11.4
- 8.2
- 7.4
- 3.1
- 1.64
- 0.98
- 0.83
- 0.26
- 7.0
- 8.4
- 8.9
- -
2
115°F 3
- 9.8
- 7.3
- 6.6
- 3.1
- 1.70
- 1.04
- 0.91
- 0.29
- 5.8
- 7.0
- 7.3
- -
2.2
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space

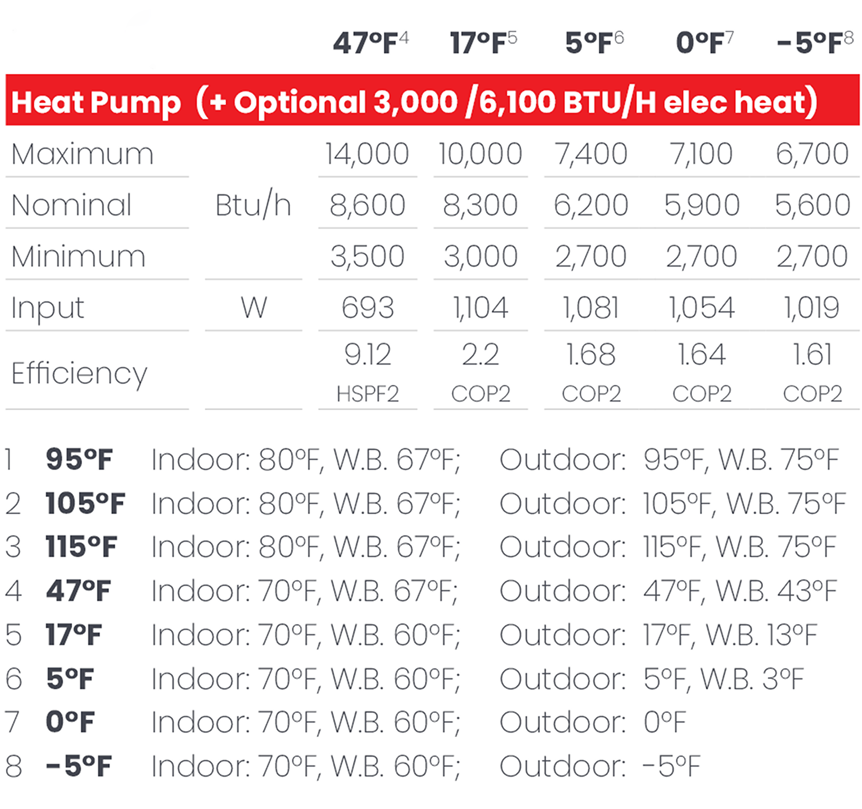

Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2

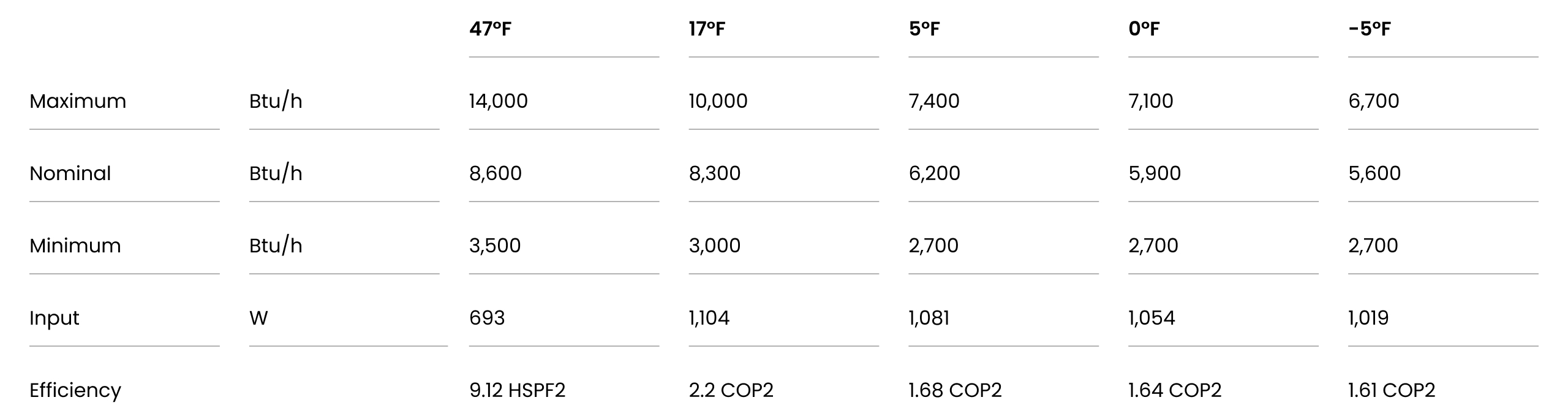

47°F 1
- 14.0
- 9.2
- 8.6
- 3.5
- 1.42
- 0.78
- 0.70
- 0.32
- 2.9
- 3.5
- 3.6
- 3.3
- 9.2
17°F 2
- 10.0
- 9.3
- 8.3
- 3.3
- 1.46
- 0.99
- 0.86
- 0.42
- 2.0
- 2.8
- 2.8
- 2.3
- -
5°F 3
- 6.6
- 6.2
- 6.2
- 2.8
- 1.70
- 1.25
- 1.09
- 0.44
- 1.1
- 1.5
- 1.7
- 1.9
- -
0°F 4
- 6.3
- 5.9
- 5.9
- 2.5
- 1.60
- 1.06
- 1.06
- 0.43
- 1.1
- 1.6
- 1.6
- 1.7
- -
-5°F 5
- 5.8
- 5.6
- 5.6
- 3.3
- 1.65
- 1.01
- 1.01
- 0.48
- 1.0
- 1.6
- 1.6
- 2.0
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.
Cooling
Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 15.0
- 9.4
- 6.1
- 3.1
- 1.58
- 0.96
- 0.53
- 0.23
- 9.5
- 9.8
- 11.6
- 15.3
1.8
105°F 2
- 11.4
- 8.2
- 7.4
- 3.1
- 1.64
- 0.98
- 0.83
- 0.26
- 7.0
- 8.4
- 8.9
- -
2
115°F 3
- 9.8
- 7.3
- 6.6
- 3.1
- 1.70
- 1.04
- 0.91
- 0.29
- 5.8
- 7.0
- 7.3
- -
2.2
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space
Heating
Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 14.0
- 9.2
- 8.6
- 3.5
- 1.42
- 0.78
- 0.70
- 0.32
- 2.9
- 3.5
- 3.8
- 3.3
- 9.2
17°F 2
- 10.0
- 8.7
- 7.8
- 3.3
- 1.46
- 0.99
- 0.86
- 0.42
- 1.1
- 2.8
- 2.8
- 3.0
- -
5°F 3
- 6.6
- 6.2
- 6.2
- 2.8
- 1.70
- 1.25
- 1.09
- 0.44
- 1.1
- 1.5
- 1.8
- 1.9
- -
0°F 4
- 6.3
- 5.9
- 5.9
- 2.5
- 1.60
- 1.06
- 1.06
- 0.43
- 1.1
- 1.6
- 1.6
- 1.7
- -
-5°F 5
- 5.8
- 5.6
- 5.6
- 3.3
- 1.65
- 1.01
- 1.01
- 0.48
- 1.0
- 1.6
- 1.6
- 2.0
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

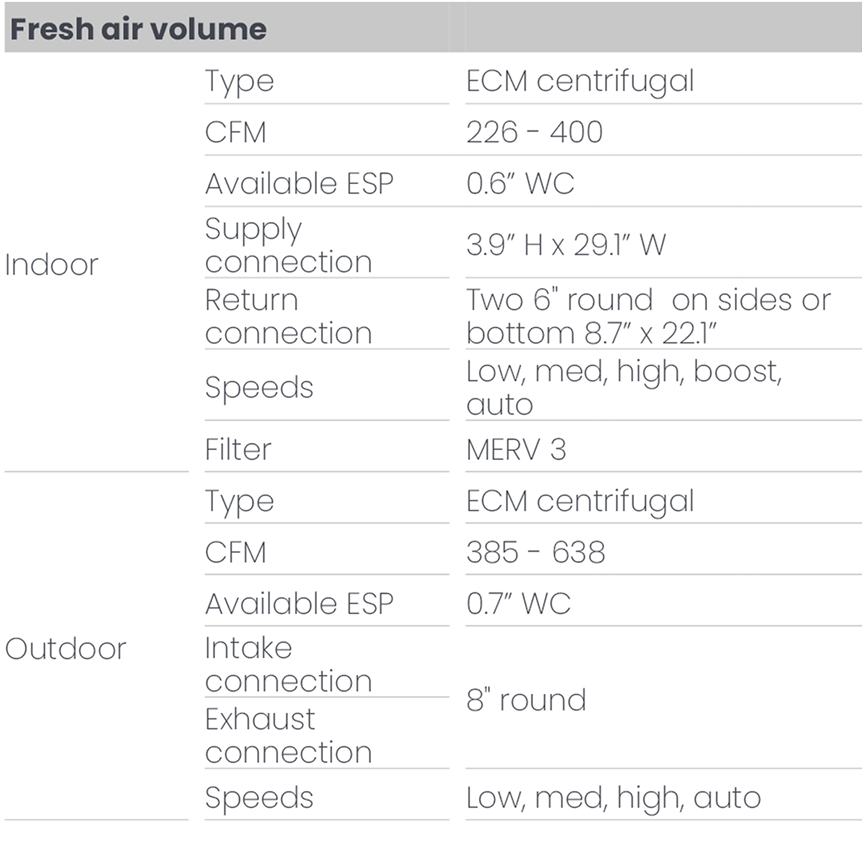

Indoor
- Type
- CFM
- Available ESP
- Supply connection
- Return connection
- Filter
- ECM centrifugal
- 226 - 400
- 0.6” WC
- 3.9” H x 29.1” W
- Two 6" round on sides or bottom 8.7” x 22.1”
- MERV 3
Outdoor
- Type
- CFM
- Available ESP
- Intake connection
- Exhaust connection
- Speeds
- ECM centrifugal
- 385 - 638
- 0.7” WC
- 8” round
- 8” round
- Low, med, high, auto
Indoor
- Type
- Oil Type
Modes
-
Operation
-
Restricted modes
- Timers
- BLDC twin rotary inverter
- Fv50s
-
Cool+ fresh air, cool only,
heat+ fresh air, heat only, auto -
Heat only, cool only,
temperature limiting - Dependent on the controller
Controls
- Basic functionality
- WiFi
- Power Outage Restart
- Dry contact
Condensate
- Pipe size
- Pipe Material
- Dependent on controller
- Optional module available
- Auto-on based on last setting
- Yes
- 3/4" Outside diameter
- Rubber
Heat Pump only
AHRI

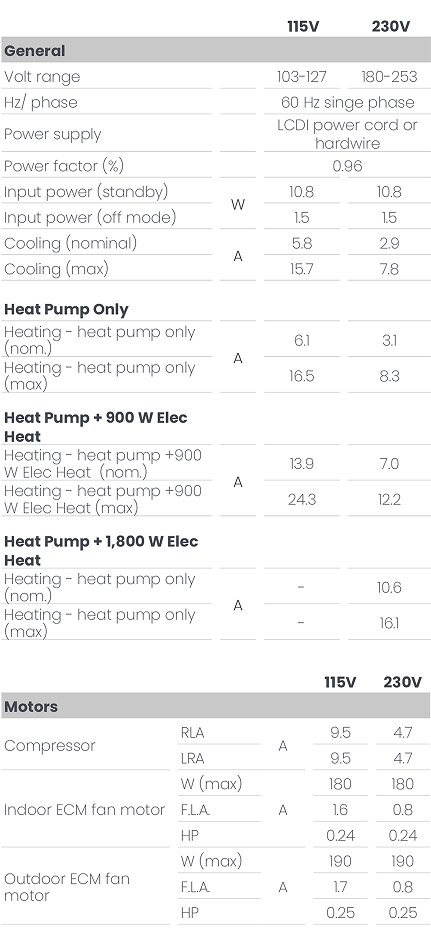

- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 8.2
- 20.9
- 10.0
-
20.9
- 25
- 35
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 4.1
- 9.5
- 5.0
-
9.5
- 11
- 15
- 15
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 8.2
- 20.9
- 10.0
-
20.9
- 25
- 35
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 4.1
- 5.9
- 5.0
-
9.5
- 11
- 15
- 15
Heat Pump + 0.9kW Electric Heat
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 8.2
- 20.9
- 10.0
-
29.1
- 33
- 45
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 8.2
- 20.9
- 10.0
-
29.1
- 33
- 45
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
Heat Pump + 1.8 kW Electric Heat
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 4.1
- 9.5
- 5.0
-
9.5
- 19
- 20
- 20
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 4.1
- 9.5
- 5.0
-
9.5
- 19
- 20
- 20

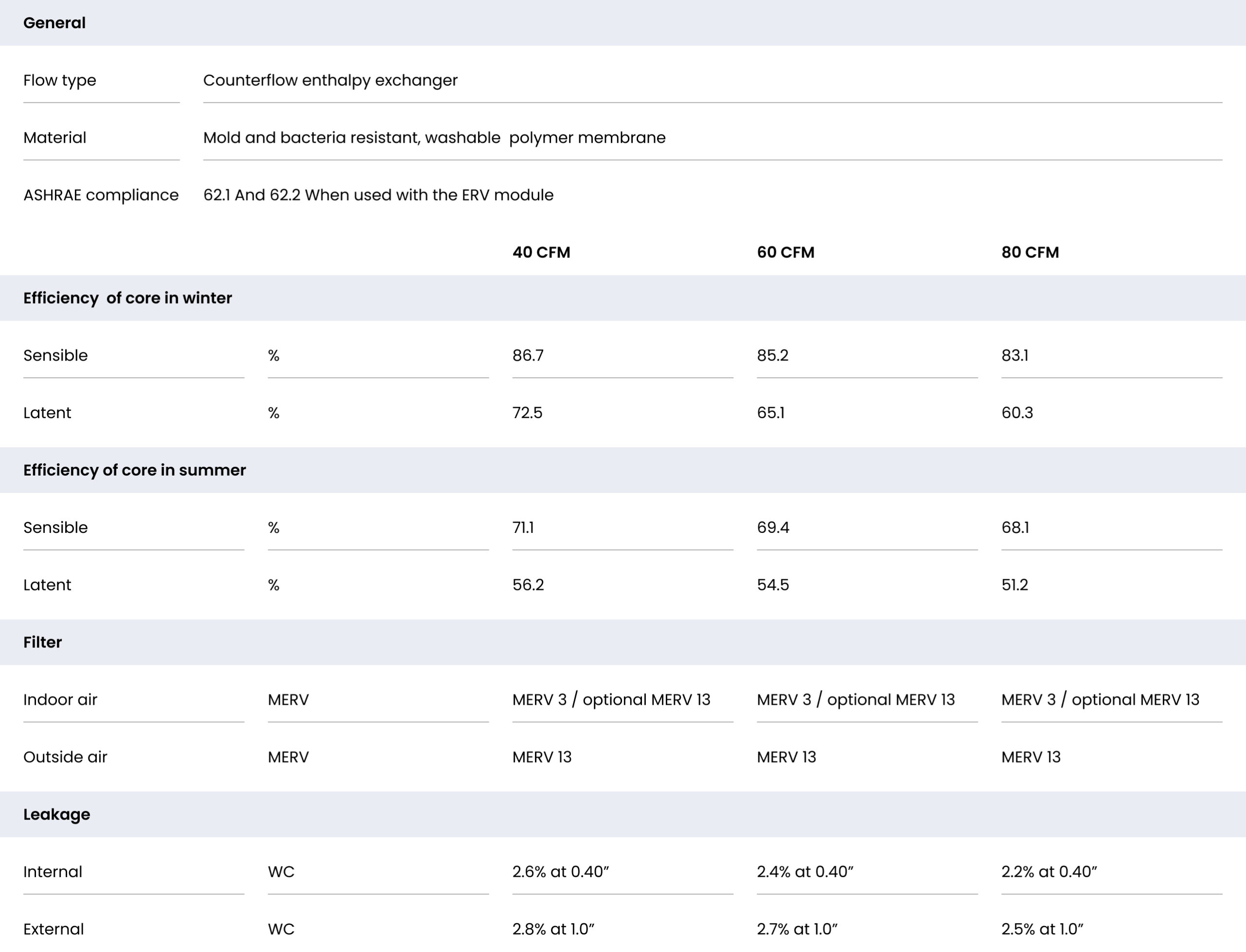

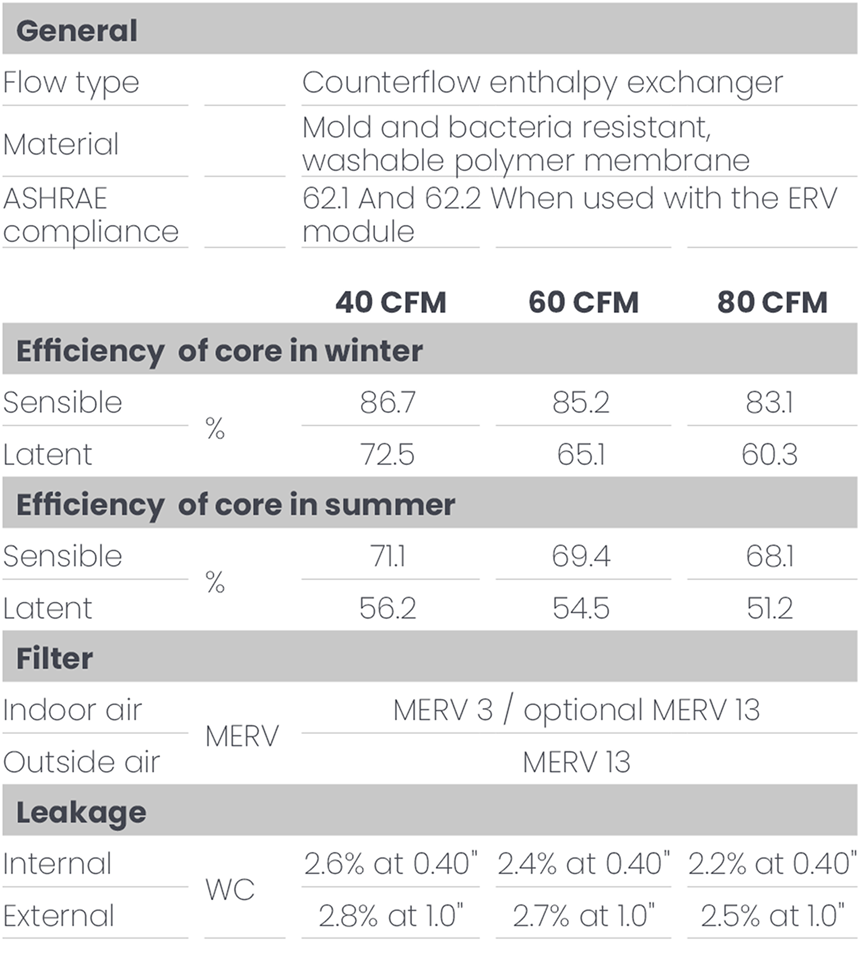

General
- Flow type
- Material
- ASHRAE compliance
- Counterflow enthalpy exchanger
- Mold and bacteria resistant, washable polymer membrane
- 62.1 And 62.2 When used with the ERV module
Efficiency of core in winter
- Sensible (%)
- Latent (%)
40 CFM
- 86.7
- 72.5
60 CFM
- 85.2
- 65.1
80 CFM
- 83.1
- 60.3
Efficiency of core in summer
- Sensible (%)
- Latent (%)
- 71.1
- 56.2
- 69.4
- 54.5
- 68.1
- 51.2
Filter
- Indoor air (MERV)
- Outside air (MERV)
- MERV 3 / optional MERV 13
- MERV 13
- MERV 3 / optional MERV 13
- MERV 13
- MERV 3 / optional MERV 13
- MERV 13
Leakage
- Internal (WC)
- External (WC)
- 2.6% at 0.40"
- 2.8% at 1.0"
- 2.4% at 0.40"
- 2.7% at 1.0"
- 2.2% at 0.40"
- 2.5% at 1.0"
Compressor
- RLA (A)
- LRA (A)
Indoor ECM fan motor
- Max Watts (W)
- F.L.A (A)
- Power (HP)
Outdoor ECM fan motor
- Max Watts (W)
- F.L.A (A)
- Power (HP)
115V
- 13
- 13
- 260
- 3.4
- 0.125
- 150
- 2.1
- 0.1
Heat Pump Only
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
Heat Pump
+ 0.9 kW Electric Heat
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
Heat Pump
+ 1.8 kW Electric Heat
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
115V
- N/A
- N/A
- 40
- N/A
- N/A
- 40
- -
- -
- -

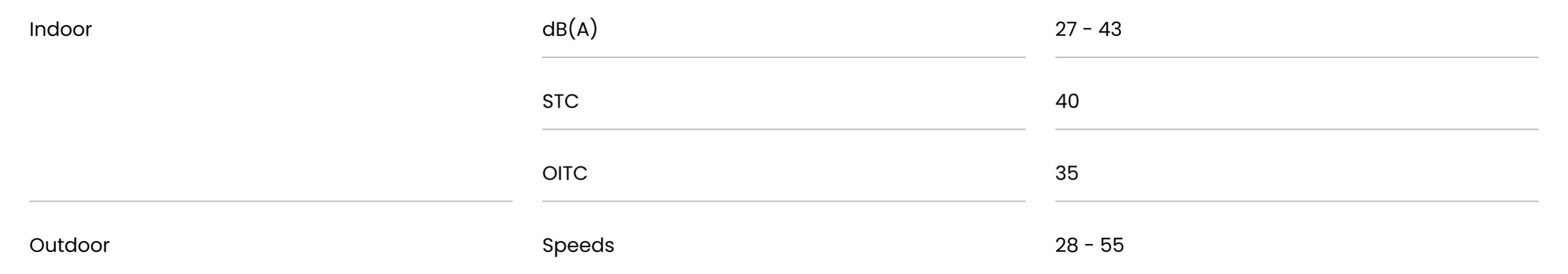

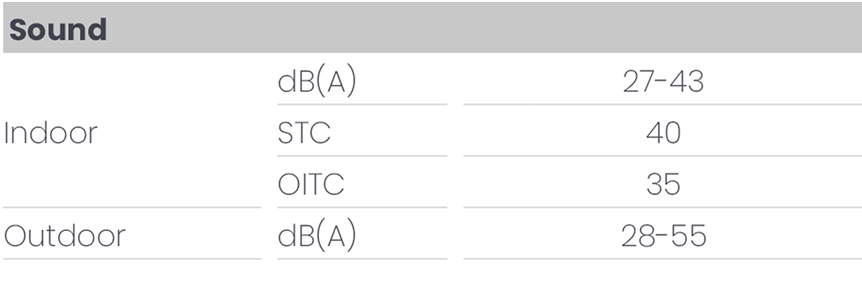

Indoor
- DB range: dB(A)
- STC
- OITC
- 27 - 43
- 40
- 35
Outdoor
- dB(A)
- 28 -55

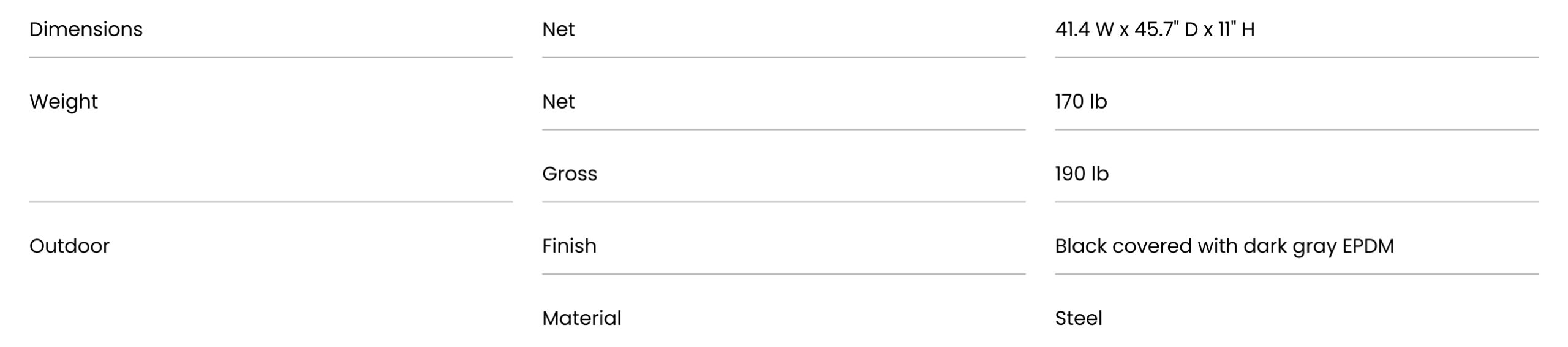

- Dimensions
- Net weight (Ib)
- Gross weight (Ib)
- Cabinet finish
- Cabinet material
- 41.4” W x 45.7” D x 11” H
- 178
- 190
- Black covered with dark gray EPDM
- Steel
Documentation
Without ERV
Trusted by leading brands worldwide
