ERV Module
For Wall Mounted and Wall Mounted Pro
The ERV module is designed for compatibility with the Wall Mounted and Wall Mounted Pro units. It attaches securely to the back of these units using the existing holes, so no additional openings are required. The ERV module is controlled and powered by the Wall Mounted and Wall Mounted Pro units. It features two MERV 13 filters to ensure clean air and provides up to 25 CFM of fresh air.
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Controlled and powered by Wall Mounted or Wall Mounted Pro
- Auto-restart
- MERV13 filters
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high, and auto
- Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)
Mounting
- High wall
- Low wall
- Sidewall with adapter
Airflow
- Up to 30 CFM
Included controls
- Controlled by the Wall Mounted or Wall Mounted Pro

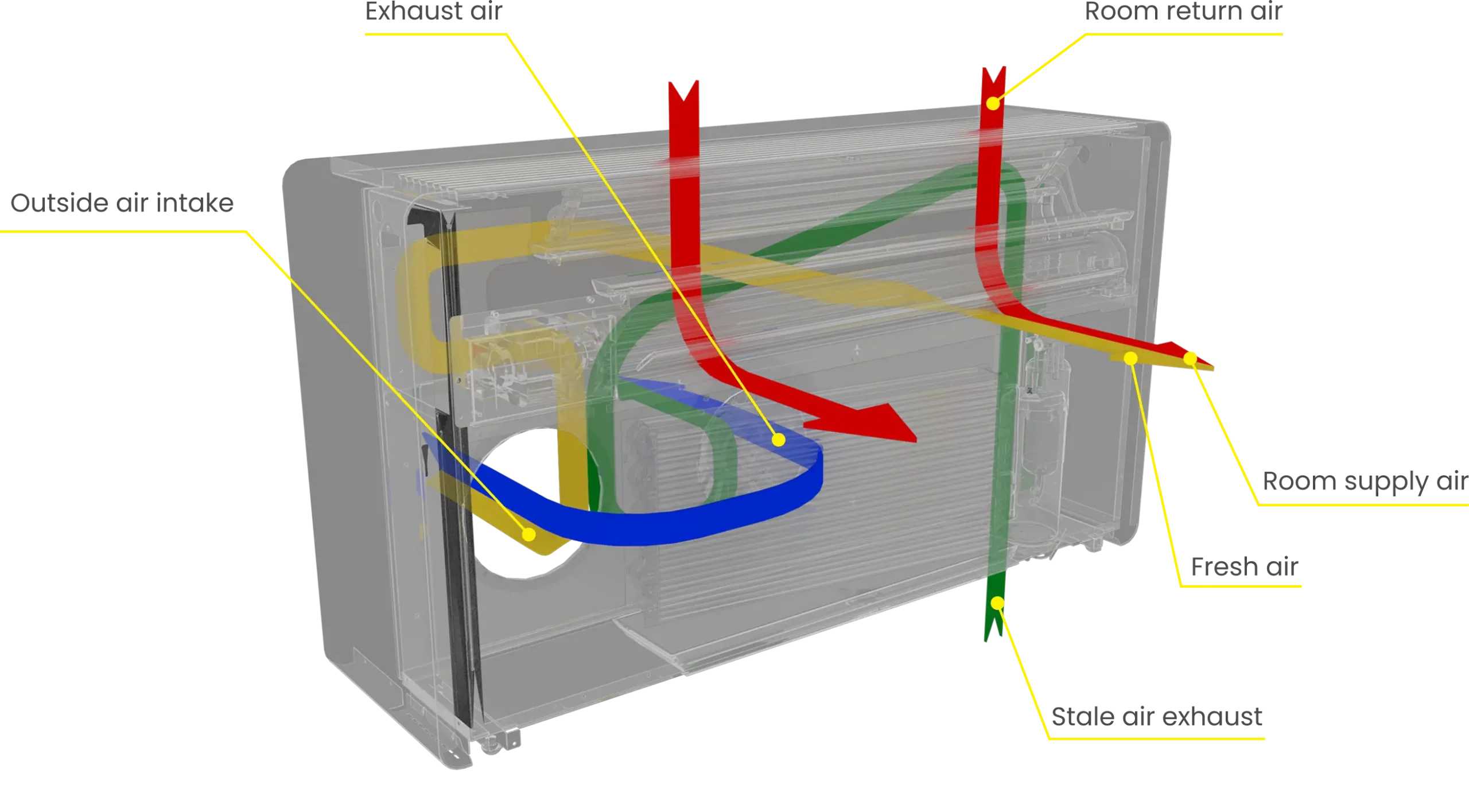

Airflow
AIO ERV Module is extraordinarily flexible in how it can externally vent as it uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
- Outside air
- Recirculate air
- Fresh air intake
- Stale air exhaust
A - Outside air intake
The 6 or 8-inch round outside air intake connection uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
B - Outside air exhaust
The 6 or 8-inch round exhaust connection uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.

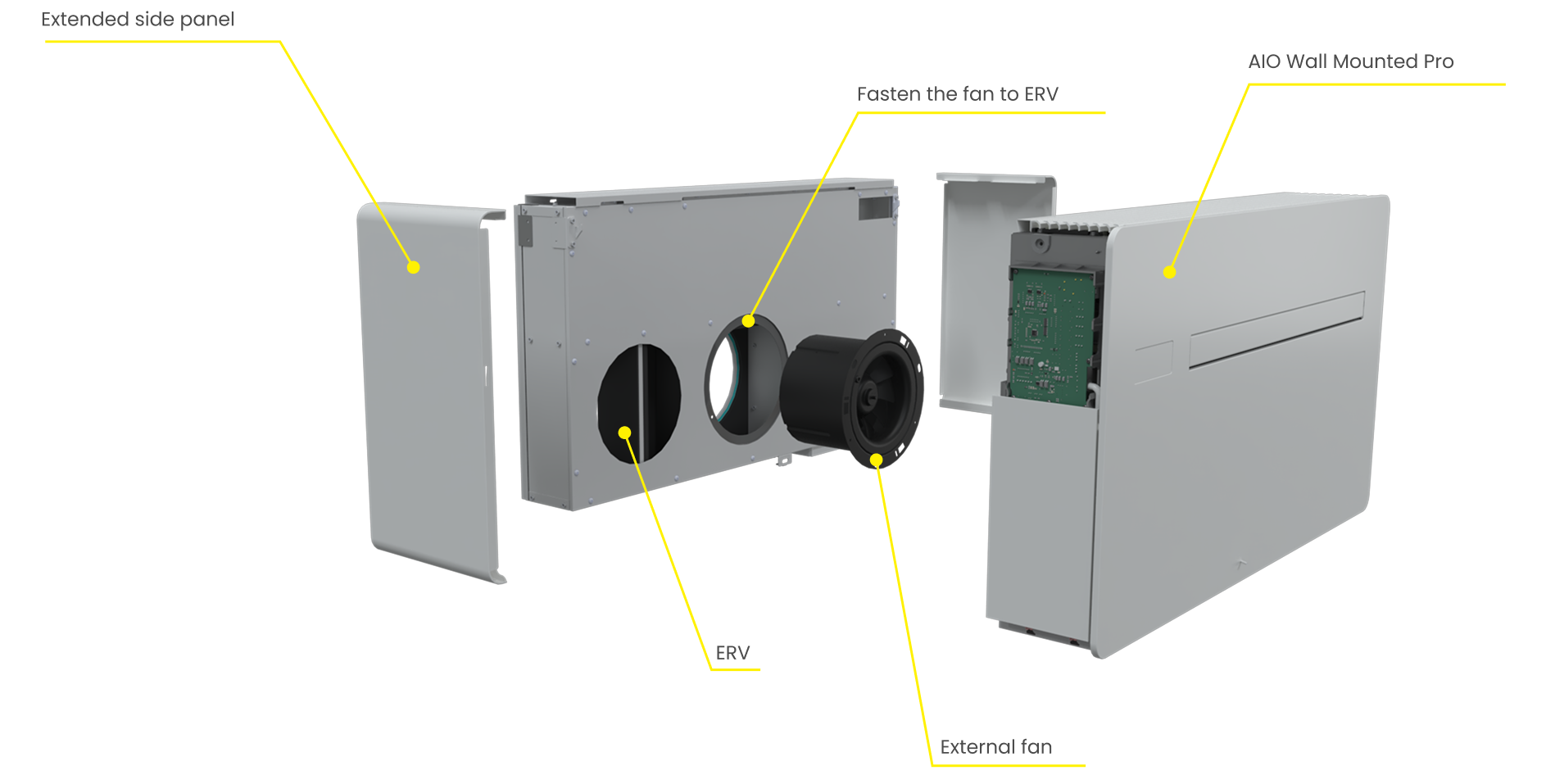

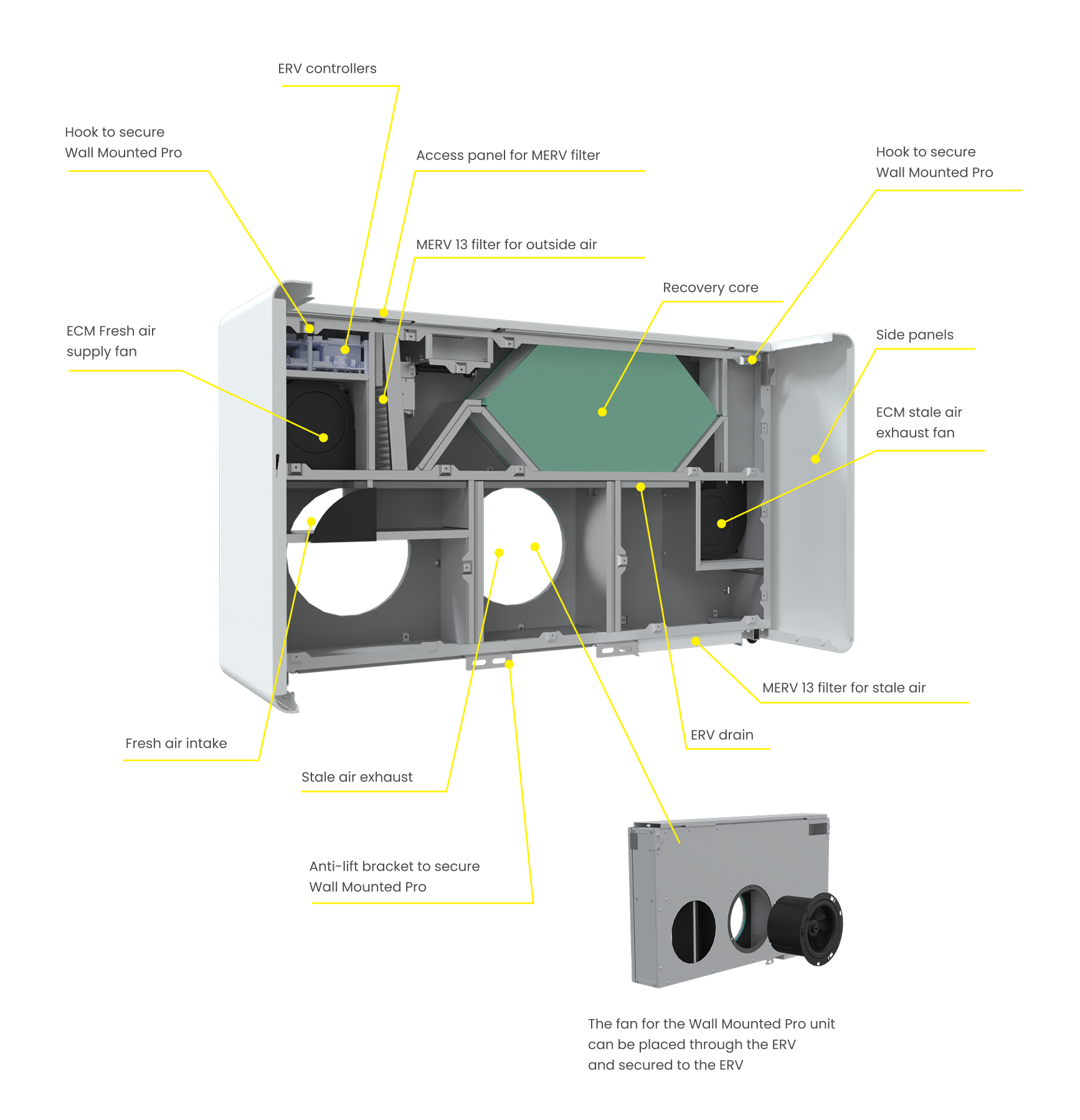

What's Inside

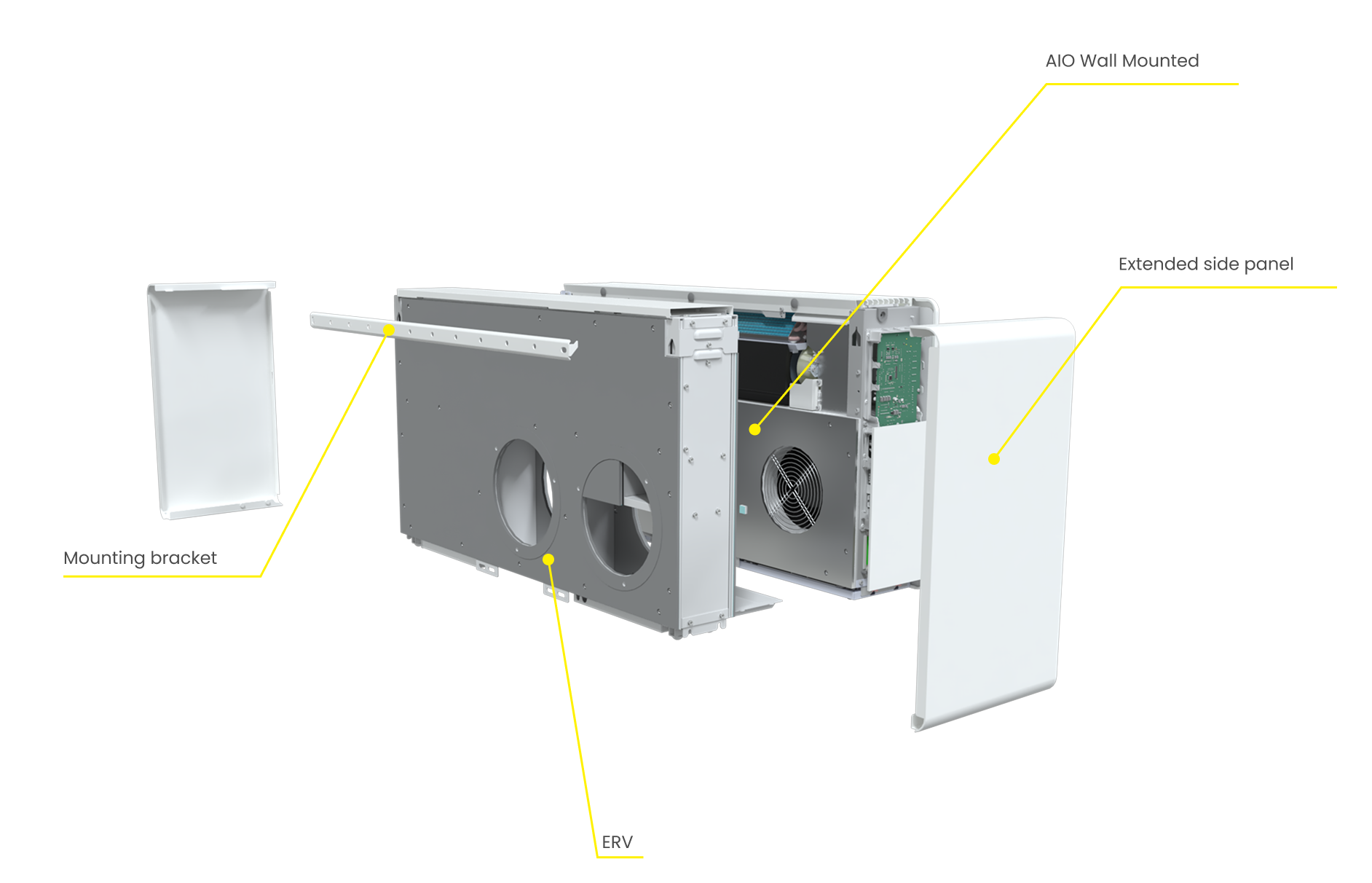

Combining with Wall Mounted Pro

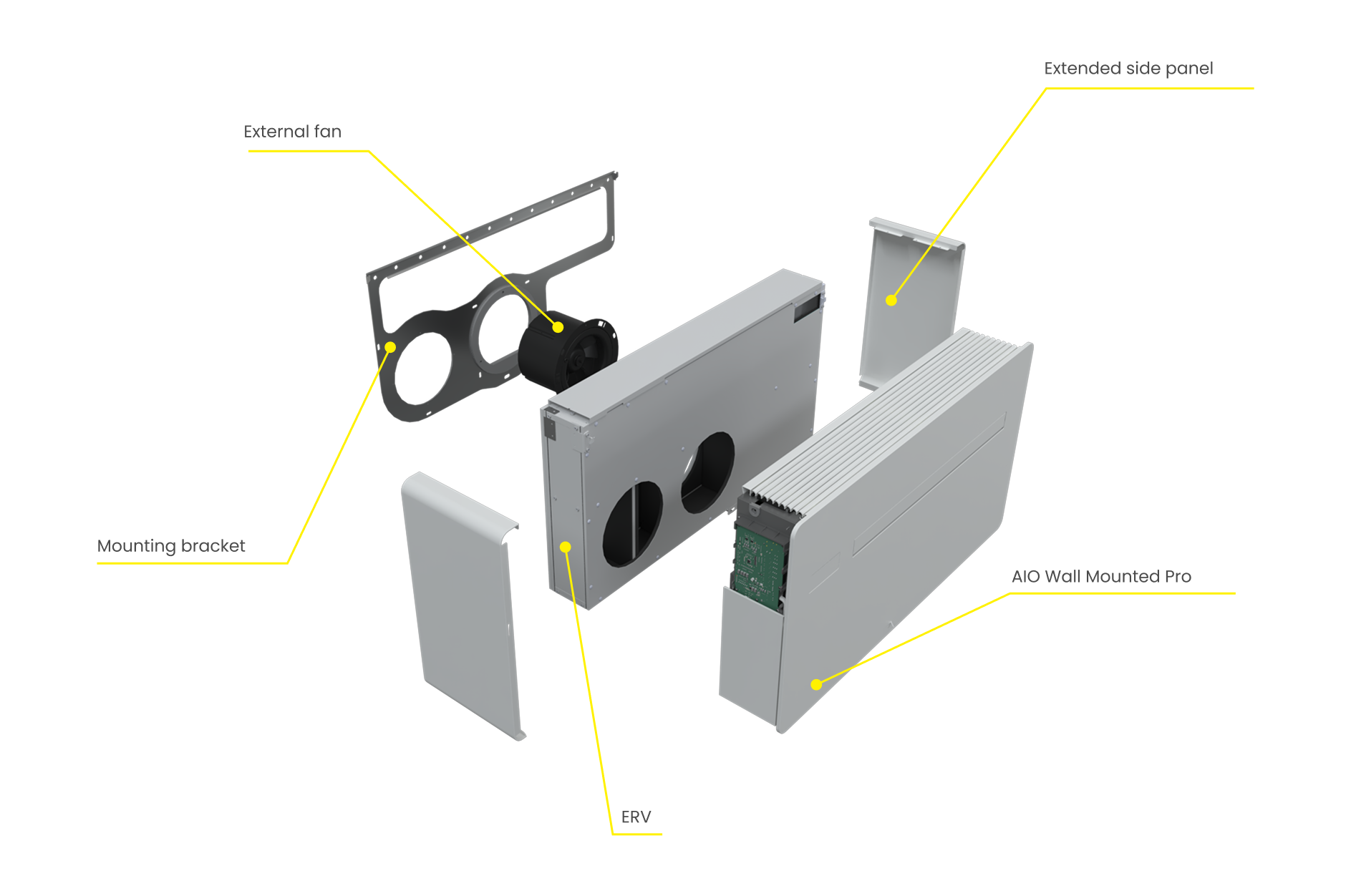

Fan in wall option

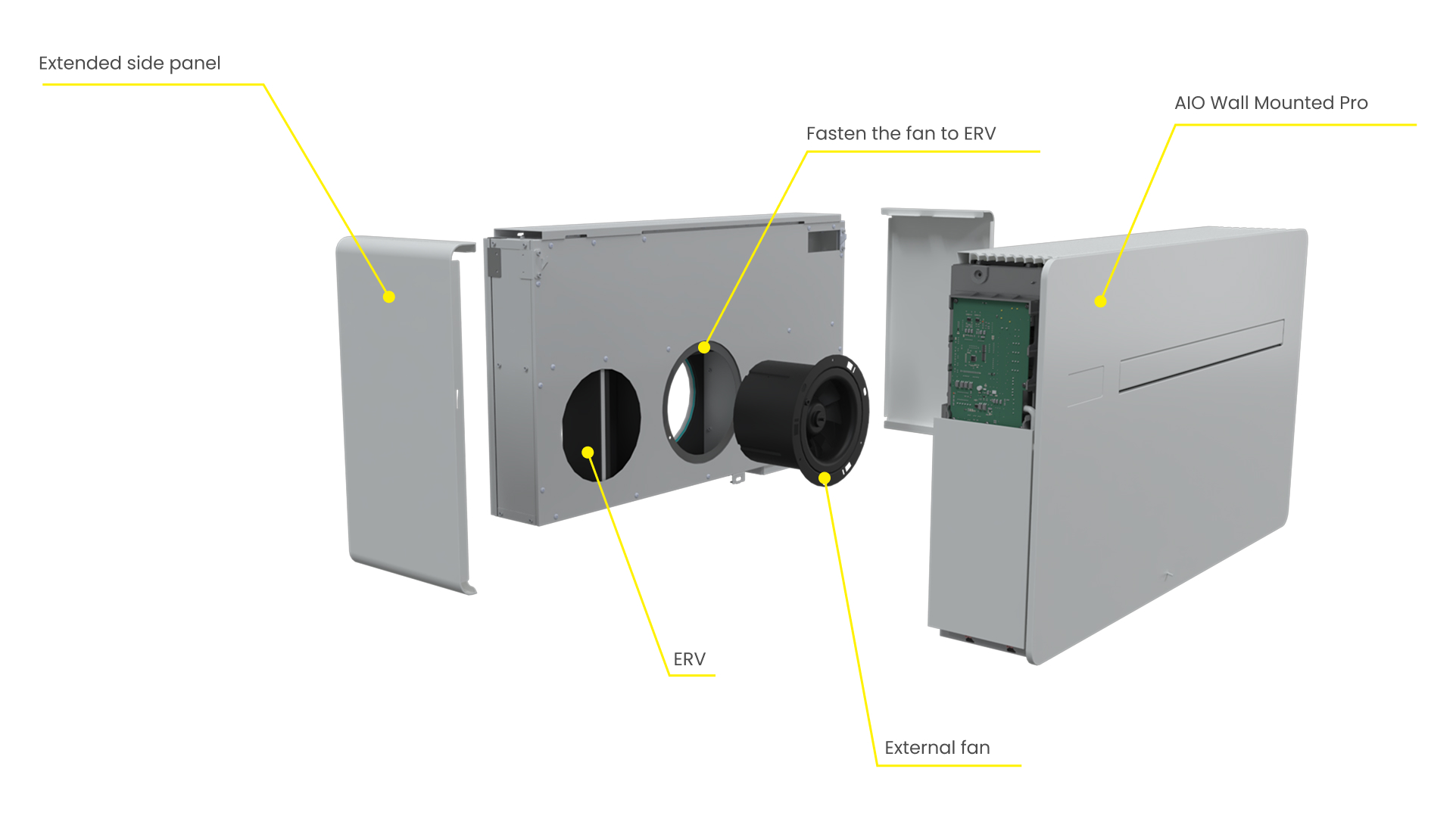

Fan in ERV option

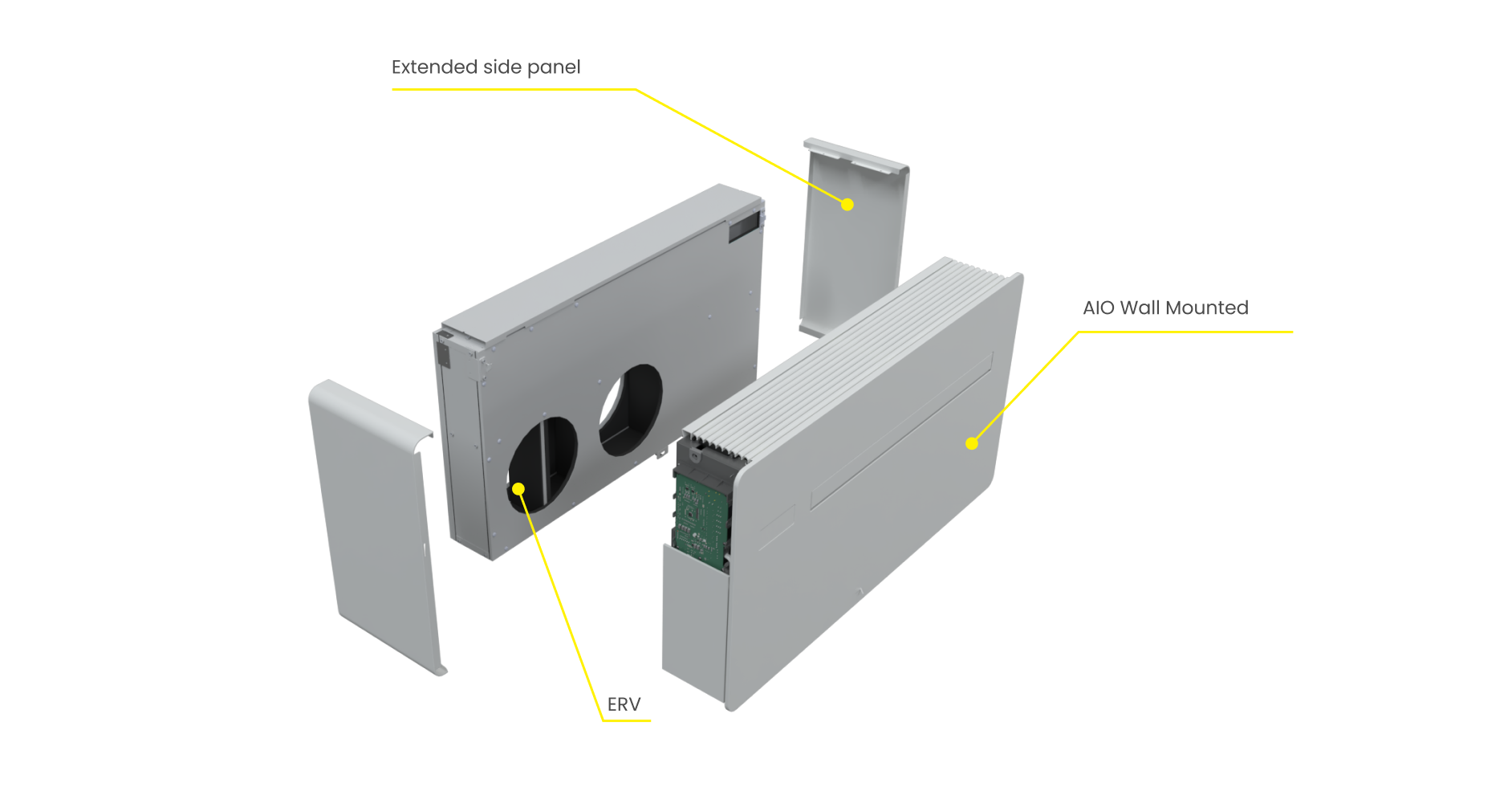

Combining with Wall Mounted Standard
Rear view
Front view

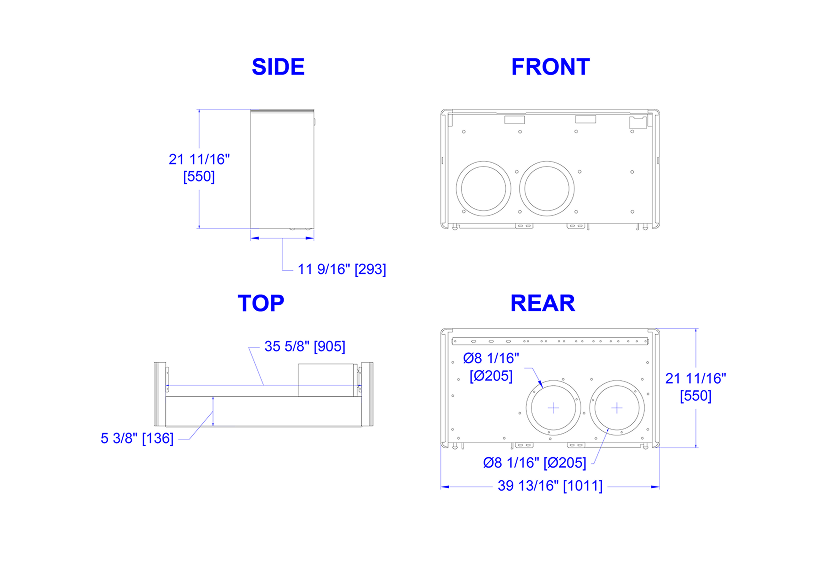

Dimensions
Technical Specifications
- Flow type
- Material
- ASHRAE compliance
- Counterflow enthalpy exchanger
- Mold and bacteria resistant, washable polymer membrane
- 62.1 And 62.2 When used with the ERV module

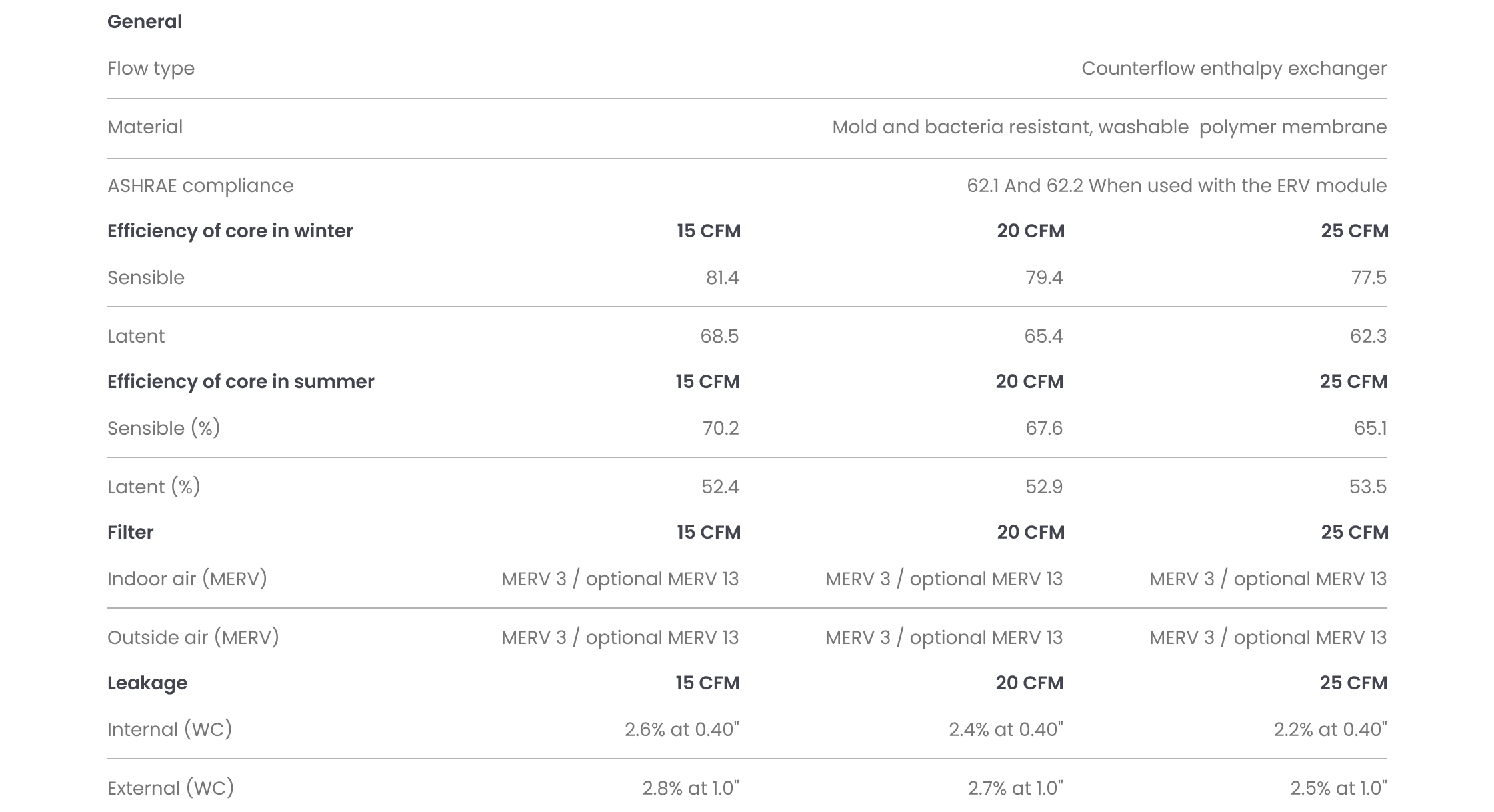

Efficiency of core in winter
- Sensible (%)
- Latent (%)
15 CFM
- 81.4
- 68.5
20 CFM
- 79.4
- 65.4
25 CFM
- 77.5
- 62.3
Efficiency of core in summer
- Sensible (%)
- Latent (%)
- 70.2
- 52.4
- 67.6
- 52.9
- 65.1
- 53.5
Filter
- Indoor air (MERV)
- Outside air (MERV)
- MERV 3 / optional MERV 13
- MERV 13
- MERV 3 / optional MERV 13
- MERV 13
- MERV 3 / optional MERV 13
- MERV 13
Leakage
- Internal (WC)
- External (WC)
- 2.6% at 0.40"
- 2.8% at 1.0"
- 2.4% at 0.40"
- 2.7% at 1.0"
- 2.2% at 0.40"
- 2.5% at 1.0"

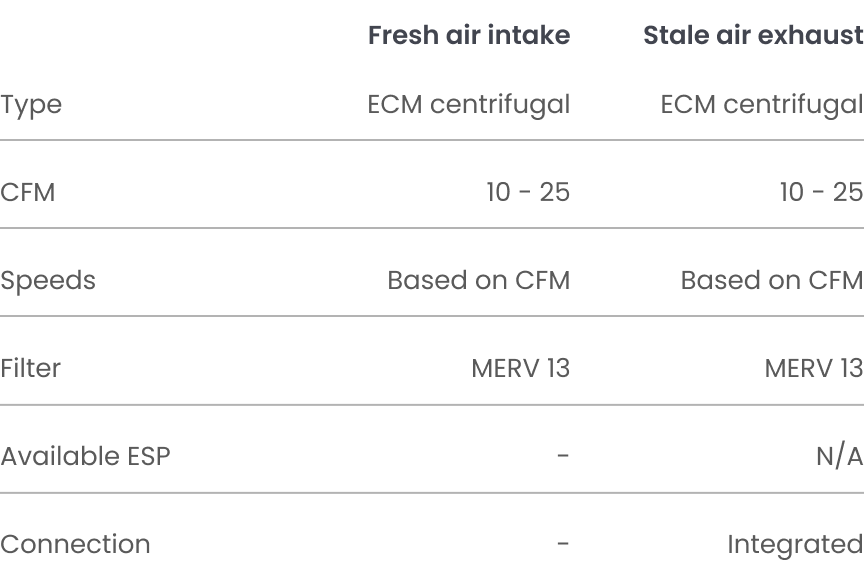

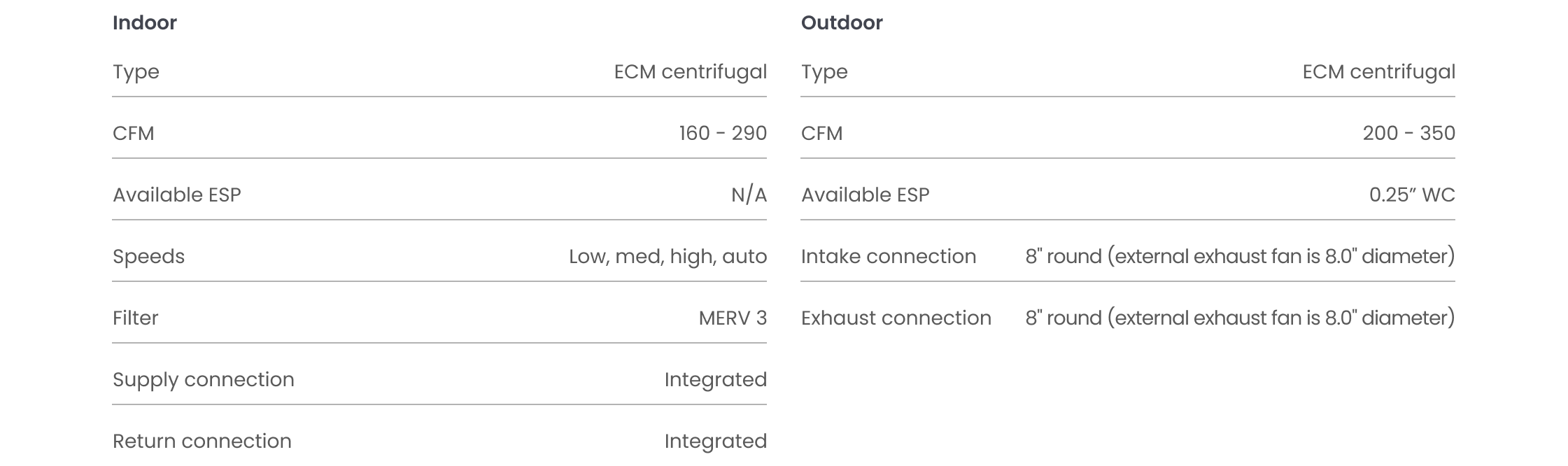

Fresh air intake
- Type
- CFM
- Speeds
- Filter
?
- ECM centrifugal
- 10 - 30
- Based on CFM
- MERV 13
Stale air exhaust
- Type
- CFM
- Available ESP
- Connection
- Speeds
- Filter
?
- ECM centrifugal
- 10 - 30
- N/A
- Integrated
- Based on CFM
- MERV 13

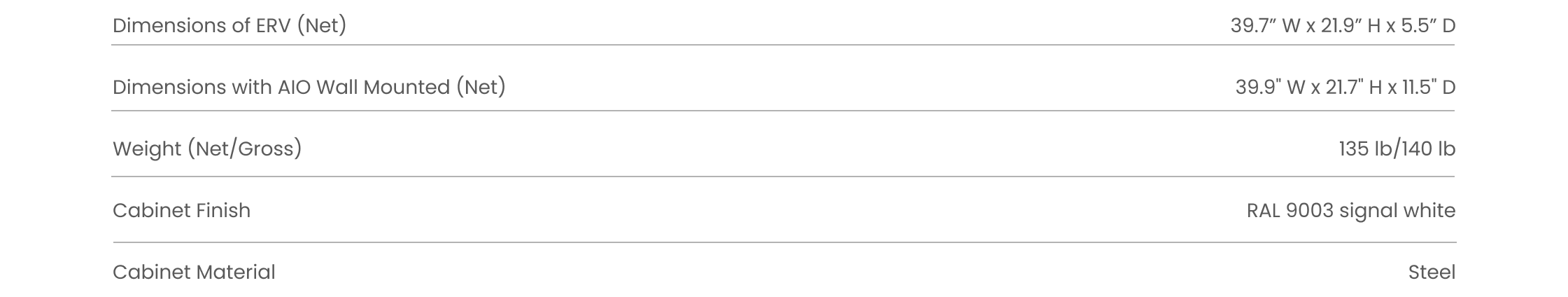

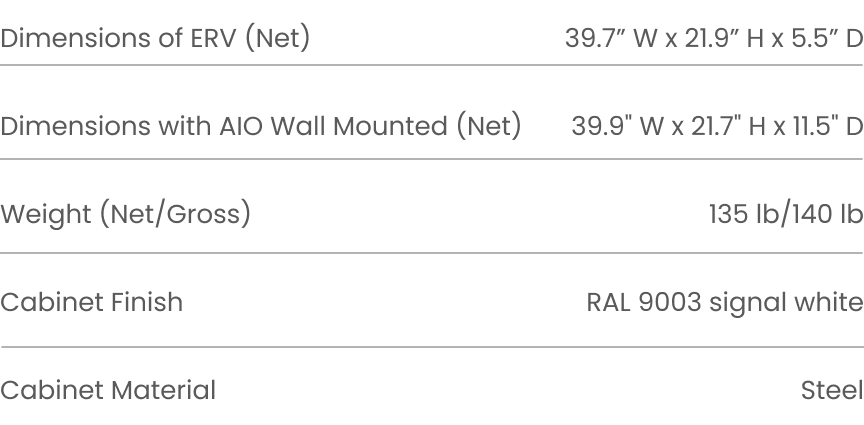

- Dimensions
- 39.7” W x 21.9” H x 5.5” D
- Dimensions
- Net weight (Ib)
- Gross weight (Ib)
- Cabinet finish
- Cabinet material
- 39.9" W x 21.7" H x 11.5" D
- 135
- 140
- RAL 9003 signal white
- Steel
Sound
- Indoor-dB(A)

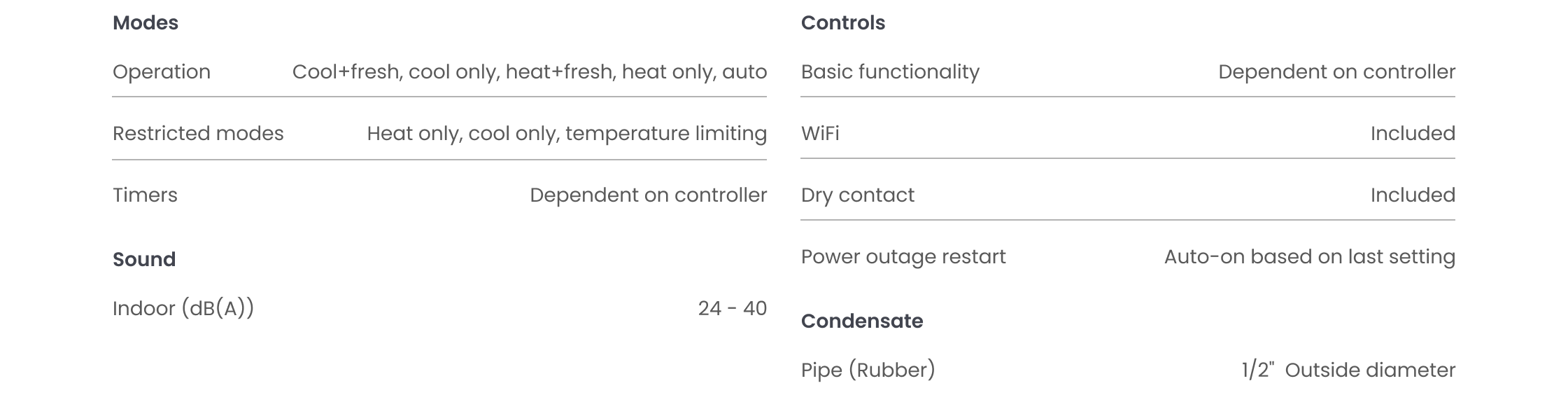

Modes
- Operation
- Restricted modes
- Timers
?
- BLDC twin rotary inverter
?
- Fresh Air on/ Fresh Air off
- Field configured
- Dependent on controller
Controls
- Basic functionality
- WiFi
- Dry contact
- Power Outage Restart
Condensate
- Pipe size
- Pipe Material
?
- Dependent on controller
- Included
- Yes
- Auto-on based on last setting
?
- 1/2" Outside diameter
- Rubber
- Volt range
- Hz/ phase
-
Power supply
- Input power off mode (W)
- Running Amps Cooling (A)

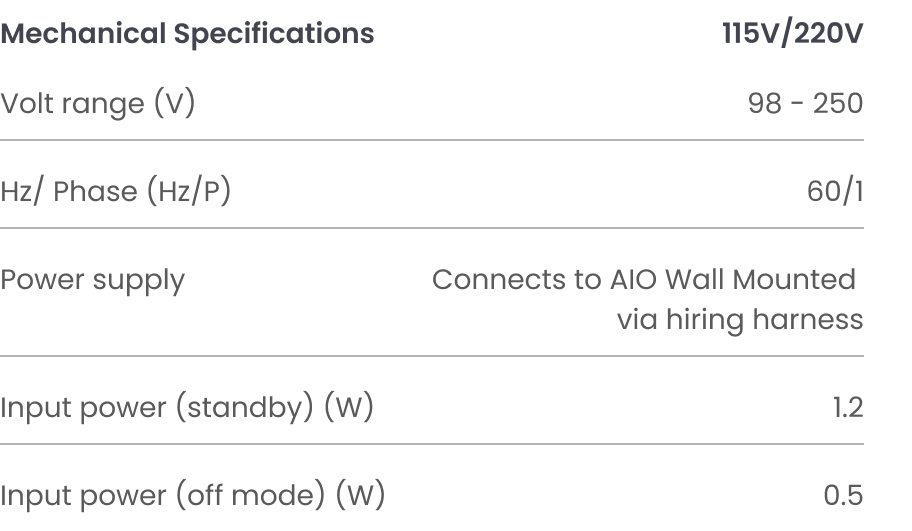

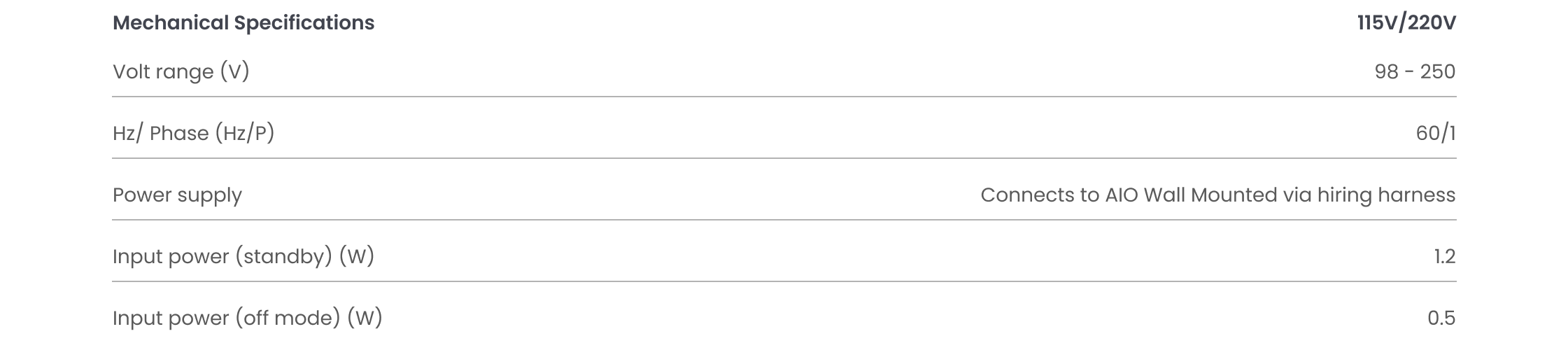

115V/220V
- 98 - 250
- 60 Hz single phase
- Connects to AIO Wall Mounted via wiring harness
- 1.2
- 0.5

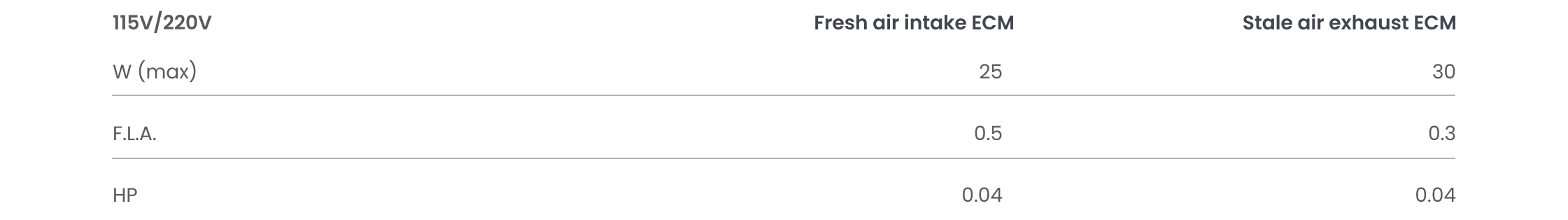

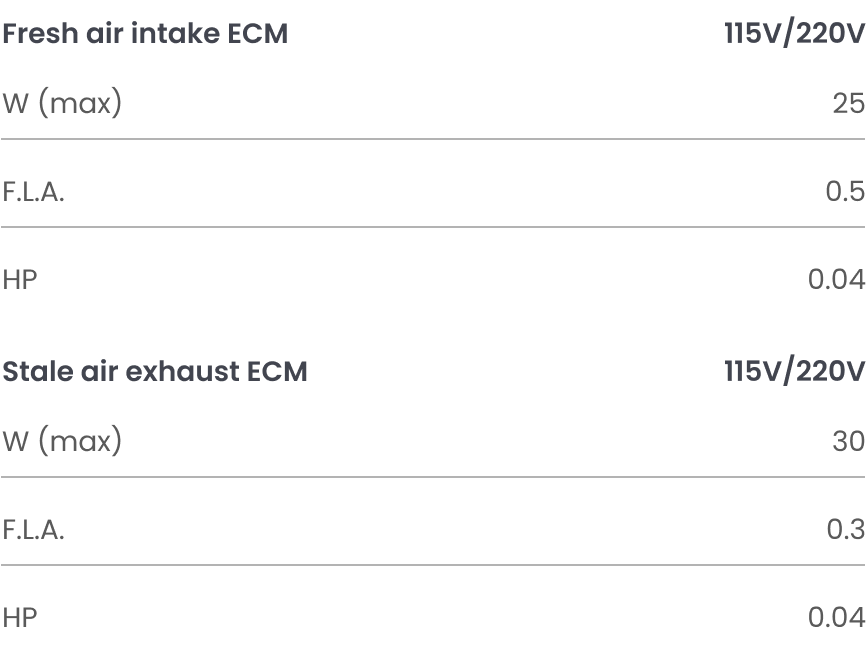

- Fresh air intake ECM fan motor -W (max)
- Fresh air intake ECM fan motor-F.L.A.
- Fresh air intake ECM fan motor-HP
115V/220V
- 25
- 0.5
- 0.04
- Stale air exhaust ECM fan motor W (max)
- Stale air exhaust ECM fan motor F.L.A
- Stale air exhaust ECM fan motor HP
- 30
- 0.3
- 0.04
