Floor Standing

AIO Floor Standing units are the latest addition to our AIO product line. This unit fortifies our commitment to providing a complete range of products that allow you to find the right model for every type of installation. The AIO Floor Standing unit is just 19.7 inches wide and is a perfect fit between two windows or at an angle. The onboard touch controller simplifies use and installation.

Key Features

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Auto-restart
  • Washable filters

Options

  • 115V or 230V
  • Hardwire or LCDI cord
  • R32
  • 900 kw heat strip

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto

Airflow

  • Dual 8-inch external vents
  • Available 0.25" WC for louvers

Included controls

  • Onboard touch controller

Optional controllers

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

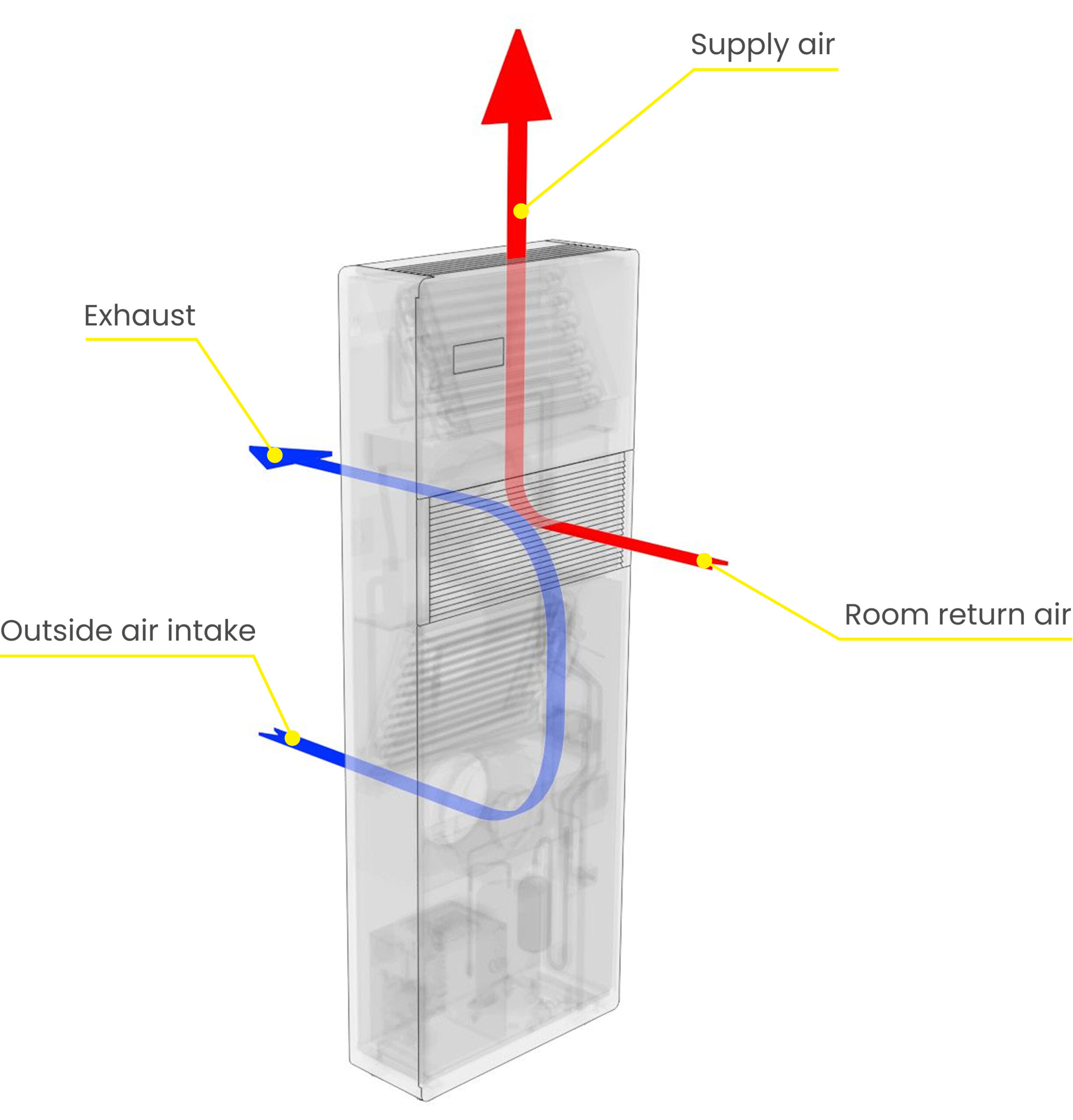

Airflow

 In addition to the typical twin external vents, AIO Floor Standing can attach to a sidewall adapter enabling mounting on a wall perpendicular to the outside.
  • Outside air
  • Recirculate air

Supply air

The supply air comes through the top with an adjustable grill.

Return air

The return air is at the third of the unit, coming through the integrated return air grill.

Outside air intake

The 8-inch outside air intake connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

Outside air exhaust

The 8-inch round outside air exhaust connection works with any of the approved or custom louvers as long as they comply with the minimum requirements.

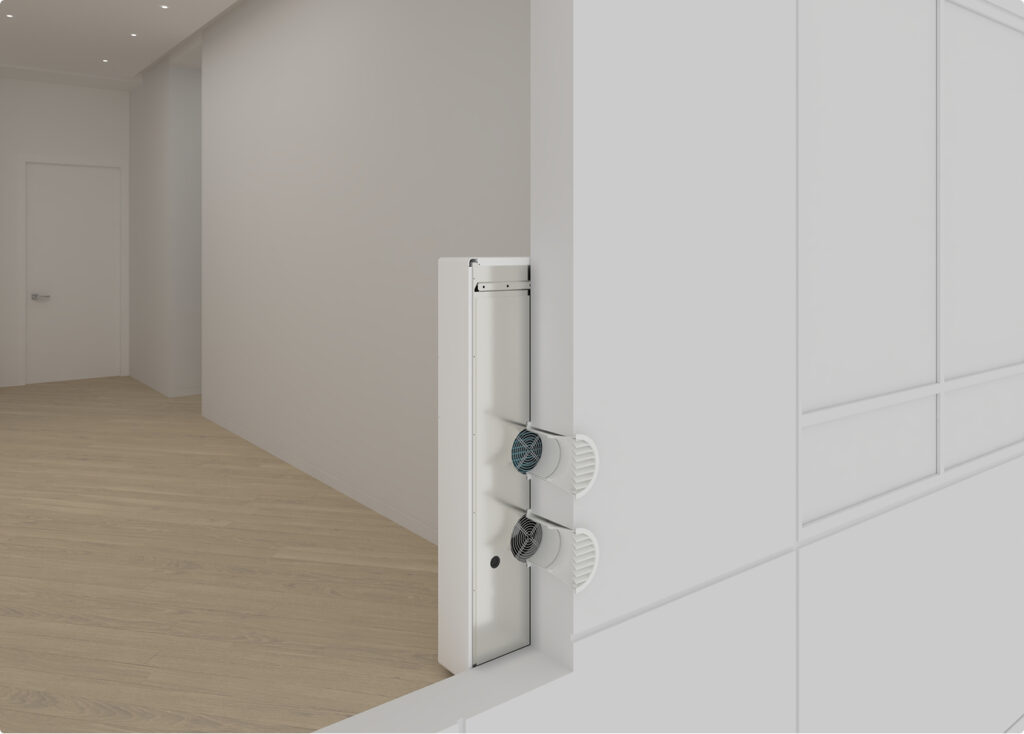

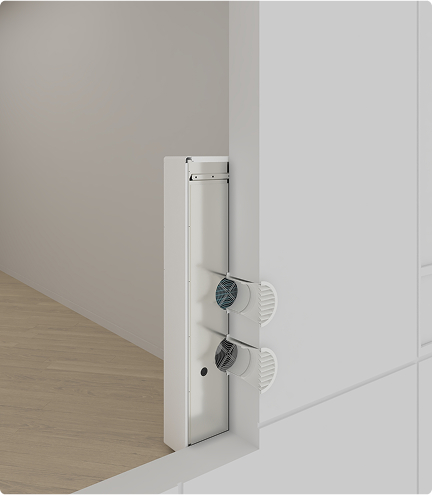

Installation

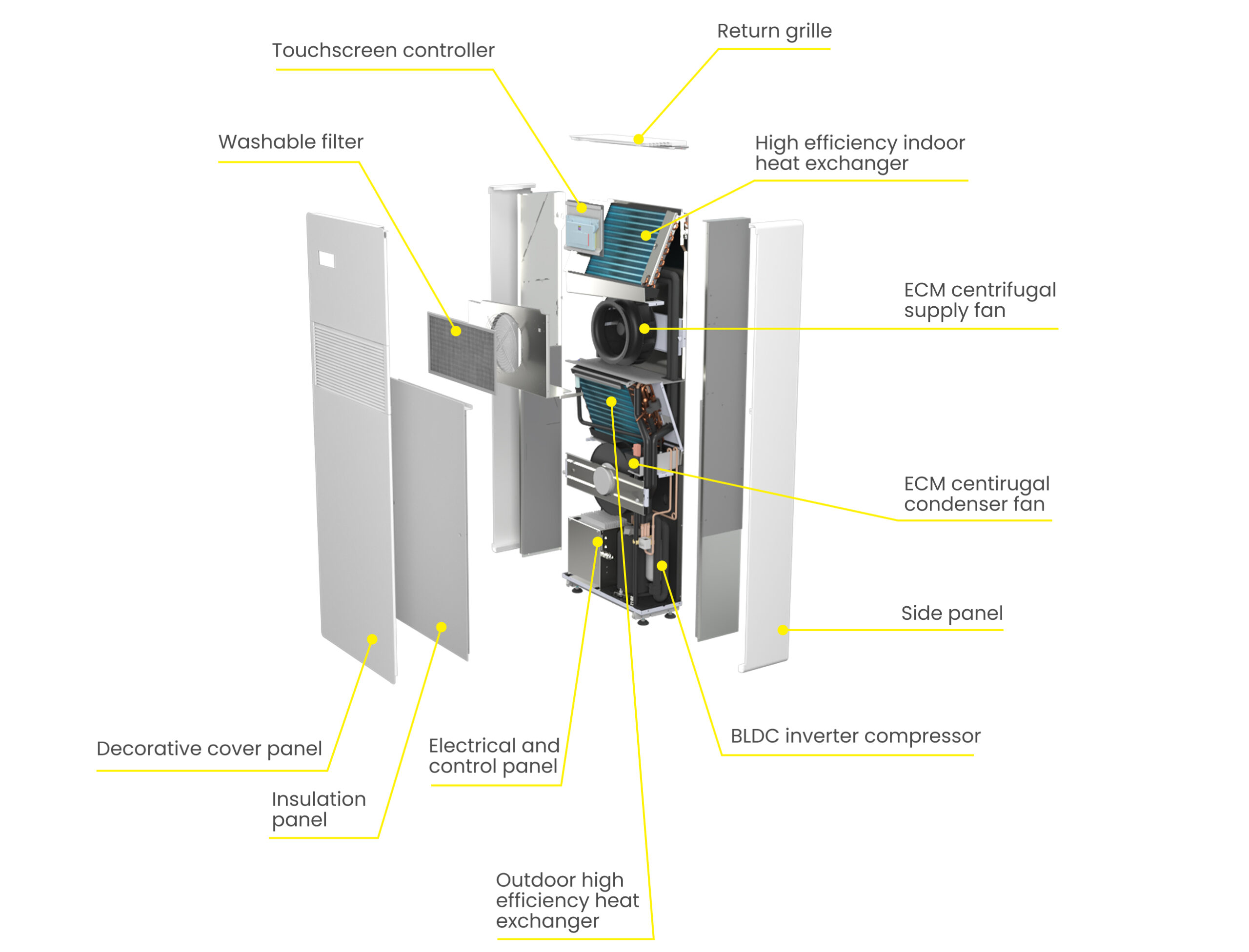

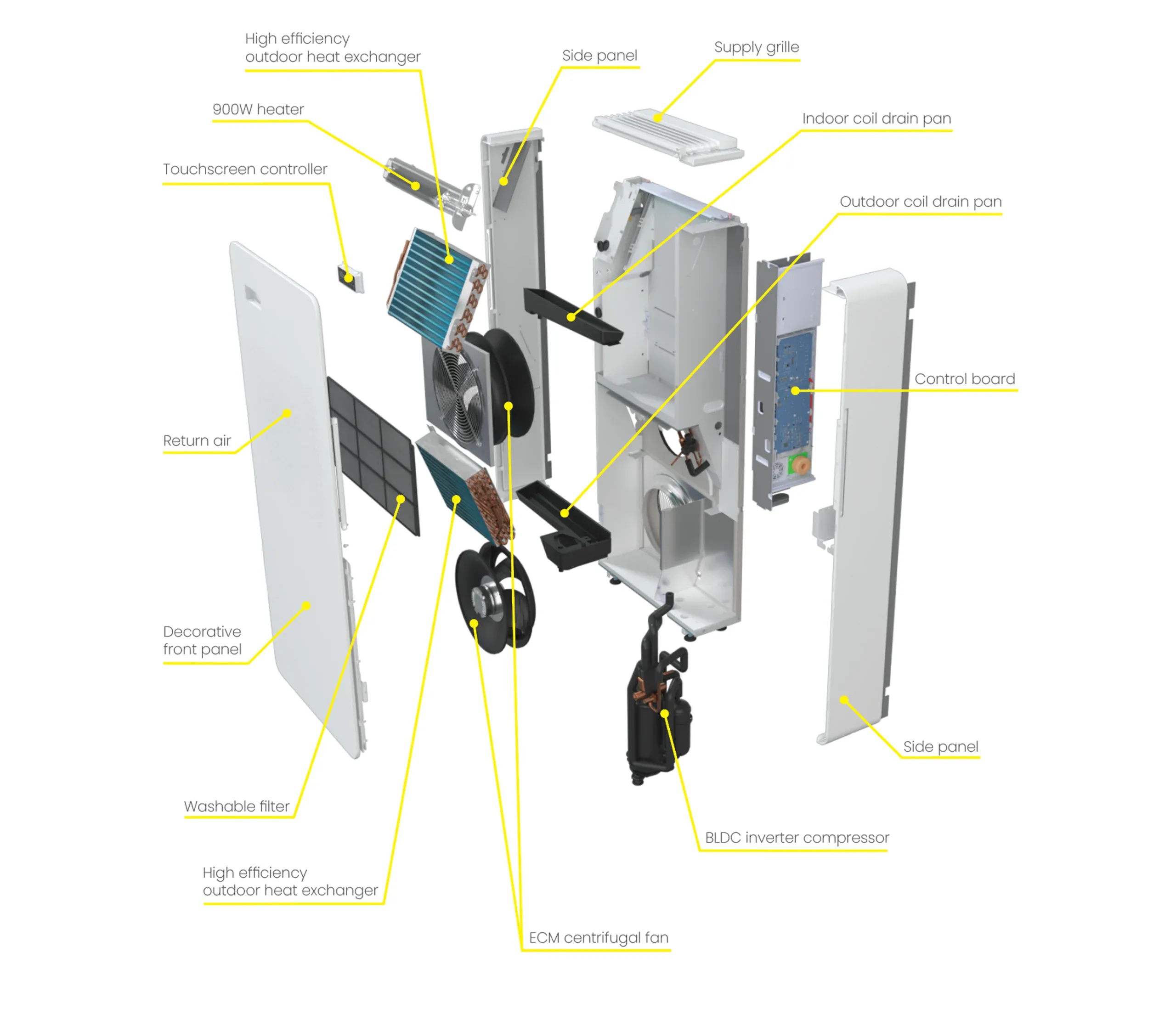

What's Inside

Dimensions

CAD Files

For CAD and DWG files, please scan or click the QR code below.

Technical Specifications

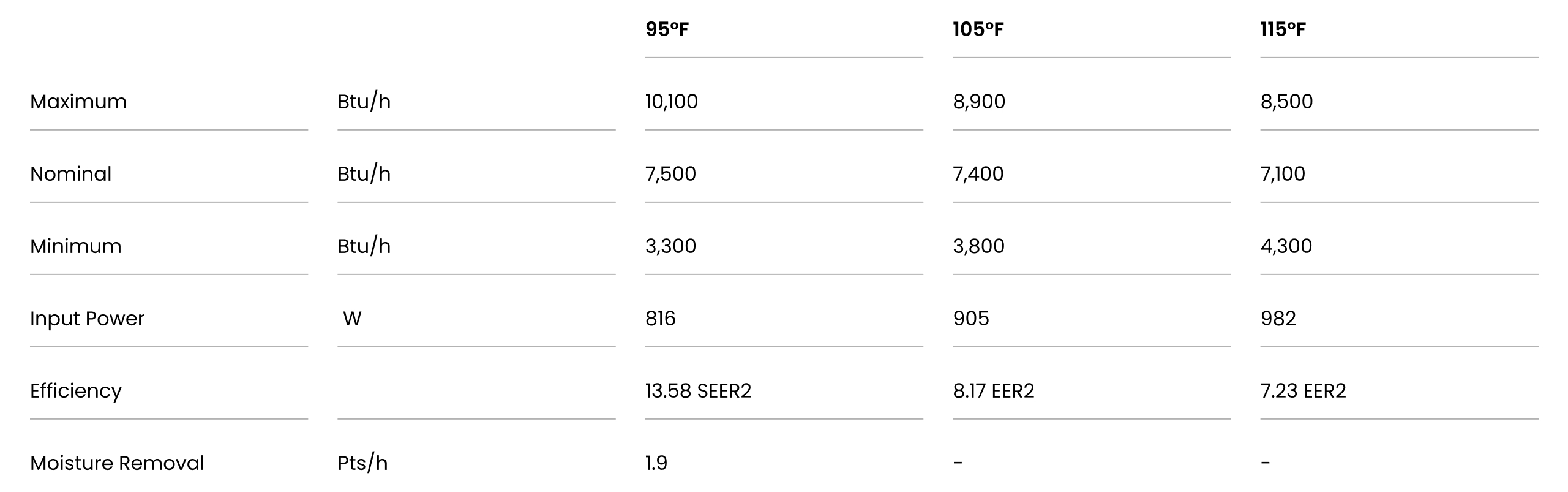

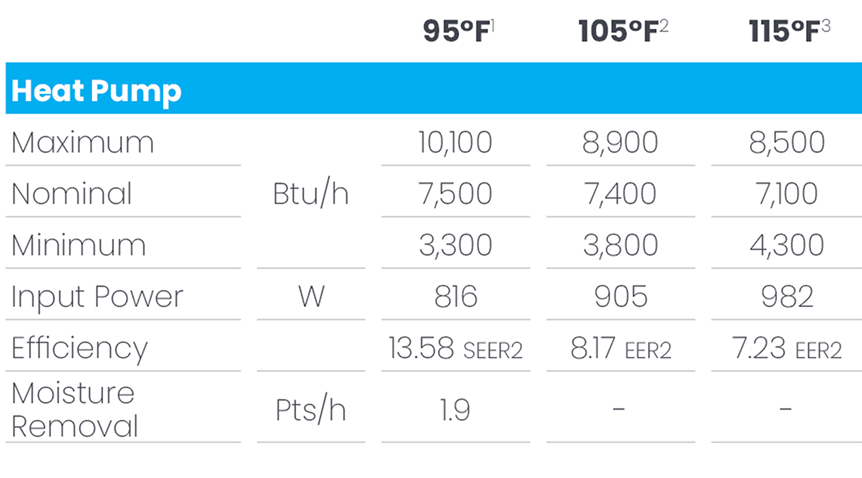

Heat Pump

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)

95°F 1



  • 10.2
  • 9.3
  • 9.3
  • 3.9



  • 1.25
  • 1.02
  • 0.21
  • 204



  • 8.17
  • 9.1
  • 9.1
  • 13.7

1.8

105°F 2



  • 8.0
  • 7.6
  • 7.4
  • 3.3



  • 1.00
  • 0.94
  • 0.90
  • 0.24



  • 8.0
  • 8.1
  • 8.2
  • -

2.1

115°F 3



  • 7.5
  • 7.1
  • 7.1
  • 3.3



  • 1.08
  • 0.98
  • 0.98
  • 0.27



  • 7.0
  • 7.2
  • 7.2
  • -

2.3

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

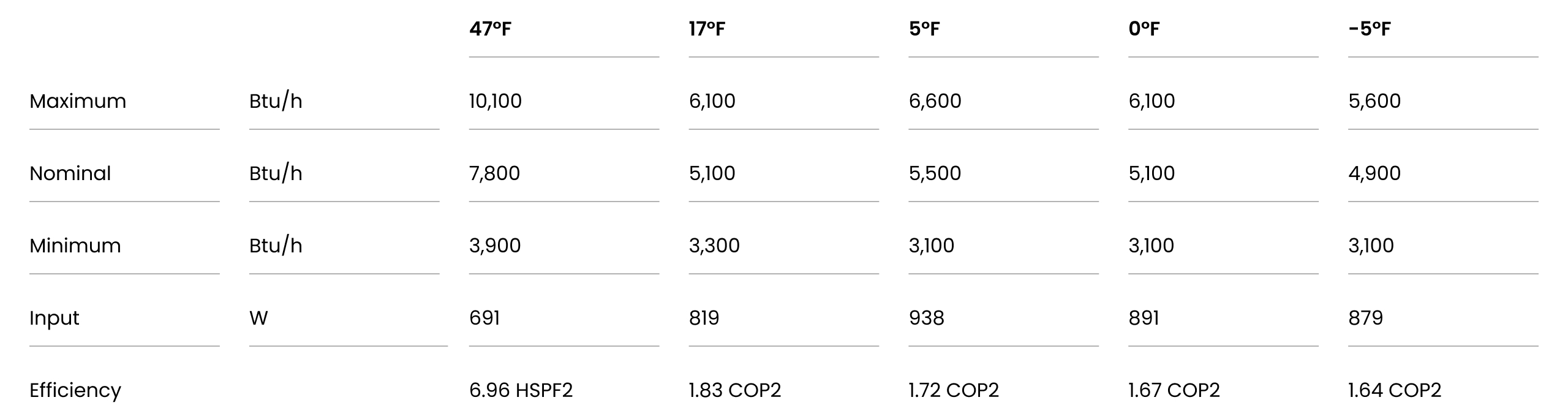

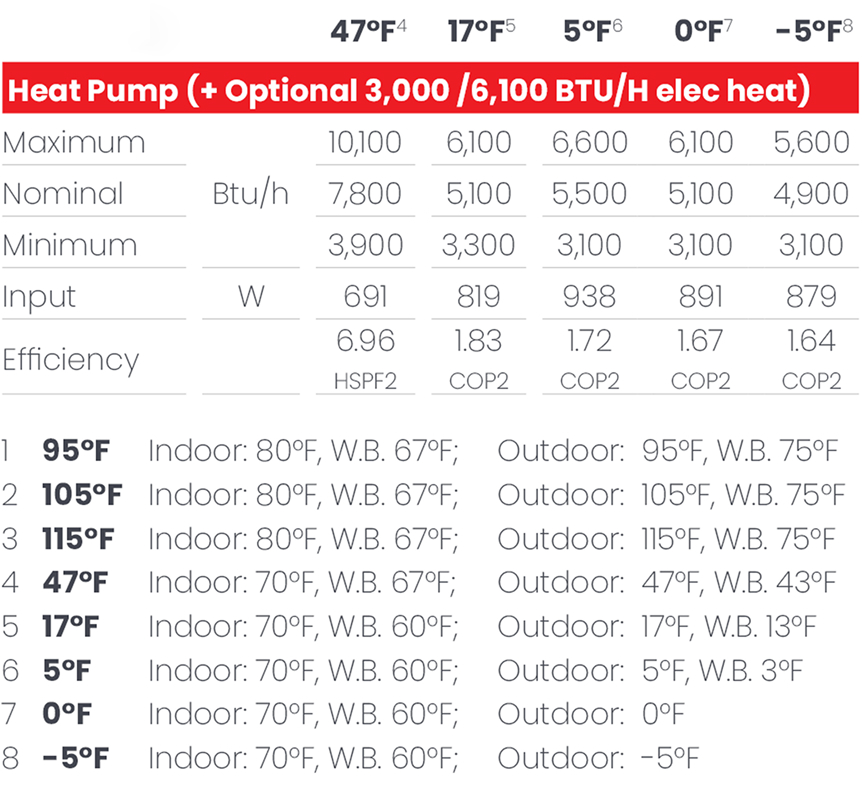

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2

47°F 1



  • 10.1
  • 9.2
  • 9.2
  • 3.0



  • 1.03
  • 0.85
  • 0.85
  • 0.26



  • 2.9
  • 3.2
  • 3.2
  • 3.5
  • 7.0

17°F 2



  • 6.4
  • 5.5
  • 5.5
  • 3.0



  • 1.05
  • 0.81
  • 0.81
  • 0.4



  • 1.8
  • 2.0
  • 2.0
  • 2.2
  • -

5°F 3



  • 6.0
  • 5.3
  • 5.3
  • 3.0



  • 1.47
  • 1.11
  • 1.11
  • 0.55



  • 1.2
  • 1.4
  • 1.4
  • 1.6
  • -

0°F 4



  • 5.7
  • 5.1
  • 5.1
  • 3.0



  • 1.52
  • 1.15
  • 1.15
  • 0.59



  • 1.1
  • 1.3
  • 1.3
  • 1.5
  • -

-5°F 5



  • 5.3
  • 4.9
  • 4.9
  • 3.0



  • 1.56
  • 1.20
  • 1.20
  • 0.63



  • 1.0
  • 1.2
  • 1.2
  • 1.4
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3,100 or 6,100 BTU/h.

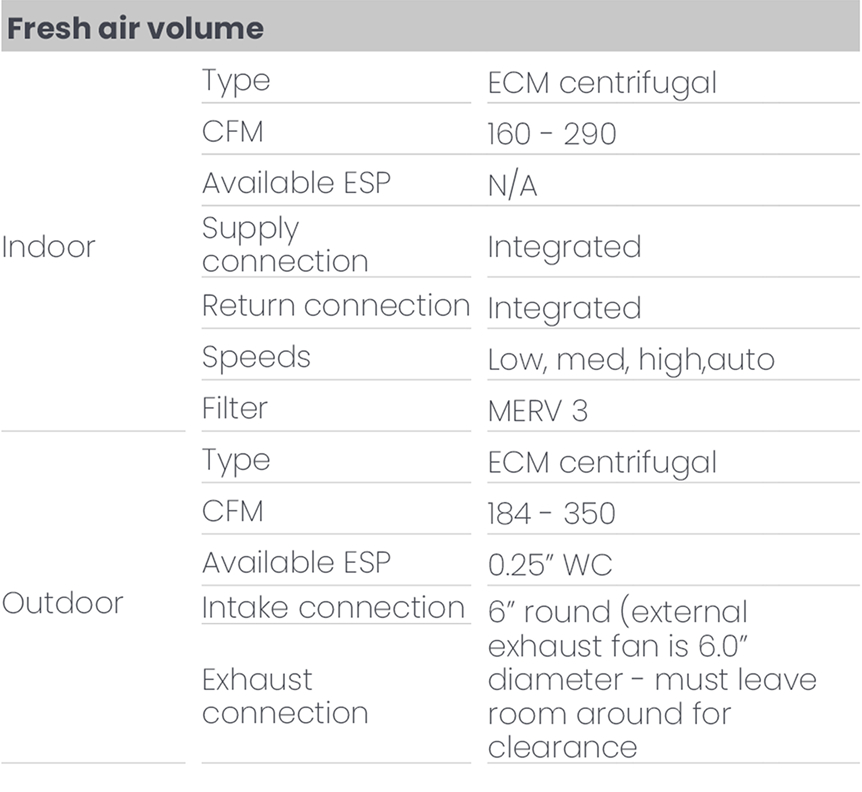

Indoor

  • Type
  • CFM
  • Available ESP
  • Fan Modes
  • Supply connection
  • Return connection
  • Filter



  • ECM centrifugal
  • 200 - 350
  • N/A
  • Low, med, high, auto
  • Integrated
  • Integrated
  • MERV 3

Outdoor

  • Type
  • CFM
  • Available ESP
  • Intake connection
  • Exhaust connection



  • ECM centrifugal
  • 165 - 412
  • 0.25" WC
  • 8” round
  • 8” round

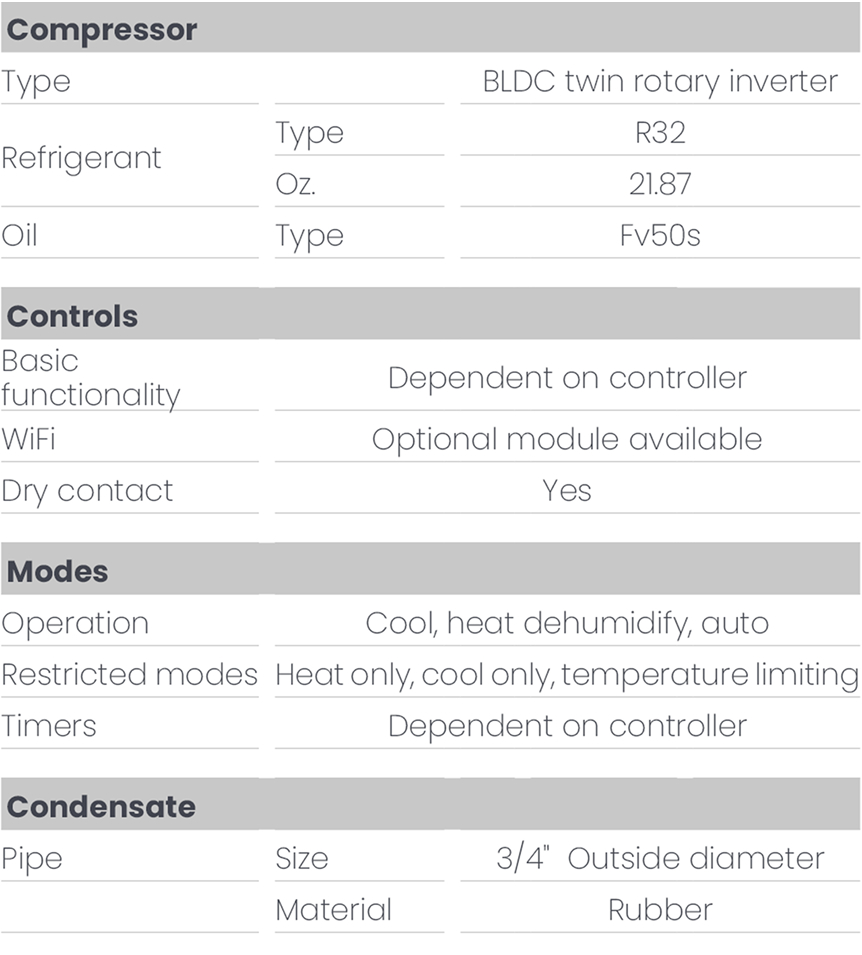

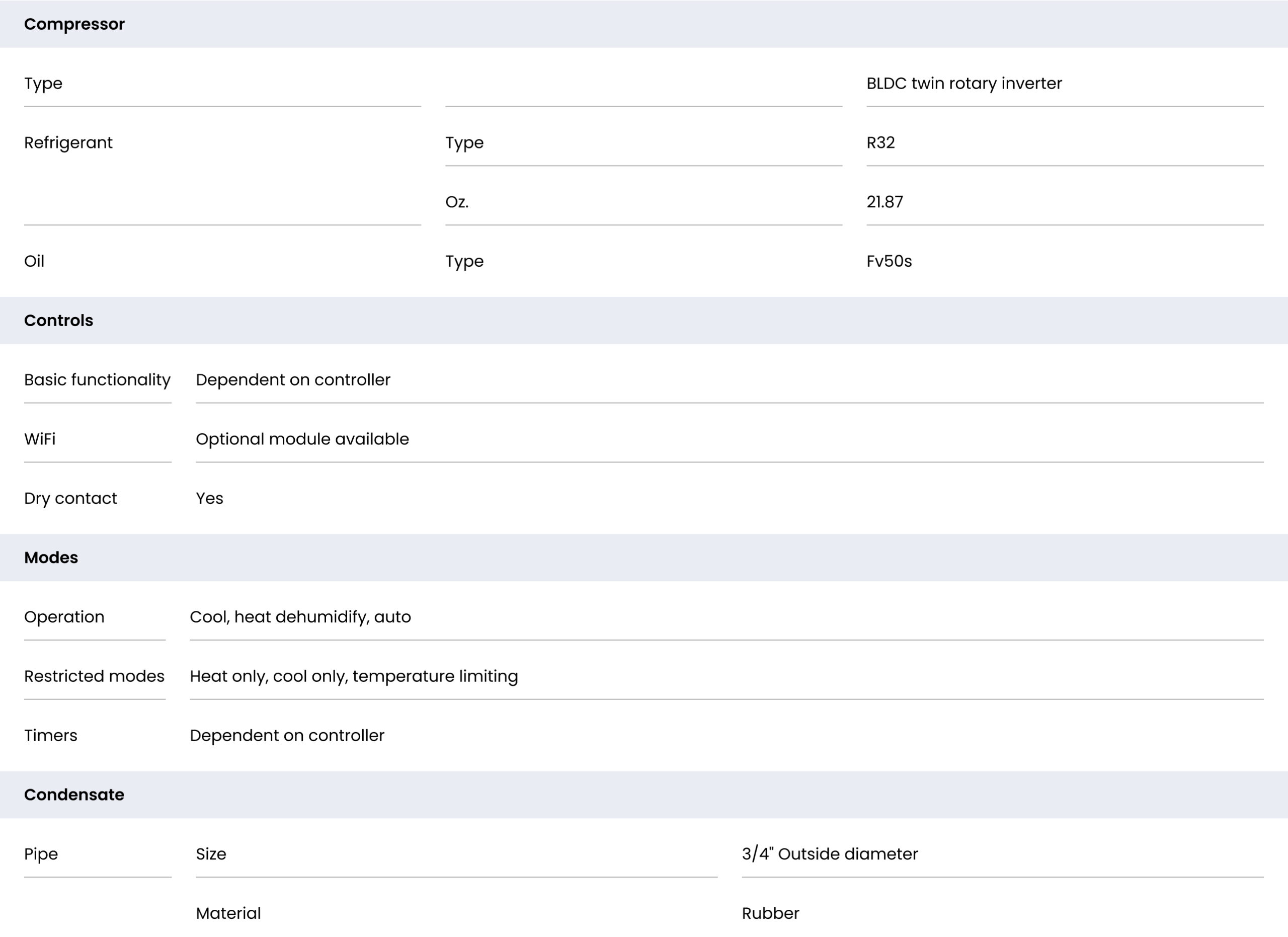

Indoor

  • Type
  • Oil Type

Modes

  • Operation
  • Restricted modes
  • Timers



  • BLDC twin rotary inverter
  • Fv50s (ISO 50) Polyvinylether (PVE)



  • Cool, heat, dehumidify, auto, fan only
  • Heat only, cool only, temperature limiting
  • Dependent on controller

Controls

  • Basic functionality
  • WiFi
  • Dry contact

Condensate

  • Pipe size
  • Pipe Material



  • Dependent on controller
  • Optional module available
  • Yes



  • 3/4" Outside diameter
  • Rubber

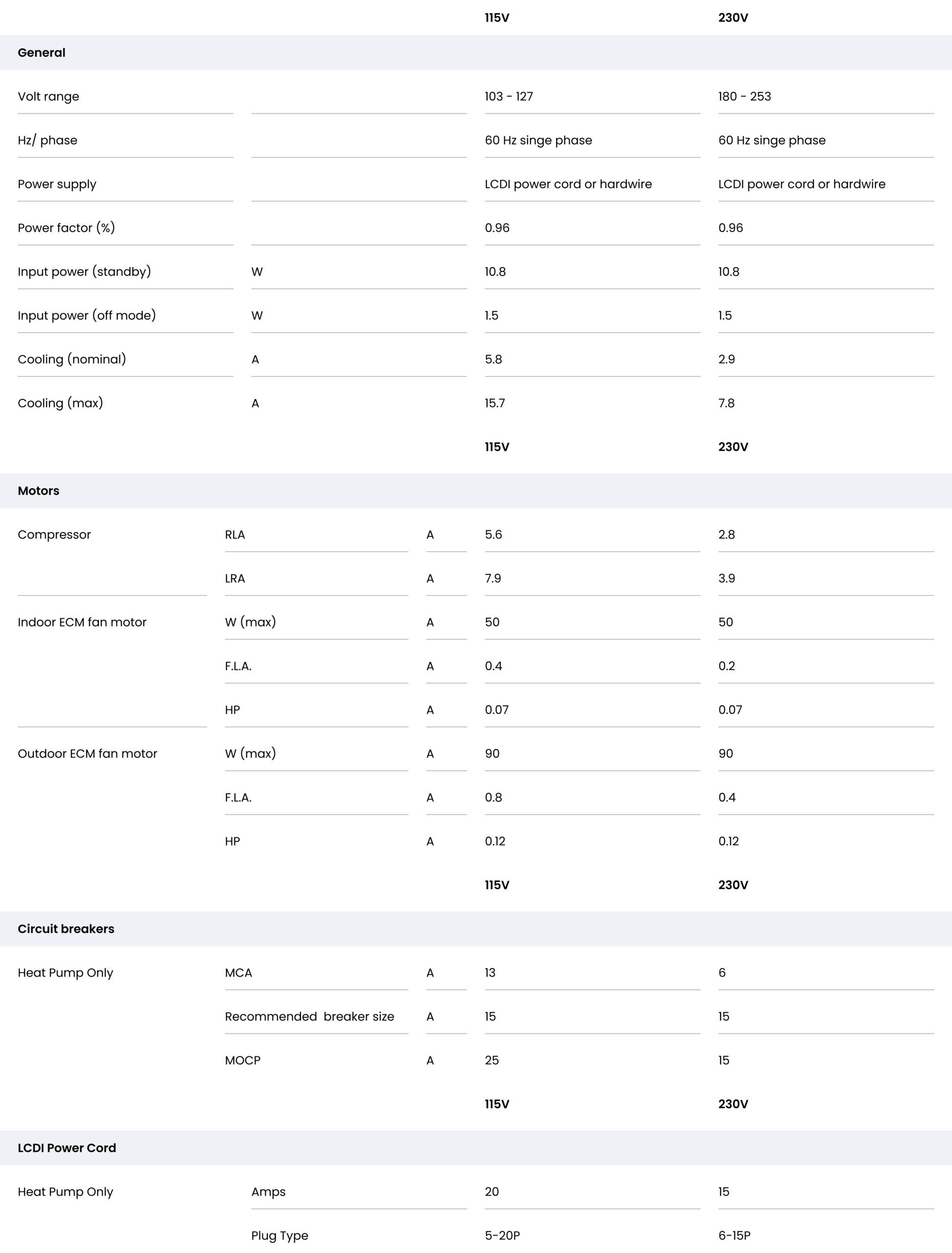

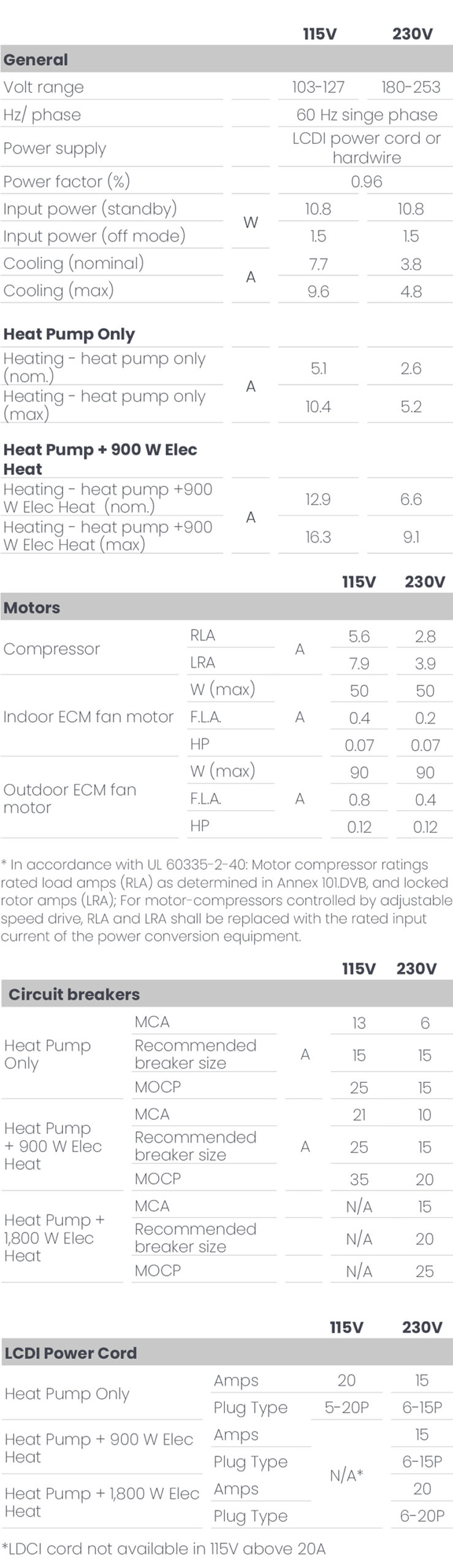

AHRI

Heat Pump only

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 5.7
  • 9.6
  • 5.1
  • 9.6

  • 12
  • 25
  • 20

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.9
  • 4.8
  • 2.6
  • 4.8

  • 6
  • 15
  • 15



Heat Pump + 0.9 kW Electric Heat

  • Power Supply
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 5.7
  • 9.6
  • 12.9
  • 17.4

  • 22
  • 30
  • 30

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.9
  • 4.8
  • 6.5
  • 8.7

  • 14
  • 15
  • 20

Energy Star Certified

Heat Pump only

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 5.7
  • 9.6
  • 5.1
  • 9.6

  • 12
  • 25
  • 20

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.9
  • 4.8
  • 2.6
  • 4.8

  • 6
  • 15
  • 15



Heat Pump + 0.9 kW Electric Heat

  • Power Supply
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 5.7
  • 9.6
  • 12.9
  • 17.4

  • 22
  • 30
  • 30

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 2.9
  • 4.8
  • 6.5
  • 8.7

  • 14
  • 15
  • 20

Heat Pump only

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (Inches)

115V

  • 20
  • 5-20P
  • 40

230V

  • 15
  • 6-15P
  • 40

Heat Pump + 0.9 kW Electric Heat

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (Inches)

115V

  • N/A
  • N/A
  • 40

230V

  • 20
  • 6-20P
  • 40

Compressor

  • RLA (A)
  • LRA (A)

Indoor ECM fan motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

Outdoor ECM fan motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

115V

  • 7.9
  • 7.9



  • 50
  • 0.4
  • 0.07



  • 90
  • 0.8
  • 0.12

230V

  • 3.9
  • 3.9



  • 50
  • 0.3
  • 0.07



  • 90
  • 0.4
  • 0.12

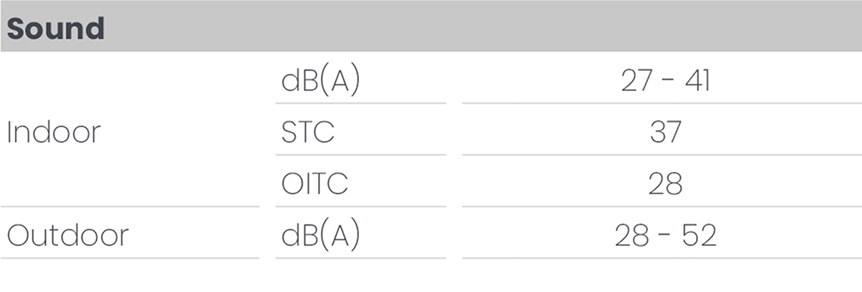

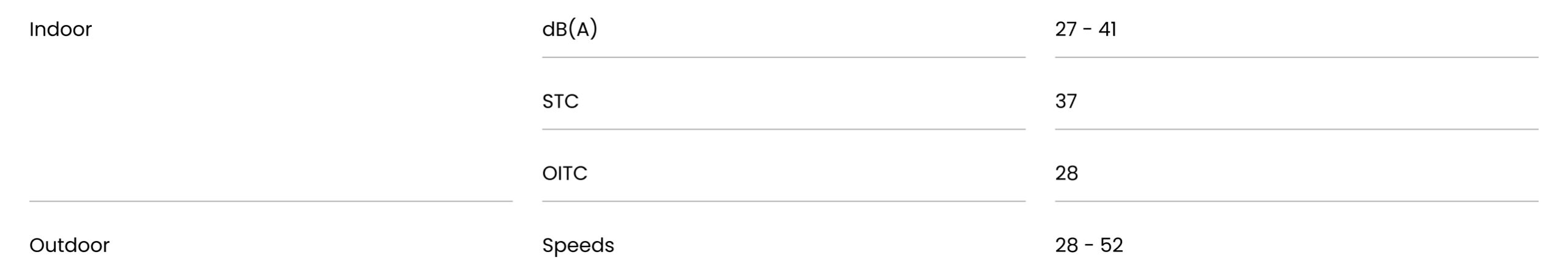

Indoor

  • DB range: dB(A)
  • STC
  • OITC



  • 27 -41
  • 37
  • 28

Outdoor

  • dB(A)



  • 28 -52

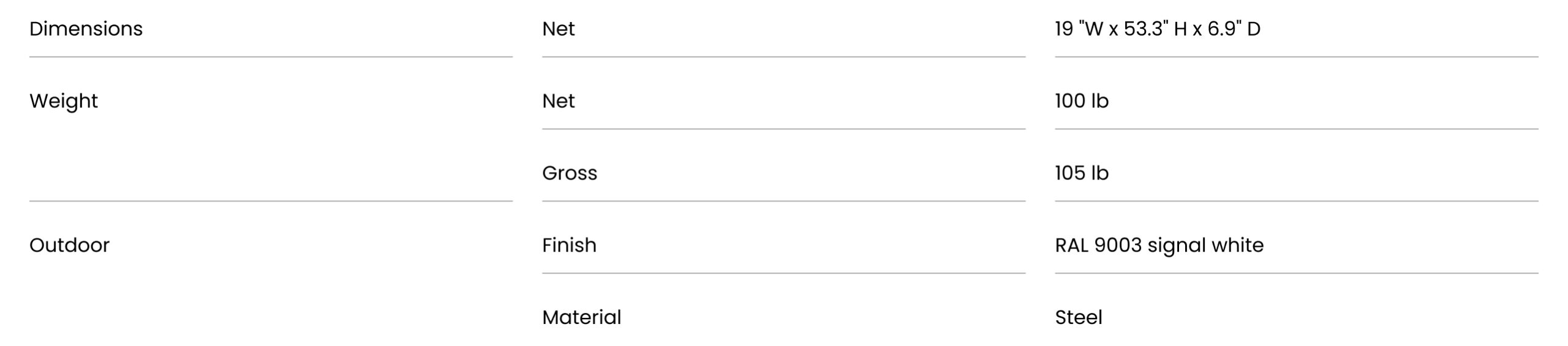

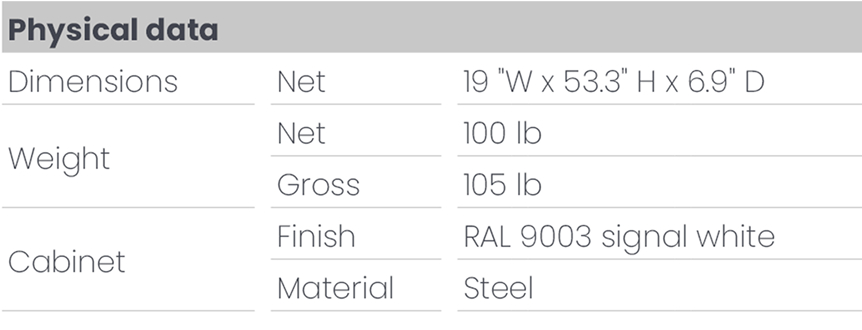

  • Dimensions
  • Net weight (Ib)
  • Gross weight (Ib)
  • Cabinet finish
  • Cabinet material
  • 22.83'' x 52.36'' x 8.07'' depth
  • 100
  • 105
  • RAL 9003 signal white
  • Steel

Documentation
