Vertical Stack

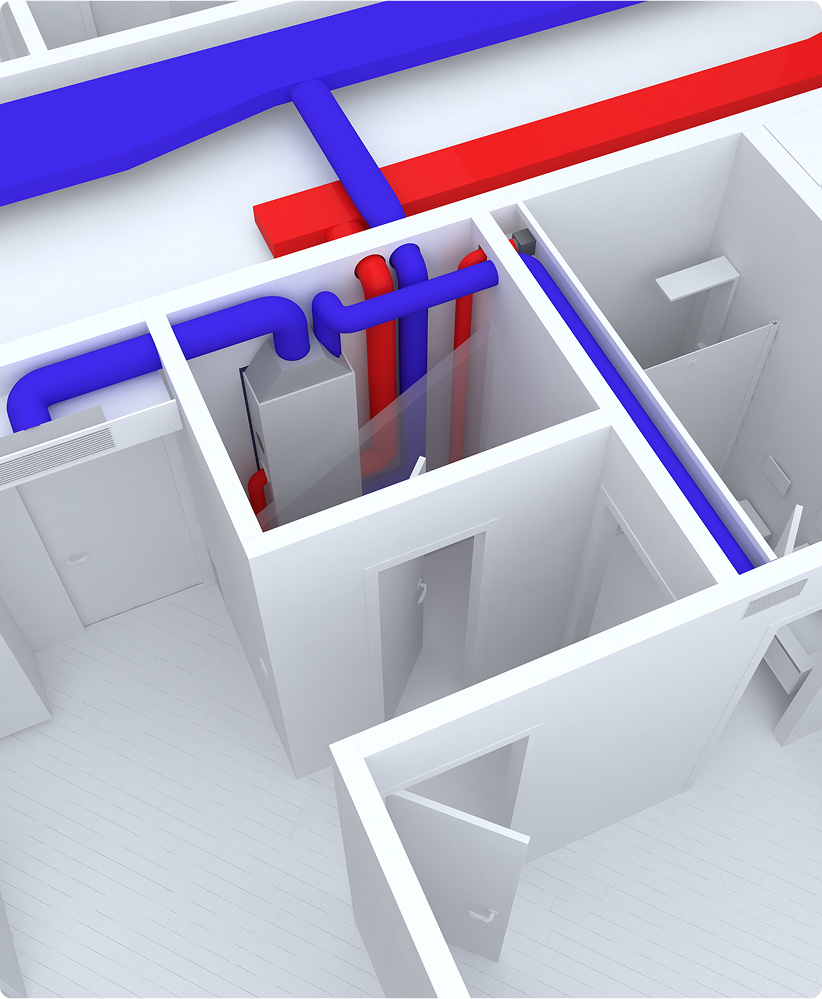

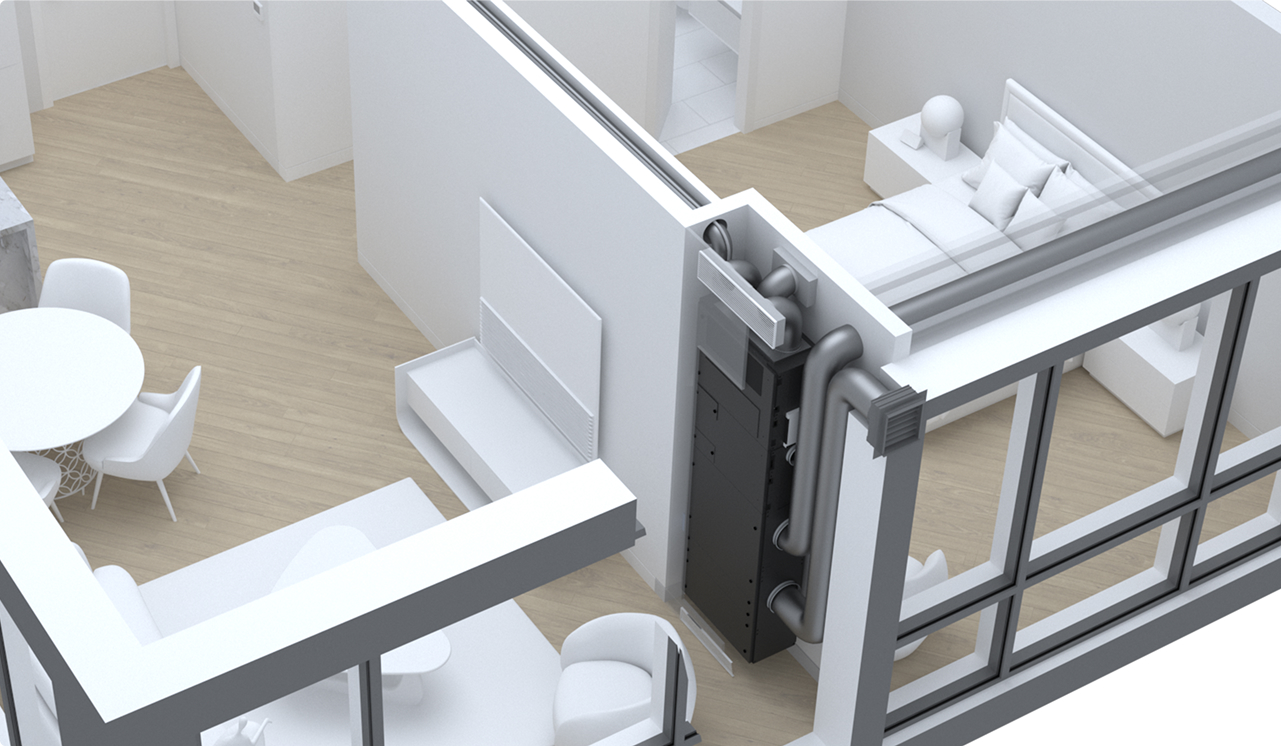

AIO Vertical Stack is the ideal multi-room solution when a ceiling-mounted unit is not desired or feasible. The compact 12-inch by 25-inch footprint uses minimal floor space. This unit is perfect anywhere direct venting or ducting is required with up to 0.6” WC external static pressure. Use any style grilles and louvers for maximum design flexibility.

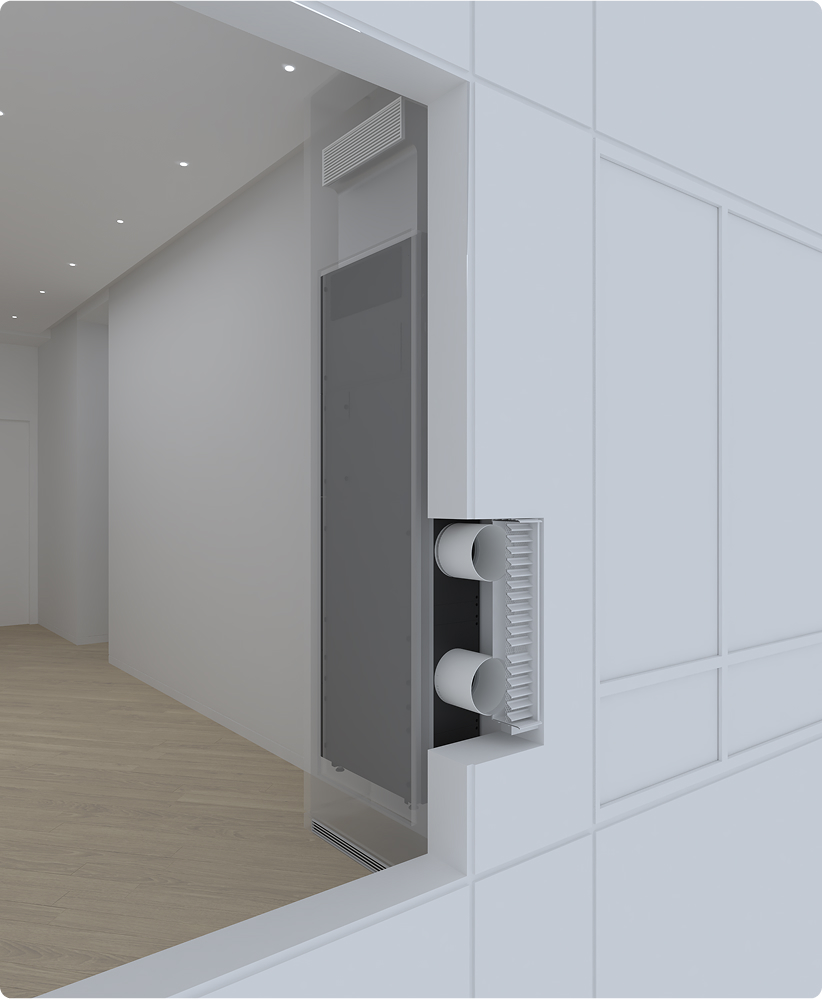

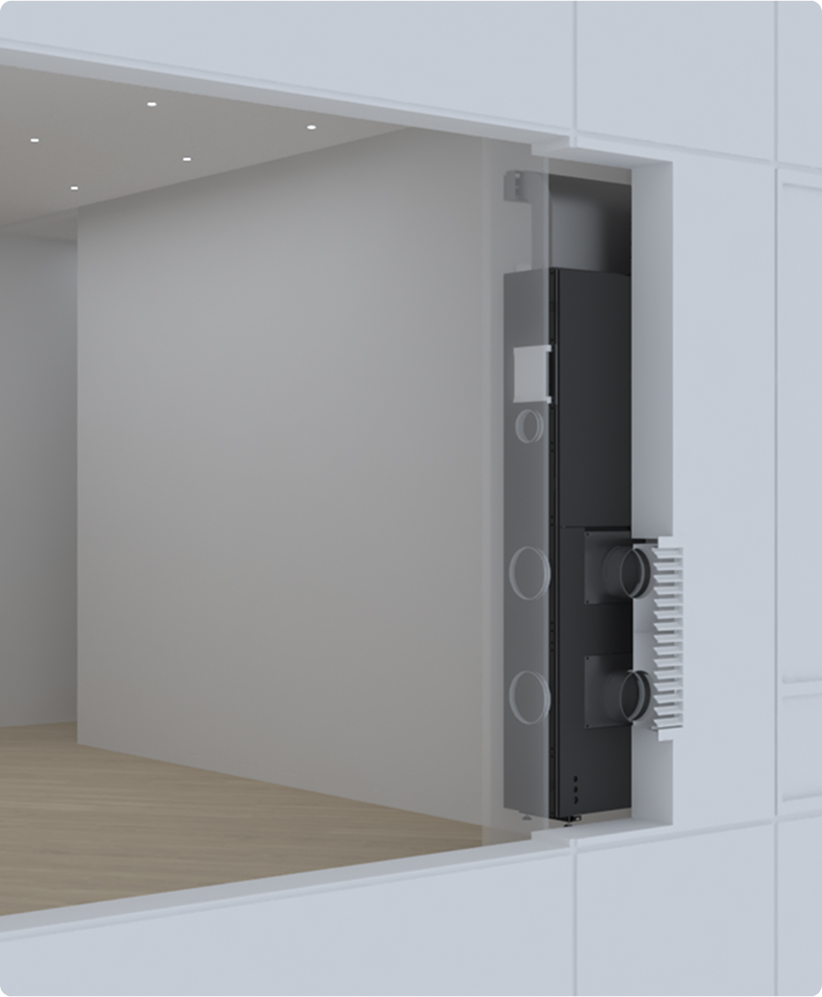

A unique feature of the AIO Vertical Stack unit is that it can be installed on a corridor wall, enabling it to be fully serviced without entering the apartment or hotel room. A bathroom exhaust can connect to the dedicated stale air exhaust – which can be field modified to left or right. The Vertical Stack unit is available with or without the integrated ERV and can be vented directly outside or through ductwork.

Key Features

  • Compact unit
  • Easy to install
  • High ESP for internal and external ducting
  • Extraordinary flexible ducting
  • Bathroom exhaust connection
  • Auto-restart
  • Washable filters

Options

  • Optional 900 or 1,800W electric heat
  • With or without ERV
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32
  • MERV 13 filtration on return air

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)

Mounting

  • Vertical

Airflow

  • Dual 8' external vents
  • Available 0.7" WC for external ducting, adapters, and louvers
  • Available 0.6" WC for internal ducting and louvers

Included controls

  • Onboard touch controller for diagnostics and programing

Optional controllers

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

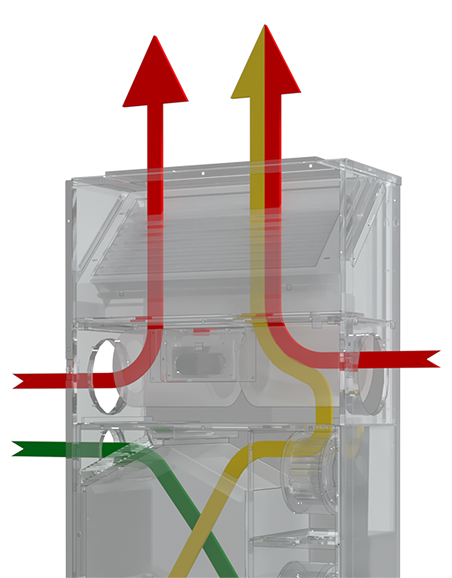

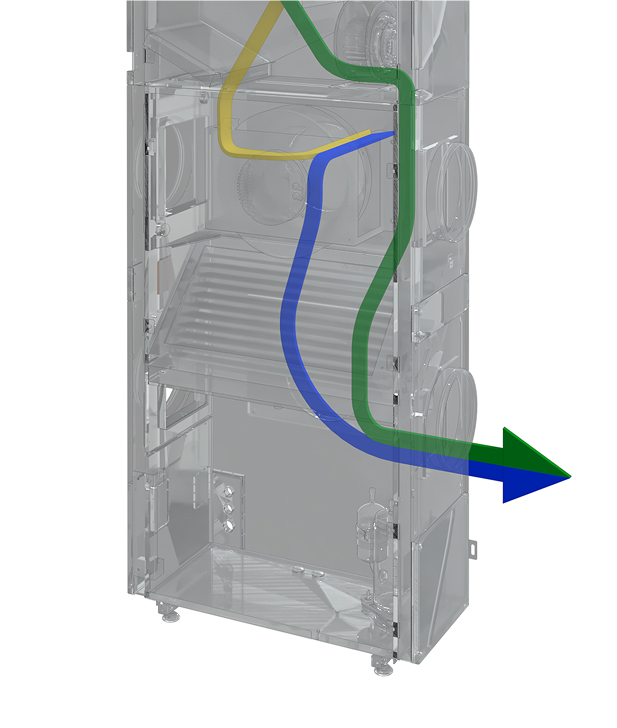

Airflow

AIO Wall Mounted Pro is extraordinarily flexible in how it can externally vent. A host of adapters are available that enable AIO Wall Mounted Pro to be installed in many scenarios, including on glass curtain walls with linear louvers, integrated window, and louver assemblies, or even with no construction using
a windowsill adapter.

fan coil 1

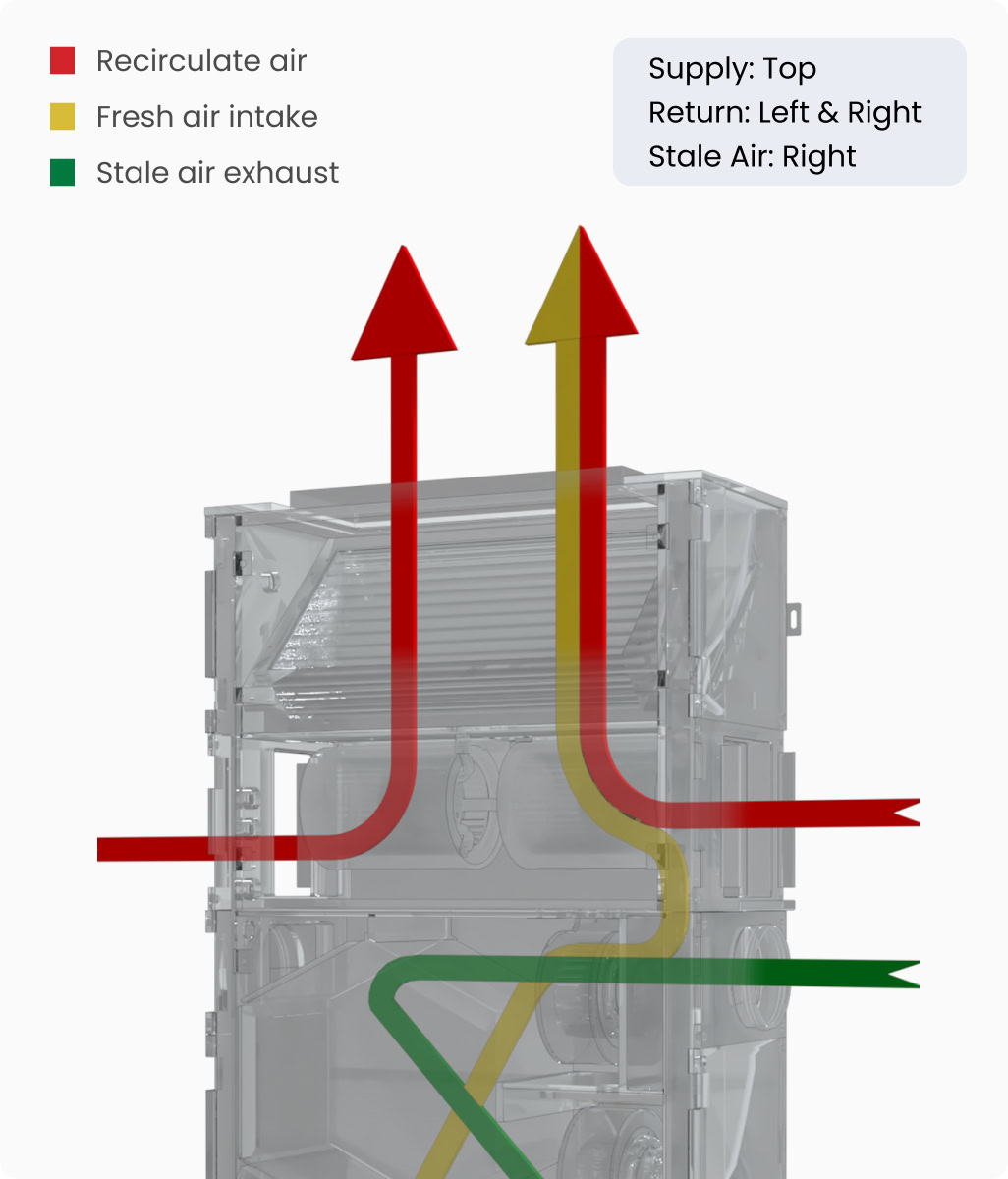

fan coil 2

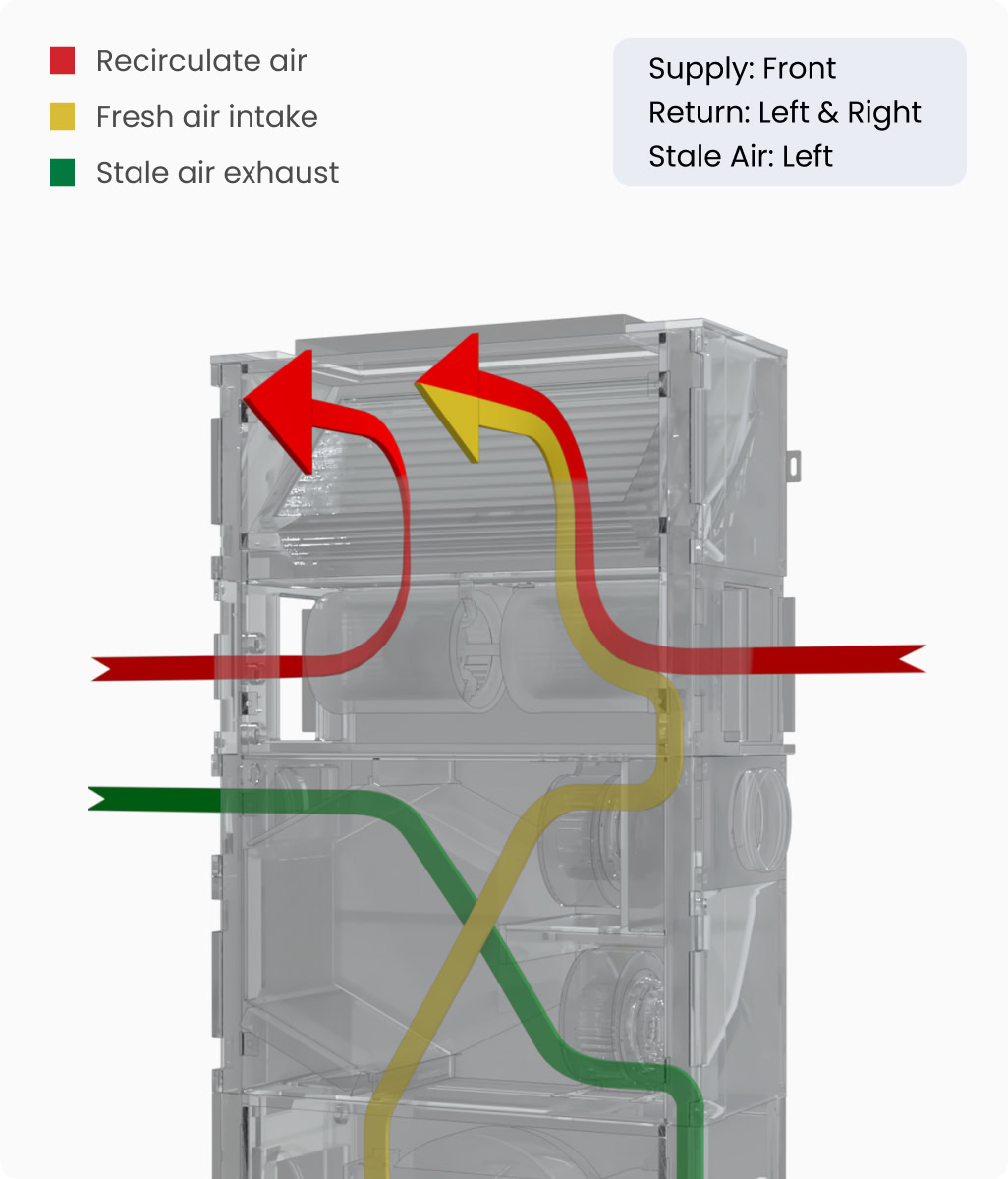

fan coil 3

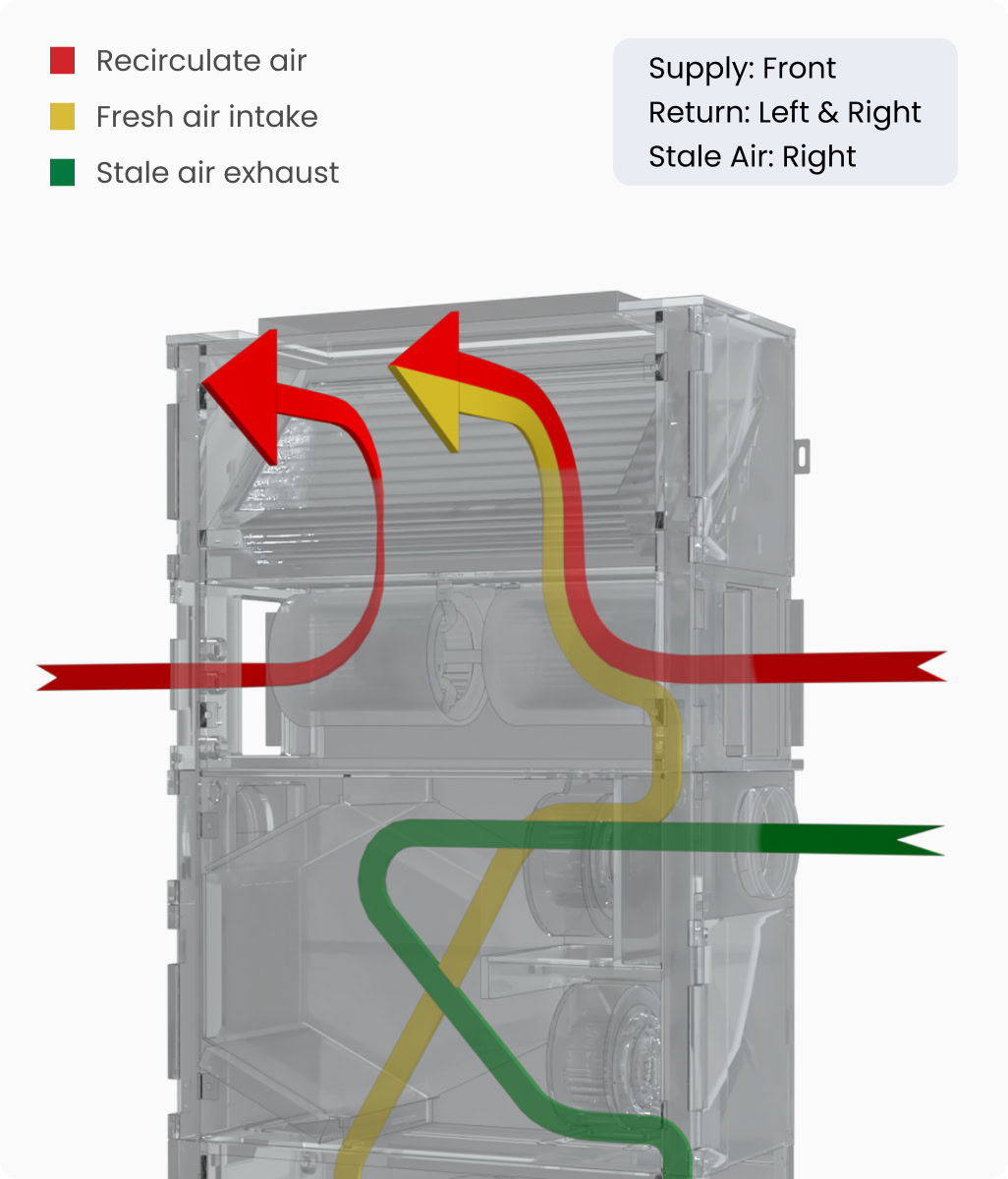

fan coil 4

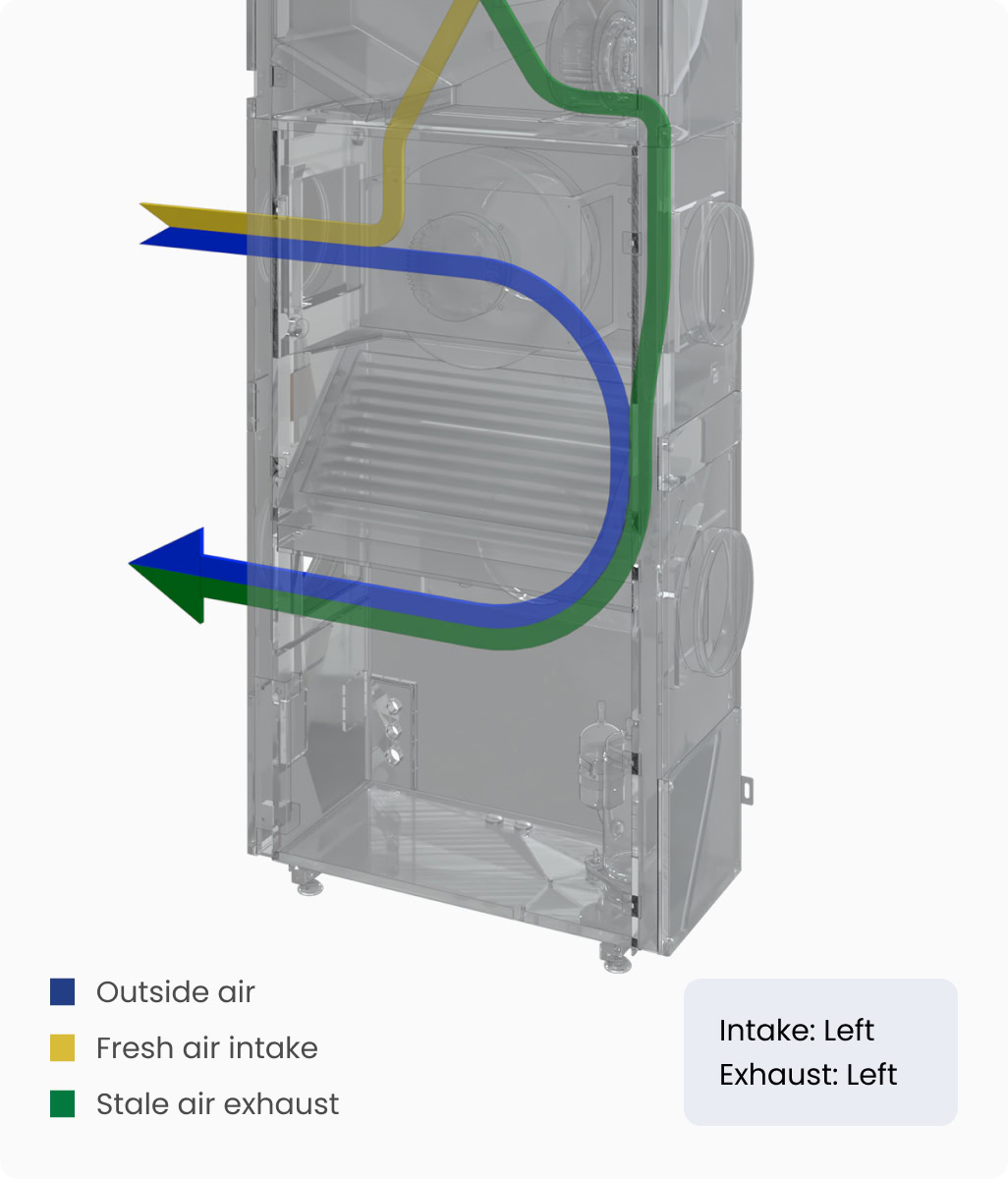

condenser 1

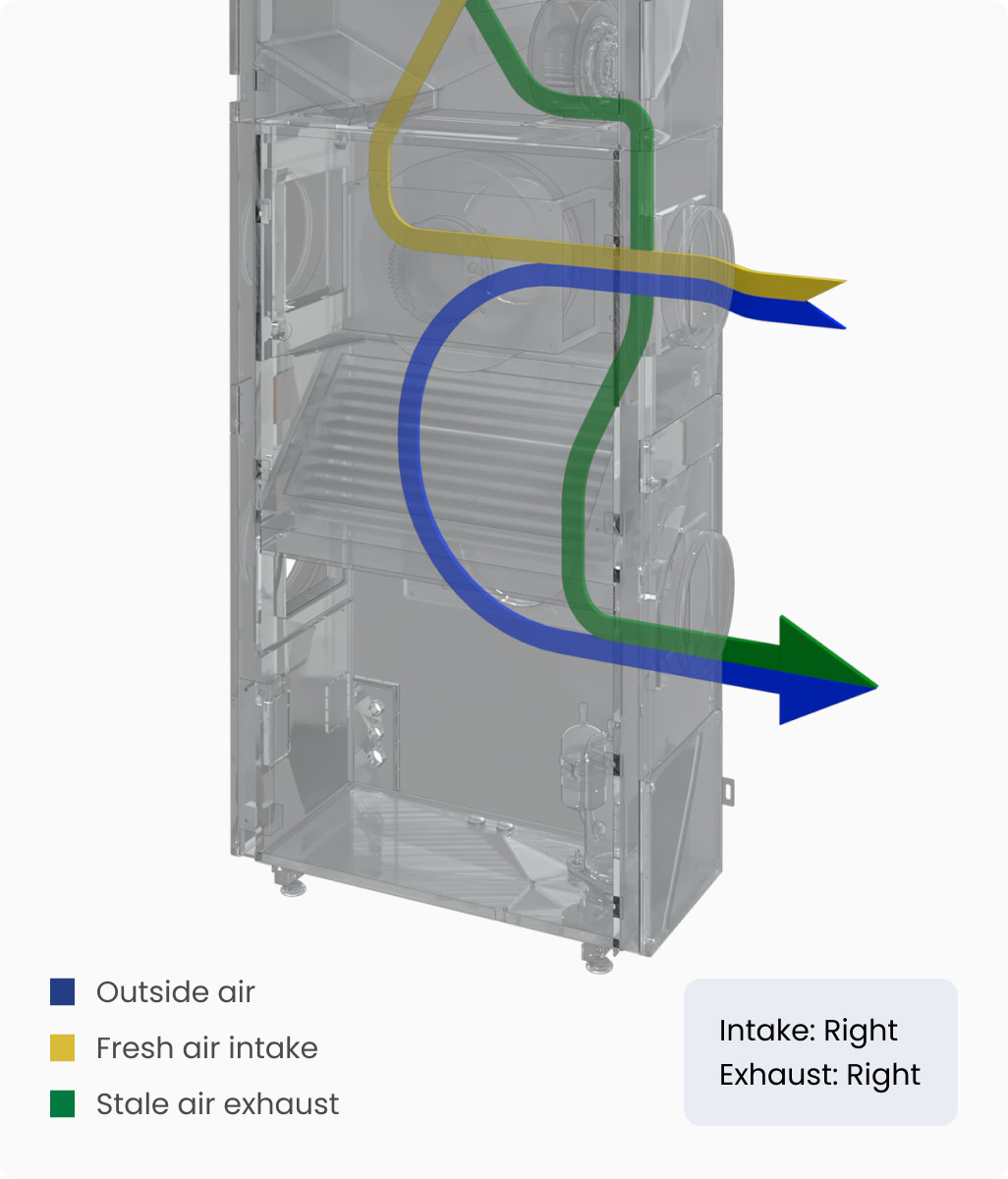

condenser 2
condenser 3
condenser 4
condenser 5
condenser 6

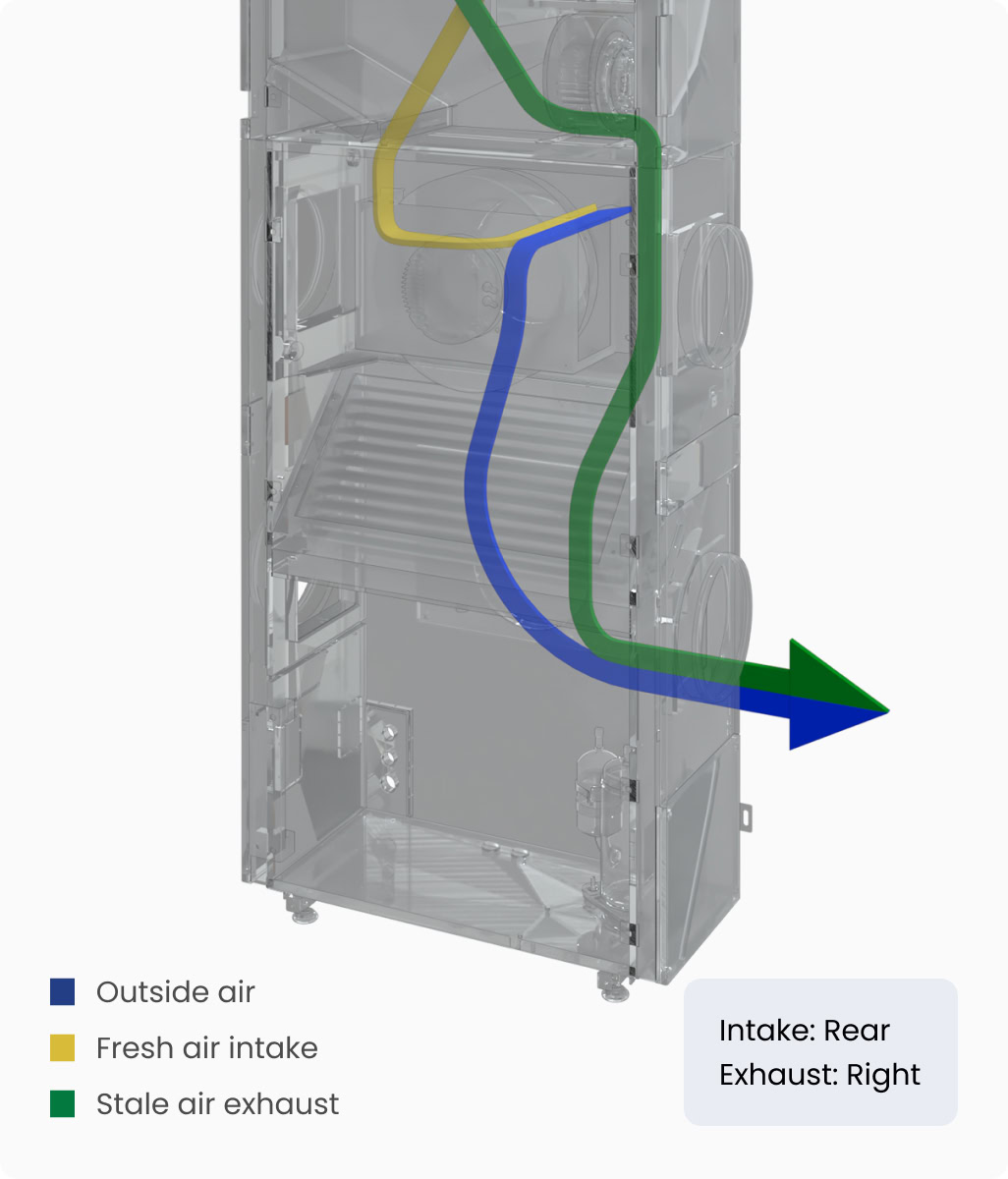

condenser 7
condenser 8

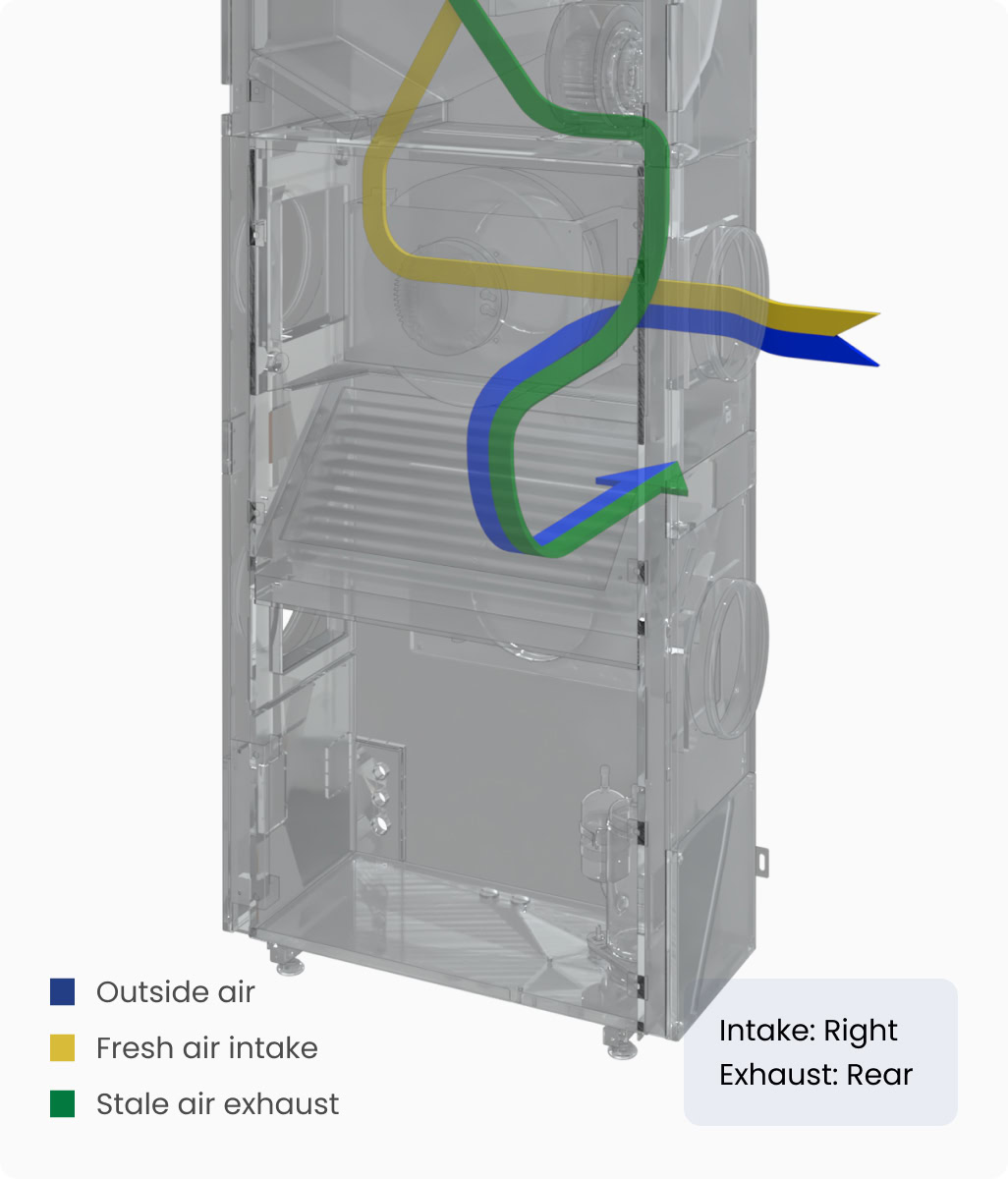

condenser 9

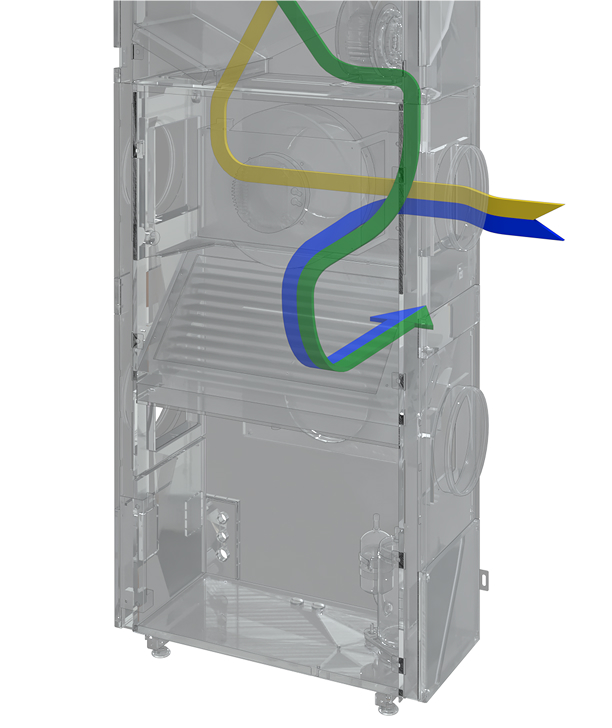

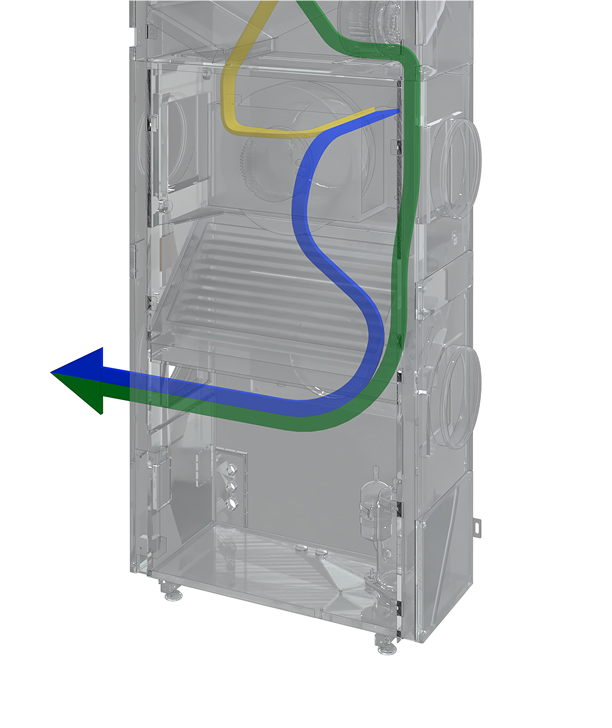

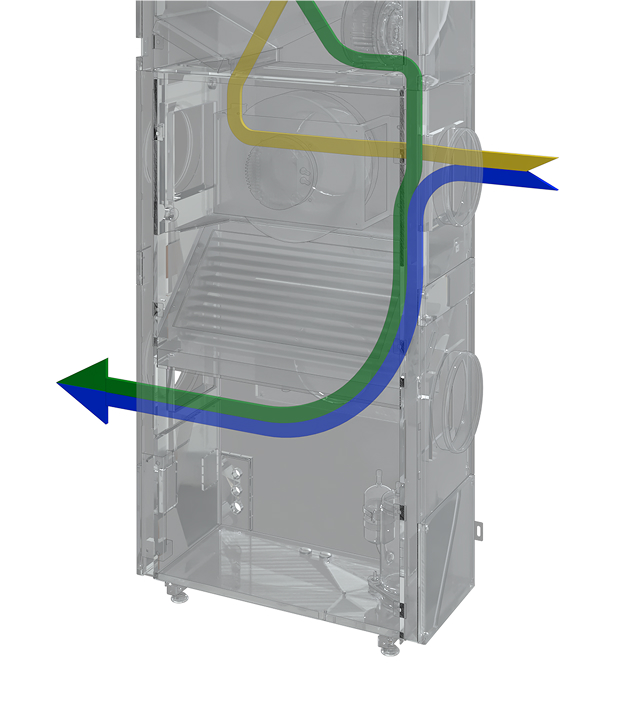

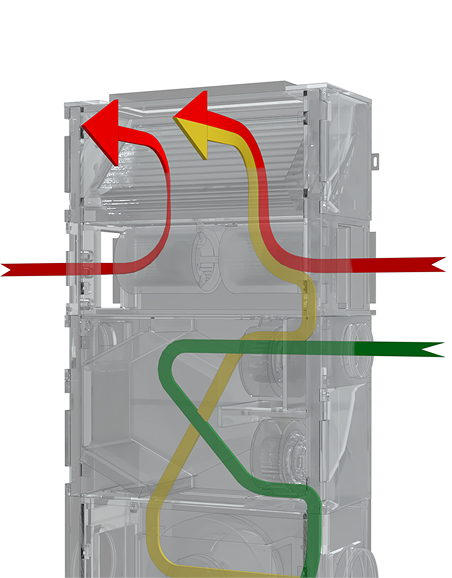

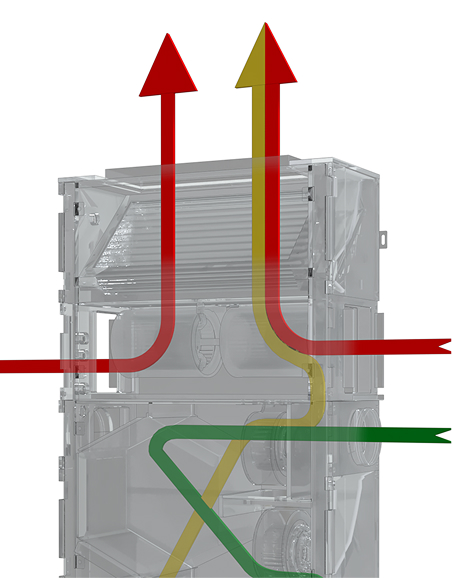

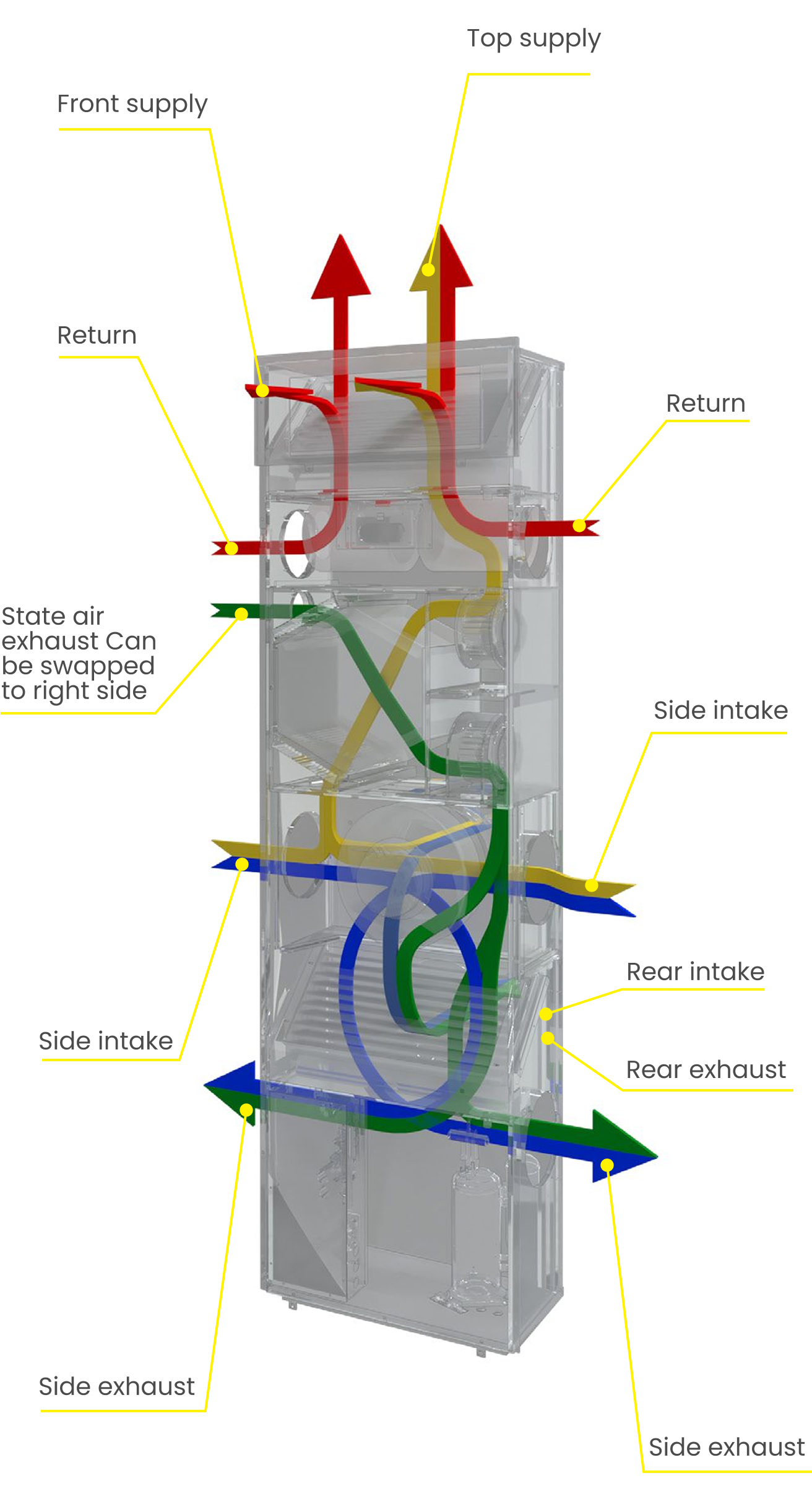

Supply air

The front, rectangular 6.7” x 18” supply air connection is ideal for a supply grille. With 0.6” external static pressure (combined between return and supply) the top rectangular 6.7” x 18” supply air connection is ideal for ducting to one or more rooms. For added flexibility, duct part through the top and direct vent part through the front for ducting multiple rooms with minimal ductwork.

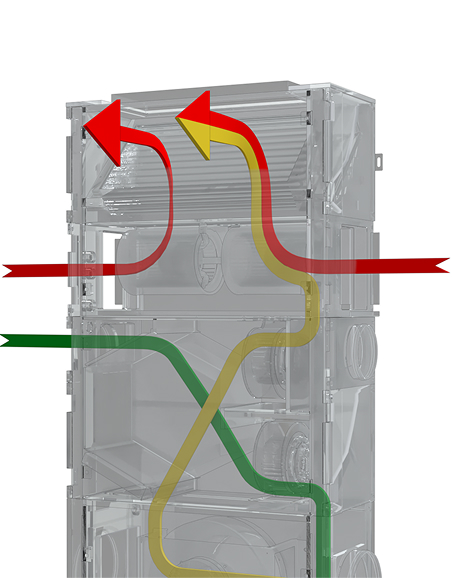

Stale air exhaust

The 5" round stale air exhaust connection can be used as part of a plenum return without any ducting or can be ducted to a bathroom or multiple locations with up to 0.5” WC external static pressure. This can be field swapped from left to right.

Return air

The left and right side 6” round connection can be ducted to one or more rooms with up to 0.6” external static pressure (combined between return and supply). It can also be left open as a side plenum return. Each connection is fully independent with two ECM fans, each with auto ESP. Duct both, leave both open or duct one, and leave one open to a plenum.

Outside air intake

The single 8” round outside air intake connection can be accessed from the left, right, or rear and provides outside air for the condenser portion and fresh air. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).

Outside air exhaust

The single 8” round exhaust air connection can be accessed from the left, right, or rear, and exhausts the stale and condenser air. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).

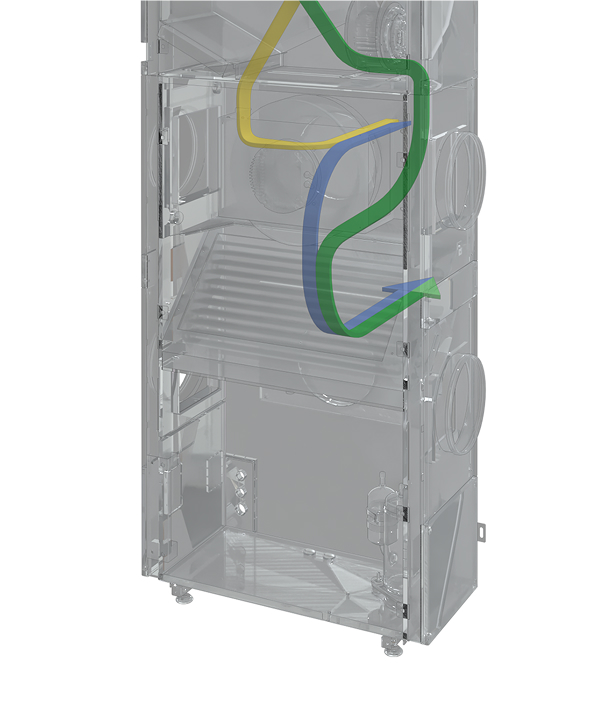

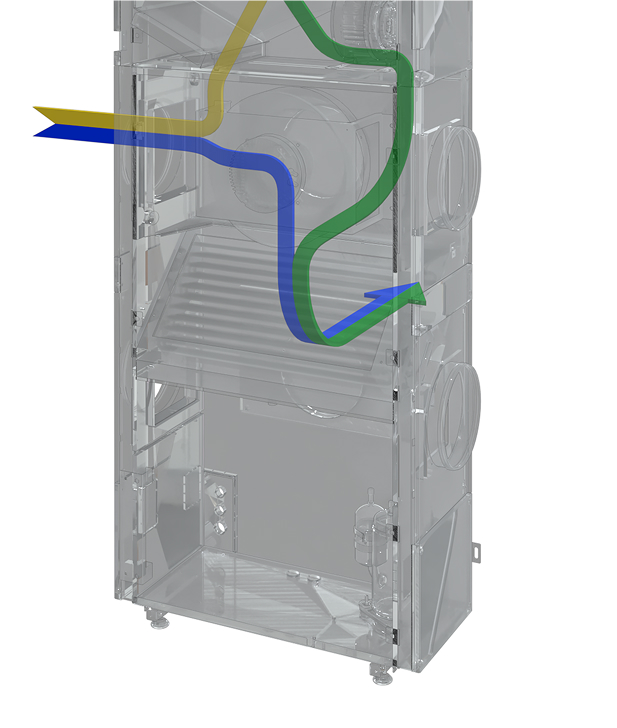

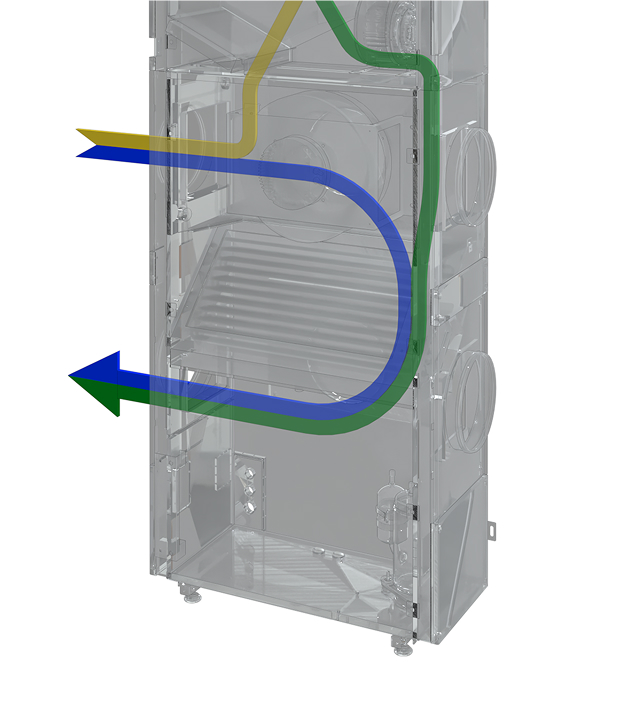

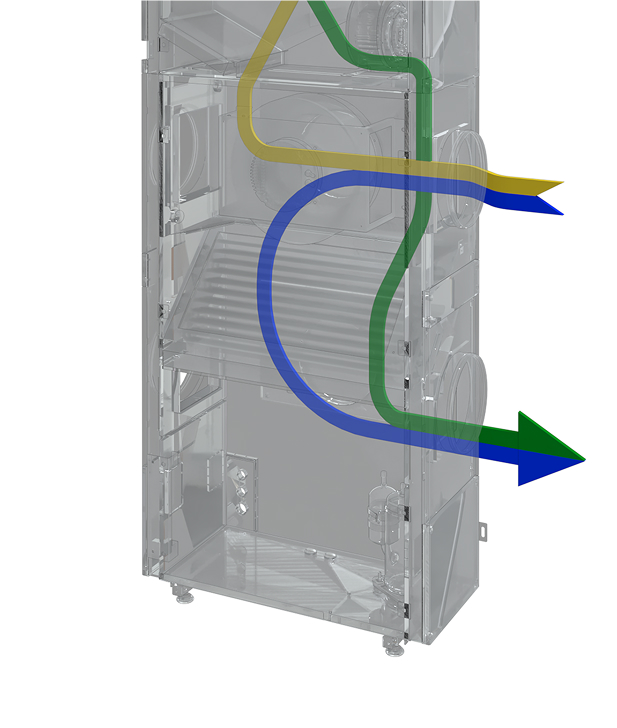

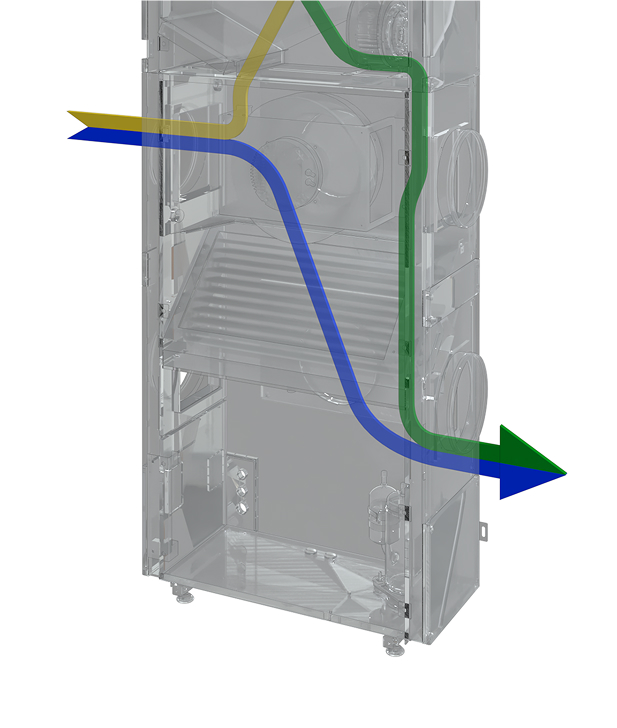

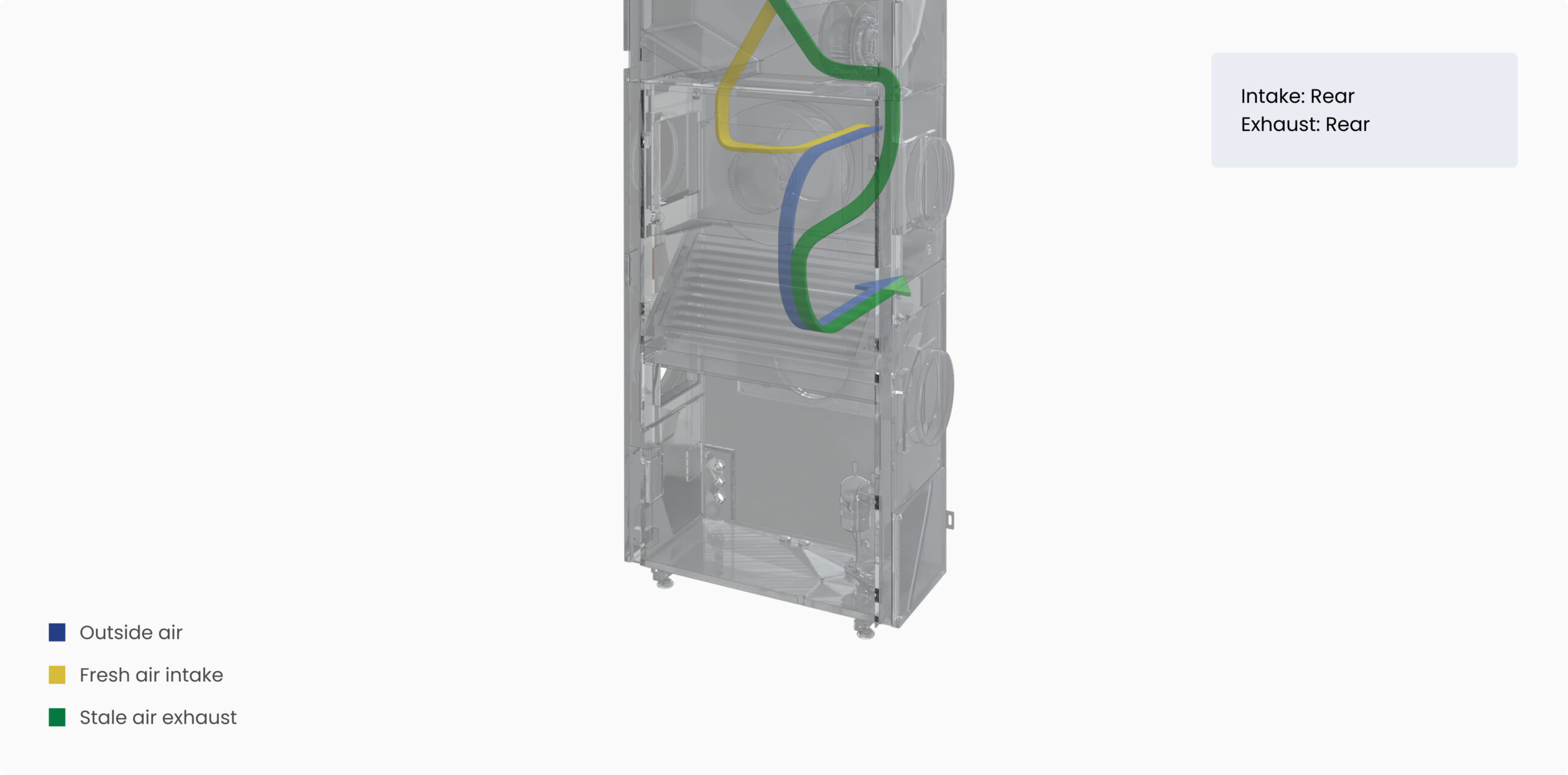

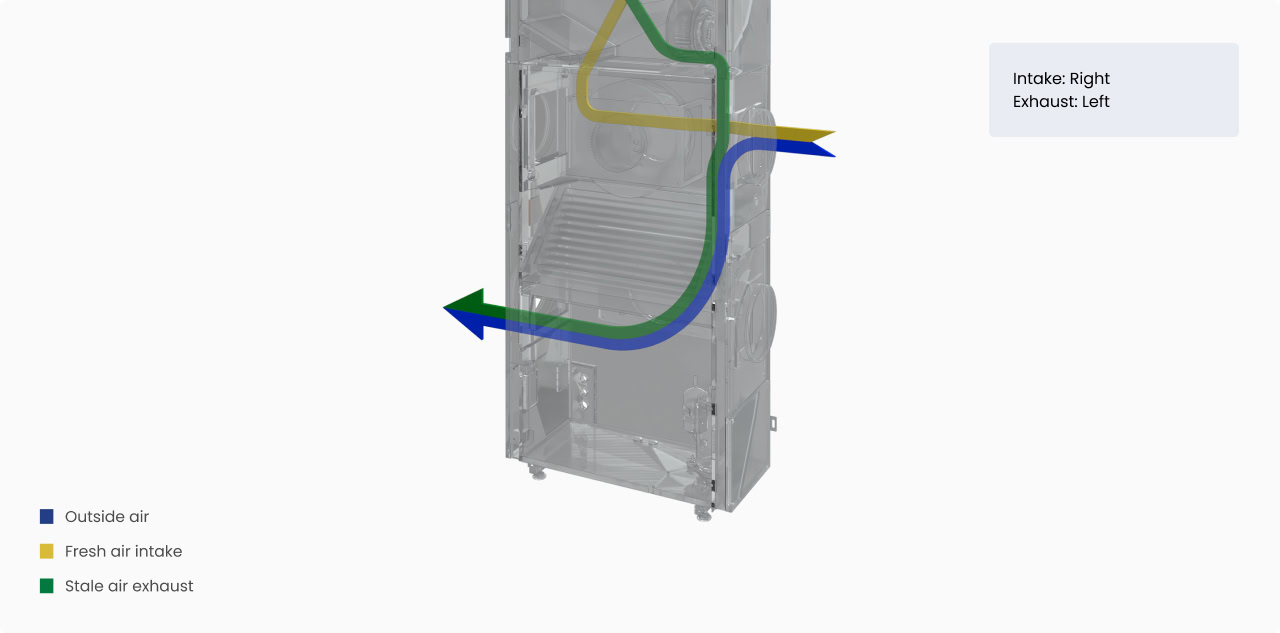

Mix and match outside connections for total flexibility

The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be ducted with up 0.7” WC external static pressure (combined between intake and exhaust).

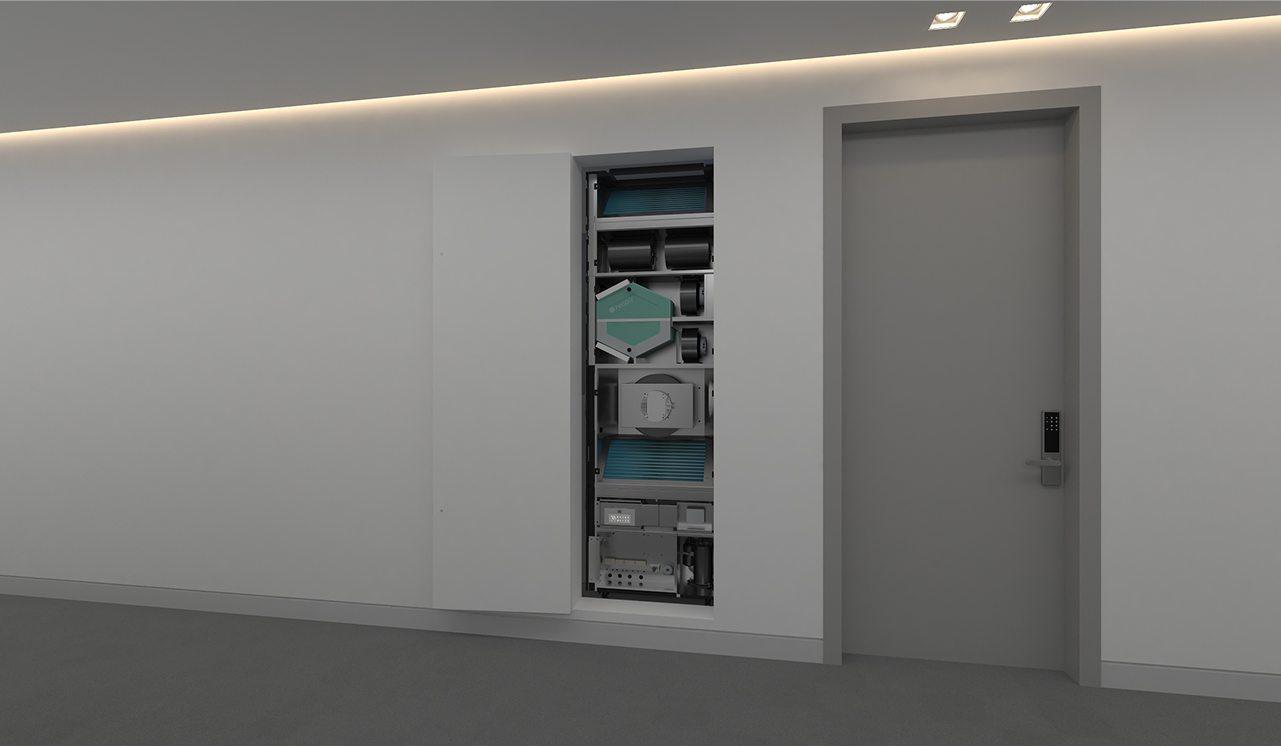

No Access Required

The versatile design of AIO makes the system extremely reliable and inexpensive to maintain. If a repair is needed, a single unit can be taken off-line without affecting the entire system. It’s possible to install AIO Vertical stack on the corridor wall of each apartment/hotel room so that all maintenance can be achieved from a common area – at any time, which means no maintenance personnel needs to enter the unit.

Installation

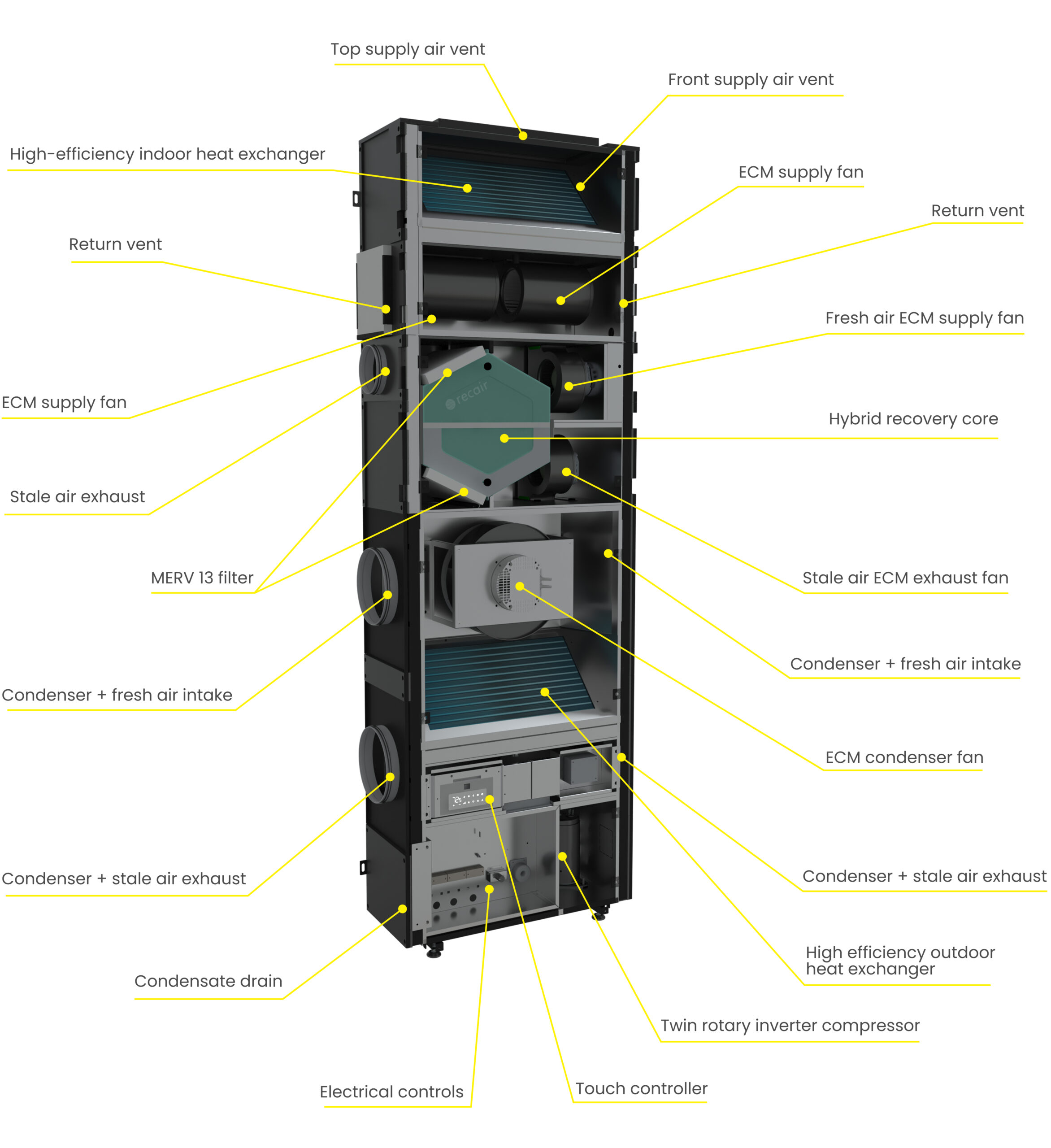

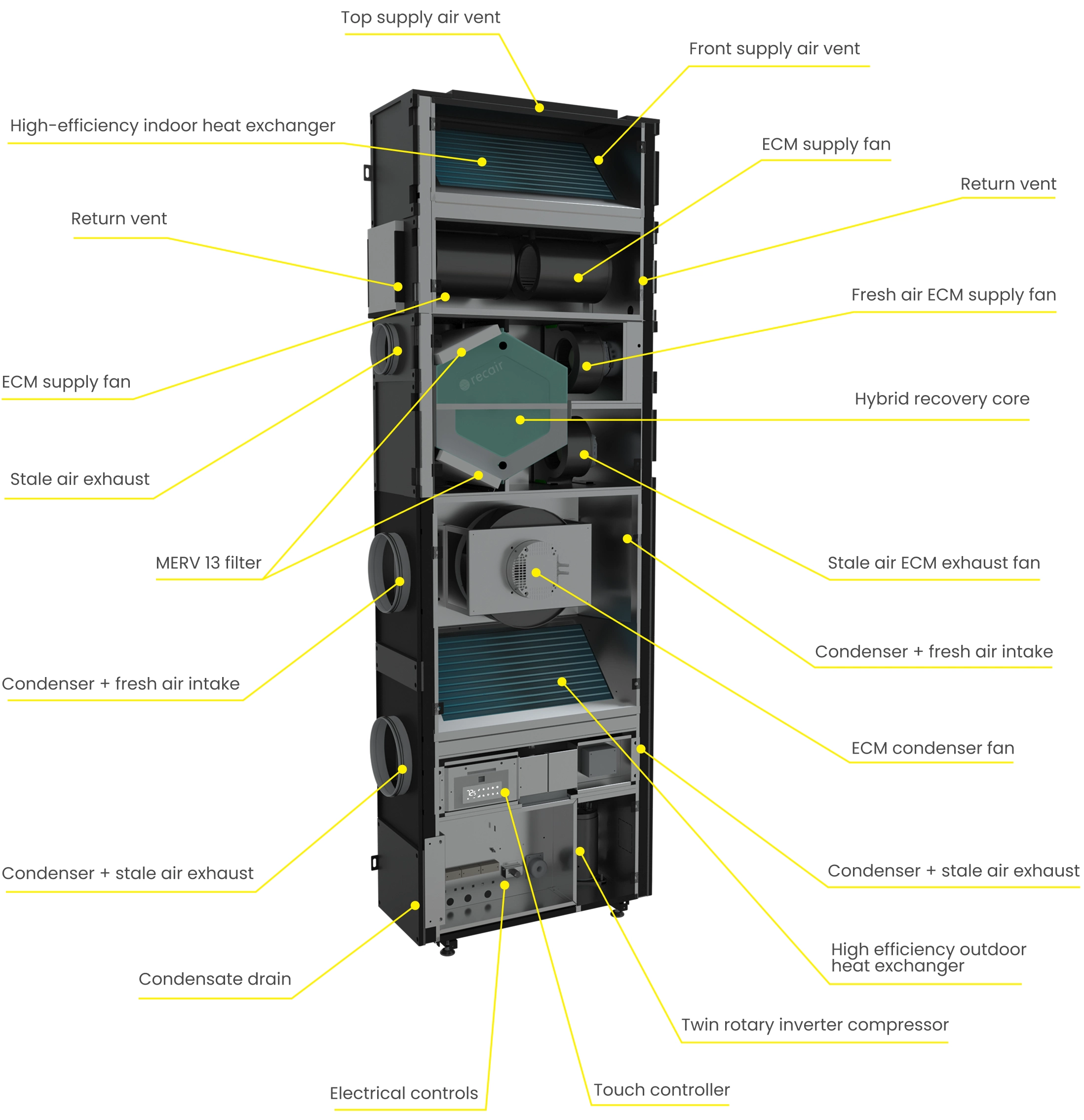

What's Inside

Technical Specifications

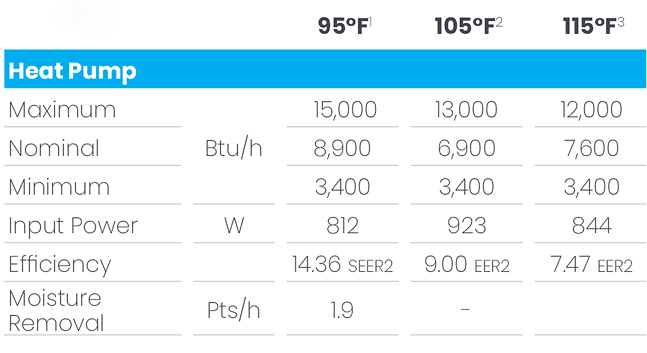

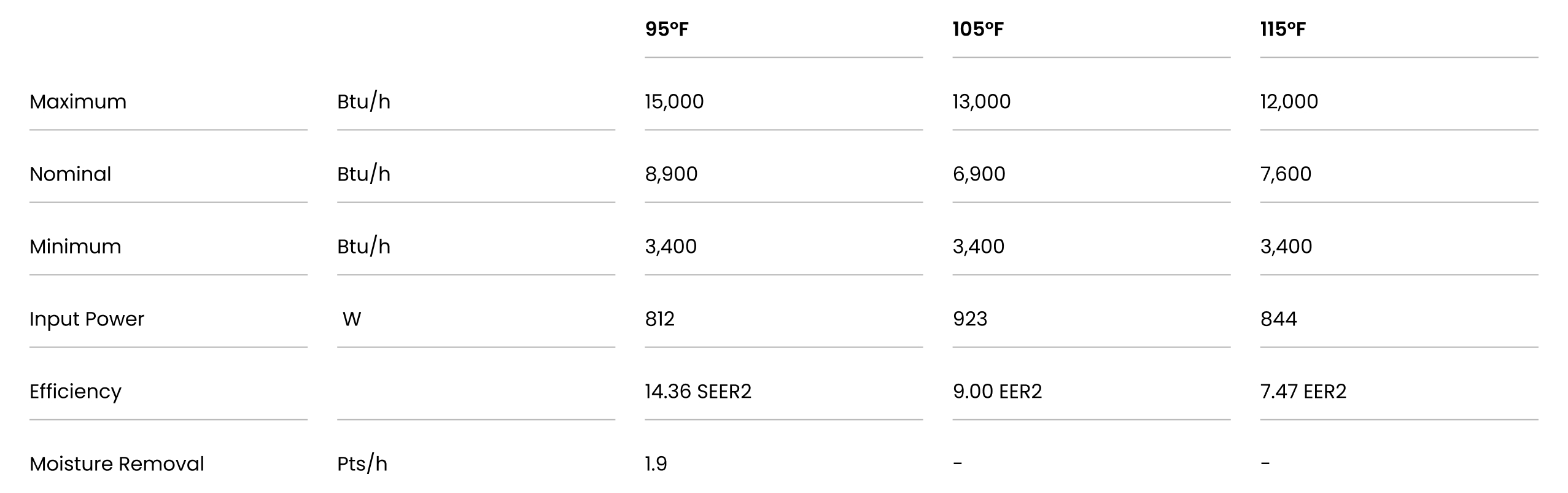

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 14.4
  • 9.8
  • 8.9
  • 3.6



  • 1.75
  • 0.96
  • 0.81
  • 0.25



  • 8.23
  • 10.27
  • 110.1
  • 14.35

1.8



105°F 2



  • 13.1
  • 8.5
  • 7.6
  • 3.6



  • 1.68
  • 0.97
  • 0.85
  • 0.28



  • 7.8
  • 8.8
  • 9.0
  • -

2



115°F 3



  • 11.8
  • 7.8
  • 6.9
  • 3.4



  • 1.06
  • 1.10
  • 0.93
  • 0.30



  • 6.74
  • 7.4
  • 7.47
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

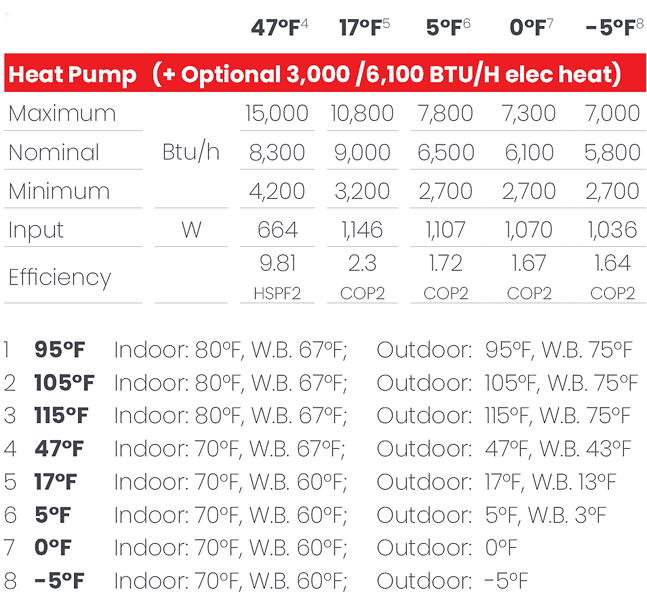

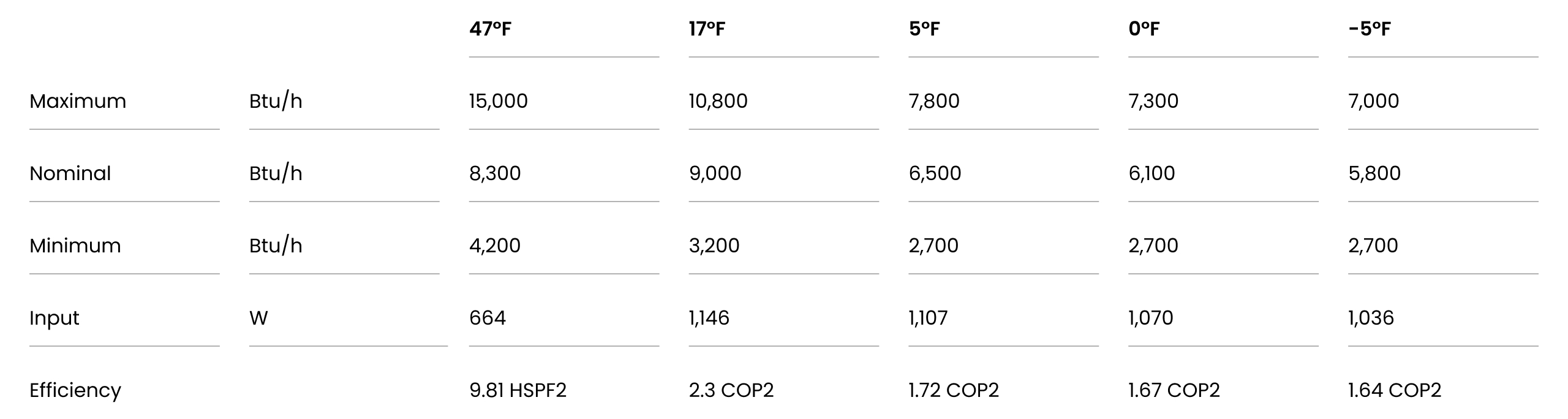

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 13.8
  • 10.0
  • 8.9
  • 3.8



  • 1.75
  • 0.76
  • 0.66
  • 0.42



  • 2.31
  • 13.31
  • 3.81
  • 2.72
  • 9.8



17°F 2



  • 9.4
  • 9.0
  • 9.0
  • 3.3



  • 1.75
  • 1.15
  • 1.15
  • 0.44



  • 1.57
  • 2.3
  • 2.30
  • 2.2
  • -



5°F 3



  • 6.7
  • 6.5
  • 6.5
  • 2.8



  • 1.75
  • 1.11
  • 1.11
  • 0.46



  • 1.12
  • 1.72
  • 1.72
  • 1.78
  • -



0°F 4



  • 6.4
  • 6.1
  • 6.1
  • 2.7



  • 1.65
  • 1.08
  • 1.08
  • 0.48



  • 1.14
  • 1.67
  • 1.67
  • 1.65
  • -



-5°F 5



  • 6.0
  • 6.5
  • 5.8
  • 2.7



  • 1.70
  • 1.19
  • 1.03
  • 0.50



  • 1.03
  • 5.5
  • 1.64
  • 1.58
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 14.4
  • 9.8
  • 8.9
  • 3.6



  • 1.75
  • 0.96
  • 0.81
  • 0.25



  • 8.23
  • 10.27
  • 11.01
  • 14.35

1.8



105°F 2



  • 13.1
  • 8.5
  • 7.6
  • 3.6



  • 1.68
  • 0.97
  • 0.85
  • 0.28



  • 7.8
  • 8.8
  • 9.0
  • -

2



115°F 3



  • 11.8
  • 7.8
  • 6.9
  • 3.4



  • 1.75
  • 1.10
  • 0.93
  • 0.30



  • 6.74
  • 7.4
  • 7.47
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 13.8
  • 10.0
  • 8.9
  • 8.3



  • 1.75
  • 0.76
  • 0.66
  • 0.42



  • 2.31
  • 13.2
  • 3.81
  • 2.72
  • 9.8



17°F 2



  • 9.4
  • 9.0
  • 9.0
  • 3.3



  • 1.75
  • 1.15
  • 1.15
  • 0.44



  • 1.57
  • 2.3
  • 2.30
  • 2.2
  • -



5°F 3



  • 6.7
  • 6.5
  • 6.5
  • 2.8



  • 1.75
  • 1.11
  • 1.11
  • 0.46



  • 1.12
  • 1.72
  • 1.72
  • 1.78
  • -



0°F 4



  • 6.4
  • 6.1
  • 6.1
  • 2.7



  • 1.65
  • 1.08
  • 1.08
  • 0.48



  • 1.14
  • 1.67
  • 1.67
  • 1.65
  • -



-5°F 5



  • 6.0
  • 6.5
  • 5.8
  • 2.7



  • 1.70
  • 1.19
  • 1.03
  • 0.50



  • 1.03
  • 5.5
  • 1.64
  • 1.58
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

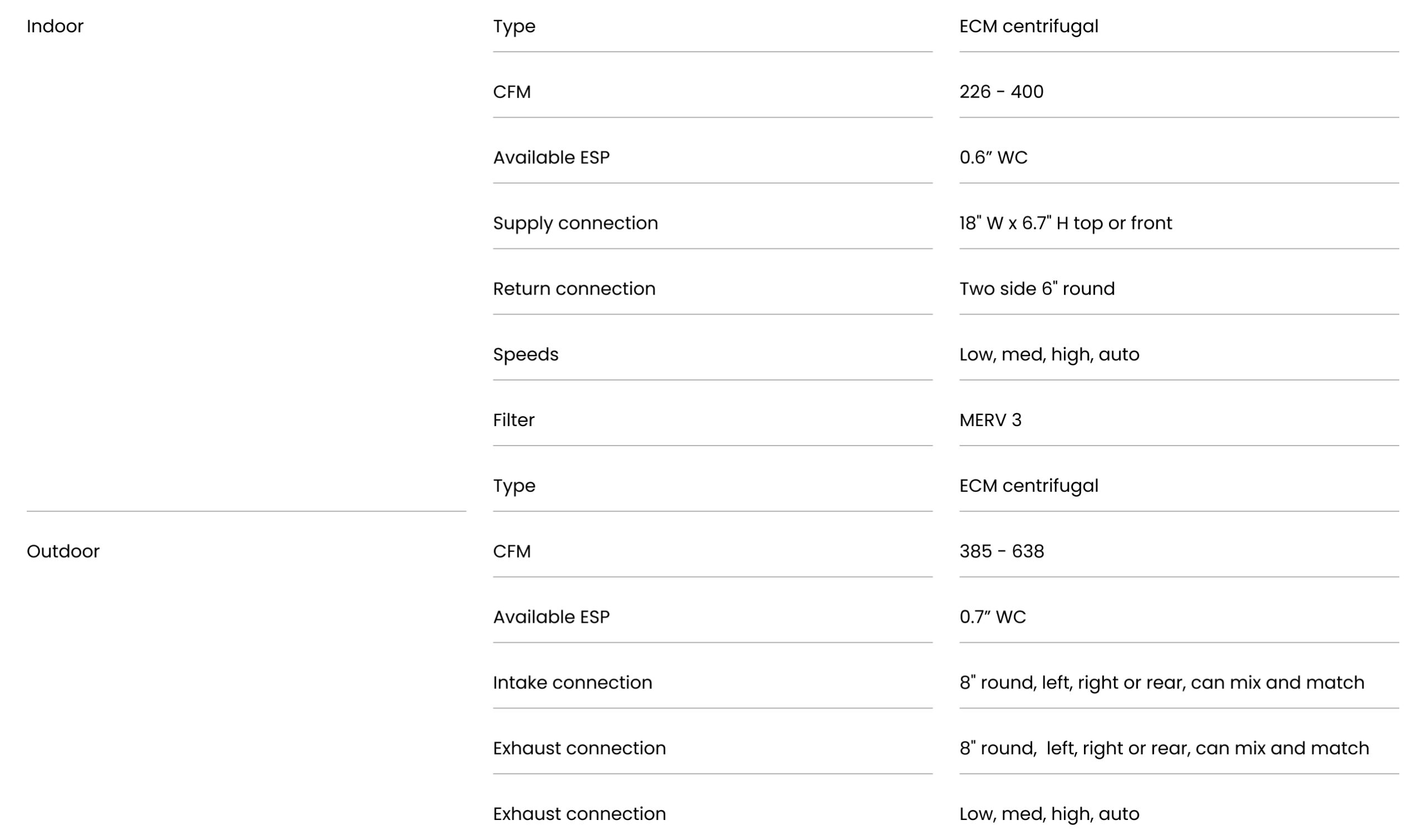

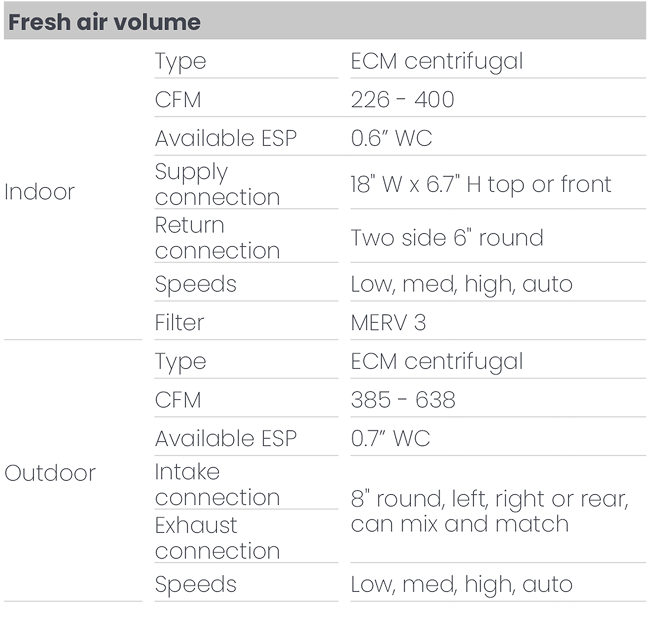

Indoor

  • Type
  • CFM
  • Fan Modes
  • Available ESP
  • Supply connection
  • Return connection
  • Filter



  • ECM centrifugal
  • 226 -400
  • Low, med, high, boost, auto
  • N/A
  • Integrated front
  • Integrated bottom
  • MERV 3, Optional MERV 8 / 13

Outdoor

  • Type
  • CFM
  • Available ESP
  • Available External Static Pressure
  • Intake connection
  • Exhaust connection
  • Speeds



  • ECM centrifugal
  • 385 - 638
  • 0.45” WC
  • 0.7” WC
  • 8” round
  • 8” round
  • Low, med, high, auto

Indoor

  • Type
  • Oil Type

Modes

  • Operation

  • Restricted modes

  • Timers



  • BLDC twin rotary inverter
  • Fv50s



  • Cool+ fresh air, cool only,
    heat+ fresh air, heat only, auto
  • Heat only, cool only,
    temperature limiting
  • Dependent on the controller

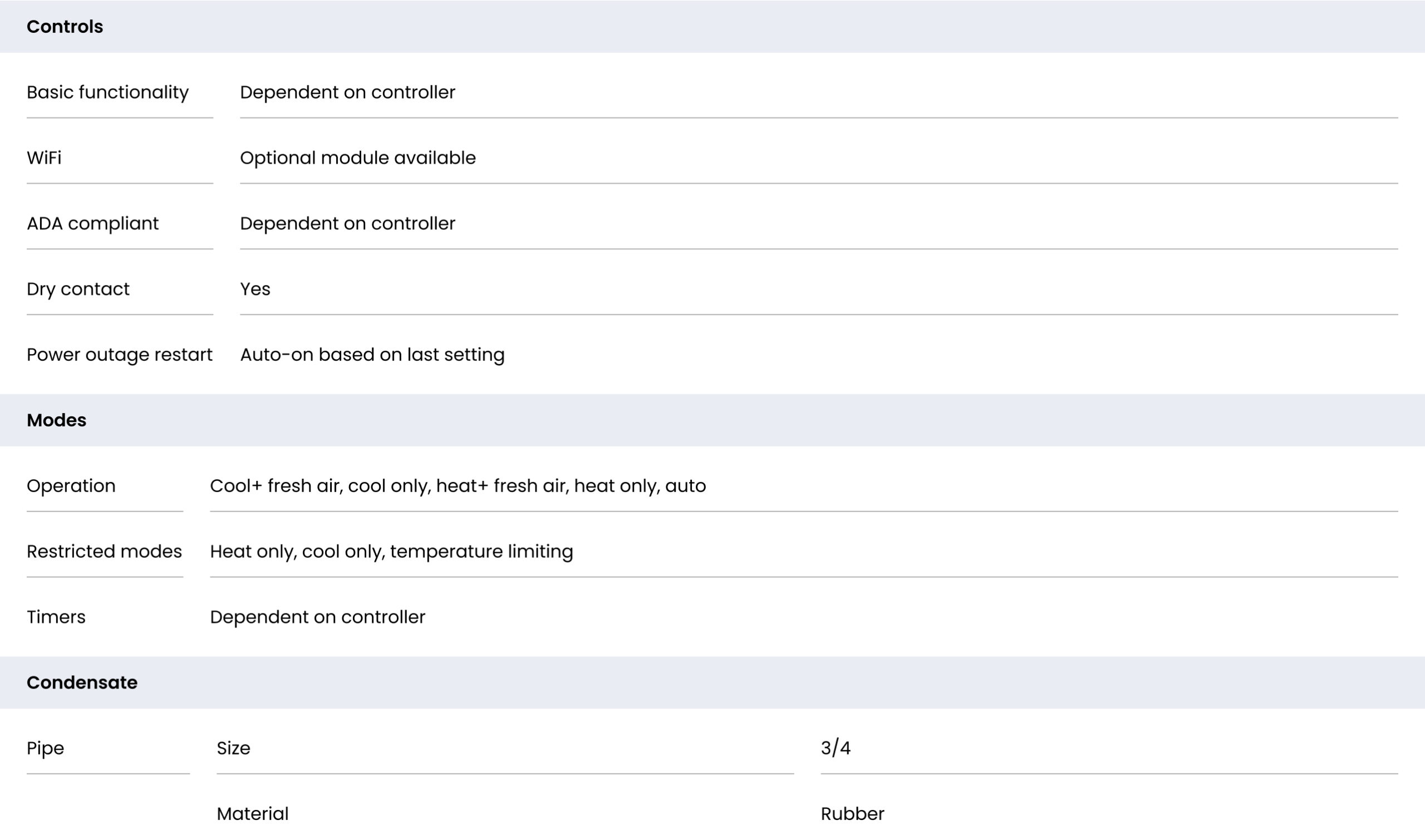

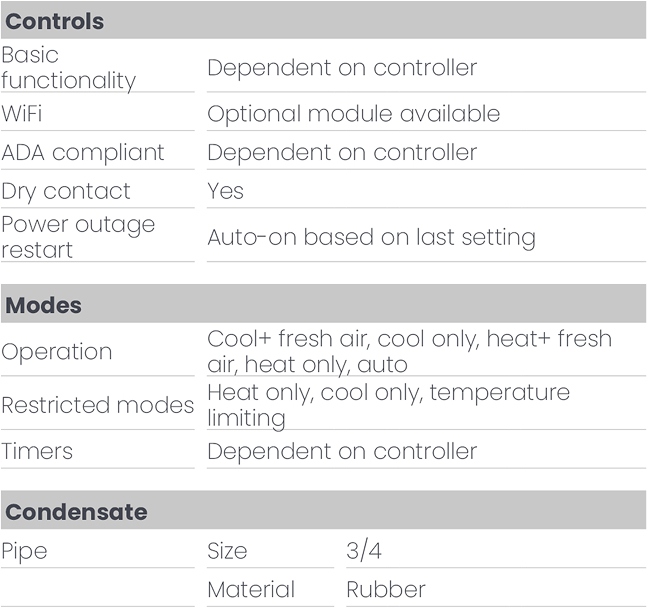

Controls

  • Basic functionality
  • WiFi
  • Power Outage Restart
  • Dry contact

Condensate

  • Pipe size
  • Pipe Material



  • Dependent on controller
  • Optional module available
  • Auto-on based on last setting
  • Yes



  • 3/4" Outside diameter
  • Rubber

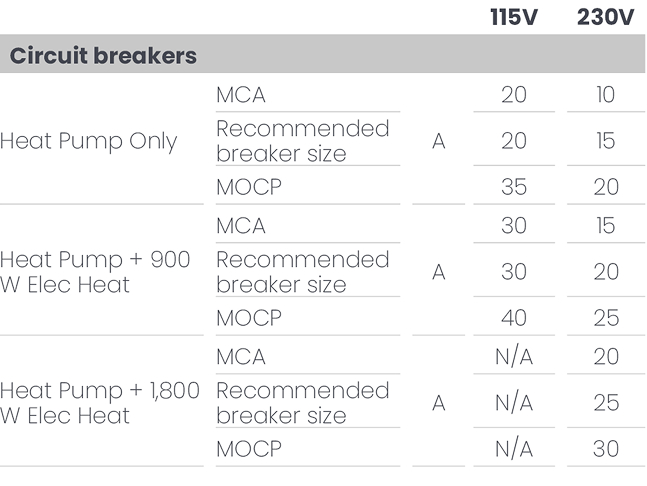

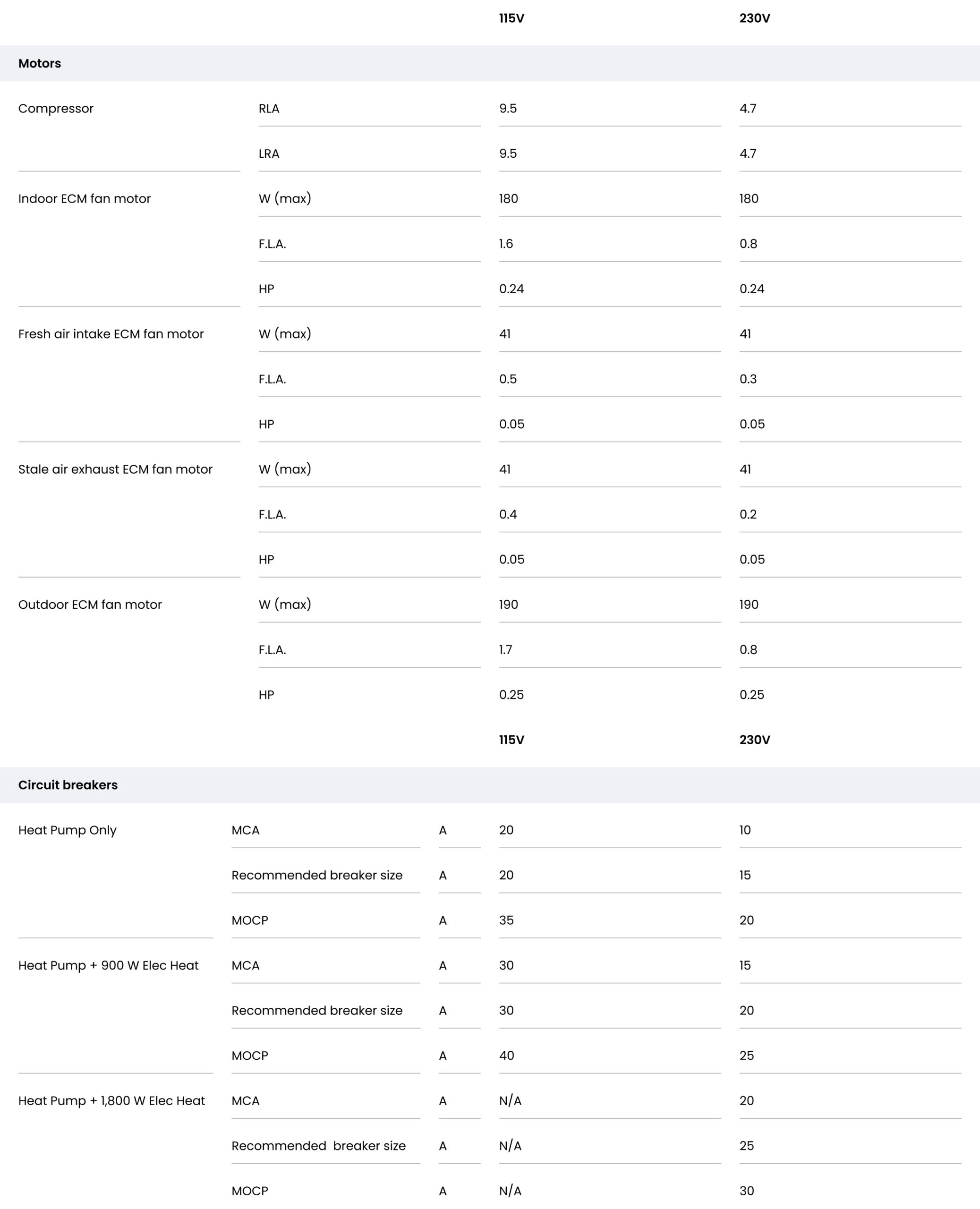

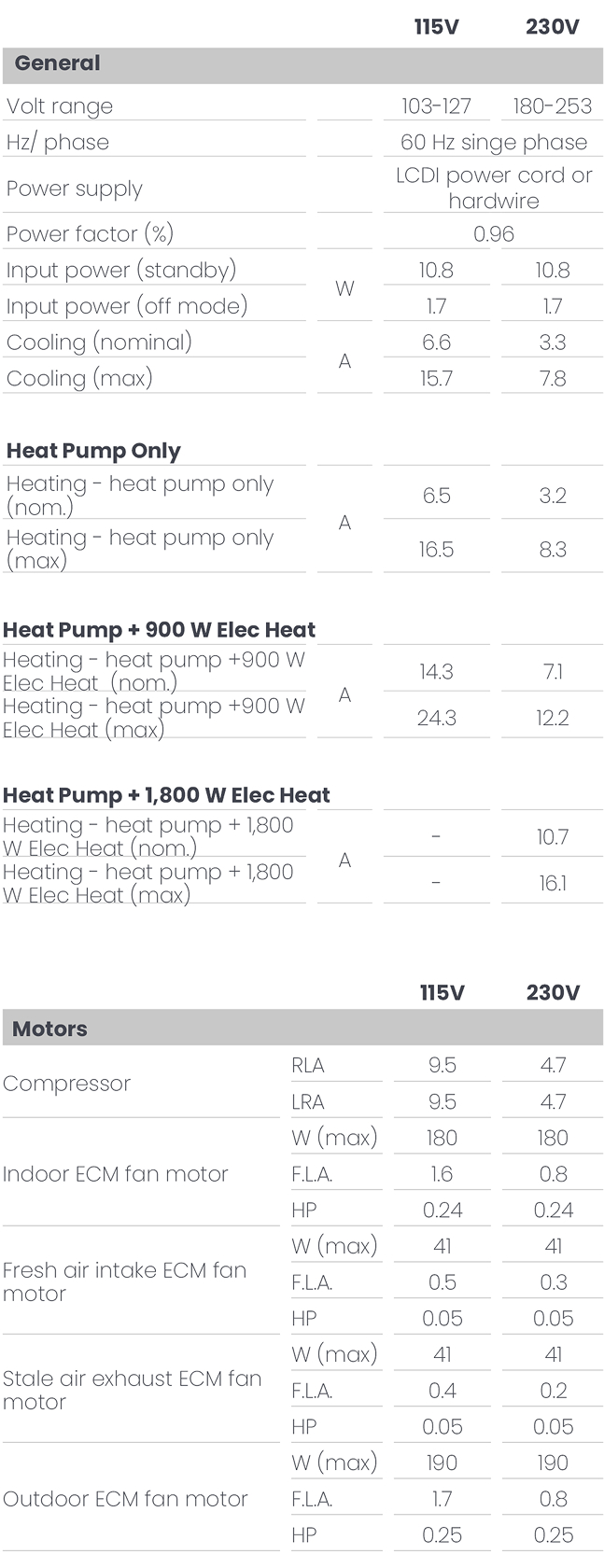

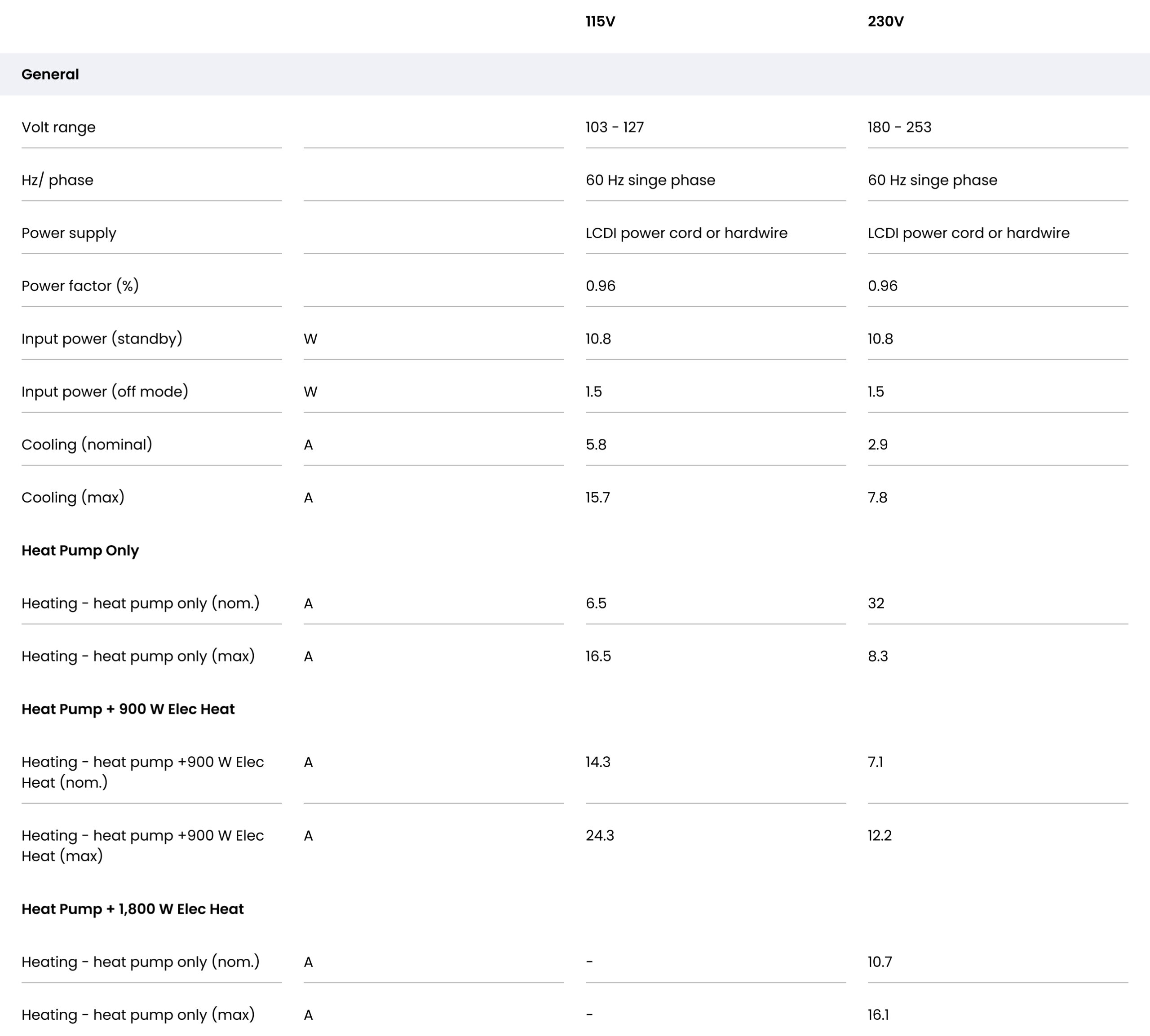

Heat Pump only

AHRI

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 15.9
  • 22.0
  • 15.9
  • 22.0

  • 26
  • 35
  • 30

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 7.9
  • 10.5
  • 7.9
  • 10.5

  • 12
  • 15
  • 15



Energy Star Certified

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 15.9
  • 22.0
  • 15.9
  • 22.0

  • 26
  • 35
  • 30

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 7.9
  • 10.5
  • 7.9
  • 10.5

  • 12
  • 15
  • 15

Heat Pump + 0.9kW Electric Heat

AHRI

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 15.9
  • 22.0
  • 15.9
  • 30.2

  • 34
  • 45
  • 40

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -



Energy Star Certified

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 15.9
  • 22.0
  • 15.9
  • 30.2

  • 34
  • 45
  • 40

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -

Heat Pump + 1.8 kW Electric Heat

AHRI

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 7.9
  • 10.5
  • 7.9
  • 18.3

  • 20
  • 25
  • 20



Energy Star Certified

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)

?

115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -

?

230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 7.9
  • 10.5
  • 7.9
  • 18.3

  • 20
  • 25
  • 20

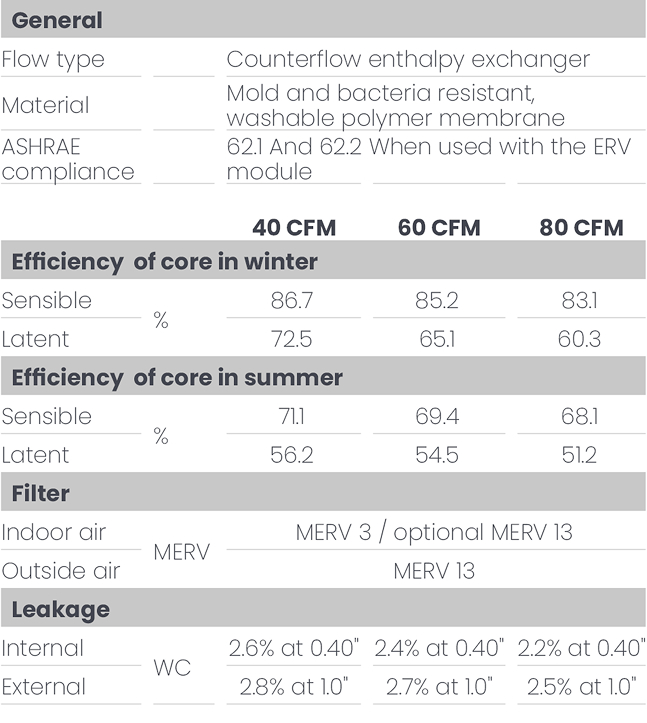

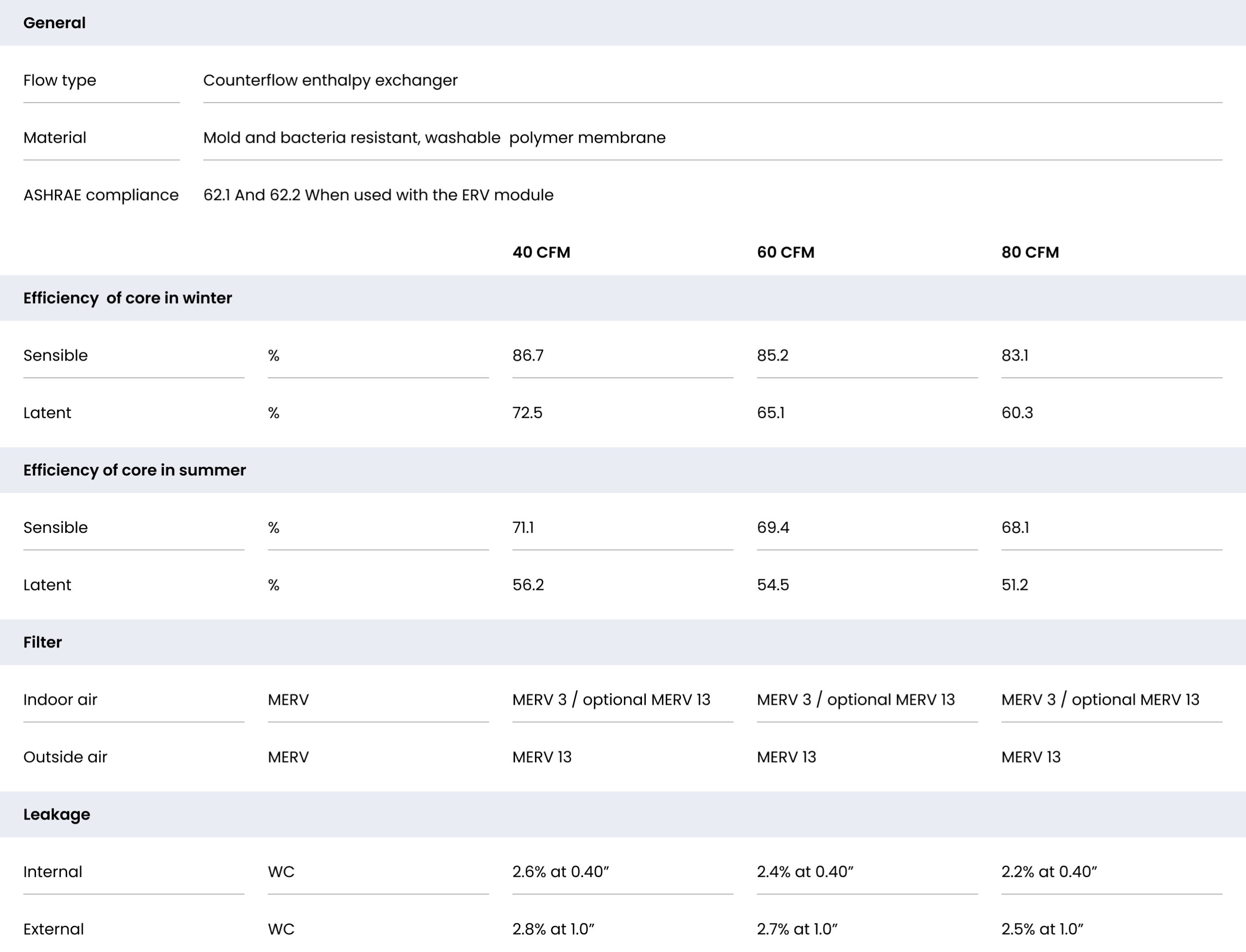

General

  • Flow type
  • Material
  • ASHRAE compliance



  • Counterflow enthalpy exchanger
  • Mold and bacteria resistant, washable polymer membrane
  • 62.1 And 62.2 When used with the ERV module

Efficiency of core in winter

  • Sensible (%)
  • Latent (%)

40 CFM

  • 86.7
  • 72.5

60 CFM

  • 85.2
  • 65.1

80 CFM

  • 83.1
  • 60.3

Efficiency of core in summer

  • Sensible (%)
  • Latent (%)



  • 71.1
  • 56.2



  • 69.4
  • 54.5



  • 68.1
  • 51.2

Filter

  • Indoor air (MERV)
  • Outside air (MERV)



  • MERV 3 / optional MERV 13
  • MERV 13



  • MERV 3 / optional MERV 13
  • MERV 13



  • MERV 3 / optional MERV 13
  • MERV 13

Leakage

  • Internal (WC)
  • External (WC)



  • 2.6% at 0.40"
  • 2.8% at 1.0"



  • 2.4% at 0.40"
  • 2.7% at 1.0"



  • 2.2% at 0.40"
  • 2.5% at 1.0"

Compressor

  • RLA (A)
  • LRA (A)

Indoor ECM fan motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

Outdoor ECM fan motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

115V

  • 13
  • 13



  • 200
  • 2.4
  • 1/10



  • 320
  • 3
  • 1/18

230V



  • 200
  • 1.2
  • 1/10



  • 425
  • 2
  • 1/10

Heat Pump Only

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (in)

Heat Pump
+ 0.9 kW Electric Heat

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (in)

Heat Pump
+ 1.8 kW Electric Heat

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (in)

115V

  • N/A
  • N/A
  • 40




  • -
  • -
  • 40




  • 20
  • 6-20P
  • 40

230V




  • -
  • -
  • -




  • 20
  • 6 - 20P
  • 40

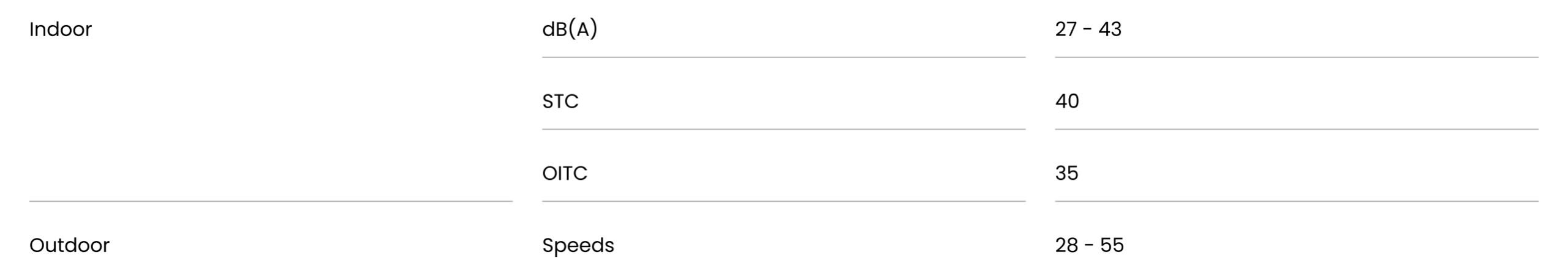

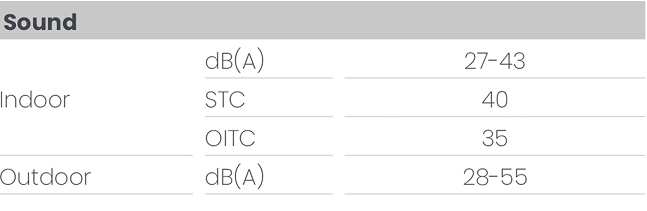

Indoor

  • DB range: dB(A)
  • STC
  • OITC



  • 27 - 43
  • 40
  • 35

Outdoor

  • dB(A)
  •



  • 28 -55
  •

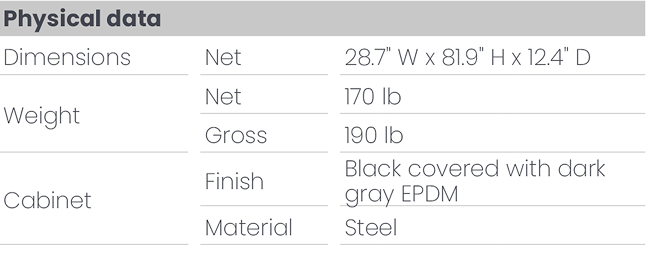

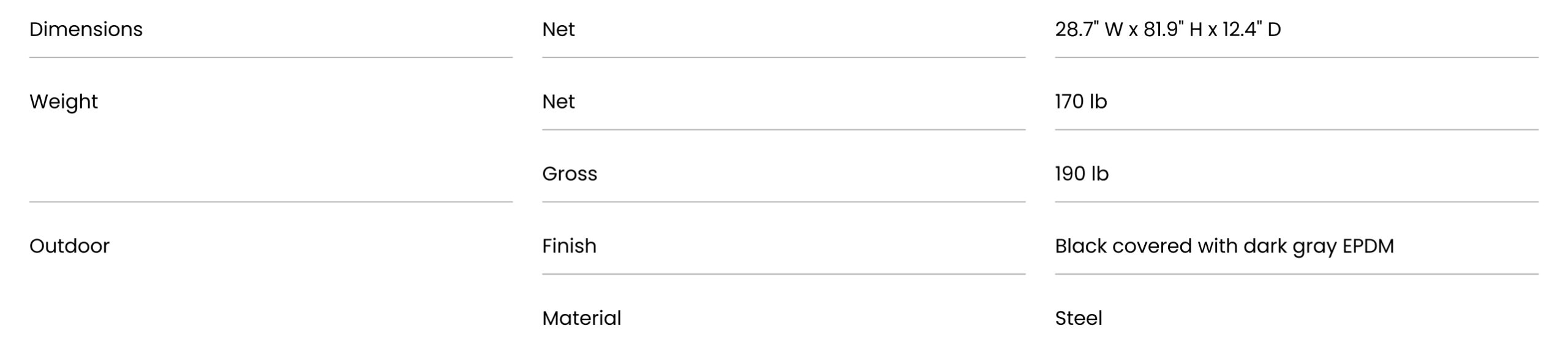

  • Dimensions
  • Net weight (Ib)
  • Gross weight (Ib)
  • Cabinet finish
  • Cabinet material
  • 39.9" W x 21.6" H x 6.9" + 6" fan depth
  • 100
  • 105
  • RAL 9003 signal white
  • Steel

Documentation

Without ERV

With ERV

Trusted by leading brands worldwide
