Ceiling Suspended w/ERV

AIO Ceiling Suspended unit is hung from the ceiling unobtrusively. These units are ideal for retrofit applications where it is desirable to have the unit “out of reach.” Ceiling Suspended units are suitable for dormitories, budget rental apartments or hotels, or anywhere a ceiling-mounted unit is desired. Ceiling Suspended units are available with or without the integrated ERV and can be vented directly outside or through ductwork.

Key Features

  • Compact unit
  • Easy to install
  • Paintable sleek cabinet
  • Electronically controlled air louver
  • Always-on back-lit LED dims after
15 seconds of inactivity
  • Auto-restart
  • Washable filters
  • Preheater for extreme cold climates

Options

  • Optional 0.9 or 1.8 kW electric heat
  • With ERV
  • 115V or 230V
  • Hardwire or LCDI cord
  • R32

Operation

  • Cool, heat, dehumidify, and auto
  • Selectable fan speeds, low, med, high, and auto
  • Fresh air ERV - field configurable amount of fresh air

Mounting

  • Ceiling

Airflow

  • Dual 8' external vents
  • Available 0.45" WC for external ducting, adapters, and louvers

Included controls

  • Onboard touch controller

Optional controllers

  • WiFi app for Android and iPhone
  • Wall Mounted Advanced touchscreen with a 7-day program
  • Wall Mounted Basic touch controller
  • Third party thermostat interface
  • BACnet/Modbus interface

Airflow

AIO Ceiling Suspended is flexible in many ways. It can be fully ducted or used with minimal or no ducting. This flexibility enables AIO Ceiling Suspended to be placed anywhere in a dwelling without restrictions.

  • Outside air
  • Recirculate air

A - Outside air intake

The single 8” round outside air intake connection provides air for the condenser portion and fresh air for the inside. This can be supported with ERV with up to 0.7” WC external static pressure (combined between intake and exhaust).

B - Outside air exhaust

The single 8” round outside air exhaust connection is for the condenser portion and the stale air exhaust. This can be supported with ERV with up to 0.7” WC external static pressure (combined between intake and exhaust).

C - Return air

The room air and exhaust air are returned to the unit through the integrated return air grille on the bottom of the unit.

D - Supply air

The supply air is through the front fixed louver.

Installation

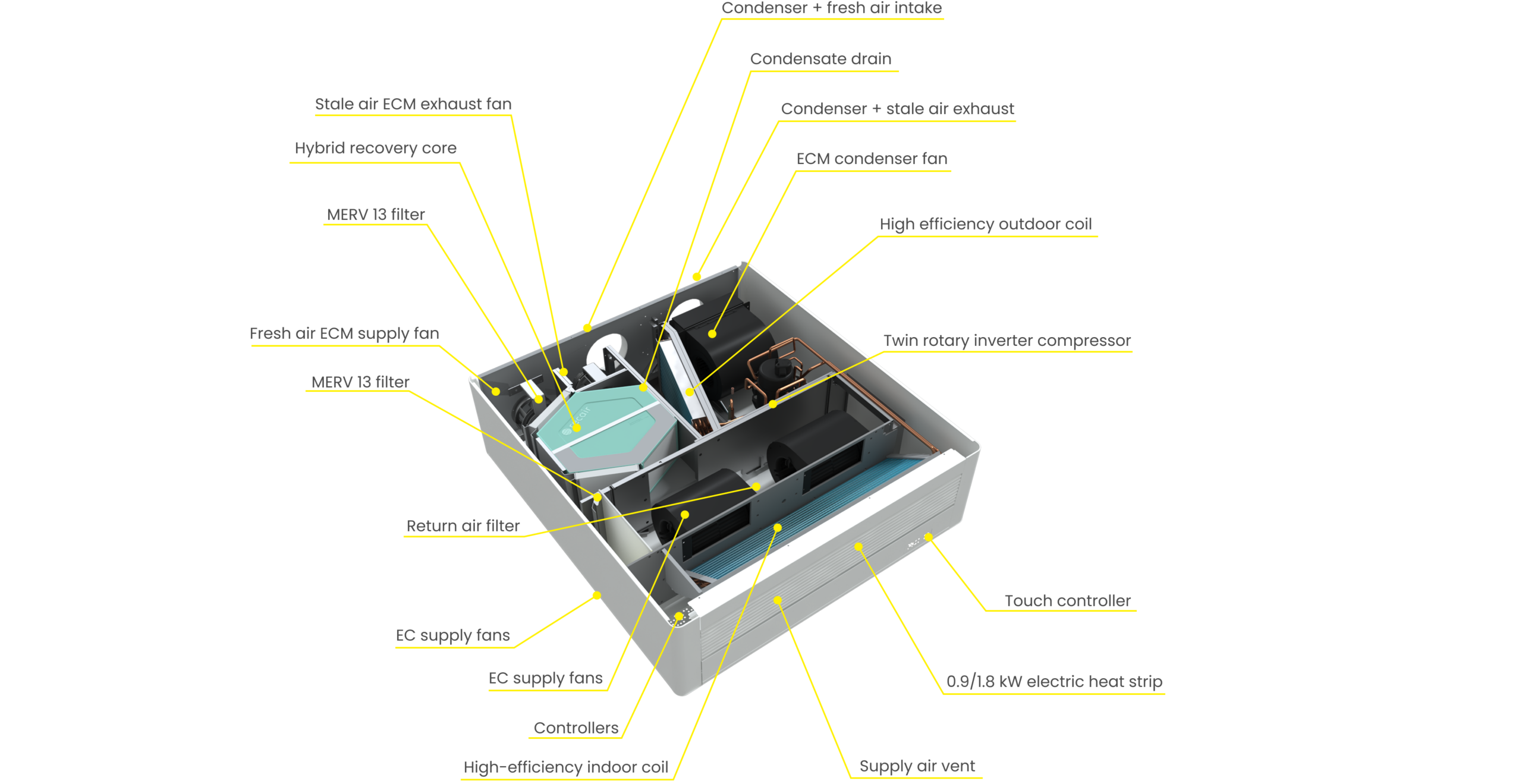

What's Inside

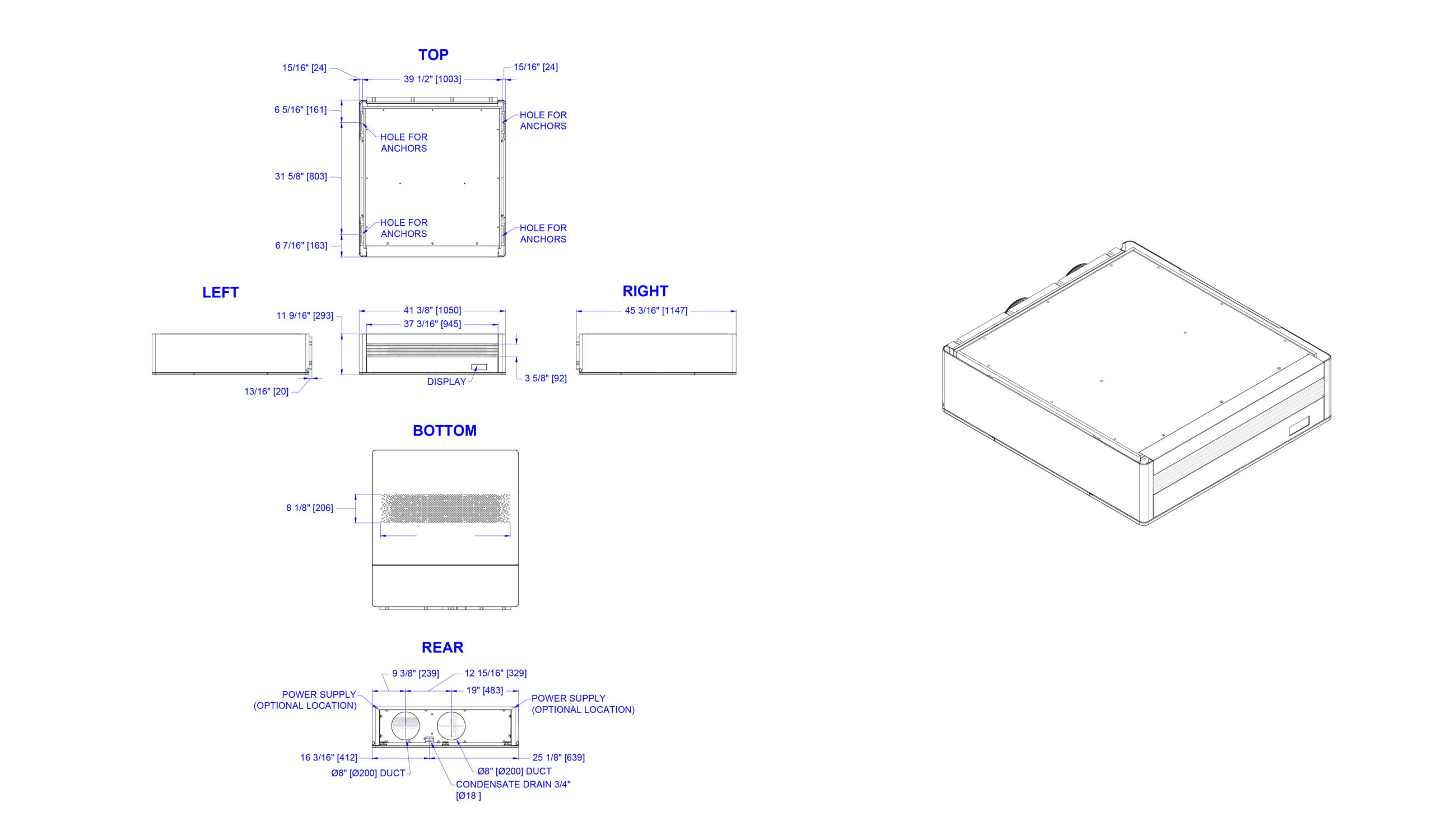

Dimensions

Technical Specifications

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15.0
  • 9.4
  • 7.7
  • 3.1



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.9

1.8



105°F 2



  • 11.4
  • 8.2
  • 7.4
  • 3.1



  • 1.64
  • 0.95
  • 0.83
  • 0.26



  • 7.0
  • 8.6
  • 8.9
  • -

2.0



115°F 3



  • 9.8
  • 7.3
  • 6.6
  • 3.1



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 14.0
  • 9.2
  • 8.6
  • 3.5



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



17°F 2



  • 10.0
  • 9.3
  • 8.3
  • 3.3



  • 1.46
  • 1.27
  • 1.10
  • 0.42



  • 1.1
  • 7.3
  • 2.2
  • 2.3
  • -



5°F 3



  • 6.6
  • 6.2
  • 6.2
  • 2.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 5.5
  • 1.7
  • 1.9
  • -



0°F 4



  • 6.3
  • 5.9
  • 5.9
  • 2.5



  • 1.60
  • 1.22
  • 1.07
  • 0.43



  • 1.1
  • 5.4
  • 1.6
  • 1.7
  • -



-5°F 5



  • 5.8
  • 5.6
  • 5.6
  • 3.3



  • 1.65
  • 1.16
  • 1.01
  • 0.48



  • 1.0
  • 5.3
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Cooling

Heat Pump only

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • SEER2

Moisture removal (Pts/h)



95°F 1



  • 15.0
  • 9.4
  • 7.7
  • 3.1



  • 1.58
  • 0.96
  • 0.73
  • 0.23



  • 9.5
  • 9.8
  • 10.6
  • 13.9

1.8



105°F 2



  • 11.4
  • 8.2
  • 7.4
  • 3.1



  • 1.64
  • 0.95
  • 0.83
  • 0.26



  • 7.0
  • 8.6
  • 8.9
  • -

2



115°F 3



  • 9.8
  • 7.3
  • 6.6
  • 3.1



  • 1.70
  • 1.04
  • 0.91
  • 0.29



  • 5.8
  • 7.0
  • 7.3
  • -

2.2

  • 1
  • 2
  • 3
  • 95°F
  • 105°F
  • 115°F
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • ID: 80°F, W.B. 67°F;
  • OD: 95°F, W.B. 75°F
  • OD: 105°F, W.B. 75°F
  • OD: 115°F, W.B. 75°F
  • * This is the recommended capacity for sizing the unit to the space

Heating

Heat Pump only**

Capacity

  • Maximum (kBtu/h)
  • Recommended (kBtu/h)*
  • Nominal (kBtu/h)
  • Minimum(kBtu/h)

Power Input

  • Maximum (kW)
  • Recommended (kW)*
  • Nominal (kW)
  • Minimum (kW)

Efficiency

  • Maximum
  • Recommended
  • Nominal
  • Minimum
  • HSPF2



47°F 1



  • 14.0
  • 9.2
  • 8.6
  • 3.5



  • 1.42
  • 0.78
  • 0.70
  • 0.32



  • 2.9
  • 3.5
  • 3.6
  • 3.3
  • 9.2



17°F 2



  • 10.0
  • 8.7
  • 7.8
  • 3.3



  • 1.46
  • 1.27
  • 1.10
  • 0.42



  • 1.1
  • 7.3
  • 2.2
  • 2.3
  • -



5°F 3



  • 6.6
  • 6.2
  • 6.2
  • 2.8



  • 1.70
  • 1.25
  • 1.09
  • 0.44



  • 1.1
  • 5.5
  • 1.7
  • 1.9
  • -



0°F 4



  • 6.3
  • 5.9
  • 5.9
  • 2.5



  • 1.60
  • 1.22
  • 1.07
  • 0.43



  • 1.1
  • 5.4
  • 1.6
  • 1.7
  • -



-5°F 5



  • 5.8
  • 5.6
  • 5.6
  • 3.3



  • 1.65
  • 1.16
  • 1.01
  • 0.48



  • 1.0
  • 5.3
  • 1.6
  • 2.0
  • -
  • 1
  • 2
  • 3
  • 4
  • 5
  • 47°F
  • 17°F
  • 5°F
  • 0°F
  • -5°F
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • ID: 70°F, W.B. 60°F;
  • OD: 47°F, W.B. 43°F
  • OD: 17°F, W.B. 13°F
  • OD: 5°F, W.B. 3°F
  • OD: 0°F
  • OD: -5°F
  • * This is the recommended capacity for sizing the unit to the space.
  • ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

Indoor

  • Type
  • CFM
  • Fan Modes
  • Available ESP
  • Supply connection
  • Return connection
  • Filter



  • ECM centrifugal
  • 226 - 350
  • Low, med, high, boost, auto
  • N/A
  • Integrated front
  • Integrated bottom
  • MERV 3

Outdoor

  • Type
  • CFM
  • Available ESP
  • Intake connection
  • Exhaust connection
  • Speeds



  • ECM centrifugal
  • 385 - 638
  • 0.7” WC
  • 8” round
  • 8” round
  • Low, med, high, auto

Indoor

  • Type
  • Oil Type

Modes

  • Operation

  • Restricted modes

  • Timers



  • BLDC twin rotary inverter
  • Fv50s



  • Cool+ fresh air, cool only,
    heat+ fresh air, heat only, auto
  • Heat only, cool only,
    temperature limiting
  • Dependent on the controller

Controls

  • Basic functionality
  • WiFi
  • Power Outage Restart
  • Dry contact

Condensate

  • Pipe size
  • Pipe Material



  • Dependent on controller
  • Optional module available
  • Auto-on based on last setting
  • Yes



  • 3/4" Outside diameter
  • Rubber

Heat Pump only

AHRI

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)



115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 8.2
  • 20.9
  • 10.0
  • 20.9

  • 25
  • 35
  • 30



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.1
  • 9.5
  • 5.0
  • 9.5

  • 11
  • 15
  • 15



Energy Star Certified

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)



115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 8.2
  • 20.9
  • 10.0
  • 20.9

  • 25
  • 35
  • 30



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.1
  • 5.9
  • 5.0
  • 9.5

  • 11
  • 15
  • 15

Heat Pump + 0.9kW Electric Heat

AHRI

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)



115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 8.2
  • 20.9
  • 10.0
  • 29.1

  • 33
  • 45
  • 30



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -



Energy Star Certified

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)



115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 8.2
  • 20.9
  • 10.0
  • 29.1

  • 33
  • 45
  • 30



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -

Heat Pump + 1.8 kW Electric Heat

AHRI

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps
    Heating (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)



115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.1
  • 9.5
  • 5.0
  • 17.3

  • 19
  • 20
  • 20



Energy Star Certified

  • Power Supply (Ph/Hz)
  • Power Factor
  • Input Power - standby (W)
  • Input Power - off mode (W)
  • Running Amps Cooling (A)
  • Maximum Amps Cooling (A)
  • Running Amps Heating (A)
  • Maximum Amps Heating HP
    + Heaters (A)
  • MCA (A)
  • MOCP (A)
  • Recommended Breaker Size (A)



115V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • -
  • -
  • -
  • -

  • -
  • -
  • -



230V

  • 1/60
  • 0.96
  • 10.8
  • 1.5
  • 4.1
  • 9.5
  • 5.0
  • 17.3

  • 19
  • 20
  • 20

General

  • Flow type
  • Material
  • ASHRAE compliance



  • Counterflow enthalpy exchanger
  • Mold and bacteria resistant, washable polymer membrane
  • 62.1 And 62.2 When used with the ERV module

Efficiency of core in winter

  • Sensible (%)
  • Latent (%)

40 CFM

  • 86.7
  • 72.5

60 CFM

  • 85.2
  • 65.1

80 CFM

  • 83.1
  • 60.3

Efficiency of core in summer

  • Sensible (%)
  • Latent (%)



  • 71.1
  • 56.2



  • 69.4
  • 54.5



  • 68.1
  • 51.2

Filter

  • Indoor air (MERV)
  • Outside air (MERV)



  • MERV 3 / optional MERV 13
  • MERV 13



  • MERV 3 / optional MERV 13
  • MERV 13



  • MERV 3 / optional MERV 13
  • MERV 13

Leakage

  • Internal (WC)
  • External (WC)



  • 2.6% at 0.40"
  • 2.8% at 1.0"



  • 2.4% at 0.40"
  • 2.7% at 1.0"



  • 2.2% at 0.40"
  • 2.5% at 1.0"

Compressor

  • RLA (A)
  • LRA (A)

Indoor ECM fan motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

Outdoor ECM fan motor

  • Max Watts (W)
  • F.L.A (A)
  • Power (HP)

115V

  • 7.9
  • 7.9



  • 50
  • 0.4
  • 00.7



  • 90
  • 1.3
  • 0.20

230V



  • 50
  • 0.3
  • 00.7



  • 90
  • 0.7
  • 0.20

Heat Pump Only

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (in)

Heat Pump
+ 0.9 kW Electric Heat

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (in)

Heat Pump
+ 1.8 kW Electric Heat

  • LCDI Power Cord -Amps (A)
  • LCDI Power Cord -Plug (NEMA)
  • Quick-connect whip-Length (in)

115V

  • N/A
  • N/A
  • 40




  • N/A
  • N/A
  • 40




  • 20
  • 6-20P
  • 40

230V




  • -
  • -
  • -




  • 20
  • 6 - 20P
  • 40

Indoor

  • DB range: dB(A)
  • STC
  • OITC



  • 27 - 43
  • 40
  • 35

Outdoor

  • dB(A)
  •



  • 28 -55
  •

Physical Data

  • Dimensions
  • Net weight (Ib)
  • Gross weight (Ib)
  • Cabinet finish
  • Cabinet material

Physical Data

  • Dimensions
  • Net weight (Ib)
  • Gross weight (Ib)
  • Cabinet finish
  • Cabinet material

With ERV

  • 41.3” W x 44.4” D x 11.5” H
  • 203
  • 214
  • RAL 9003 signal white
  • Steel

Without ERV

Documentation

Trusted by leading brands worldwide
