Wall Mounted Pro
AIO Wall Mounted Pro units are slim and sleek. The Wall Mounted Pro can be mounted high or low with a factory-supplied bracket, making installation quick and simple. Special adapters enable the unit to be installed perpendicular to an outside wall, used with many louver styles, or even vented through an existing window frame with no construction required. An electronically controlled louver with an auto-swing function distributes airflow comfortably and uniformly. Wall Mounted pro units are ideal for any area with free wall space. The onboard touch controller simplifies use and installation. AIO Wall Mounted Pro is available with an optional ERV module. The extremely powerful exhaust fan with 0.45″ WC enables flexibility in venting and higher efficiency with better performance than the standard Wall Mounted unit.
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Electronically controlled air louver
- Always-on back-lit LED dims after 15 seconds of inactivity
- Auto-restart
- Washable filters
Options
- 900/1,800W electric heat
- ERV Module
- 115V or 230V
- Hardwire or LCDI cord
- R32
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high, and auto
- Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)
Mounting
- High wall
- Low wall
- Sidewall with adapter
- Multiple adapter options
Airflow
- Dual 8-inch external vents
- Available 0.45" WC for external ducting, adapters, and louvers
Included controls
- Onboard touch controller
Optional controllers
- WiFi app for Android and iPhone
- Wall Mounted Advanced touchscreen with a 7-day program
- Wall Mounted Basic touch controller
- Third party thermostat interface
- BACnet/Modbus interface
Airflow

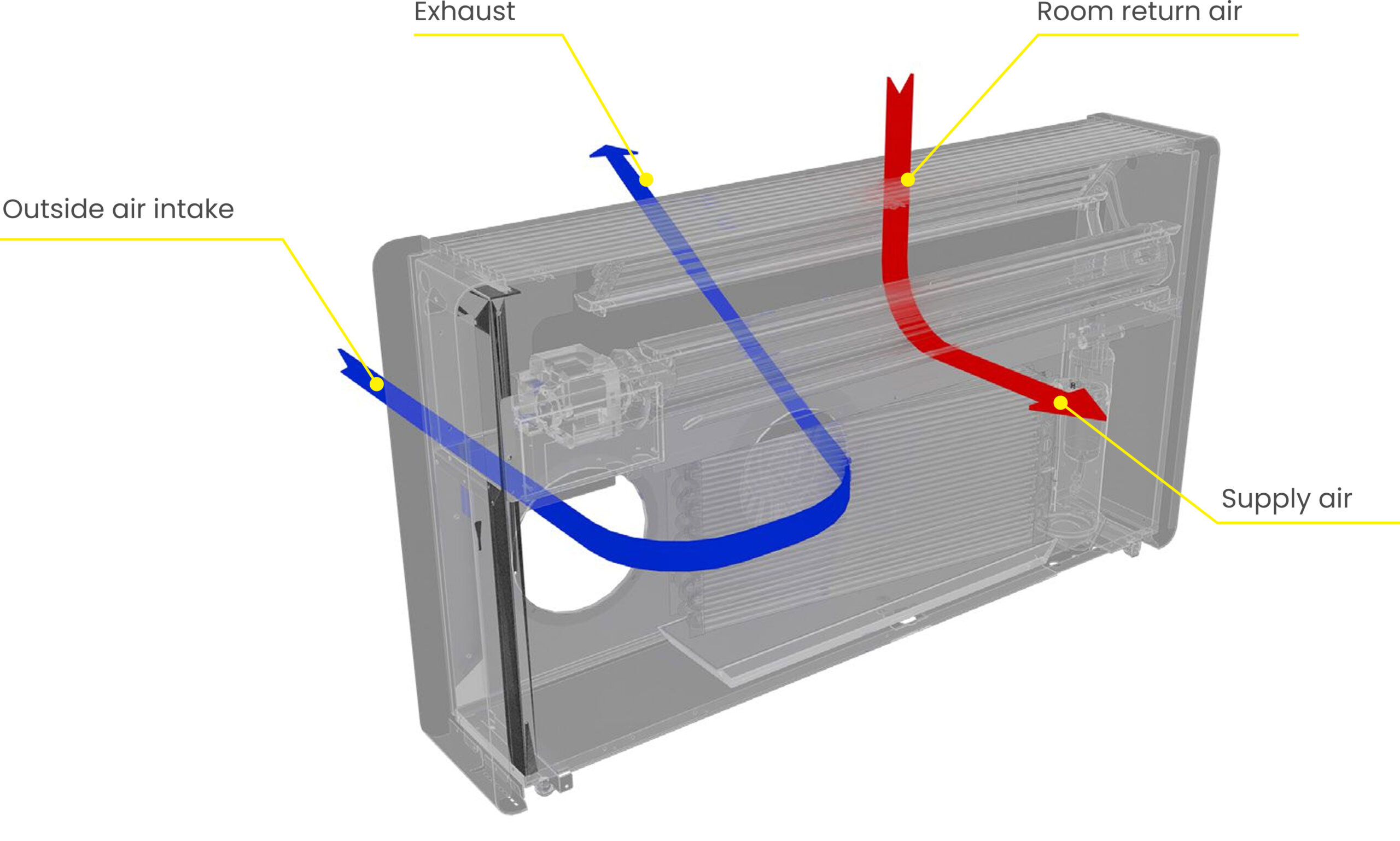

AIO Wall Mounted Pro is extraordinarily flexible in how it can externally vent. A host of adapters are available that enable AIO Wall Mounted Pro to be installed in many scenarios, including on glass curtain walls with linear louvers, integrated window, and louver assemblies, or even with no construction using a windowsill adapter.
- Outside air
- Recirculate air
Outside air intake
The 8-inch round outside air intake connection can be ducted or used with an adapter with up to 0.45-inch external static pressure (combined between intake and exhaust). Use with any of the approved or custom louvers as long as they comply with the minimum requirements.
Outside air exhaust
The 8-inch round exhaust connection can be ducted or used with an adapter with up to 0.45-inch external static pressure (combined between intake and exhaust). Use with any of the approved or custom louvers as long as they comply with the minimum requirements.
Return air
The return air is on the top through the integrated return air grille.
Supply air
The supply air is through an electronically controlled louver that can be set at any angle or continuously oscillate.
Installation

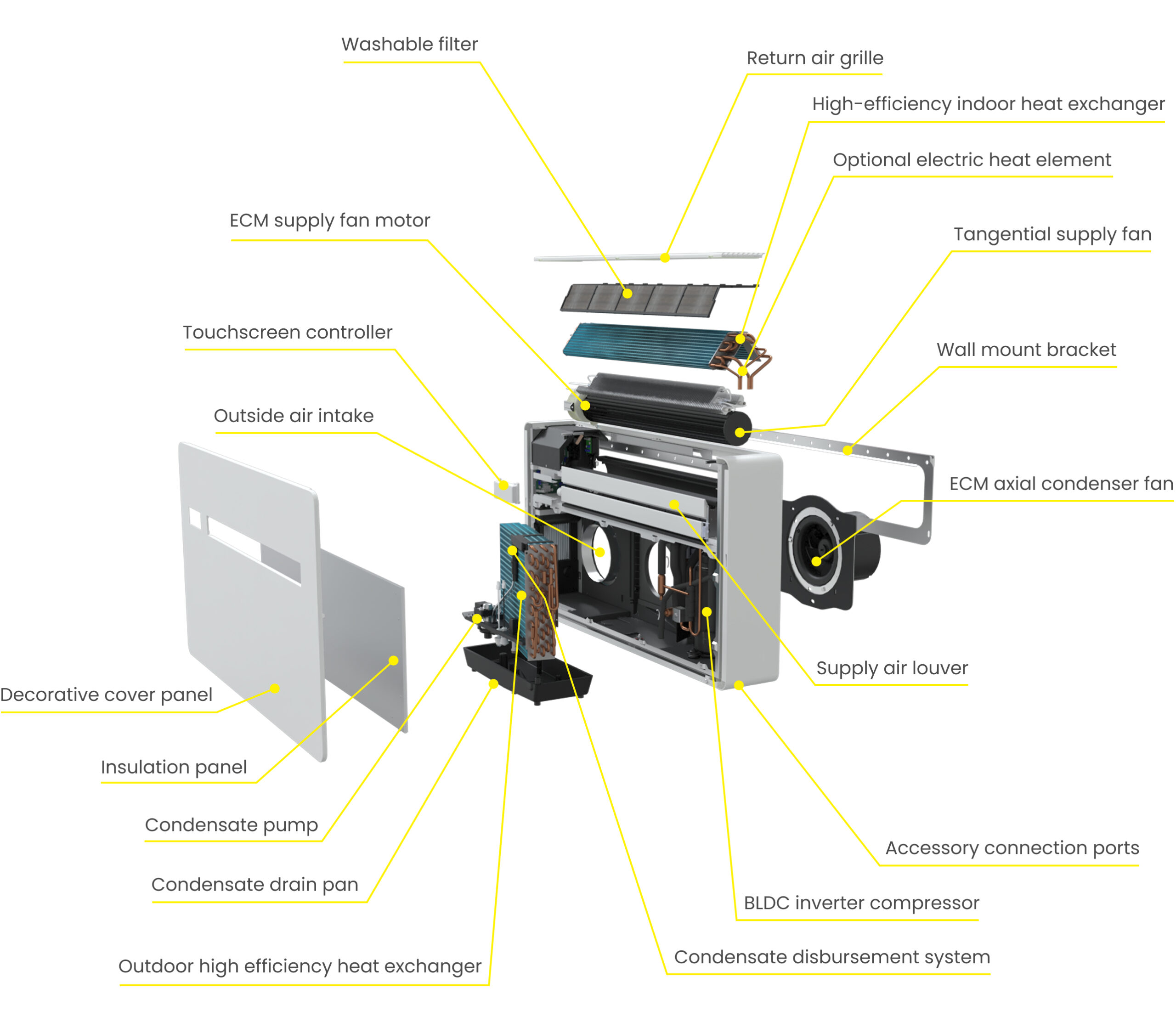

What's Inside
Technical Specifications

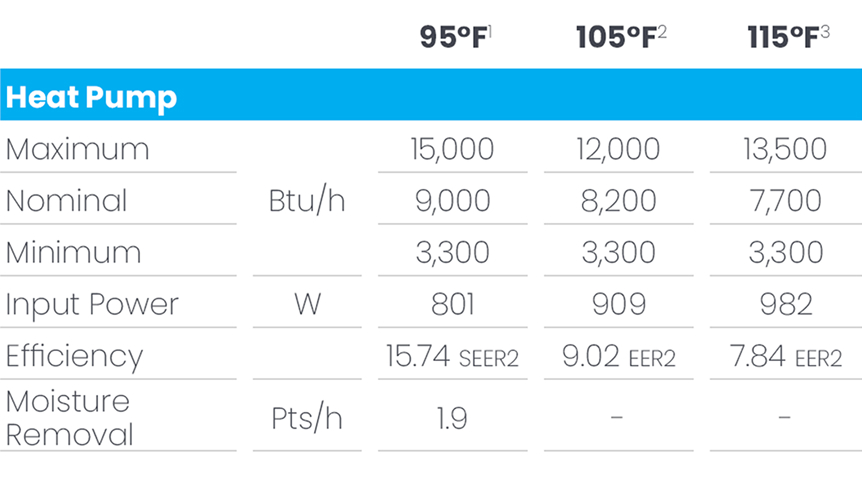

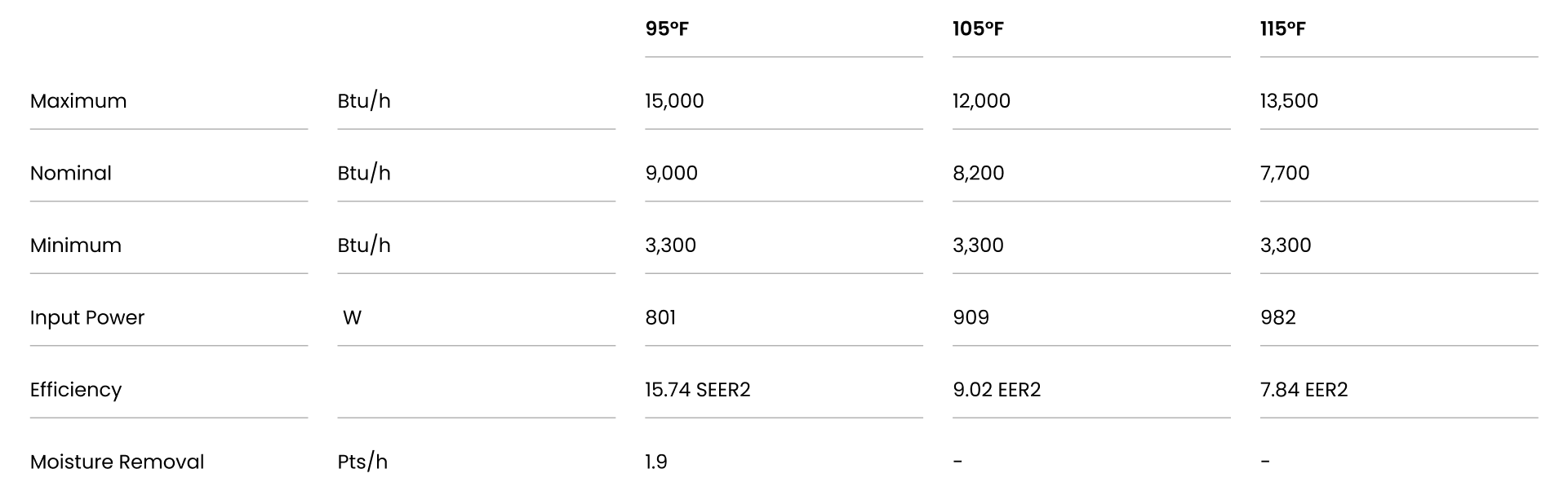

Heat Pump only
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- SEER2
Moisture removal (Pts/h)
95°F 1
- 15.0
- 10.4
- 9.0
- 3.3
- 1.79
- 1.05
- 0.81
- 0.21
- 8.38
- 9.9
- 11.2
- 15.7
1.9
105°F 2
- 13.5
- 9.2
- 8.2
- 3.3
- 1.79
- 1.05
- 0.91
- 0.24
- 7.6
- 8.8
- 9.0
- -
2.1
115°F 3
- 12.0
- 8.6
- 7.7
- 3.3
- 1.69
- 1.13
- 0.99
- 0.27
- 7.6
- 7.6
- 7.8
- -
2.4
- 1
- 2
- 3
- 95°F
- 105°F
- 115°F
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- ID: 80°F, W.B. 67°F;
- OD: 95°F, W.B. 75°F
- OD: 105°F, W.B. 75°F
- OD: 115°F, W.B. 75°F
- * This is the recommended capacity for sizing the unit to the space

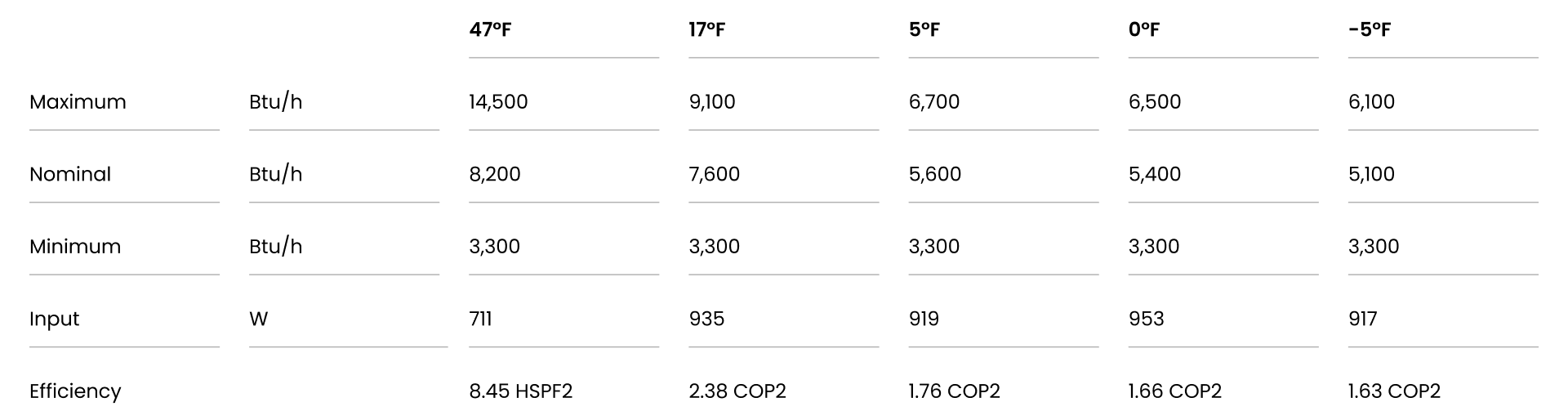

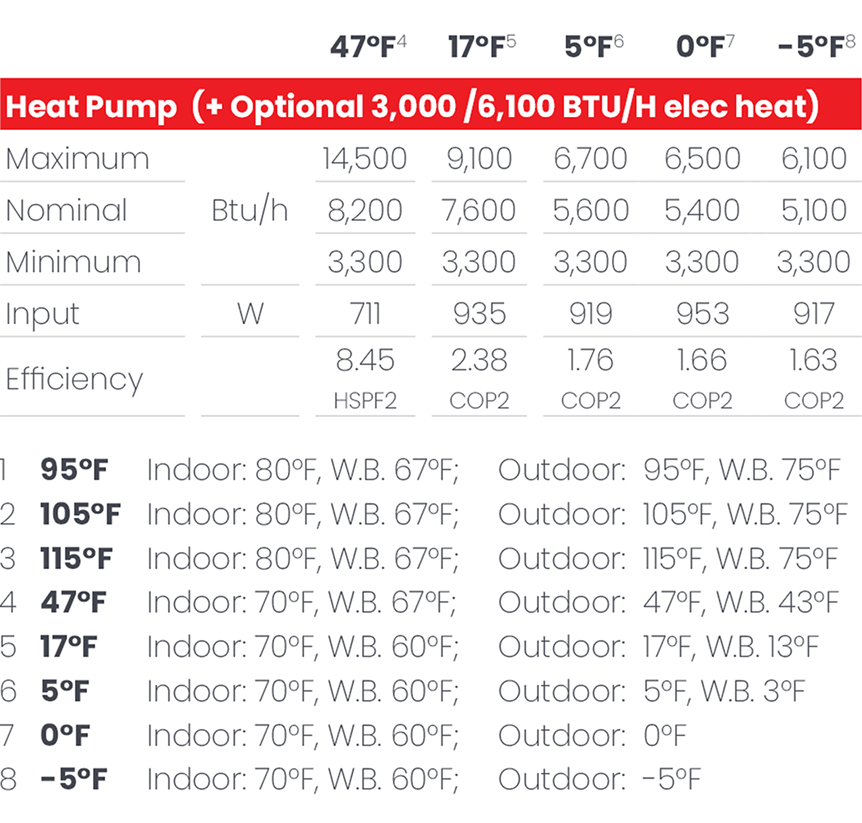

Heat Pump only**
Capacity
- Maximum (kBtu/h)
- Recommended (kBtu/h)*
- Nominal (kBtu/h)
- Minimum(kBtu/h)
Power Input
- Maximum (kW)
- Recommended (kW)*
- Nominal (kW)
- Minimum (kW)
Efficiency
- Maximum
- Recommended
- Nominal
- Minimum
- HSPF2
47°F 1
- 14.5
- 10.1
- 8.2
- 3.9
- 1.62
- 0.99
- 0.72
- 0.36
- 2.6
- 3.0
- 3.4
- 3.2
- 8.6
17°F 2
- 9.0
- 8.5
- 7.6
- 3.3
- 1.63
- 1.08
- 0.94
- 0.37
- 1.6
- 2.3
- 2.4
- 2.6
- -
5°F 3
- 6.7
- 6.3
- 5.6
- 2.8
- 1.63
- 1.06
- 0.92
- 0.41
- 1.2
- 1.7
- 1.8
- 2.0
- -
0°F 4
- 6.5
- 6.0
- 5.4
- 3.3
- 1.48
- 1.10
- 0.96
- 0.44
- 1.3
- 1.6
- 1.7
- 2.2
- -
-5°F 5
- 6.1
- 5.7
- 5.1
- 3.3
- 1.57
- 1.05
- 0.92
- 0.47
- 1.1
- 1.6
- 1.6
- 2.1
- -
- 1
- 2
- 3
- 4
- 5
- 47°F
- 17°F
- 5°F
- 0°F
- -5°F
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- ID: 70°F, W.B. 60°F;
- OD: 47°F, W.B. 43°F
- OD: 17°F, W.B. 13°F
- OD: 5°F, W.B. 3°F
- OD: 0°F
- OD: -5°F
- * This is the recommended capacity for sizing the unit to the space.
- ** The tables show Heat Pump performance only. An electric heating element can be added to provide an additional output of 3.1 or 6.1 kBtu/h.

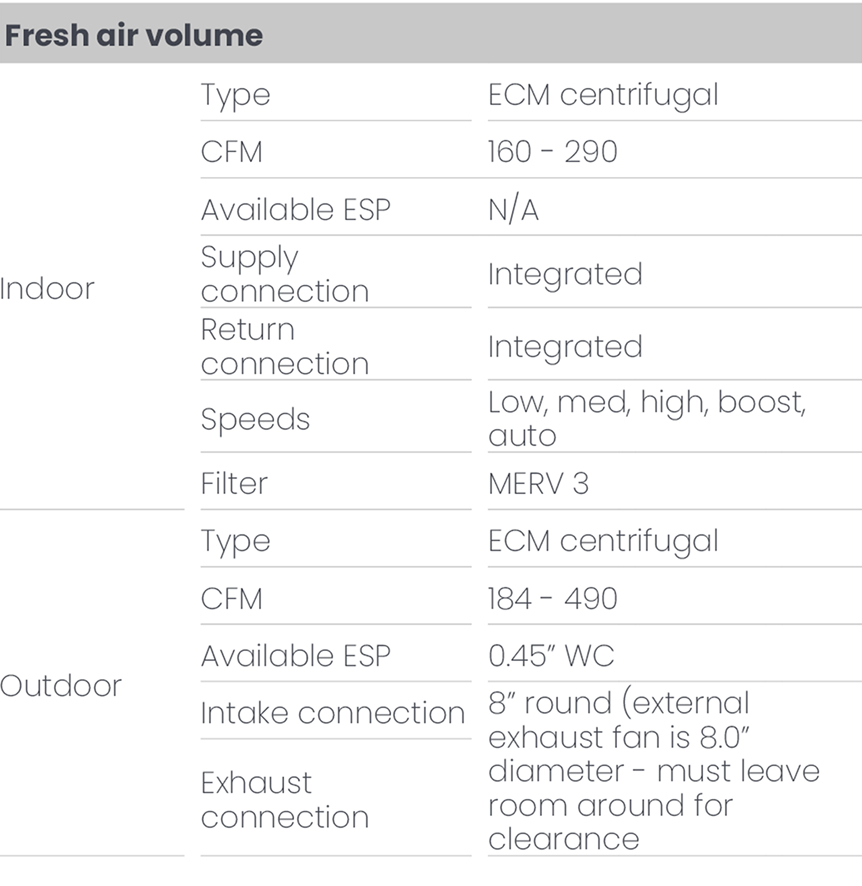

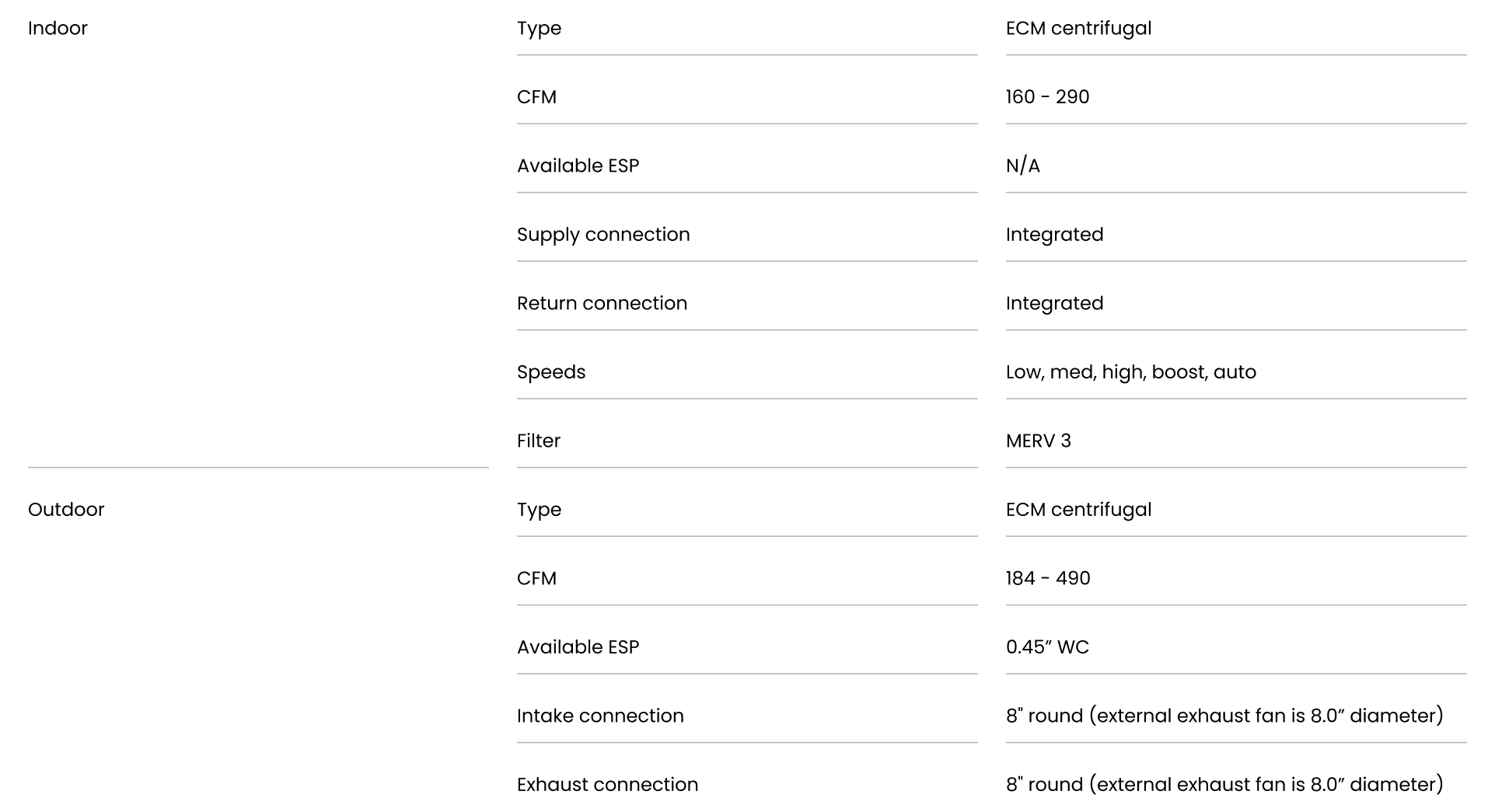

Indoor
- Type
- CFM
- Available ESP
- Supply connection
- Return connection
- Filter
- ECM centrifugal
- 160 - 290
- N/A
- Integrated
- Integrated
- MERV 3
Outdoor
- Type
- CFM
- Available ESP
- Intake connection
- Exhaust connection
- ECM centrifugal
- 200 - 350
- 0.45” WC
- 8” round
- 8” round

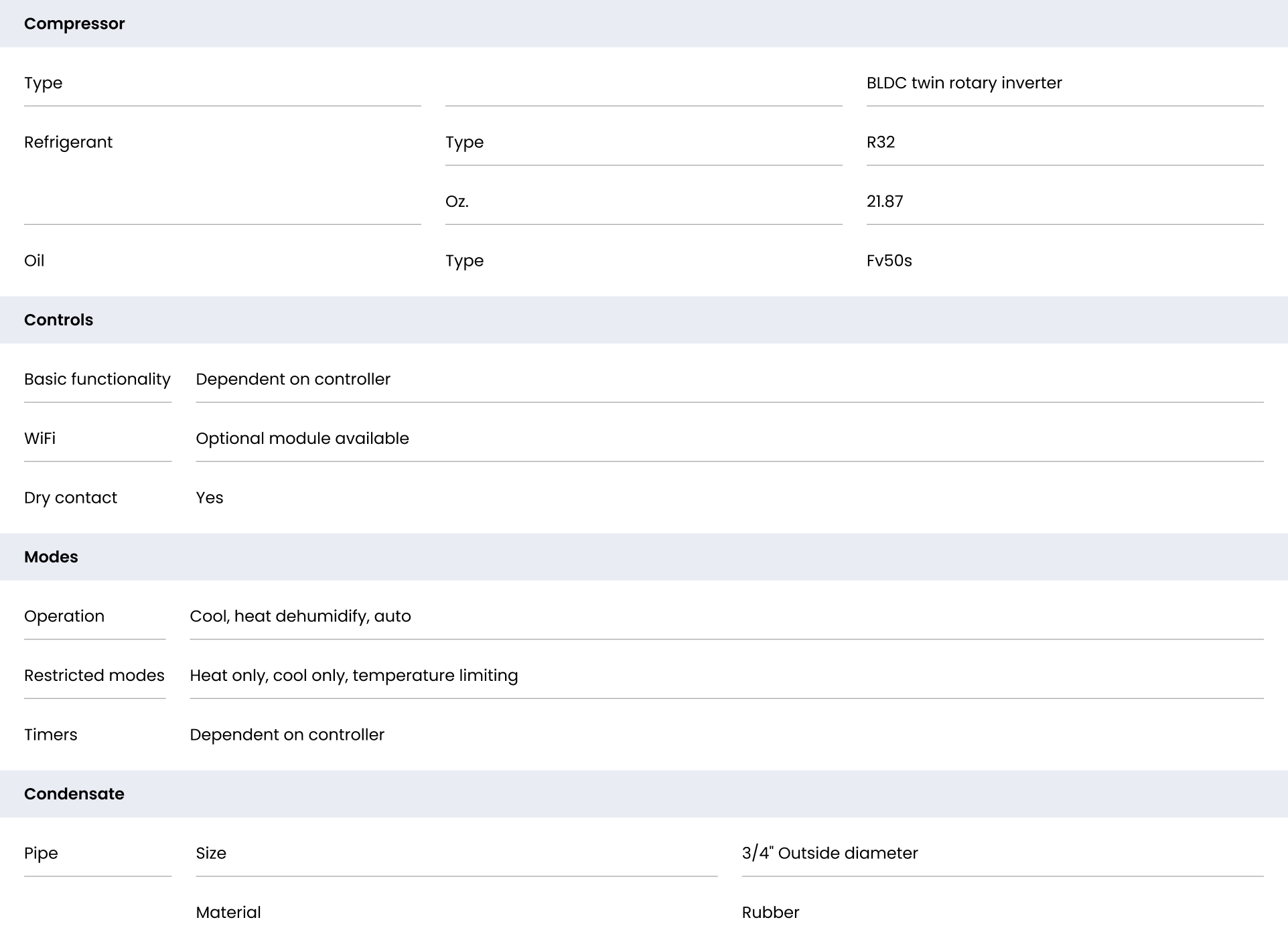

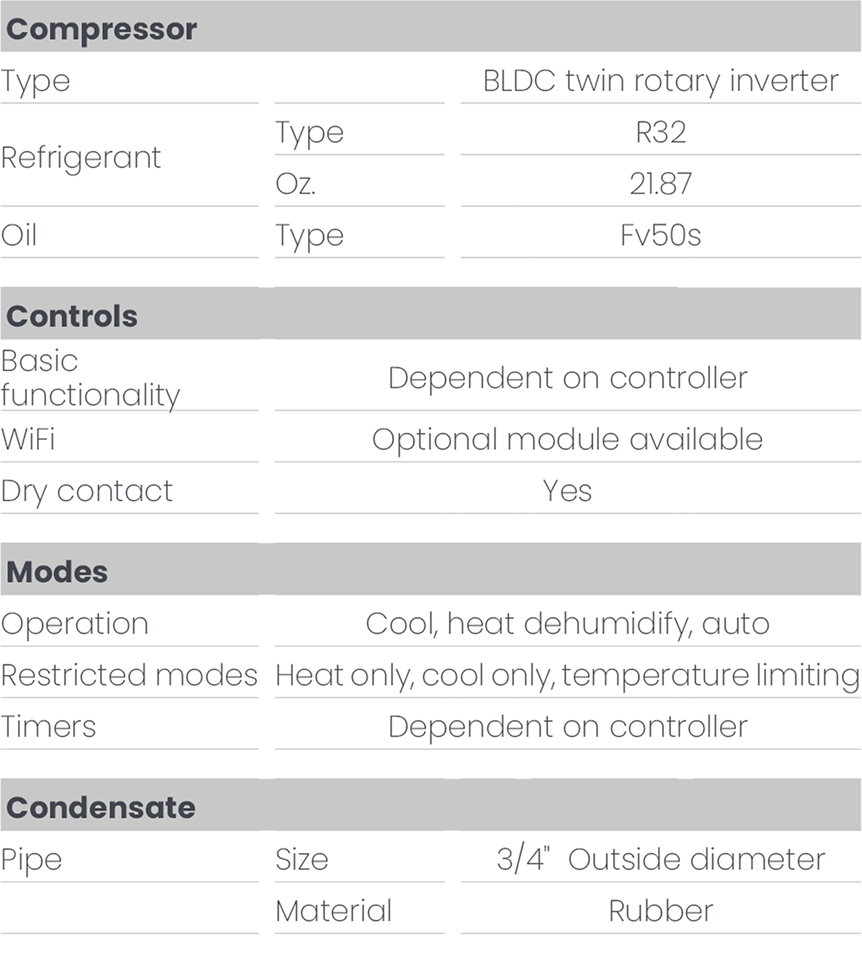

Indoor
- Type
- Oil Type
Modes
-
Operation
-
Restricted modes
- Timers
- BLDC twin rotary inverter
- Fv50s (ISO 50) Polyvinylether (PVE)
-
Cool, heat, dehumidify,
auto, fan only -
Heat only, cool only,
temperature limiting - Dependent on the controller
Controls
- Basic functionality
- WiFi
- Dry contact
Condensate
- Pipe size
- Pipe Material
- Dependent on controller
- Optional module available
- Yes
- 3/4" Outside diameter
- Rubber

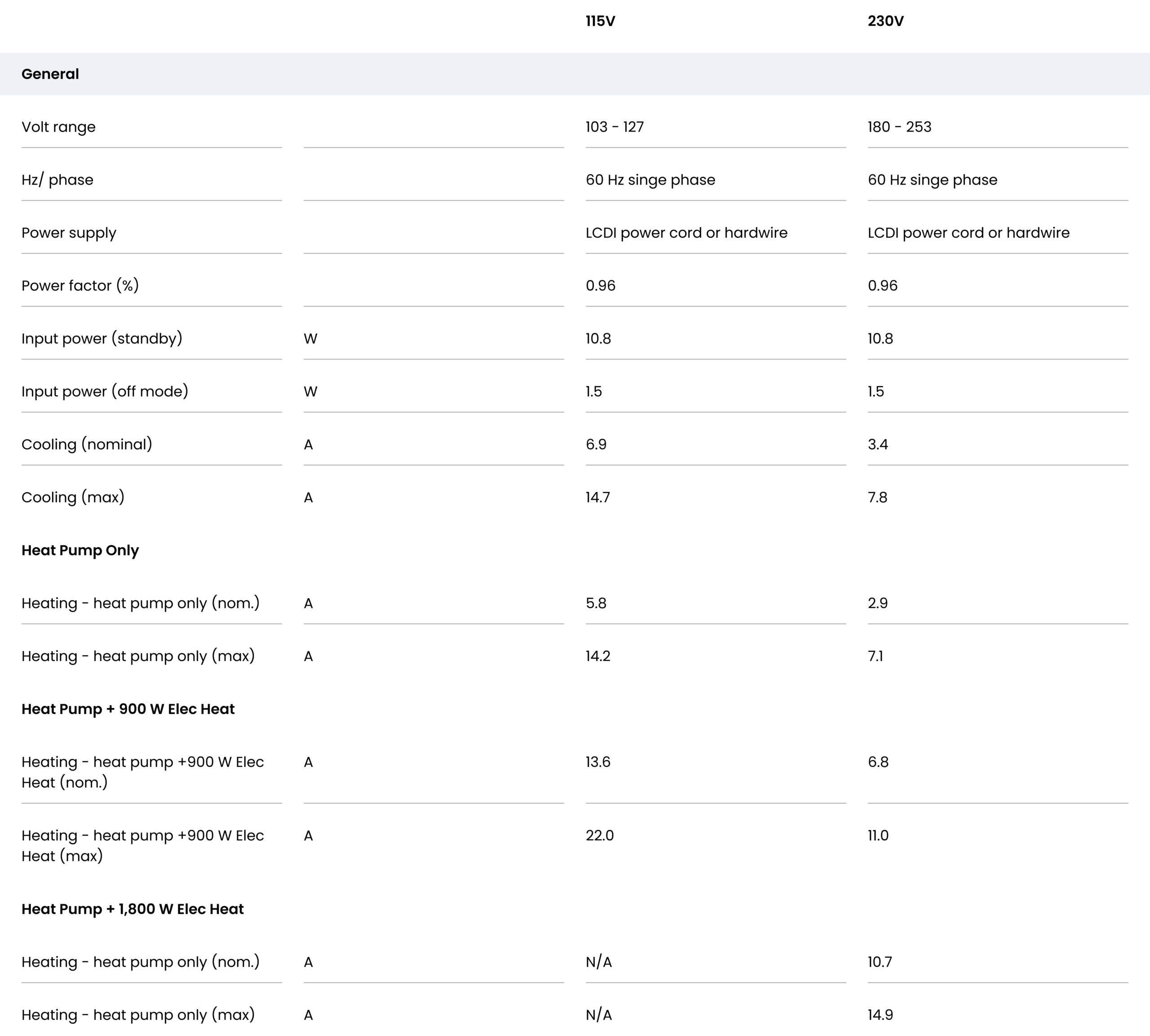

Heat Pump only
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)

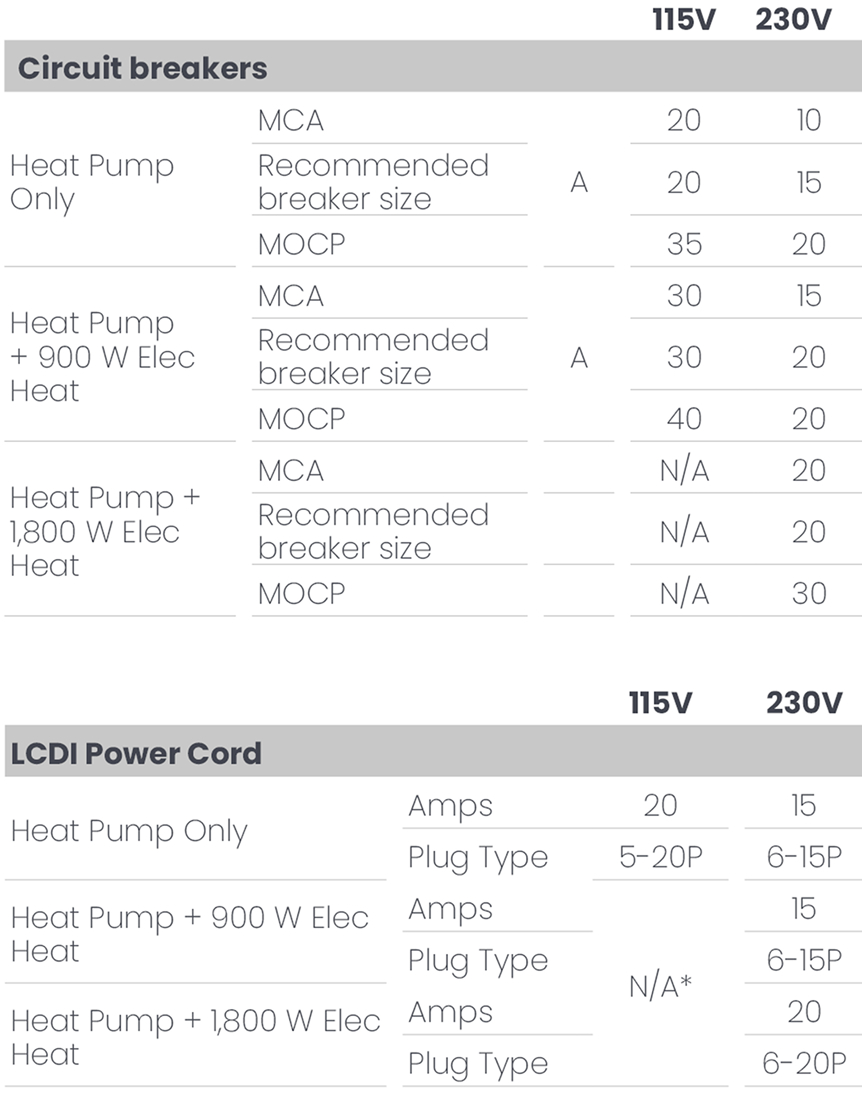

- MOCP (A)
- Recommended Breaker Size (A)
?

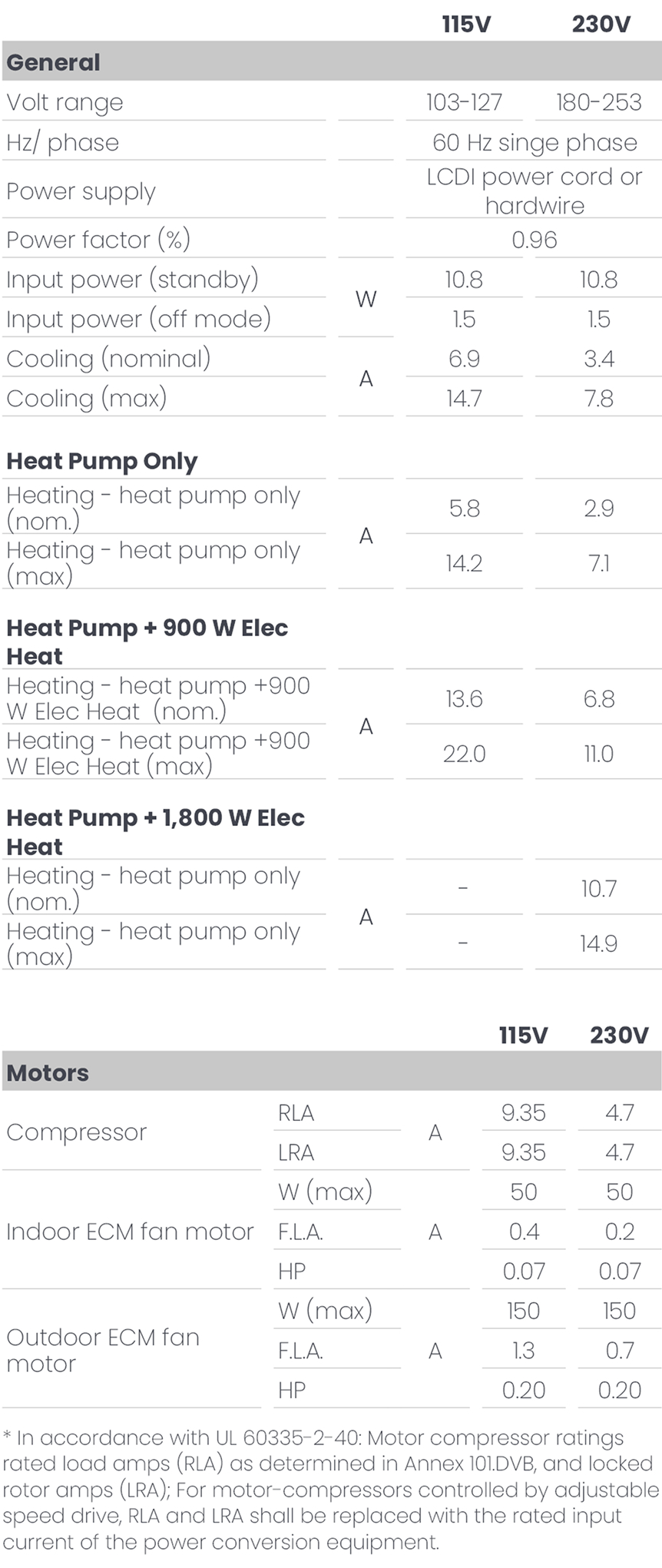

115V
- 1/60
- 0.96
- 10.8
- 1.5
- 6.9
- 15.7
- 7.0
-
15.7
- 18
- 35
- 20
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 3.4
- 7.8
- 3.5
-
7.8
- 10
- 15
- 15
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 6.9
- 15.7
- 7.0
-
15.7
- 18
- 35
- 20
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 3.4
- 7.8
- 3.5
-
7.8
- 10
- 15
- 15
Heat Pump + 0.9kW Electric Heat
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 6.9
- 14.7
- 7.0
-
23.5
- 29
- 45
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 3.4
- 7.8
- 3.5
-
11.7
- 15
- 25
- 20
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- 6.9
- 14.7
- 7.0
-
23.5
- 29
- 45
- 30
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 3.4
- 7.8
- 3.5
-
11.7
- 15
- 25
- 20
Heat Pump + 1.8 kW Electric Heat
AHRI
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps
Heating (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 3.4
- 7.8
- 3.5
-
15.7
- 15
- 20
- 20
Energy Star Certified
- Power Supply (Ph/Hz)
- Power Factor
- Input Power - standby (W)
- Input Power - off mode (W)
- Running Amps Cooling (A)
- Maximum Amps Cooling (A)
- Running Amps Heating (A)
-
Maximum Amps Heating HP
+ Heaters (A) - MCA (A)
- MOCP (A)
- Recommended Breaker Size (A)
?
115V
- 1/60
- 0.96
- 10.8
- 1.5
- -
- -
- -
-
-
- -
- -
- -
?
230V
- 1/60
- 0.96
- 10.8
- 1.5
- 3.4
- 7.8
- 3.5
-
15.7
- 15
- 20
- 20

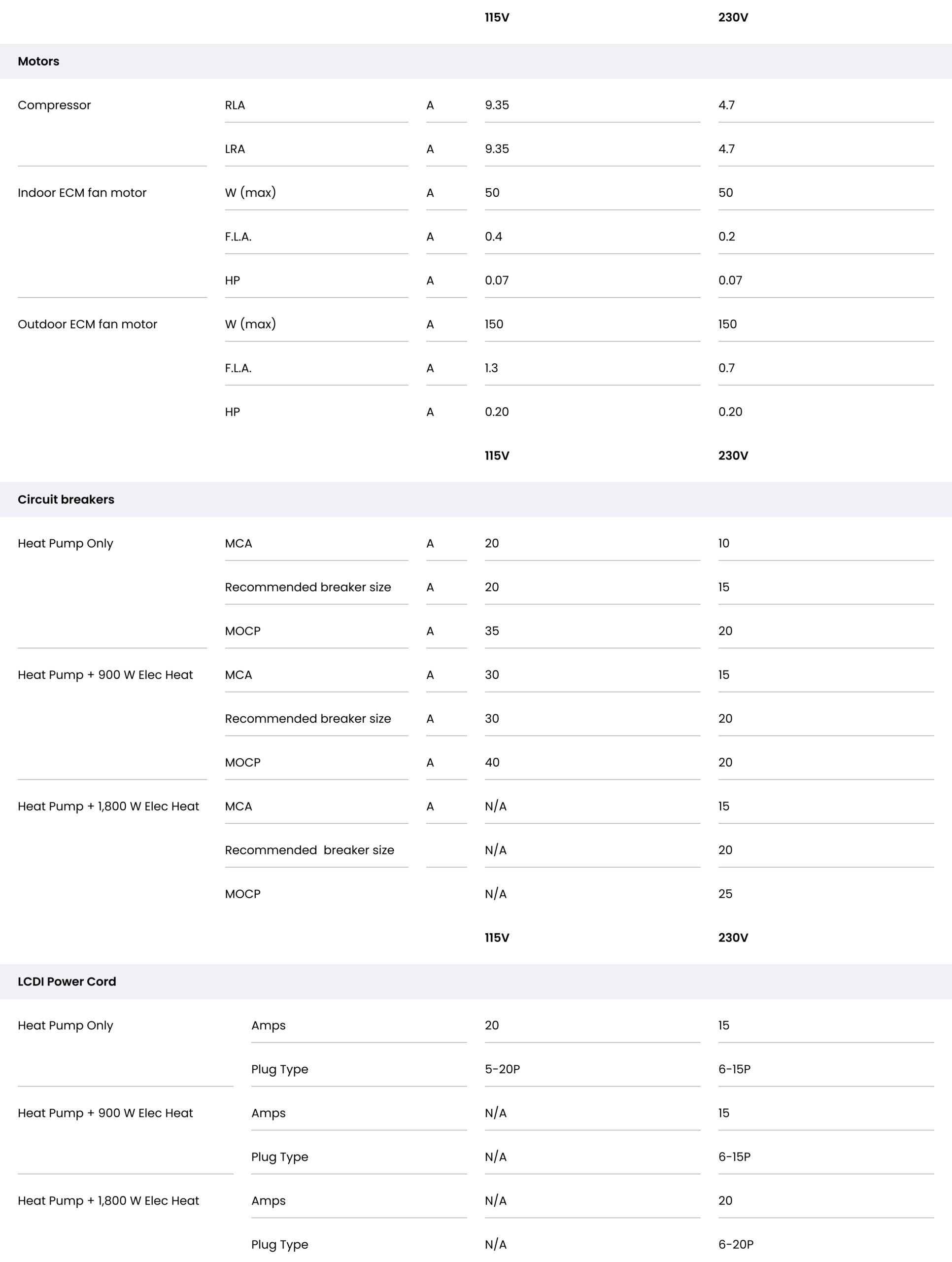

Compressor
- RLA (A)
- LRA (A)
Indoor ECM fan motor
- Max Watts (W)
- F.L.A (A)
- Power (HP)
Outdoor ECM fan motor
- Max Watts (W)
- F.L.A (A)
- Power (HP)
115V
- 7.9
- 7.9
- 50
- 0.4
- 0.07
- 150
- 1.3
- 0.20
Heat Pump Only
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
Heat Pump
+ 0.9 kW Electric Heat
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
Heat Pump
+ 1.8 kW Electric Heat
- LCDI Power Cord -Amps (A)
- LCDI Power Cord -Plug (NEMA)
- Quick-connect whip-Length (in)
115V
- 20
- 5 - 20P
- 40
- N/A
- N/A
- N/A
- N/A
- N/A
- N/A

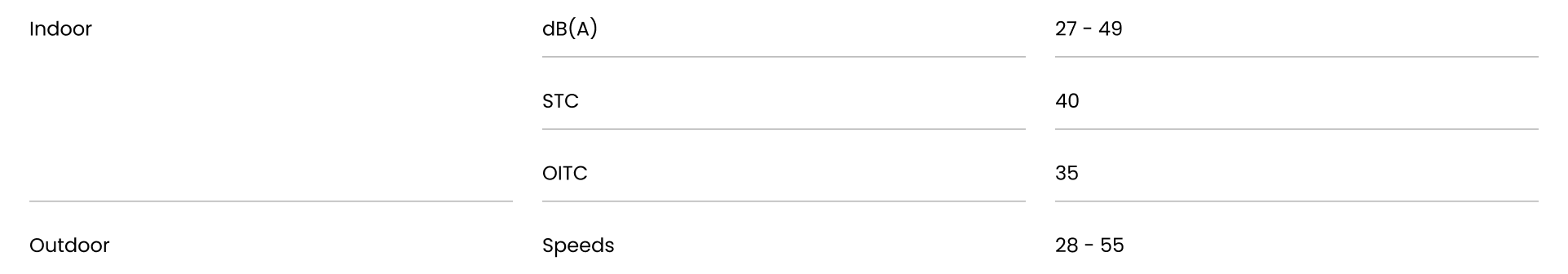

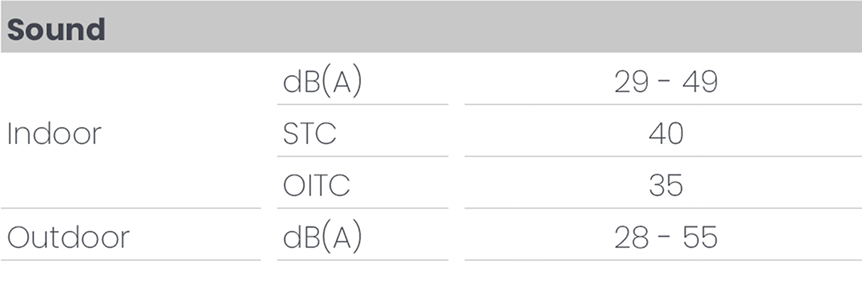

Indoor
- DB range: dB(A)
- STC
- OITC
- 29 - 49
- 40
- 35
Outdoor
- dB(A)
- 28 -55

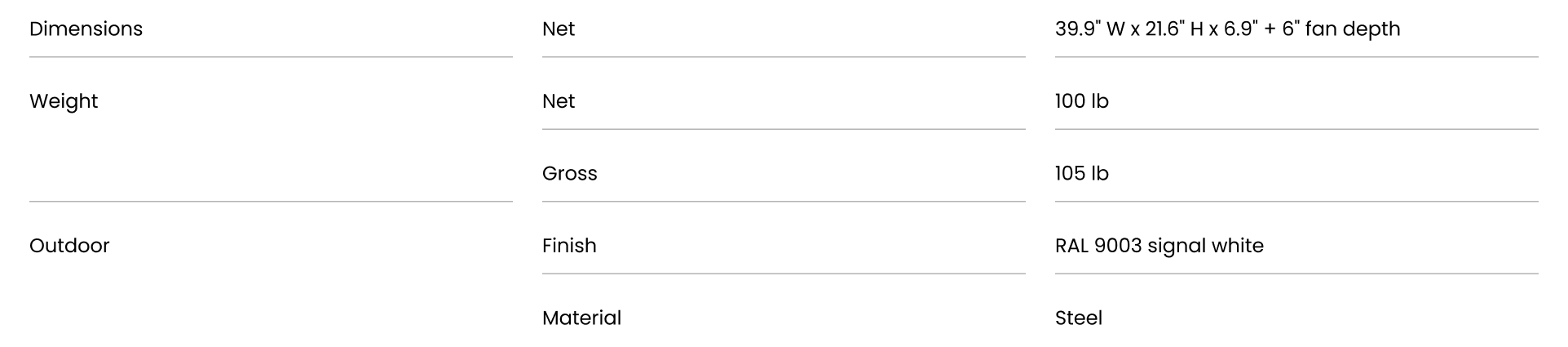

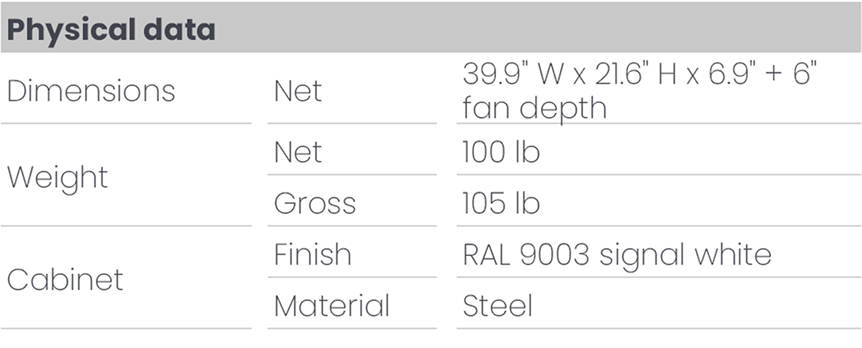

- Dimensions
- Net weight (Ib)
- Gross weight (Ib)
- Cabinet finish
- Cabinet material
- 39.9" W x 21.6" H x 6.9" D + 6" fan depth
- 100
- 105
- RAL 9003 signal white
- Steel
