Louvers
AIO series units can be vented through all kinds of custom and creative solutions. The possibilities are endless, from perforated panels to custom louvers. In the design on the left, FXCollaborative Architects created a facade with no visible louvers. The supply and exhaust air flow behind the panels and then through the gap below the windows, achieving an aesthetically pleasing and water-resistant solution.
Flange Louver Assembly

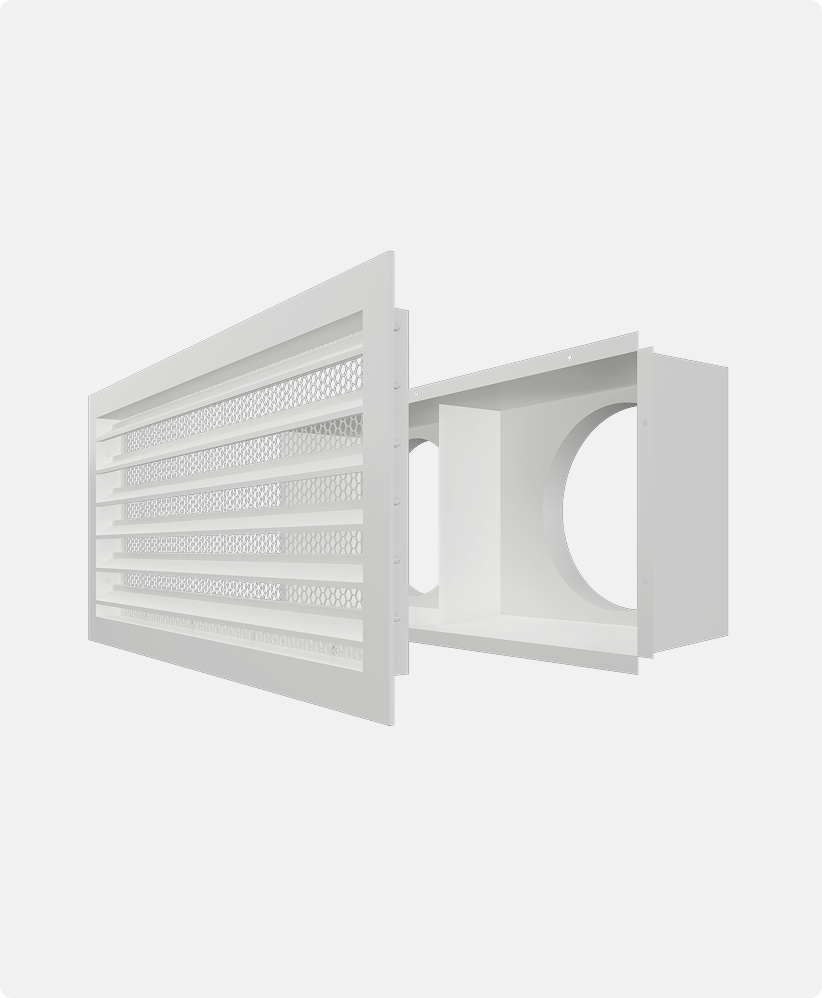

Designed for use with the AIO series heat pumps, the standard flange linear louver assembly offers clean architectural lines, excellent airflow performance. LLA/F is serious about keeping water out with unique features that provide failsafe protections for water intrusion, ensuring that no matter the circumstance, no water will enter the wall assembly or inside the room. The two-part assembly consisting of a plenum box and separate louver enables flexible and easy installation. Concealed screws on the side of the louver fasten to the plenum box, so no screws mar the front. LLA/F can be finished in baked enamel or Kynar in any custom color. LLA/F is available in four configurations; horizontal, elongated, vertical, and single. The LLA/F series louvers are tested to meet ASHRAE 62.2 -2016 section 6.8.4 as a combination louver.

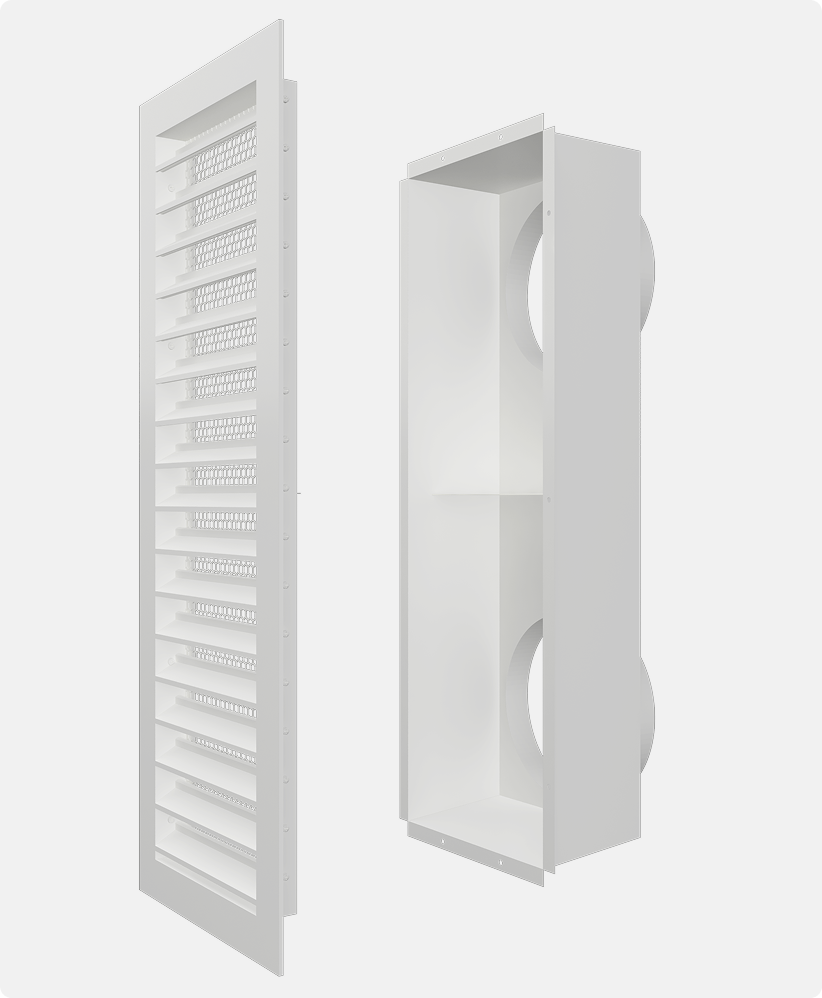

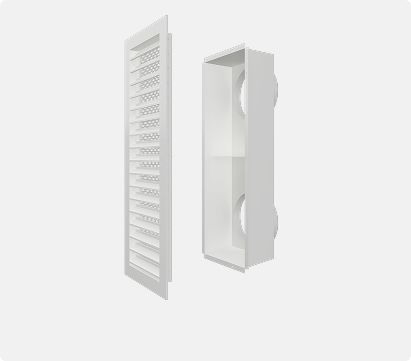

Vertical configuration

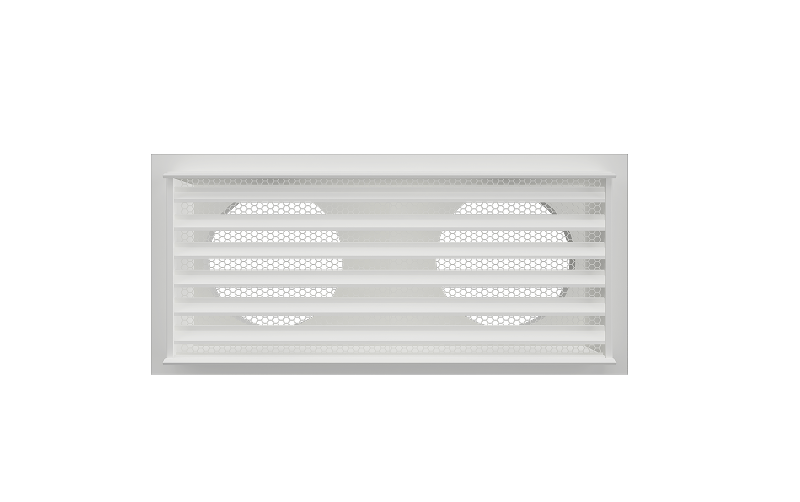

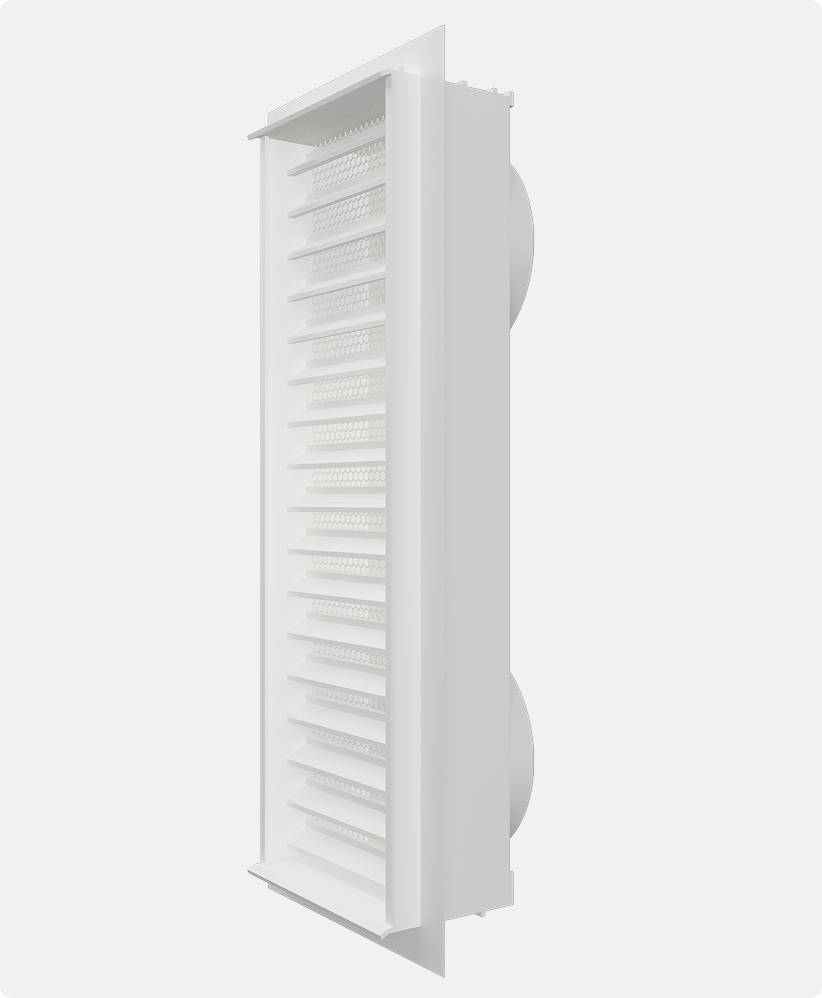

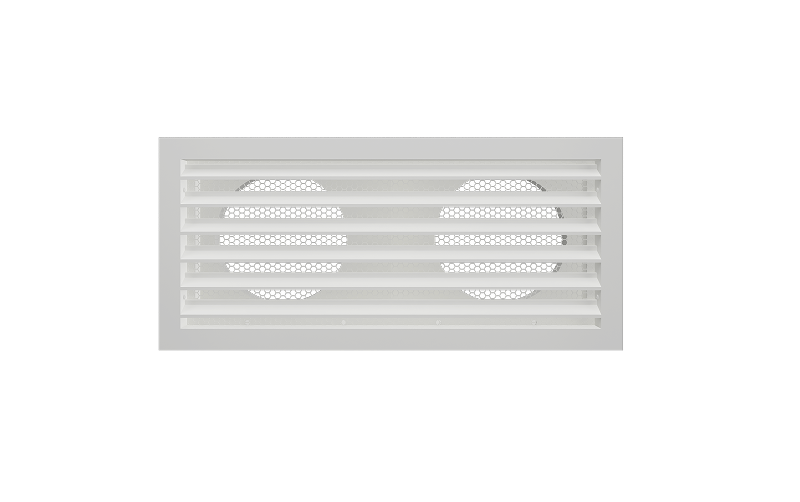

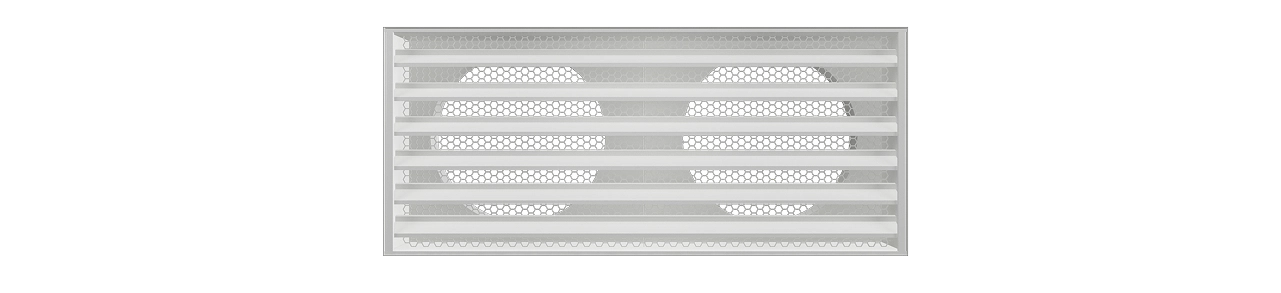

Horizontal configuration

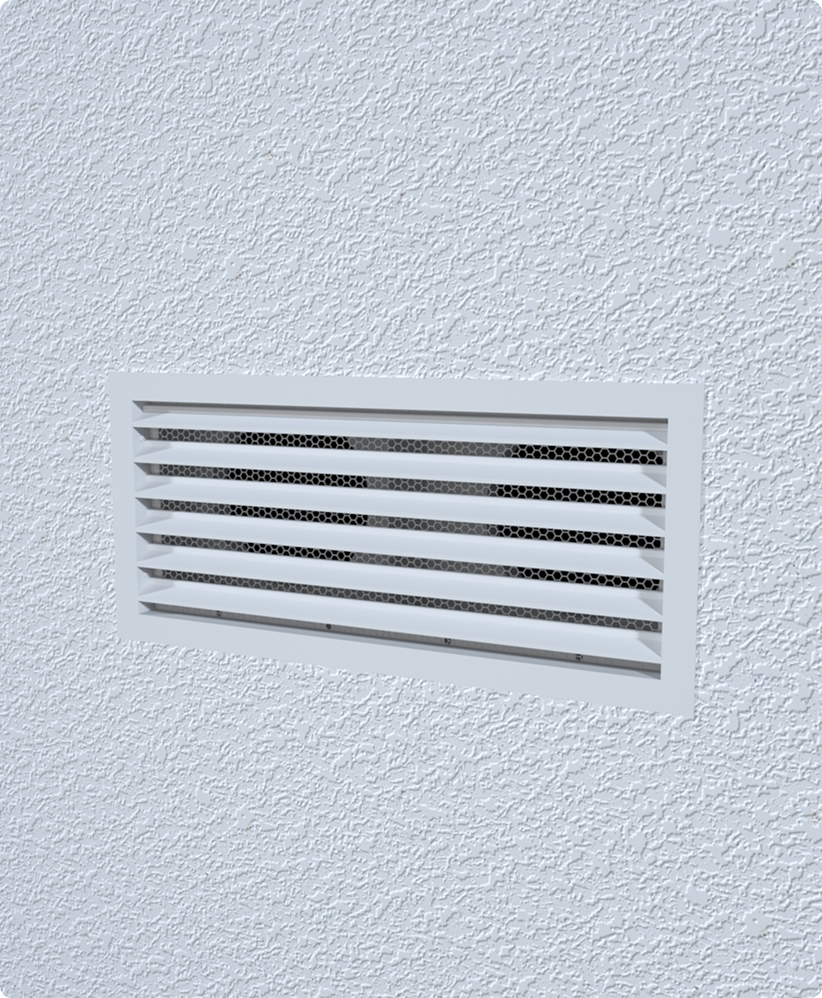

Installed
Concealed Louver Assembly
Designed for the Ephoca AIO series heat pumps and designed for the highest aesthetic appeal with only a 1/4″ visible frame, the concealed flange linear louver assembly offers clean architectural lines and excellent airflow performance. LLA/C is serious about keeping water out with unique features that provide failsafe protections for water intrusion, ensuring that no matter the circumstance, no water will enter the wall assembly or inside the room. The concealed flange is available in any setback depth to accommodate any wall assembly, from stucco to brick, from siding to glass or aluminum panels. LLA/C can be finished in baked enamel or Kynar in any custom color. LLA/C is available in four configurations; horizontal, elongated, vertical, and single. The LLA/C series louvers are tested to meet ASHRAE 62.2 -2016 section 6.8.4 as a combination louver.
Vertical configuration

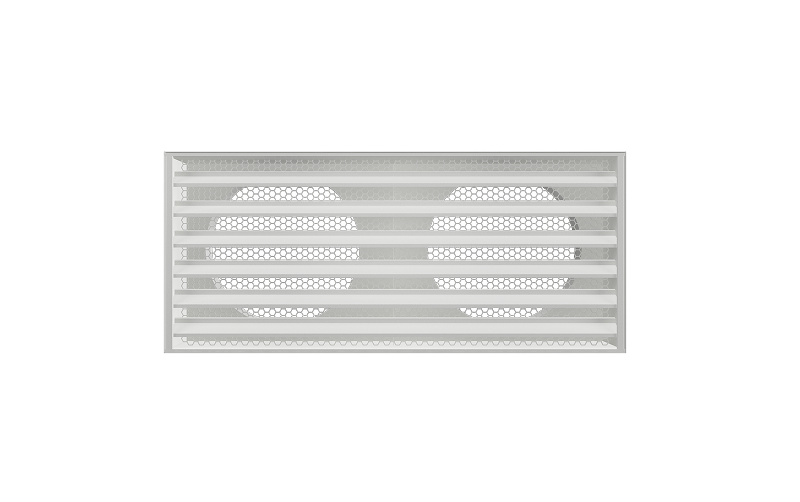

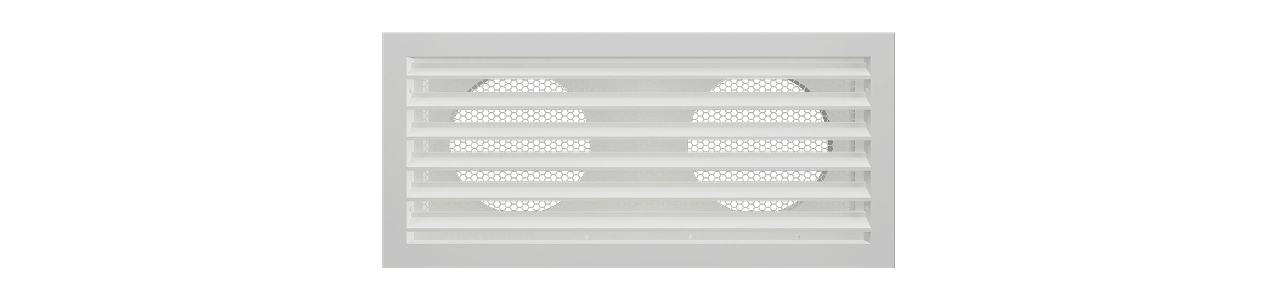

Horizontal configuration

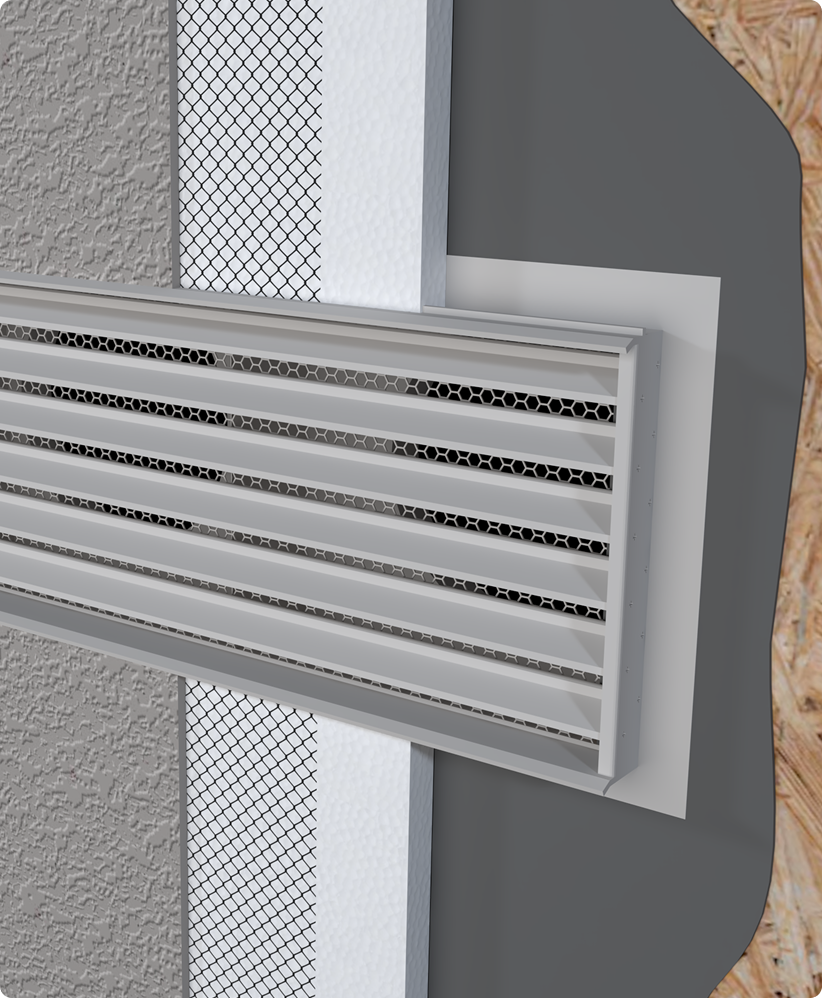

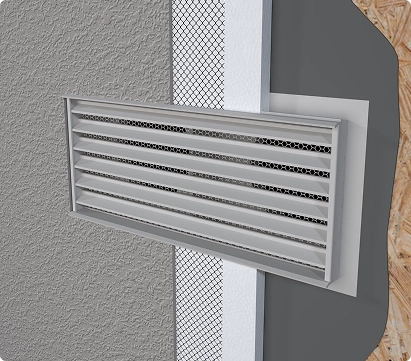

Installation cutaway
Surface-Mounted Louver Assembly
Approved for the Ephoca AIO series heat pumps are designed for retrofit installations where core drilling the holes without making a larger opening is desirable and can also set in wood or vinyl siding with minimal depth visible.
The surface-mounted linear louver assembly offers clean architectural lines and excellent airflow performance. The two-part assembly consisting of a plenum box and separate louver enables flexible and easy installation. LLA/S is serious about keeping water out with unique features that provide failsafe protections for water intrusion, ensuring that no matter the circumstance, no water will enter the wall assembly or inside the room. LLA/S is available in two configurations; horizontal and single. LLA/S can be finished in baked enamel or Kynar in any custom color. The LLA/S series louvers are tested to meet ASHRAE 62.2 -2016 section 6.8.4 as a combination louver.

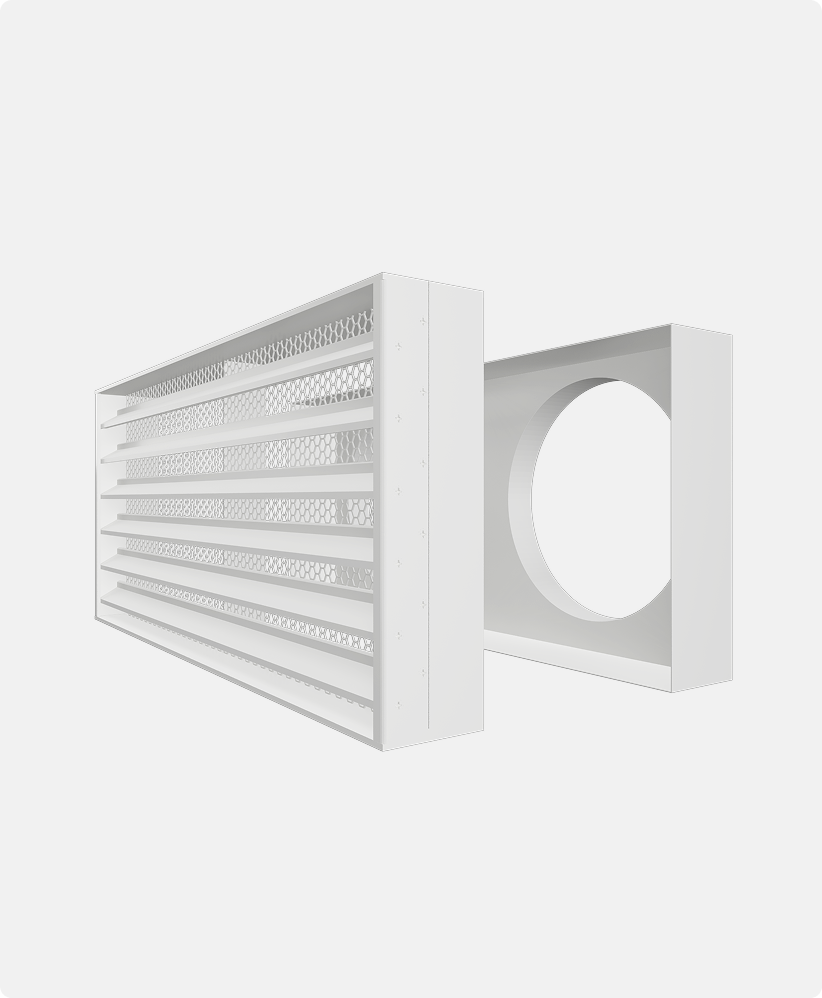

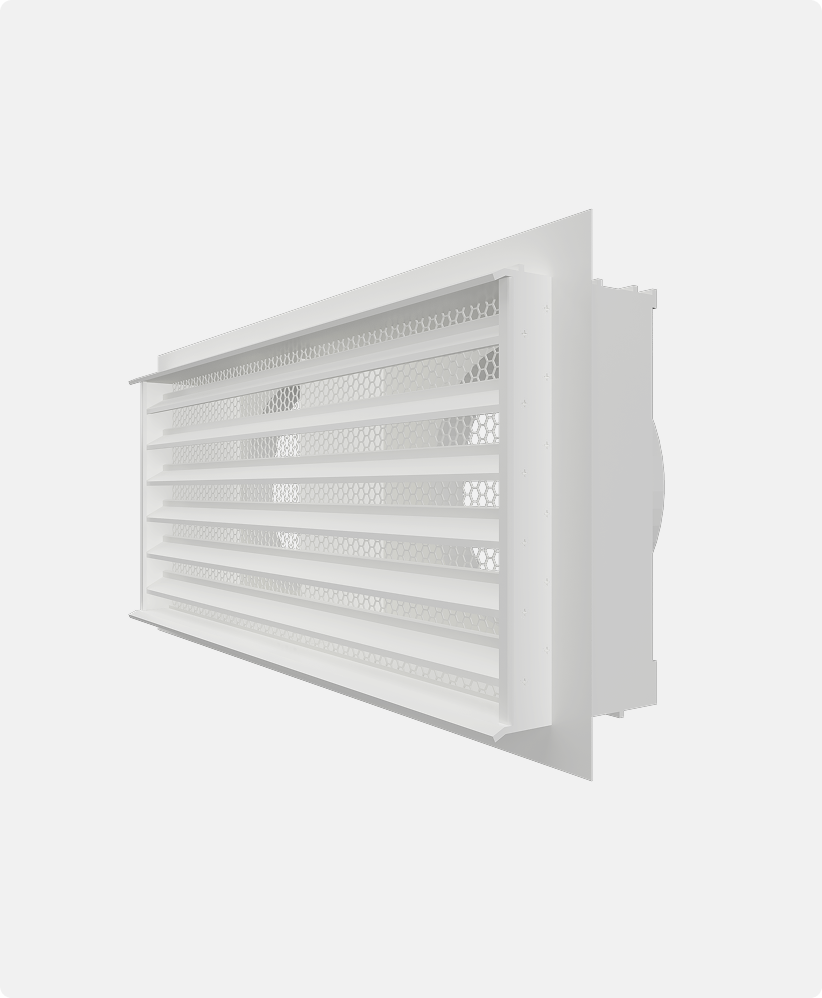

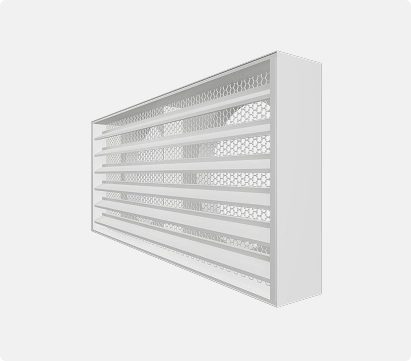

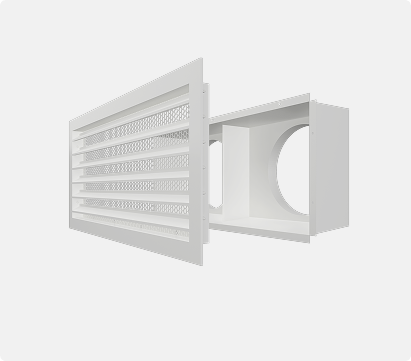

Louver and plenum box separated

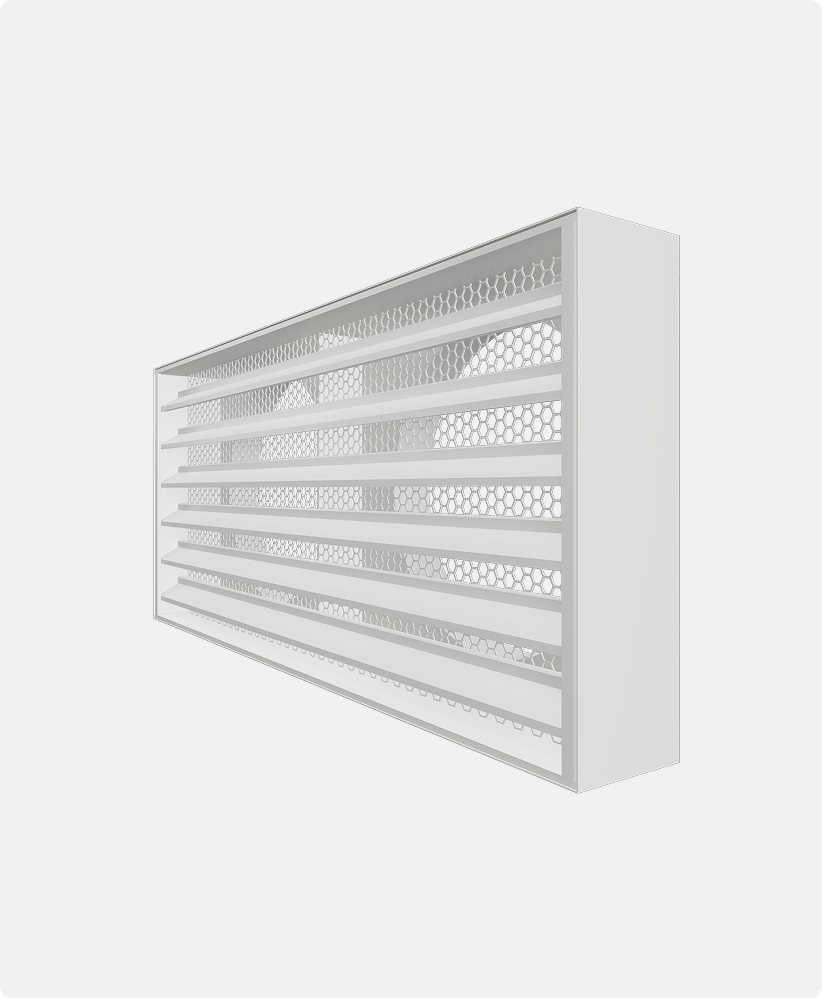

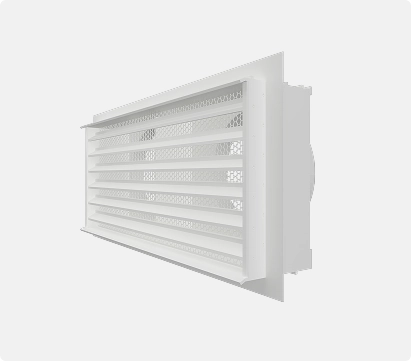

Louver and plenum box combined

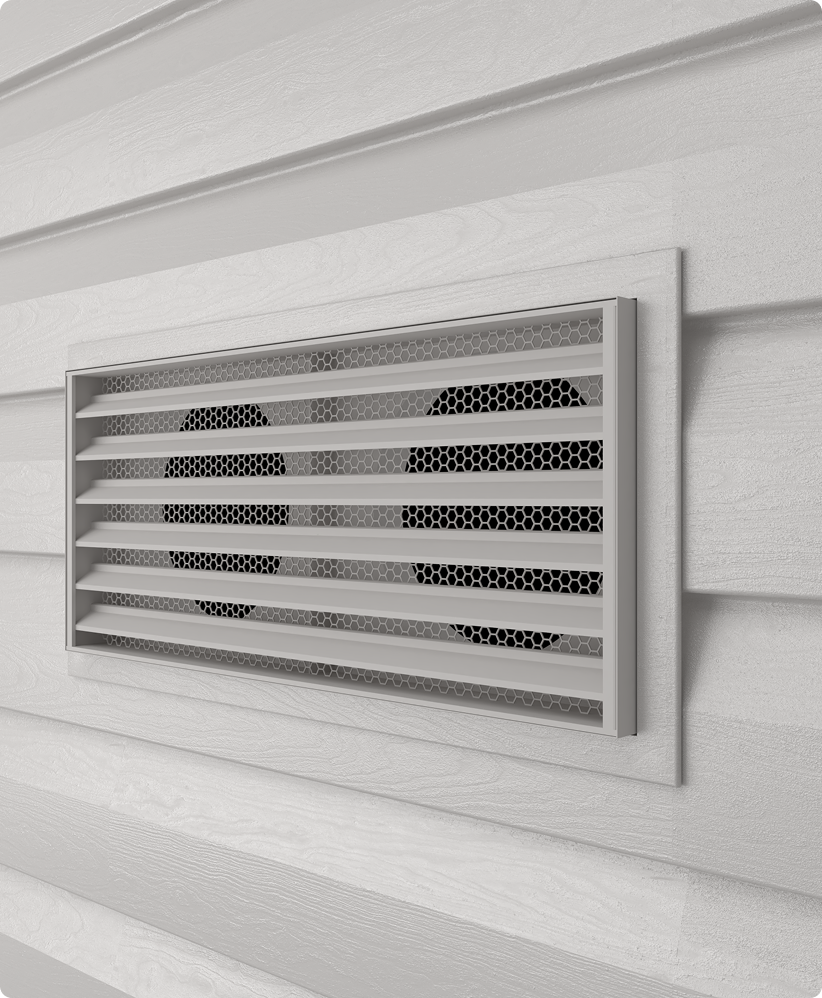

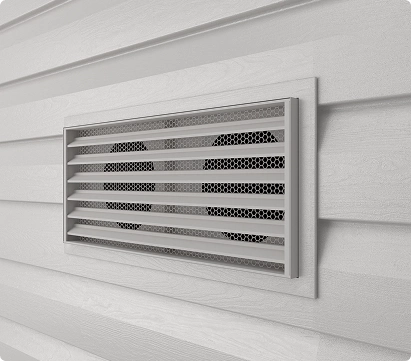

Installation in vinyl siding

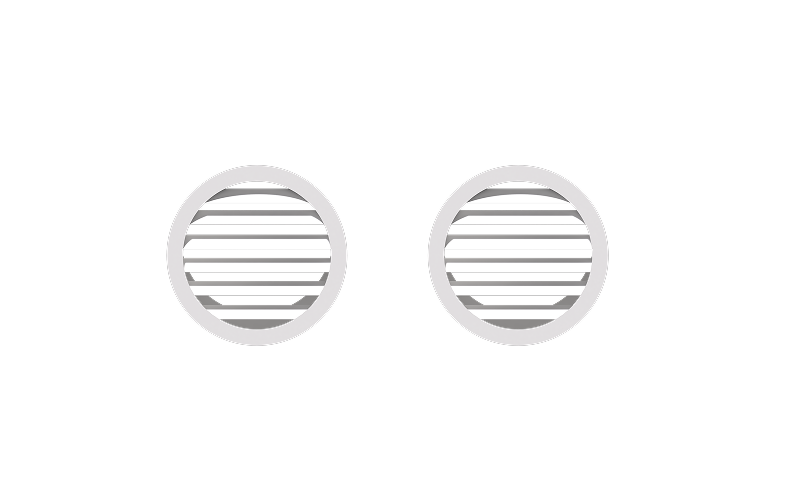

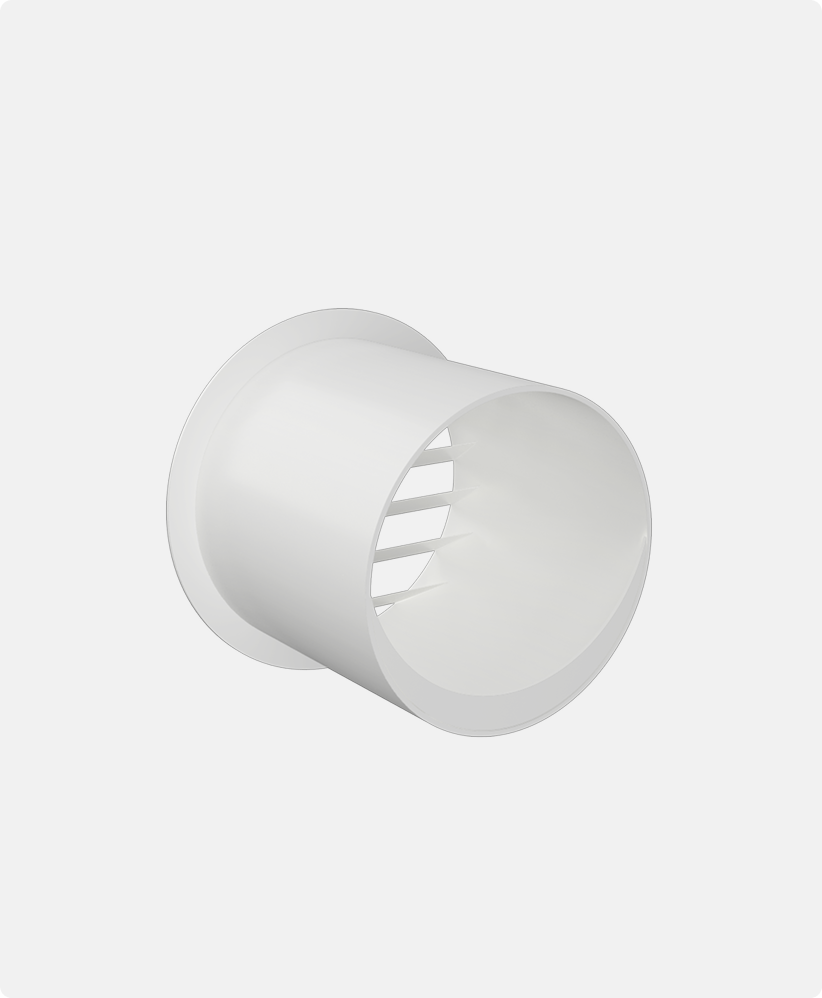

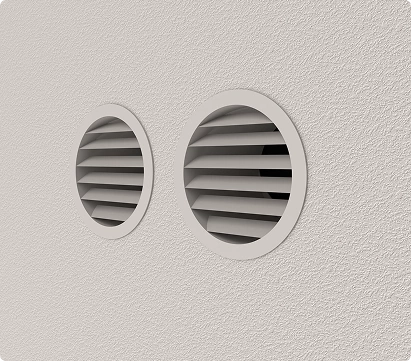

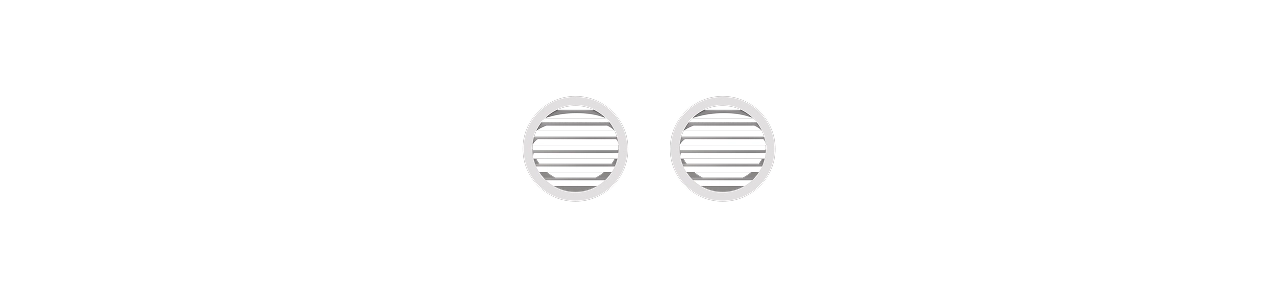

Round vents
Designed for use with the AIO series heat pumps, the RLA series assembly offers easy installation, clean architectural lines, and excellent airflow performance.
RLA is serious about keeping water out with unique features that provide failsafe protections for water intrusion, ensuring that no matter the circumstance, no water will enter the wall assembly or inside the room.

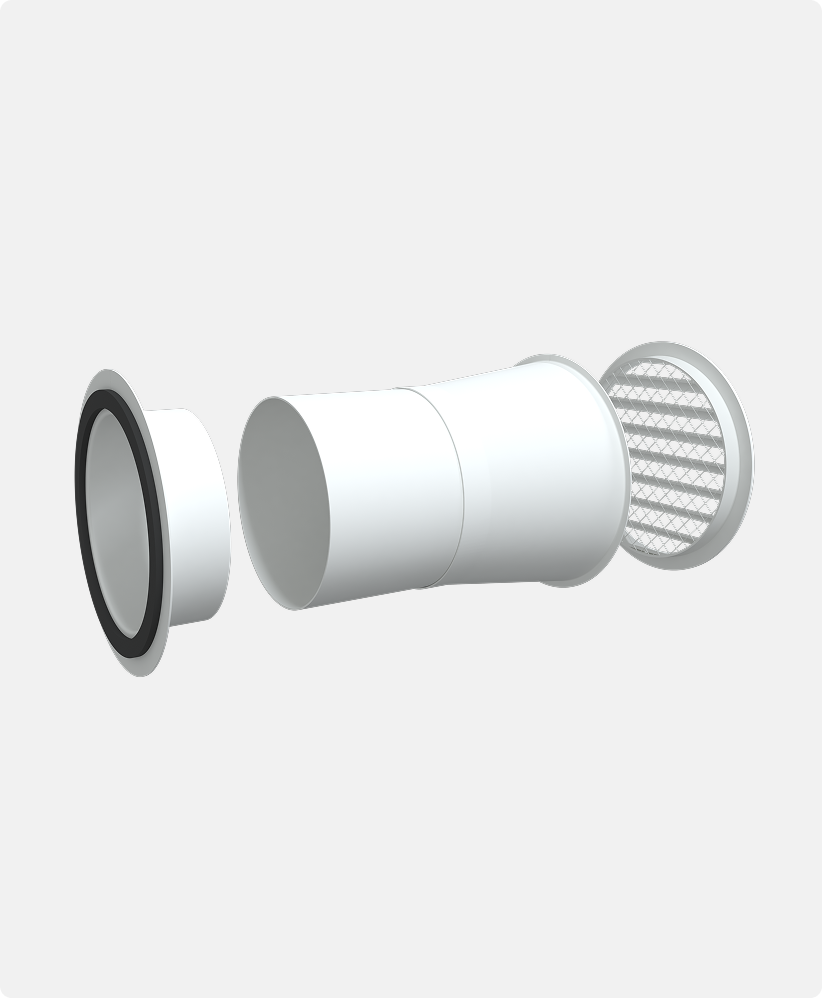

The three-part assembly consists of an outer sleeve, an inner sleeve and a cast louver.
Louver and plenum box separated
Louver and plenum box combined

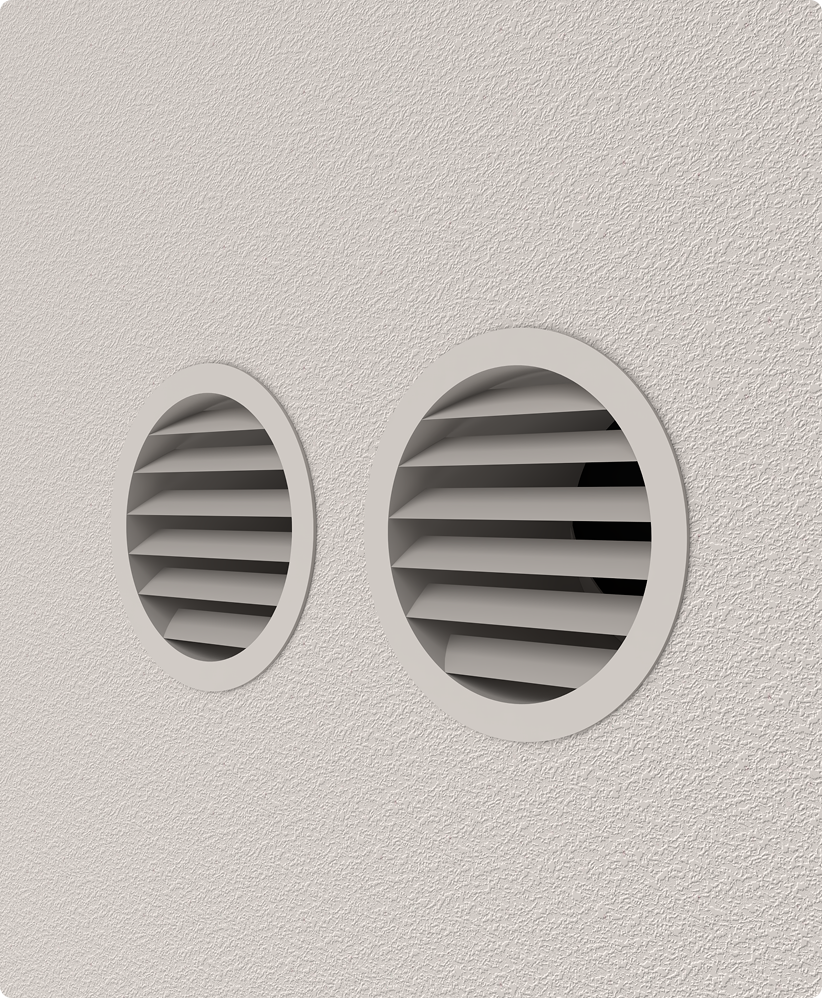

Installation in vinyl siding
