Controls

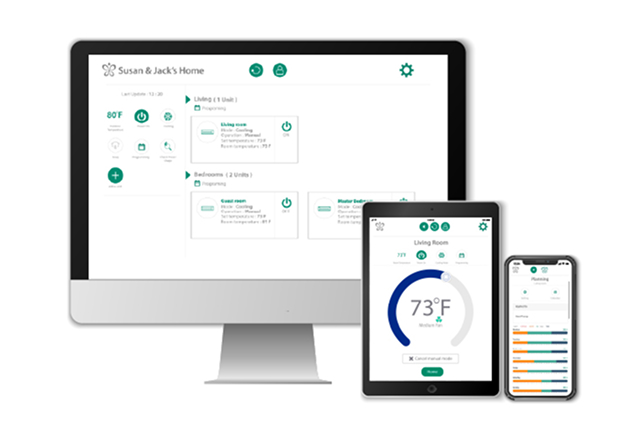

Android / iOS / PC app
The Ephoca app for Android, iOS, and PC devices enables full functionality of all modes, fan speed, temperature setting, and a comprehensive seven-day programmable timer when connected to the Internet. The app also allows groups to control multiple units as a single unit, simplifying operations. Multiple users can be connected to each Nextac unit.
- Full-color TFT Touch Screen
- 4.3” TFT, with 480 x 272 pixel resolution
- 7-day program with multiple independent schedules per day
- Fan Controls Include: Low, Medium, High, and Auto
- Modes include: Cool, Heat, Dehumidify, and Fan Only
- Fresh air on/off
- Fahrenheit or Celsius in single degree increments
- Louver control
- Sleep mode
- Control units individual or as a group
- View all units at one time
- Easy and intuitive use
- Secure

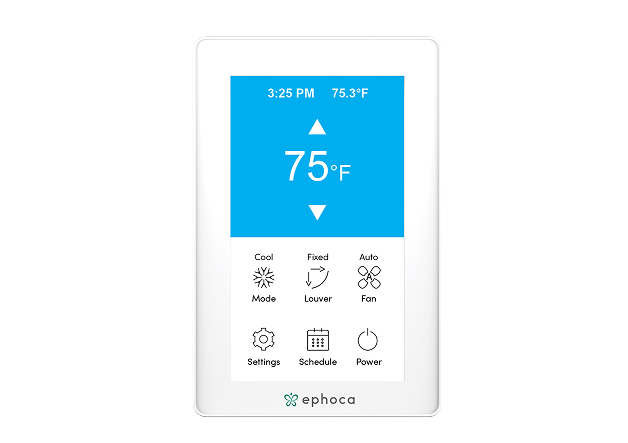

Advanced Touchscreen Controller
The Wall Mounted, full-color, advanced touchscreen controller is the best choice for the system’s easiest and most comprehensive control. The advanced touchscreen controller can be mounted right next to the light switch and is about the size of a standard light switch plate. Extensive programming offers multiple schedules for each day. Commands are intuitive and straightforward.
Note: This controller requires a gateway board (included) which must be field installed and connected inside the unit by an electrician or technician and takes approximately 15 minutes to install.
- Full-color TFT Touch Screen
- 4.3” TFT, with 480 x 272 pixel resolution
- 7-day program with multiple schedules per day
- Fan Controls Include: Low, Medium, High, and Auto
- Louver control
- Fahrenheit or Celsius in single degree increments
- Modes include: Cool, Heat, Dehumidify, and Fan Only
- Fresh air on/off
- Sleep mode
- Material: White Matte plastic frame
- Weight: 0.5 lb
- Dimensions: W: 3.12” x H: 4.76” x D: 0.5” (0.75”D inside j-box)
- Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run
- Mounting: Mounts to a single gang, standard depth junction box
- Included parts: Touchscreen Controller and Interface to AIO
- 3-year limited warranty

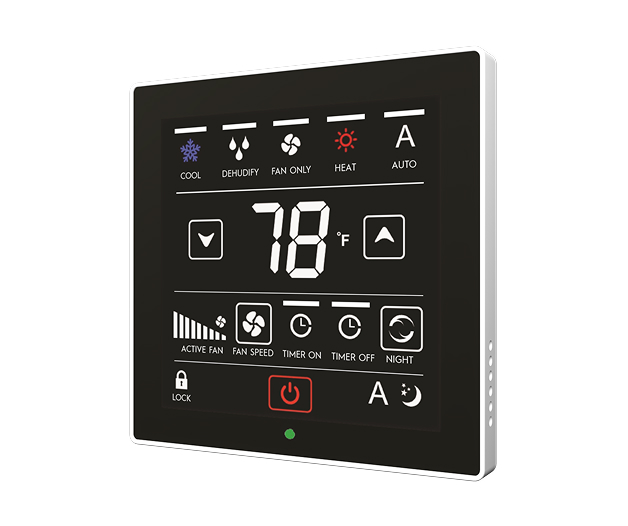

Basic Touch Controller
The Wall Mounted basic touch controller is simple and easy to use, with icons and text for each button. The sleek design and low profile easily blend into any decor. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom.
Note: This controller requires a gateway board (included) which must be field installed and connected using a quick connect cable to the AIO by a technician and takes approximately 10 minutes to install.
- Surface Wall Mounted
- Sleek glass touch controller
- Always-on back-lit LED dims after 15 seconds of inactivity
- Icons and text for each button
- Modes include: Cool, Heat, Dehumidify, and Fan Only
- Fan Controls Include: Low, Medium, High, and Auto
- Fresh air on/off
- Keypad lock
- Fahrenheit or Celsius in single degree increments
- Louver control
- Sleep mode
- Mounting: Surface mounted
- Materials: White Matte plastic frame, glass front
- Dimensions: W: 3.41” x H: 3.35” x D: 0.31”
- Weight: 0.5 lb
- Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run
- Included parts: Touchscreen Controller and Interface to AIO
- 3-year limited warranty

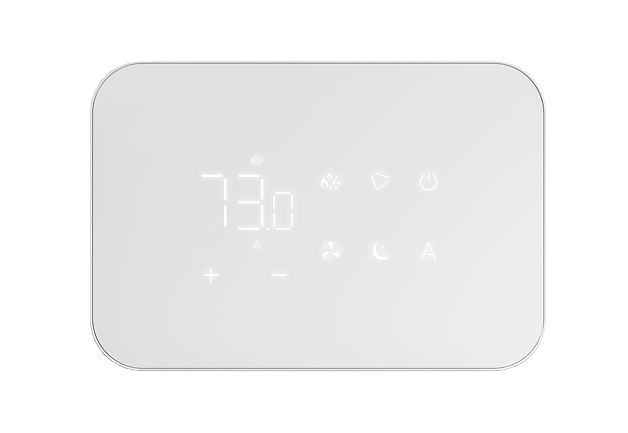

Recessed Touch Controller
The Recessed Touch Controller is elegant and simple to use. This controller is recessed into the wall and easily blends into any decor. The LED display dims after 15 seconds, making it ideal for any room, especially a bedroom.
Note: This controller requires a gateway board (included) which must be field installed and connected using a quick connect cable to the AIO by a technician and takes approximately 10 minutes to install.
- Recessed into the wall
- Sleek appearance
- Always-on back-lit LED dims after 15 seconds of inactivity
- Modes include: Cool, Heat, Dehumidify, and Fan Only
- Fan Controls Include: Low, Medium, High, and Auto
- Fresh air on/off
- Fahrenheit or Celsius in single degree increments
- Louver control
- Sleep mode
- Mounting: Junction box
- Materials: White Matte plastic frame, plastic front
- Dimensions: W: 4.41” x H: 2.35” x D: 0.15”
- Weight: 0.5 lb
- Connection: Shielded 4 conductor 18 AWG wire with a maximum 40’ run
- Included parts: Recessed Touch Controller and Interface to AIO
- 3-year limited warranty

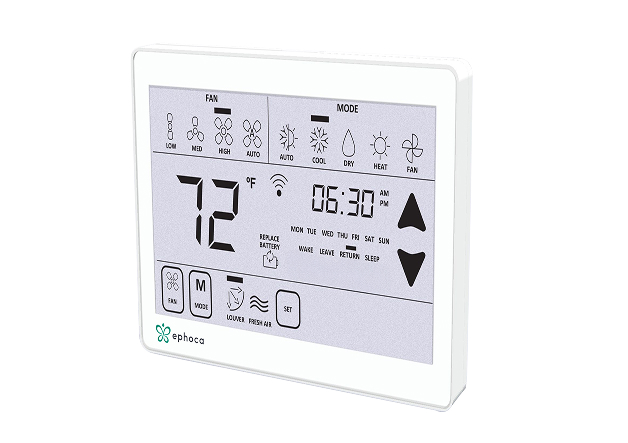

Wireless Wall Mounted Thermostat
The wireless wall-mounted thermostat with a fully programmable 7-day scheduling feature. It operates wirelessly, transmitting commands to the air conditioning unit via infrared (IR) signals. The thermostat is battery-powered, ensuring reliable operation without the need for direct wiring.
- Type: Low Voltage Thermostat
- Material: Flame Retardant ABS Plastic, rated UL94-V0
- Temperature Range: 61°F to 88°F
- Temperature Differential: 2°F
- Relative Humidity: 10% to 90% RH
- Operating Environment: 50°F to 110°F, with 5% to 95% relative humidity, non-condensing
- Storage Environment: 0°F to 140°F, with 5% to 95% relative humidity, non-condensing
- Physical Dimensions: 4.72" width x 3.22" height x 0.87" depth
- Mounting: Direct wall mounting
- Power Source: Operates with 2 x AAA Alkaline batteries

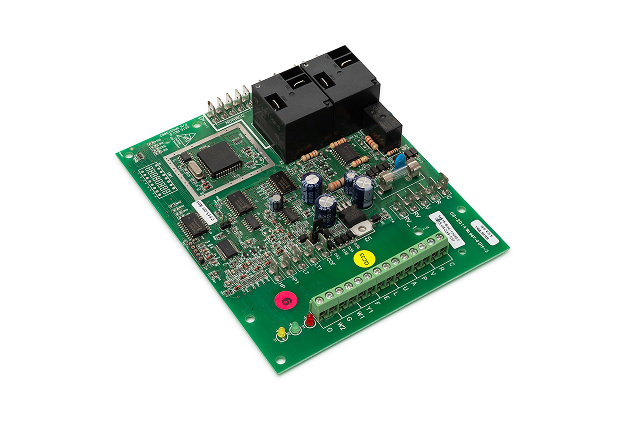

Advanced Third Party Gateway
The Advanced Third-Party Gateway Control Board is a versatile and feature-rich solution designed to seamlessly integrate and optimize the operations of Ephoca AIO Heat Pumps. This advanced controller ensures smooth communication with building management systems, thermostats, and additional accessories, making it ideal for diverse projects with both standard and specialized requirements.
- Thermostats: Supports third party thermostats and Ephoca-specific LTCH20 and TFTH20 models
- Building Management System (BMS): Facilitates seamless remote communication via MODBUS and BACnet protocols
- Wi-Fi Connectivity: Allows control through a dedicated App for smartphones, tablets, and computers
- Electric Heater and Baseboard Control: Supports operation and integration with electric heaters and baseboards
- Fresh Air Unit: Integrates control for fresh air intake systems
- External Temperature Sensor: Operates the electric heater based on external temperature conditions
- Motion Detector: Activates energy-saving modes based on room occupancy
- Power Line Selector: Operates with either 120V or 230V AC power sources
- On/off
- Set-point Modes Including: Cool, Heat, Dehumidify and Fan Only
- Fan Speed including: Low, Medium, High and Auto
- Power Supply: Operates on either 120V or 230V AC, 50/60 Hz
- Power Consumption: 7 VA
- Operating Environment: Functional between 40°F (5.3°C) and 158°F (70°C)
- Storage Environment: Stable between 0°F (-18°C) and 158°F (70°C) at 90% relative humidity (non-condensing)
- Relay Rating: Dry contact relay rated at 1 Amp
- Communication Protocols: MODBUS and BACnet over RS485 for BMS integration
-
Thermostat Connections:
• Ephoca LTCH20/TFTH20 Thermostats: Connected via 4 screw terminals
• Third-Party Thermostats: Connected via 7 screw terminals
- Control Settings: DIP switches configure mode of operation and bus address
- Fuse Protection: 0.3 Amp fuse
- Dimensions: 6" x 2.7" x 1" (152mm x 68mm x 25mm)
Third Party Gateway
The third-party gateway offers the ability to control AIO with any standard or smart thermostat. AIO’s BLDC inverter compressor can’t be controlled by a regular or smart thermostat that sends an on-off signal. The TPG sends signals from the connected standard or smart thermostat to AIO’s processor, controlling the inverter compressor.
- Enables all the benefits of a smart thermostat such as Nest™, Ecobee™ etc for timers, controls, etc.
- Included 24V power supply
- On/off
- Set-point Modes Including: Cool, Heat, Dehumidify and Fan Only
- Fan Speed including: Low, Medium, High and Auto
- Connections to thermostats include: R, C, Y, W, G1, G2, G3 and 24V power terminals
- Dimensions: W: 2.65’ x L: 3.54” x D: 1.5”
- Weight: 0.5 lb
- Gateway mounts inside AIO
- Included parts: Third-party gateway and Interface to AIO
- 3-year limited warranty
BACnet a Modbus Gateway
The BACnet and Modbus gateway enables building management systems (BMS) to control and monitor AIO’s functionality.
Note: This requires a gateway board (included) which must be field installed and connected using a quick connect cable to the AIO by a technician and takes approximately 10 minutes to install.
- Enables full control, status and reporting of AIO systems to BACnet and Modbus systems
- View error messages
- On/off
- Set-point
- Modes Including: Cool, Heat, Dehumidify, and Fan Only
- Fahrenheit or Celsius in single degree increments
- Fan Speed including: Low, Medium, High, and Auto
- Fresh air on/off
- Connection: IP/MSTP gateway
- Dimensions: W: 3.12” x L: 4.76” x H: 1.25”
- Interface mounts inside AIO
- Included parts: BACnet/Modbus interface and Interface to AIO
- 3-year limited warranty

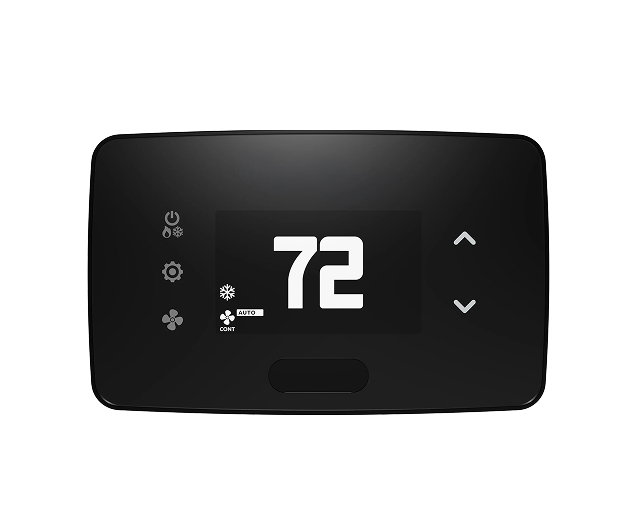

Wireless Energy Management Thermostat
with Built-in Occupancy Sensor
This smart thermostat has an integrated occupancy sensor that uses a combination of motion and thermal sensing technologies for accurate occupancy detection. Reliable occupancy detection allows for energy savings when rooms are unoccupied. Fully configurable energy saving settings allow for customization of the thermostat settings to fit any situation. Built-in wireless mesh-networking enables online management.
- Fingerprint-resistant glass ensures that your thermostat maintains a sleek and spotless appearance, even with daily use
- Effortlessly adjust temperature settings and access features with a simple tap
- Enjoy seamless control through a user-friendly interface, designed for intuitive navigation and personalized comfort
- Ensure optimal comfort and energy efficiency by setting personalized temperature schedules for each day of the week
- Modes include: Cool, Heat, Dehumidify, and Fan Only
- Fan Speed including: Low, Medium, High, and Auto
- Humidity control
- Fahrenheit or Celsius in single degree increments
- Mounting: Surface mounted Materials: Black Matte plastic frame
- Dimensions: W: 5.60 x 3.46” x 0.91
- Wireless 902-928MHz. 2 x 1.5VDC AA Alkaline Non-rechargeable Batteries - Not Supplied 24VAC or 12VDC
- Included parts: Controller and Interface to AIO
- 3-year limited warranty
