ERV Module
For Wall Mounted
and Wall Mounted Pro
The ERV module is designed for compatibility with the Wall Mounted and Wall Mounted Pro units. It attaches securely to the back of these units using the existing holes, so no additional openings are required. The ERV module is controlled and powered by the Wall Mounted and Wall Mounted Pro units. It features two MERV 13 filters to ensure clean air and provides up to 25 CFM of fresh air.
Key Features
- Compact unit
- Easy to install
- Paintable sleek cabinet
- Controlled and powered by Wall Mounted or Wall Mounted Pro
- Auto-restart
- MERV13 filters
Mounting
- High wall
- Low wall
- Sidewall with adapter
Operation
- Cool, heat, dehumidify, and auto
- Selectable fan speeds, low, med, high, and auto
- Fresh air ERV - field configurable amount of fresh air (with optional ERV Module)
Airflow
- Up to 25 CFM
Included Controls
- Controlled by the Wall Mounted or Wall Mounted Pro

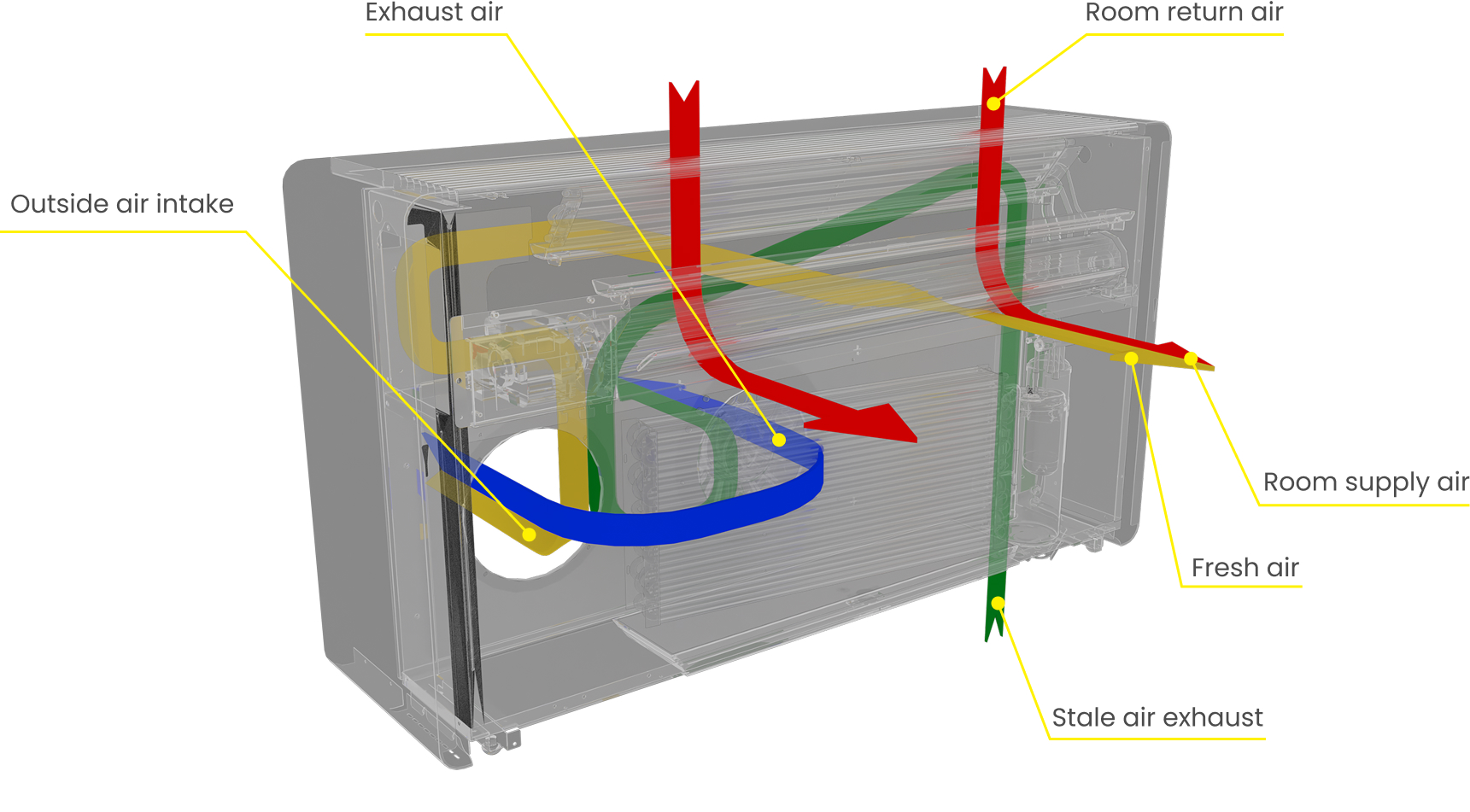

Airflow
AIO ERV Module is extraordinarily flexible in how it can externally vent as it uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
Outside air intake
The 6 or 8-inch round outside air intake connection uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
Outside air exhaust
The 6 or 8-inch round exhaust connection uses the same vents and or adapters as the AIO Wall Mounted or Wall Mounted Pro.
- Outside air
- Recirculate air
- Fresh air intake
- Stale air exhaust

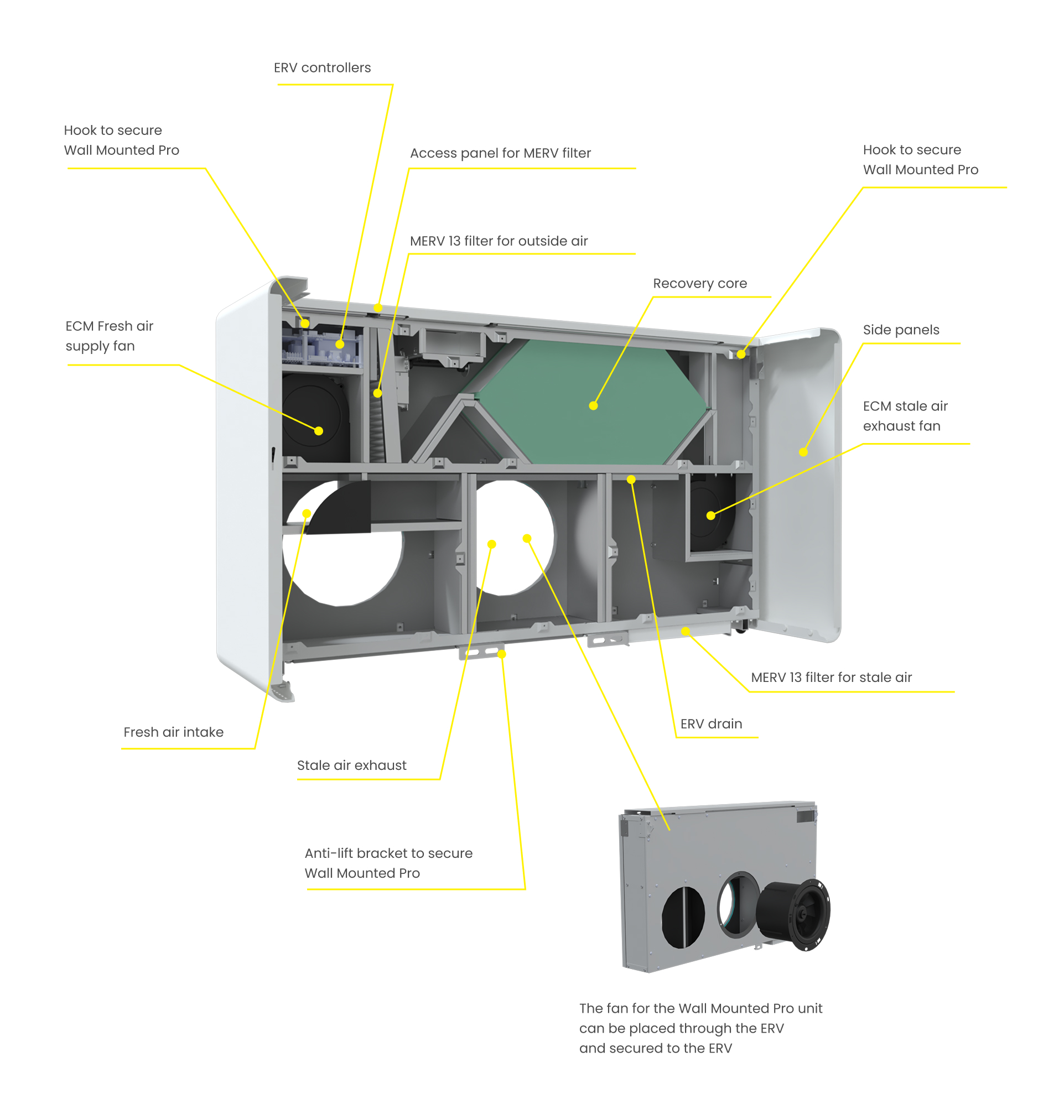

What's Inside
Combining with Wall Mounted Pro

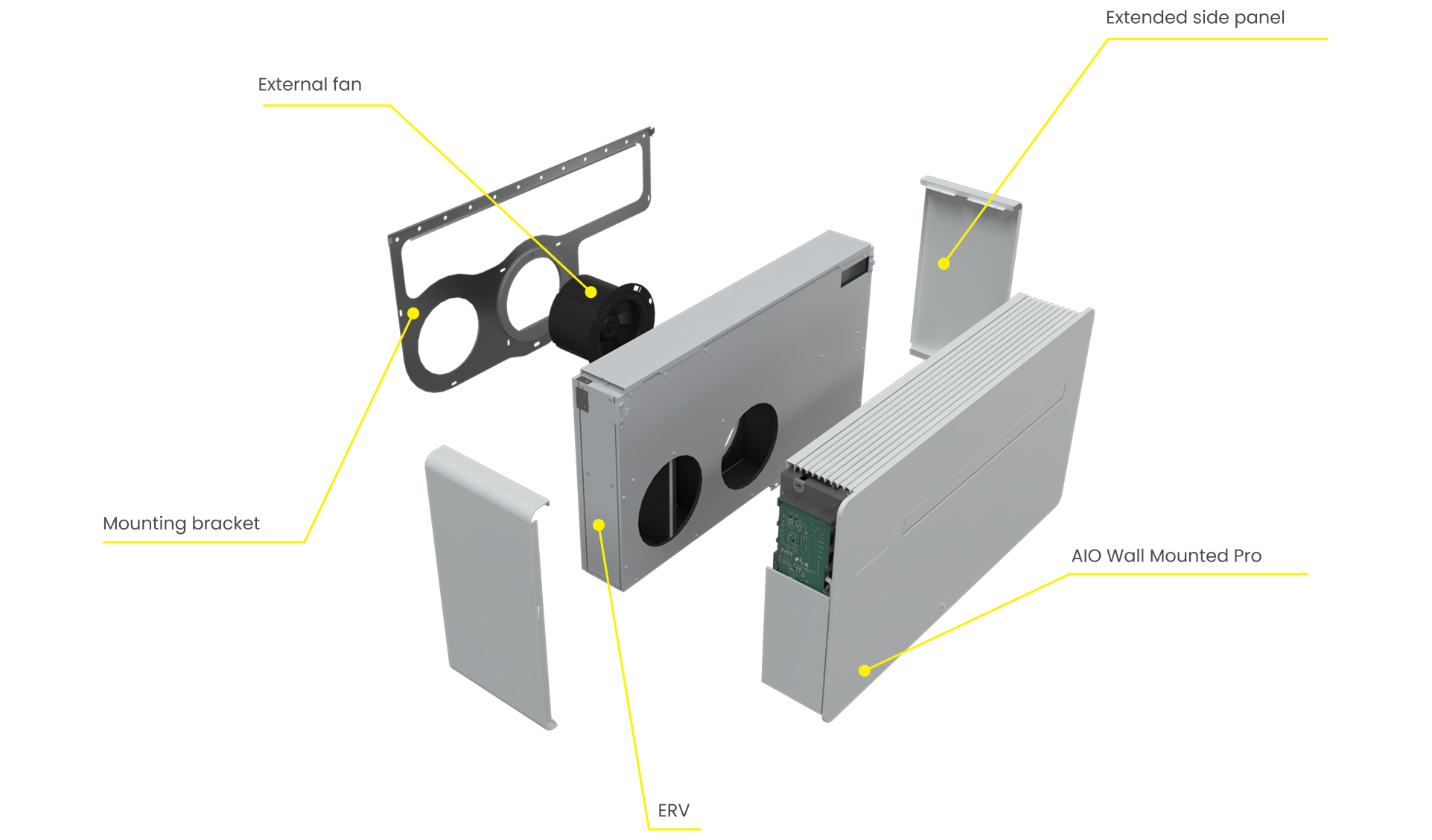

Fan in wall option
Fan in ERV option
Combining with Wall Mounted Standard

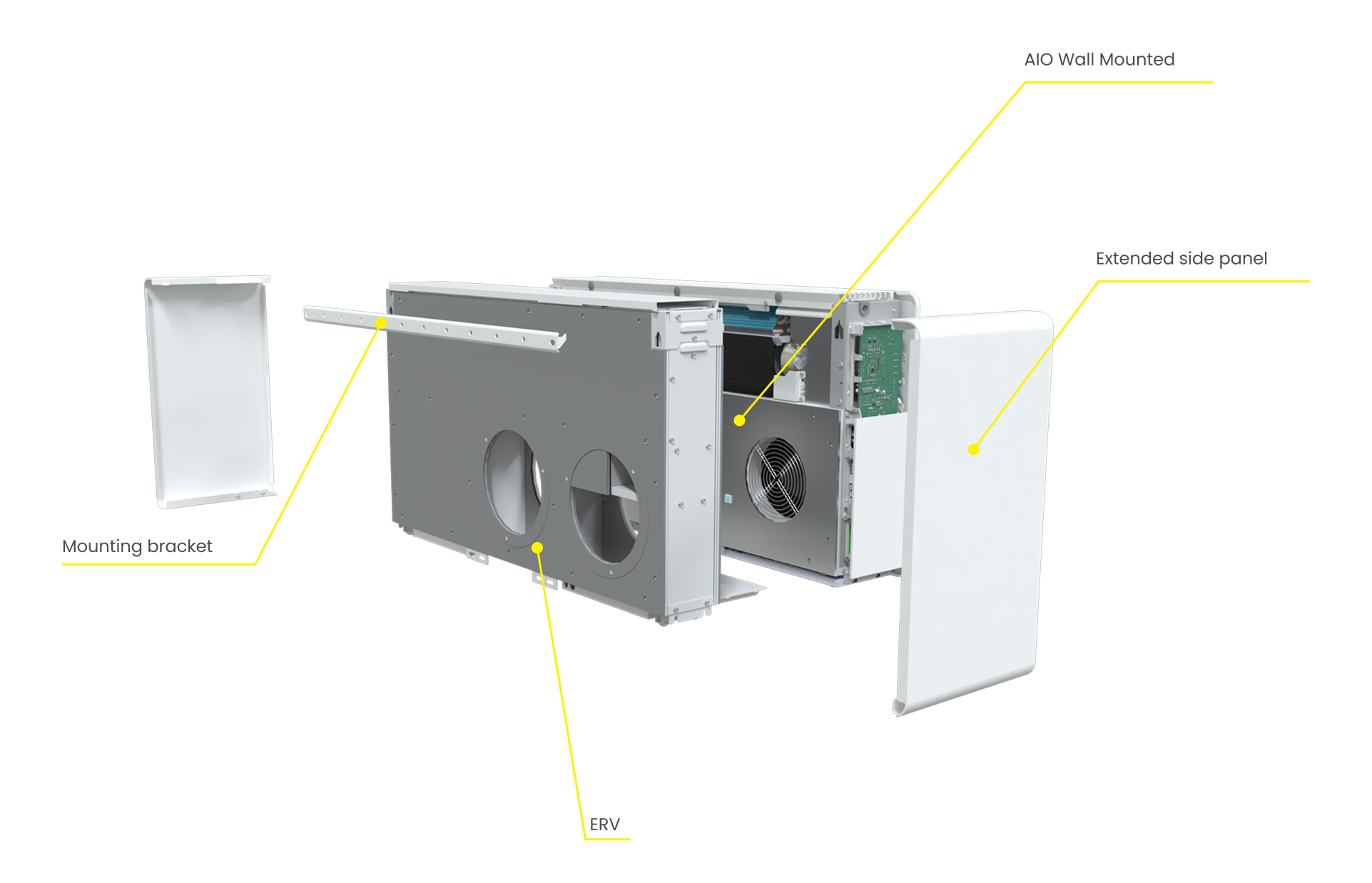

Rear view

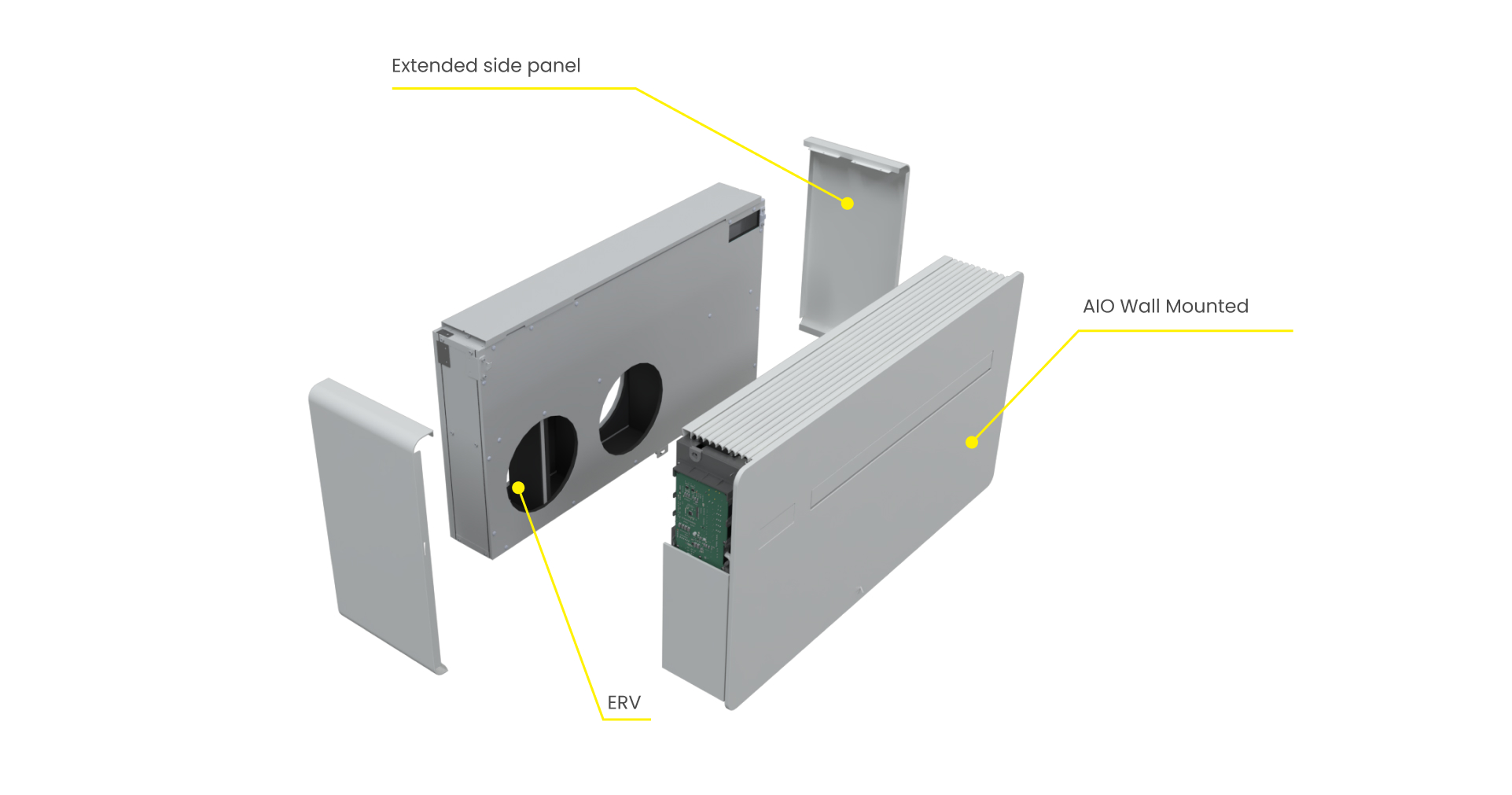

Front view
Technical Specifications

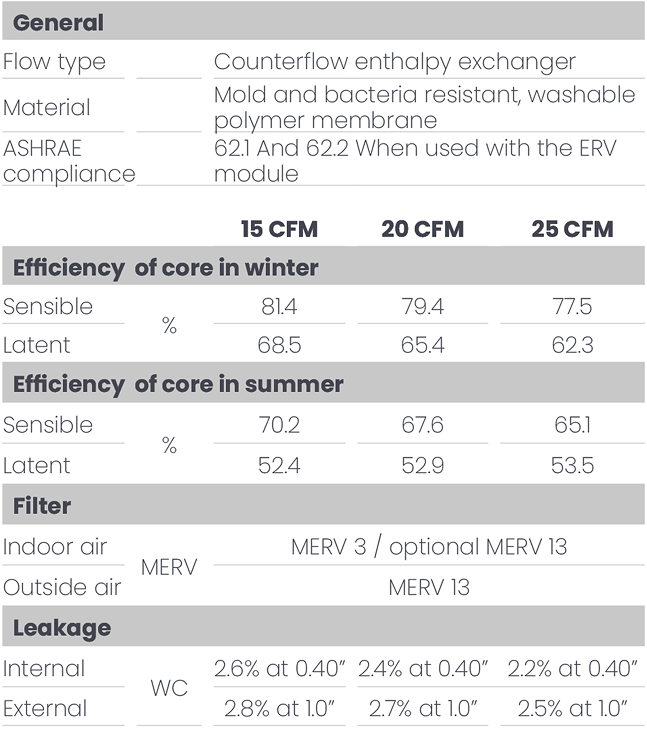

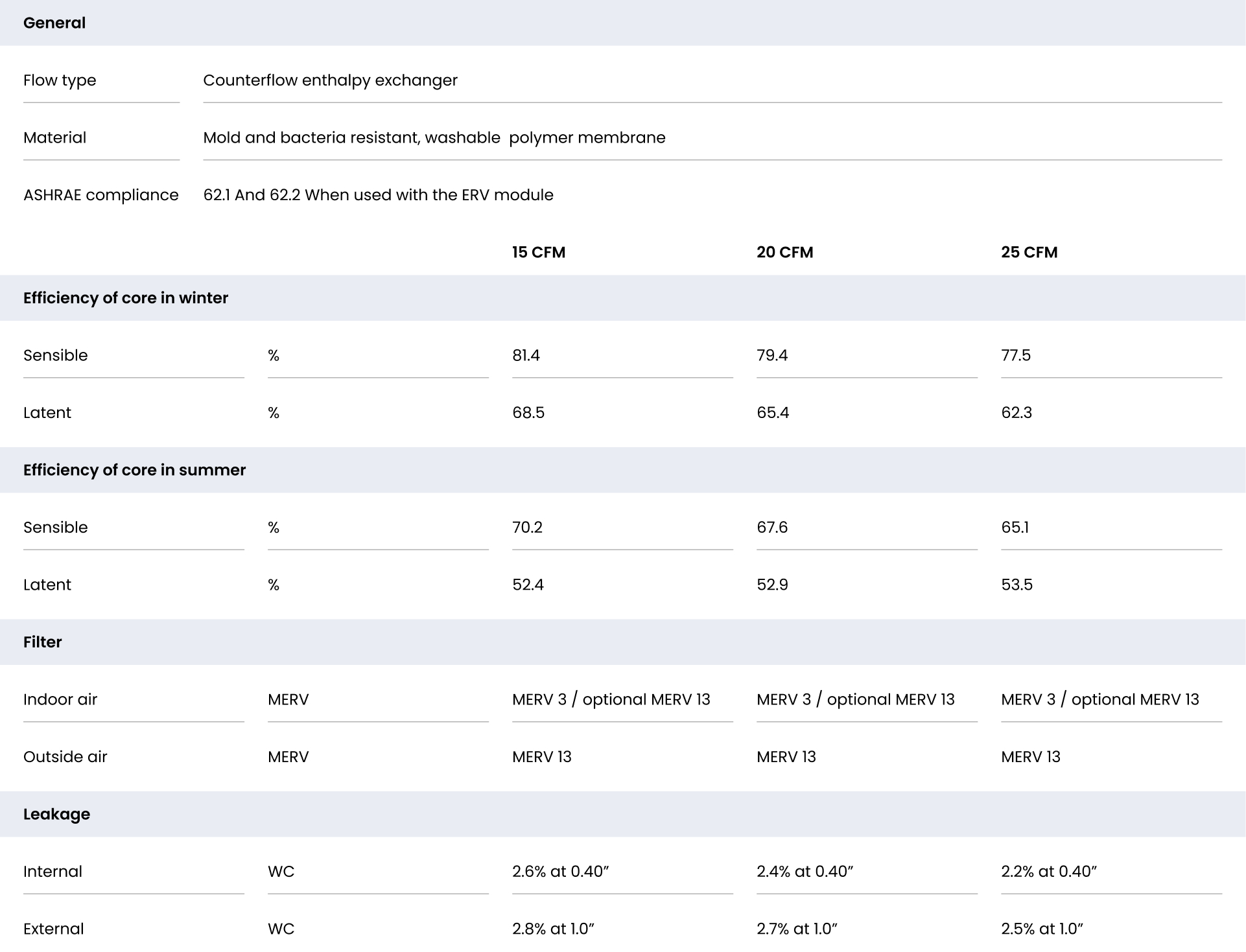

Core

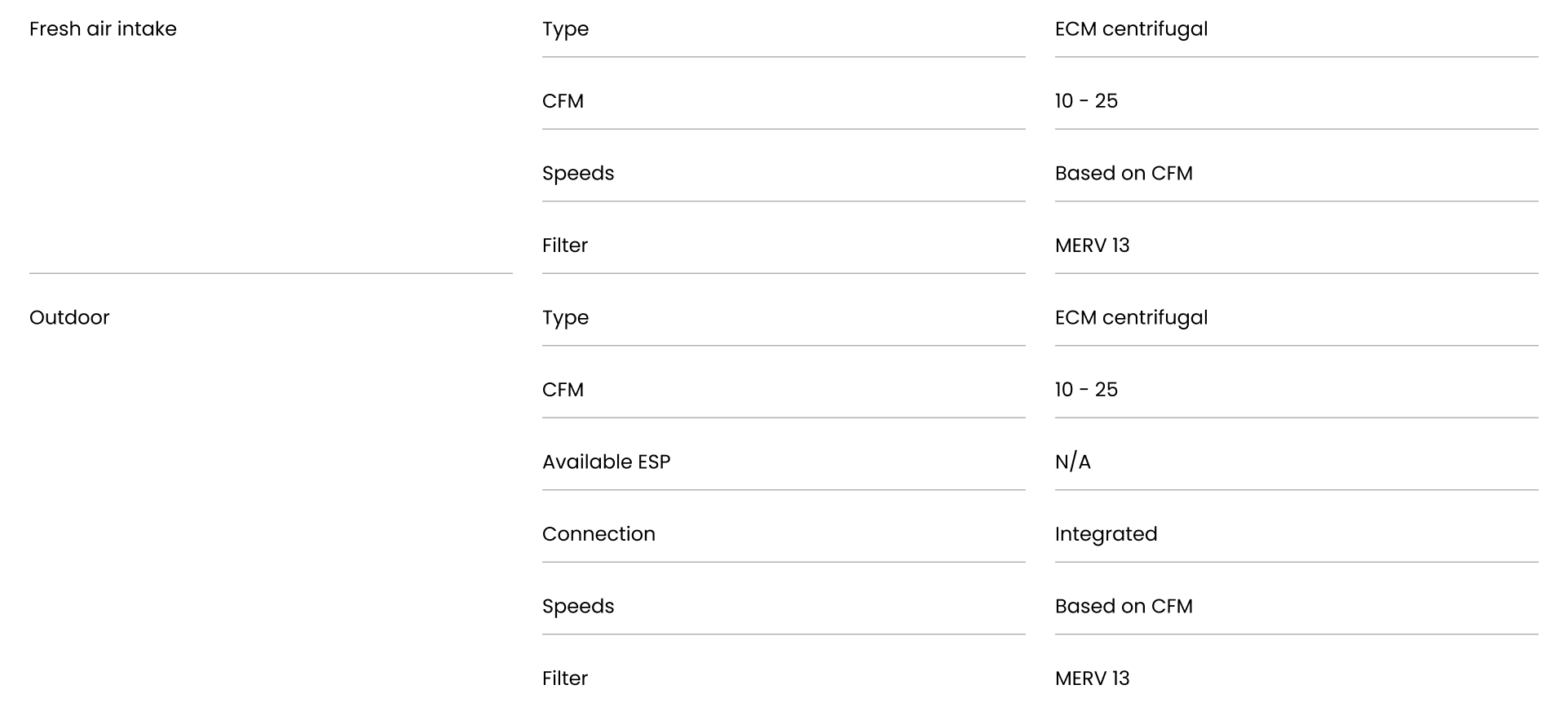

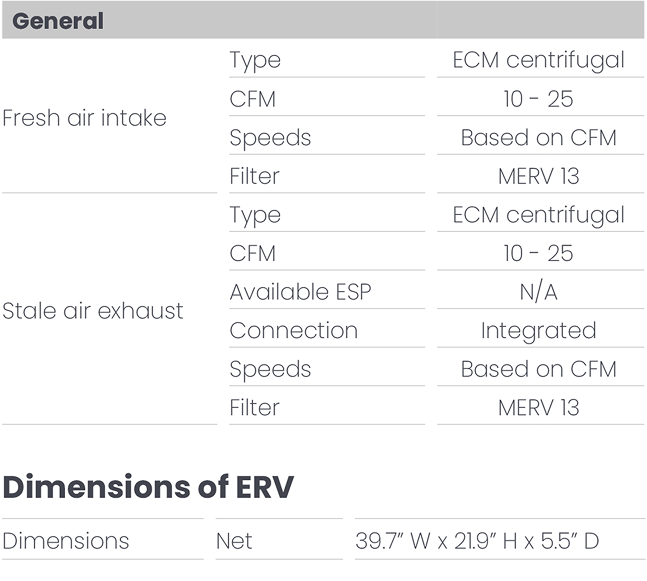

Airflow

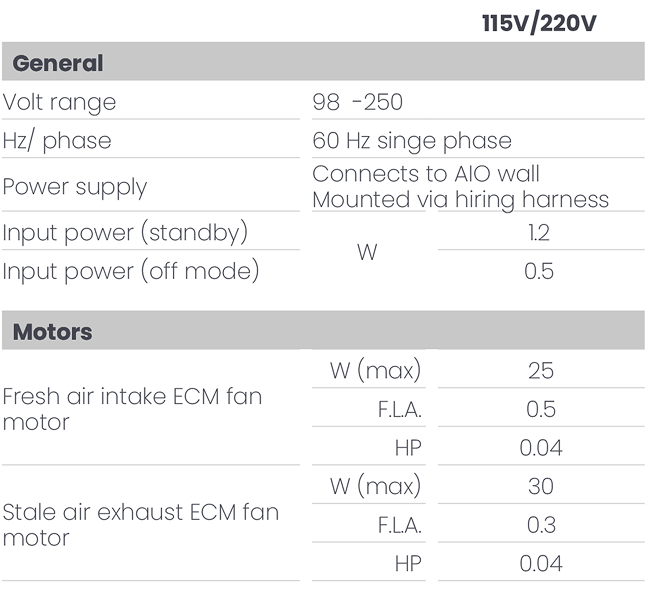

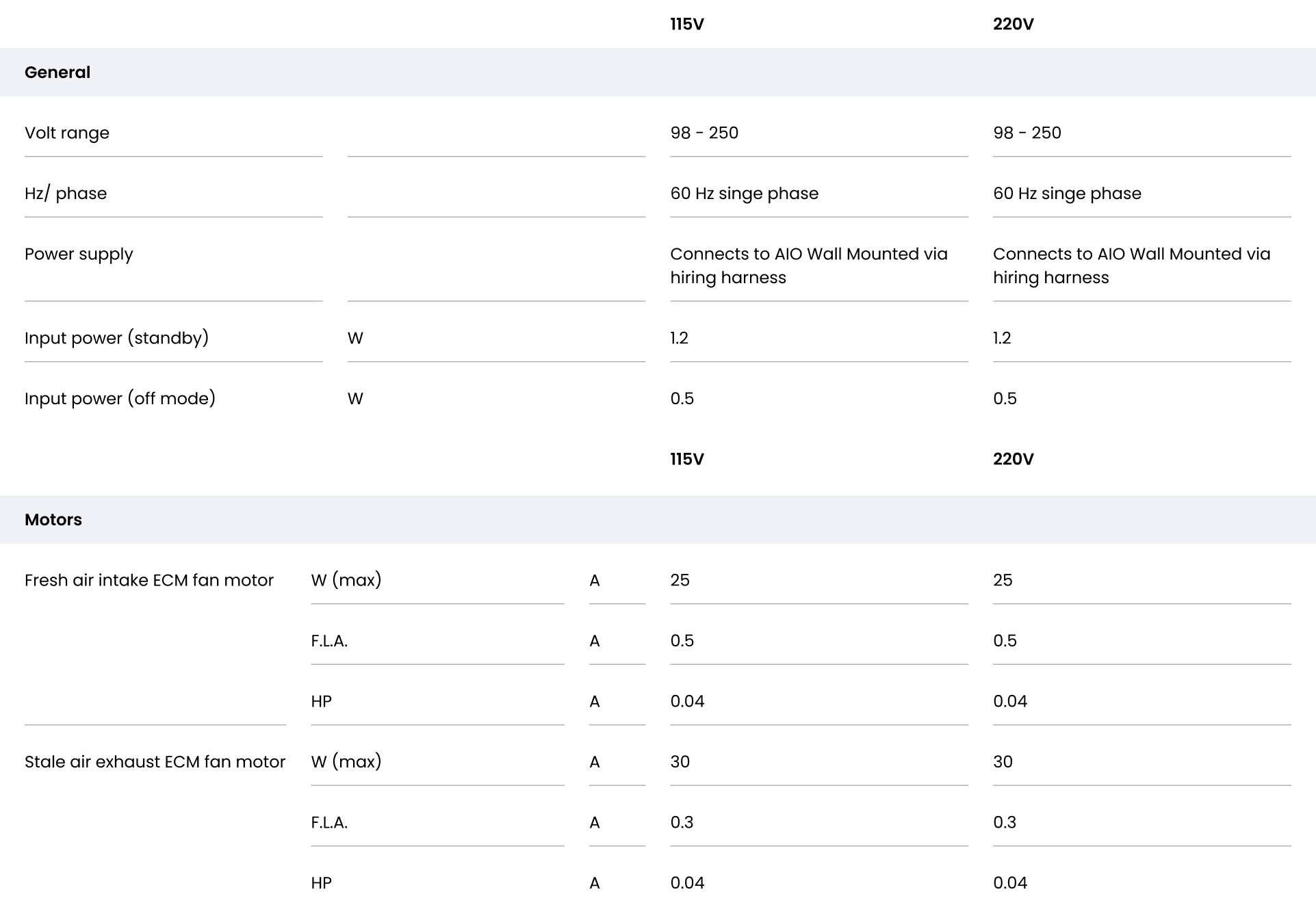

Electrical

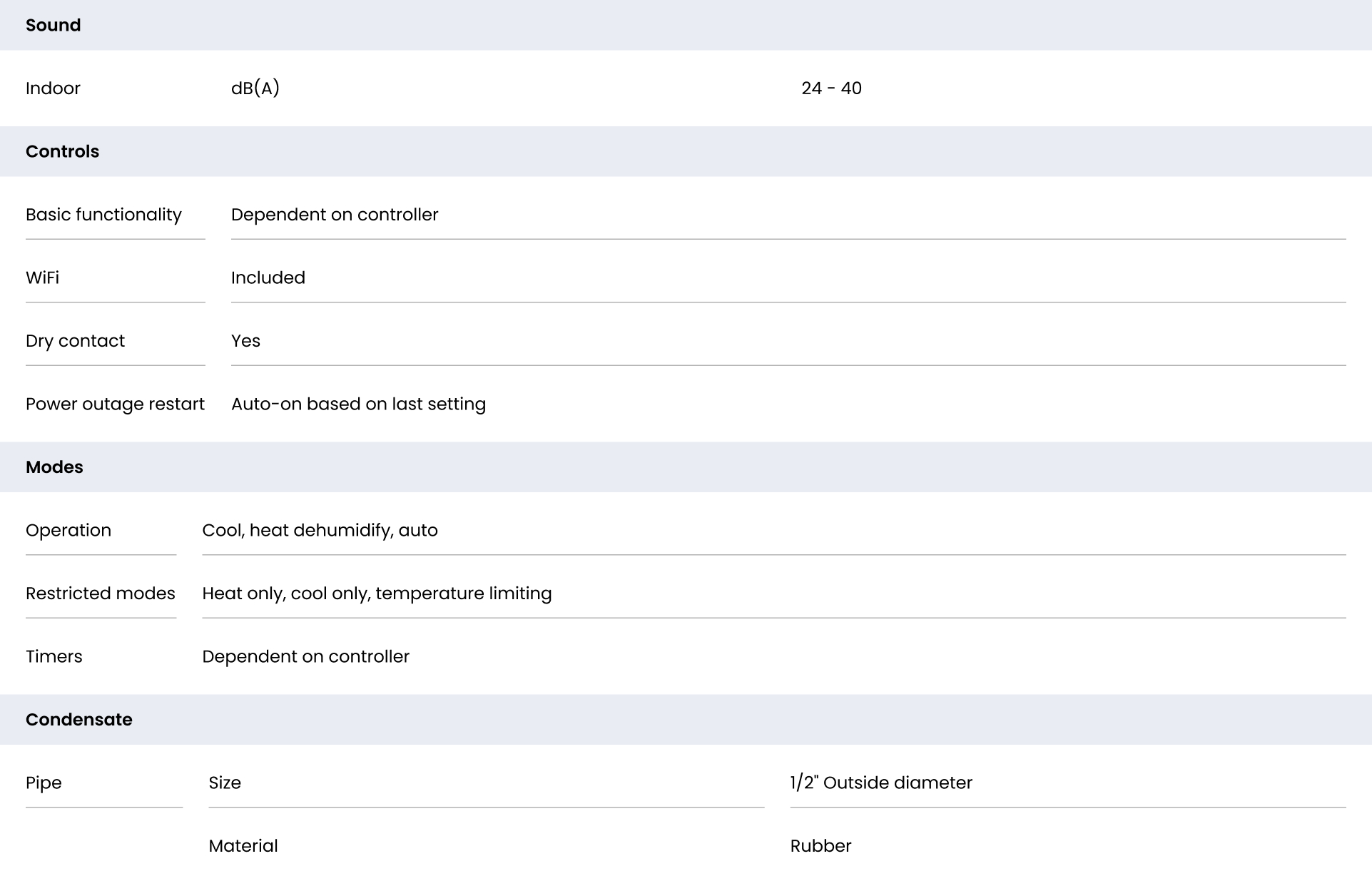

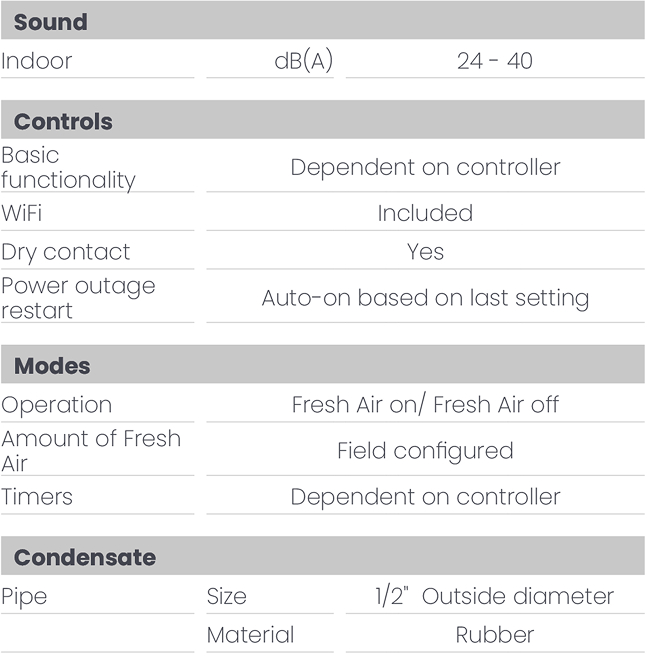

General

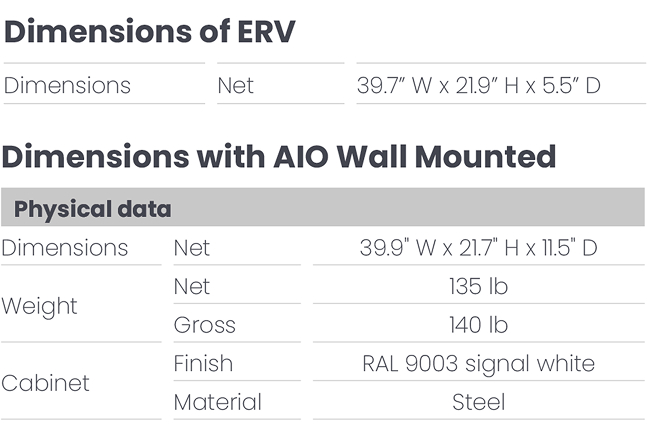

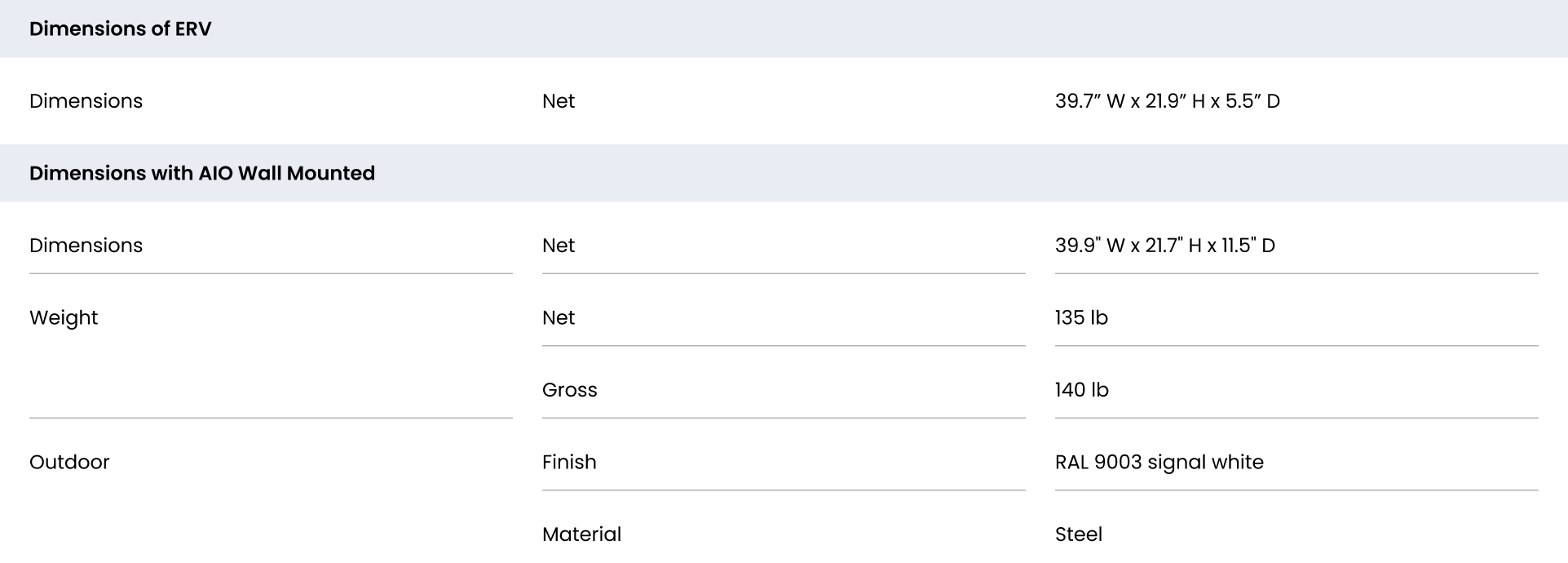

Dimensions
